Art.-Nr. WLHS-A S

Holm support for WL profile rail

Wide-span rail support (profile rail)

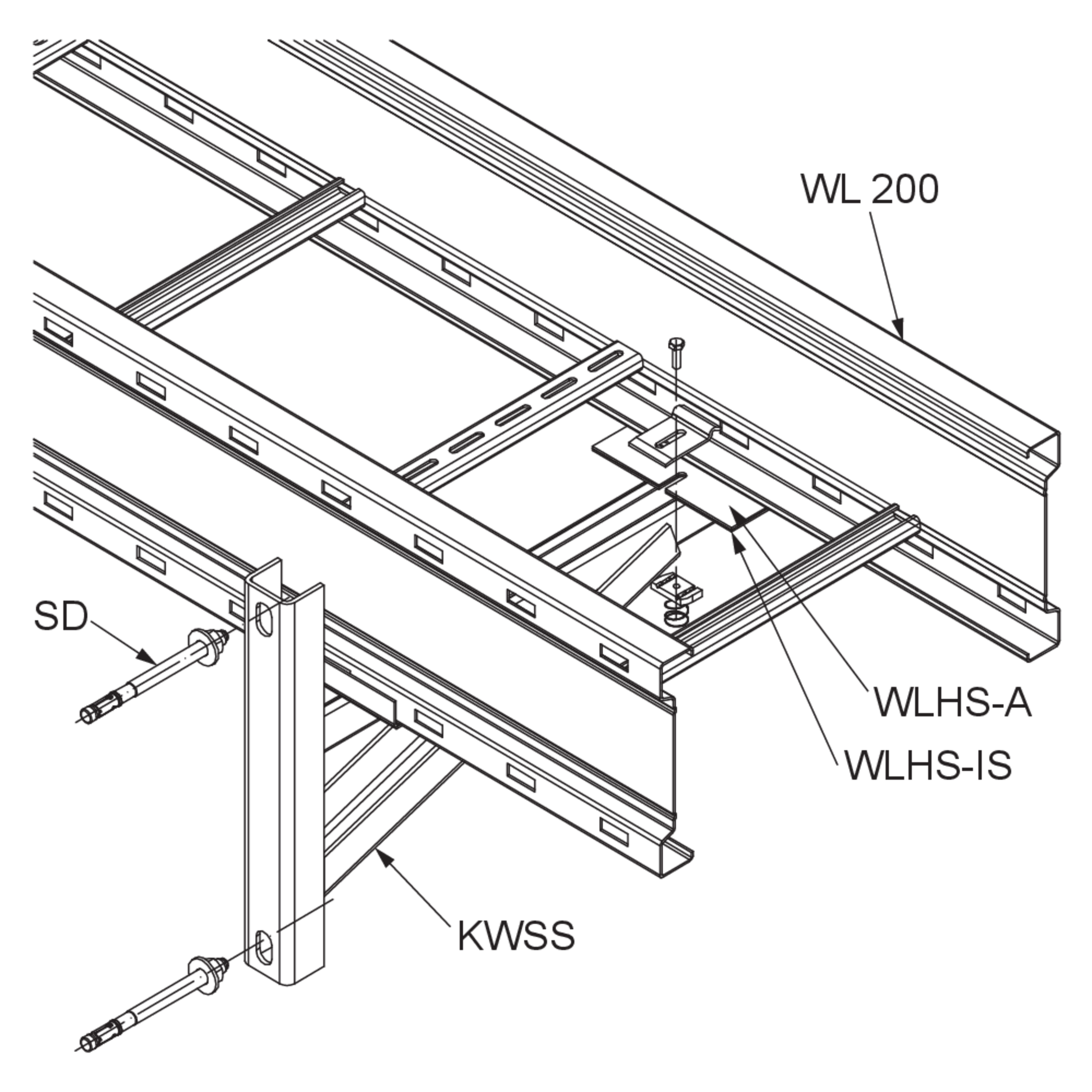

The WLHS-A wide-span rail supports are used to secure WL and WLR 200 wide-span trusses to C-sections. A range of materials and finishes ensures that the corrosion protection requirements of a wide variety of applications are met.

Art.-Nr.
WLHS-A S
height
25 mm
width
73 mm
length
150 mm
material thickness
2 mm
Weight per storage unit
0.310 kg
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

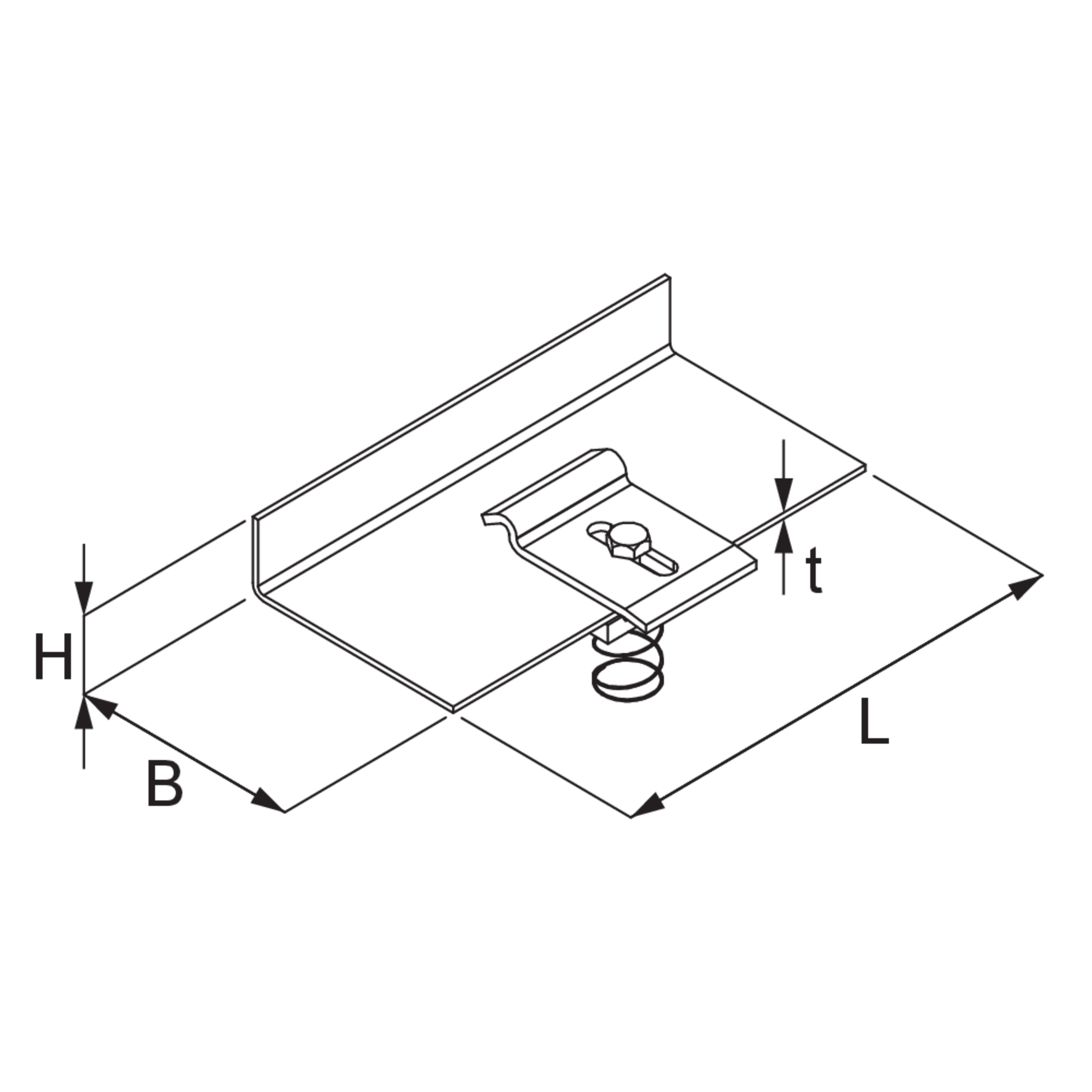

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • WLHS-A S
    Holm support for WL profile rail
    height
    25 mm
    width
    73 mm
    length
    150 mm
    material thickness
    2 mm
    Weight per storage unit
    0.310 kg
    Included accessories
    More information

Steel, hot-dip galvanised

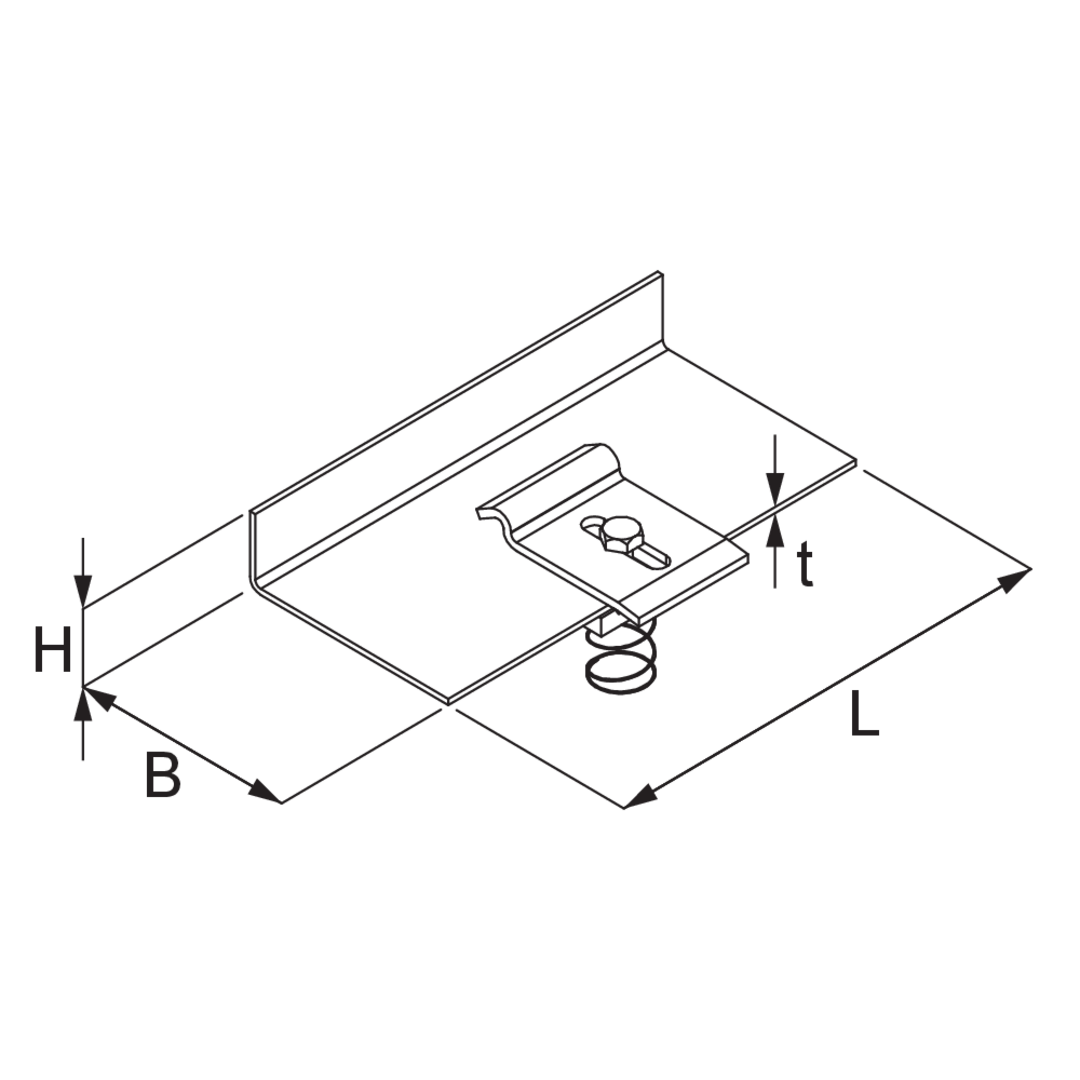

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

Included accessories
  • WLHS-A F
    Holm support for WL profile rail
    height
    25 mm
    width
    73 mm
    length
    150 mm
    material thickness
    2 mm
    Weight per storage unit
    0.314 kg
    Included accessories
    More information

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Included accessories
