UVB 3

Vertical bend, three sections

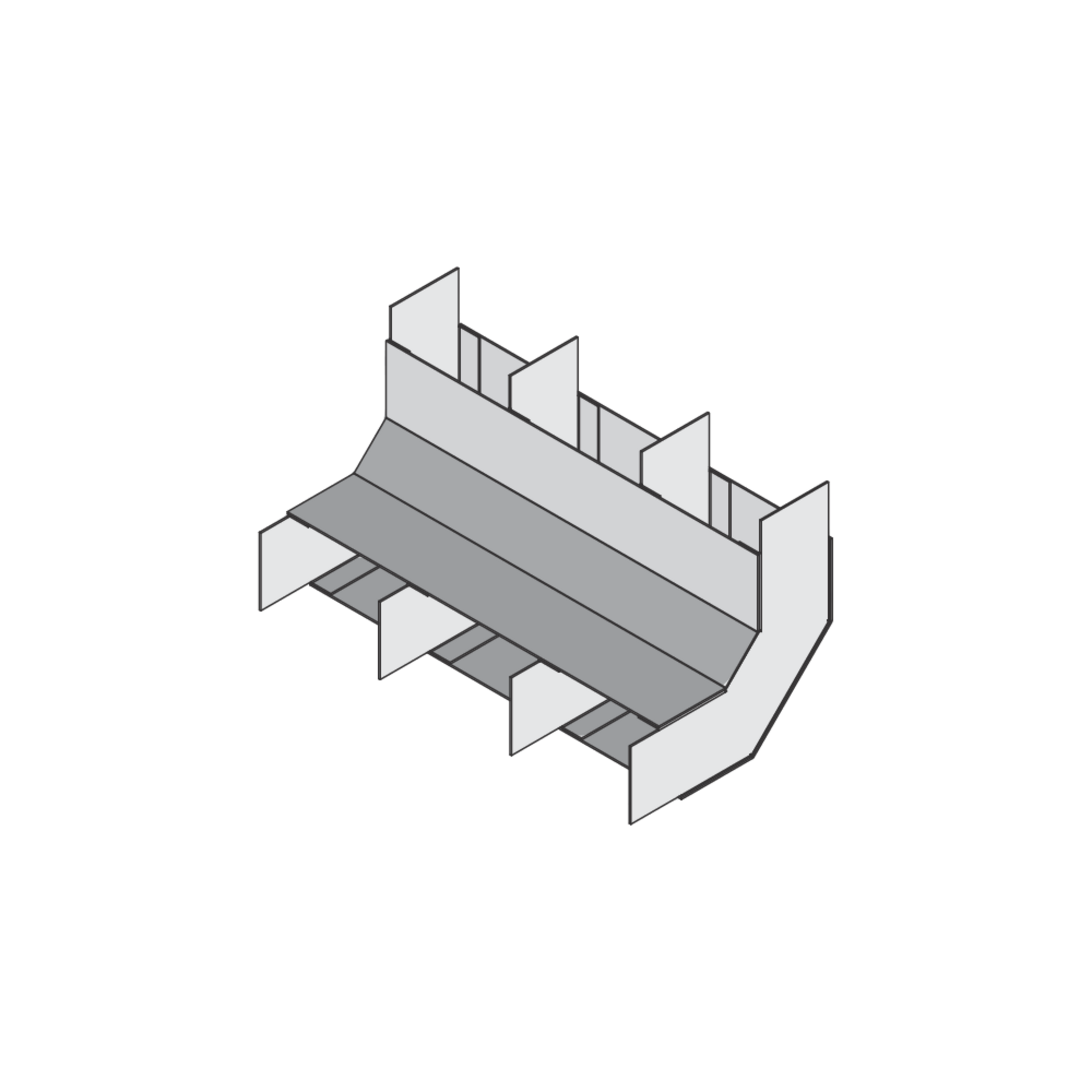

UVB 3 components are three-section vertical bends with two separating strips. They are used to install screed-covered duct systems. They are manufactured as a closed rectangular profile with a 90° angle and are mounted on the raw slab with the multi-channel duct sections. The bends are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346. The upper and lower parts are permanently connected together at the factory. UVB 3 components have a VDE/TÜV approval according to DIN EN 50085.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

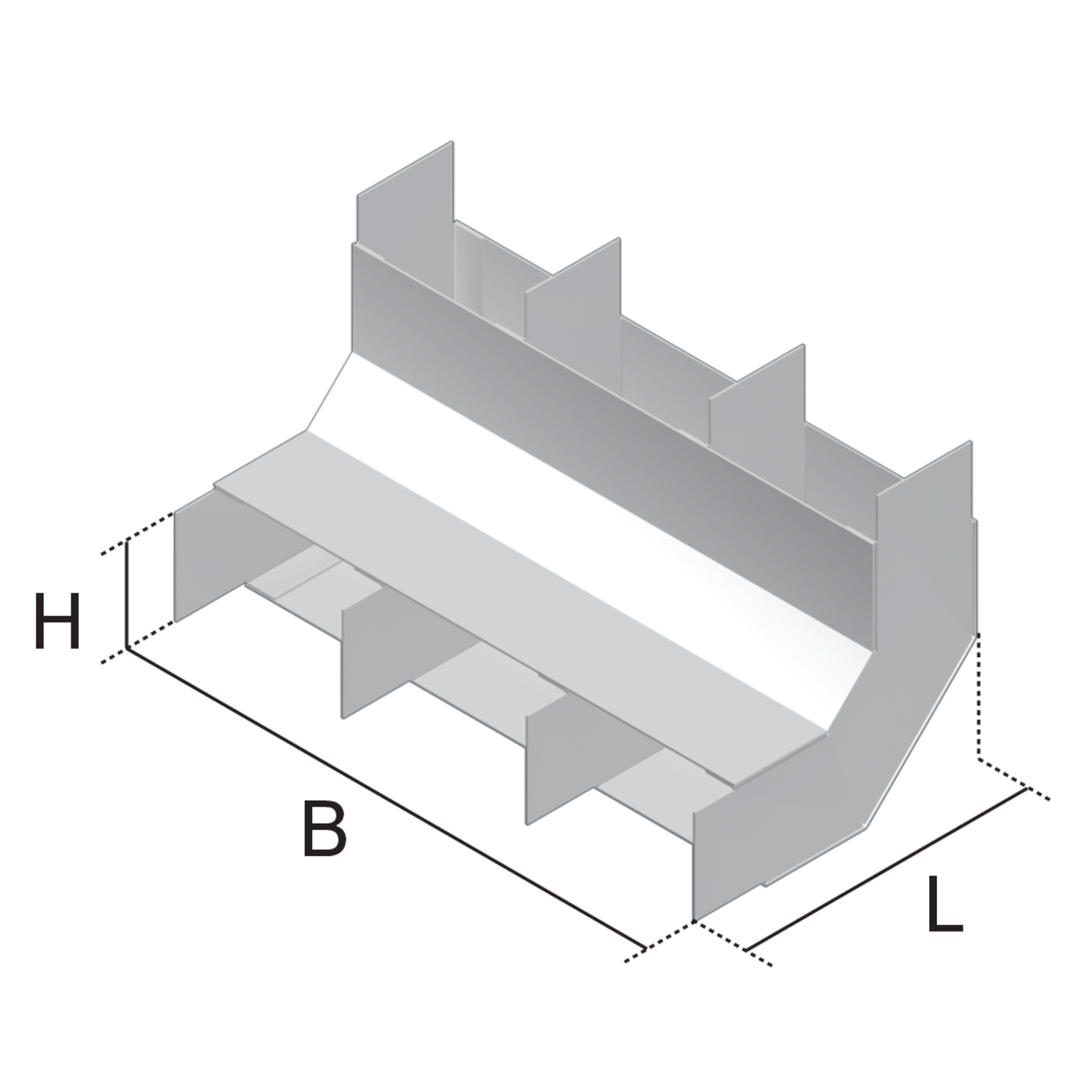

Article

H

height

B

width

L

length

direction

Direction change

W

Angle

G

Weight per storage unit

  • UVB 3-28-250S
    vertical bend UVB 3-28-250S,
    height
    29 mm
    width
    246 mm
    length
    132 mm
    Direction change
    vertical
    Angle
    90°
    Weight per storage unit
    0.939 kg
    More information
  • UVB 3-28-350S
    vertical bend UVB 3-28-350S,
    height
    29 mm
    width
    346 mm
    length
    132 mm
    Direction change
    vertical
    Angle
    90°
    Weight per storage unit
    1.204 kg
    More information
  • UVB 3-38-250S
    vertical bend UVB 3-38-250S,
    height
    39 mm
    width
    246 mm
    length
    132 mm
    Direction change
    vertical
    Angle
    90°
    Weight per storage unit
    0.955 kg
    More information
  • UVB 3-38-350S
    vertical bend UVB 3-38-350S,
    height
    39 mm
    width
    346 mm
    length
    132 mm
    Direction change
    vertical
    Angle
    90°
    Weight per storage unit
    1.207 kg
    More information
  • UVB 3-48-250S
    vertical bend UVB 3-48-250S,
    height
    49 mm
    width
    246 mm
    length
    132 mm
    Direction change
    vertical
    Angle
    90°
    Weight per storage unit
    0.979 kg
    More information
  • UVB 3-48-350S
    vertical bend UVB 3-48-350S,
    height
    49 mm
    width
    346 mm
    length
    132 mm
    Direction change
    vertical
    Angle
    90°
    Weight per storage unit
    1.218 kg
    More information

Details

  • VDE/TÜV approval according to DIN EN 50085
