Art.-Nr. UV-W0 6K

WAGO distributor box, inlet

Distributor box, WAGO

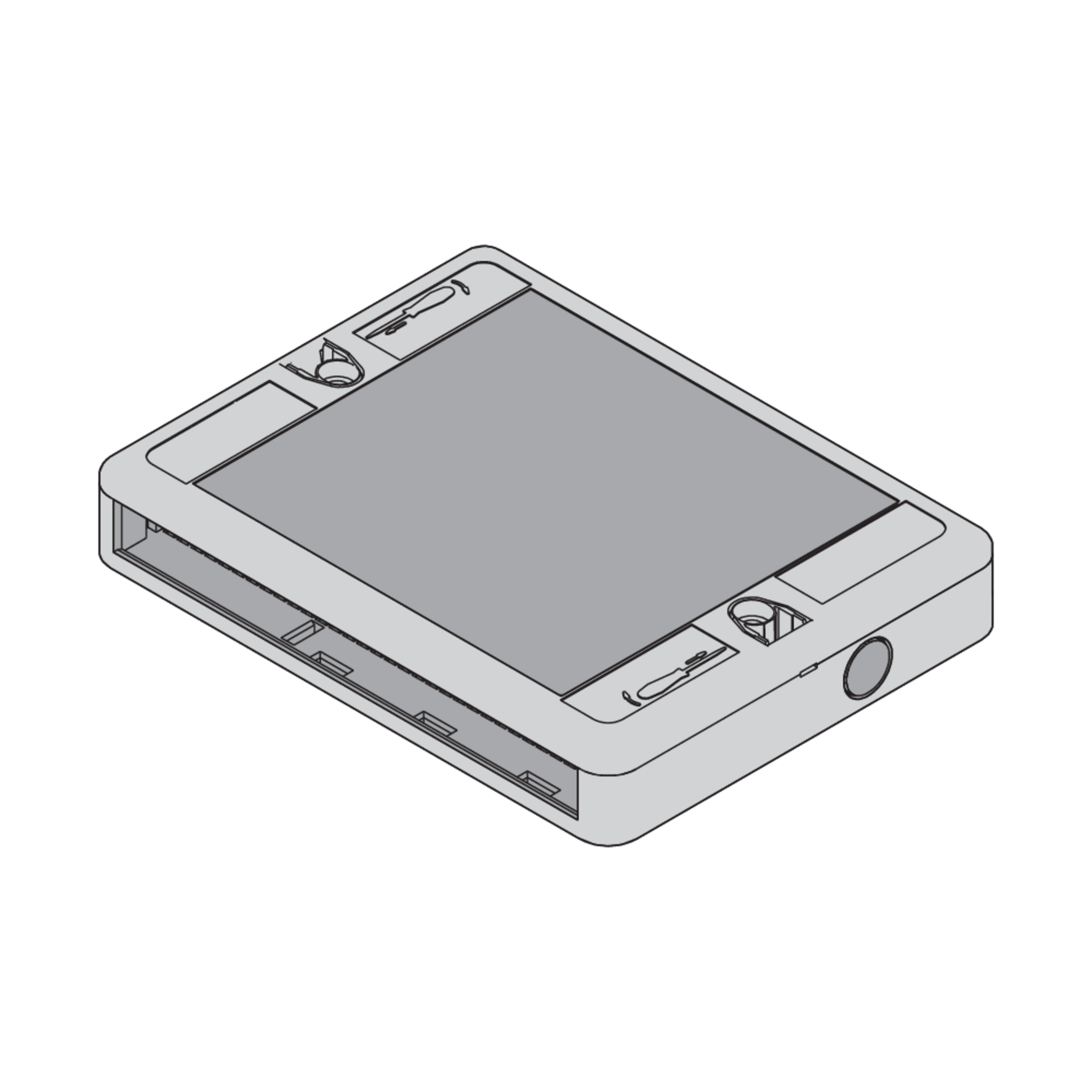

UV components are distribution boxes from the WAGO WINSTA MIDI system. The underfloor distributors are wired on a three-phase circuit and can be equipped with self-locking quick-assembly connectors and locking latches for connecting plug or socket parts. They are made of polyamide. The rated voltage/current corresponds to 250/400 V up to 16/25 A.

Art.-Nr.
UV-W0 6K

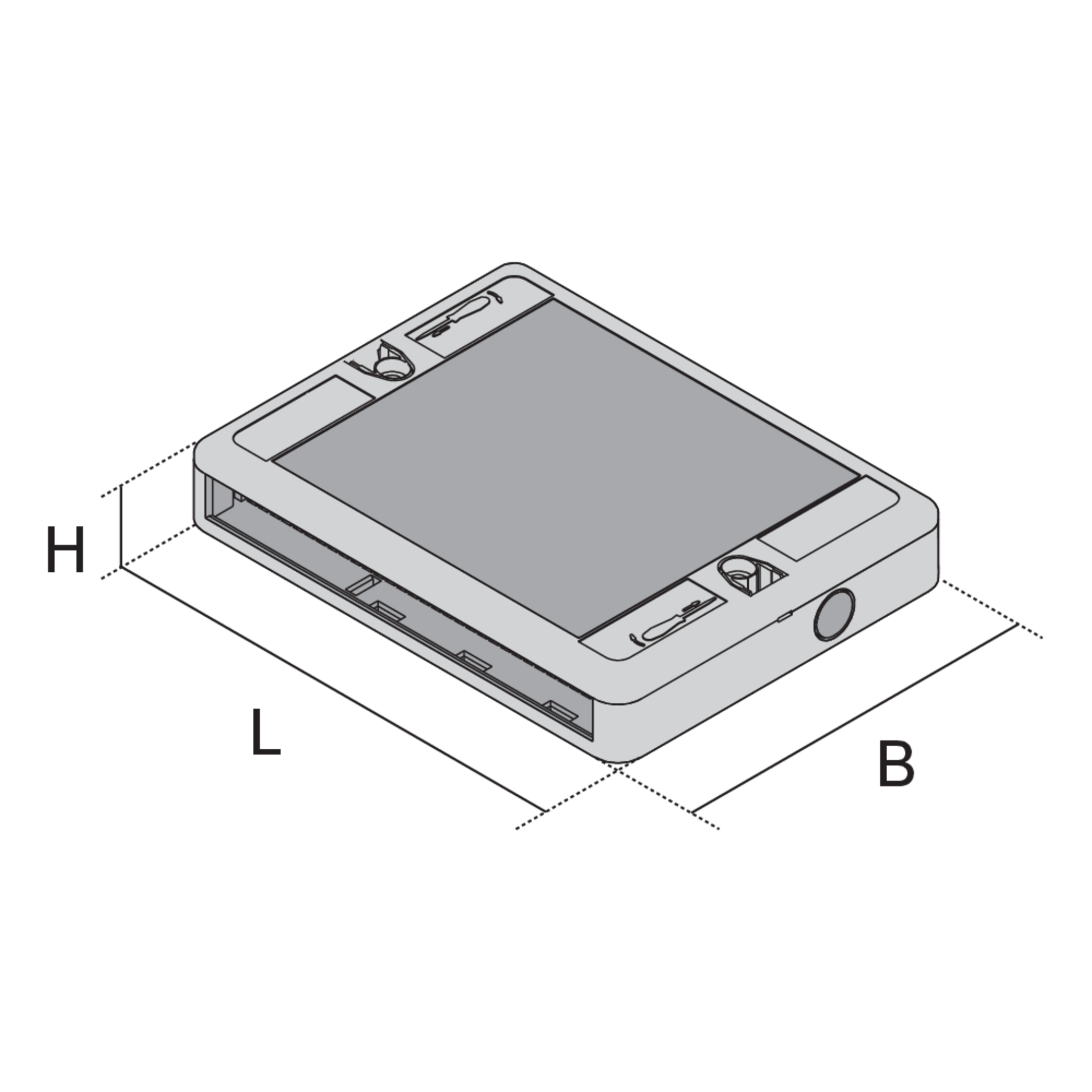

height
30 mm
width
145 mm
length
190 mm
Output
6x3-polig
Input
1x Klemme
color
white
Weight per storage unit
0.446 kg
Get in touchDownload datasheet

Variants

Article

H

height

B

width

L

length

Output

Output

Input

Input

colour

color

G

Weight per storage unit

  • UV-S 6K
    WAGO distributor box, inlet 1x5-pole,
    height
    30 mm
    width
    145 mm
    length
    190 mm
    Output
    6x3-polig
    Input
    2x5-polig
    color
    black
    Weight per storage unit
    0.474 kg
    More information
  • UV-S0 6K
    WAGO distributor box, inlet
    height
    30 mm
    width
    145 mm
    length
    190 mm
    Output
    6x3-polig
    Input
    1x Klemme
    color
    black
    Weight per storage unit
    0.446 kg
    More information
  • UV-W 6K
    WAGO distributor box, inlet 1x5-pole,
    height
    30 mm
    width
    145 mm
    length
    190 mm
    Output
    6x3-polig
    Input
    2x5-polig
    color
    white
    Weight per storage unit
    0.468 kg
    More information
  • UV-W0 6K
    WAGO distributor box, inlet
    height
    30 mm
    width
    145 mm
    length
    190 mm
    Output
    6x3-polig
    Input
    1x Klemme
    color
    white
    Weight per storage unit
    0.446 kg
    More information
