Socket component, WAGO

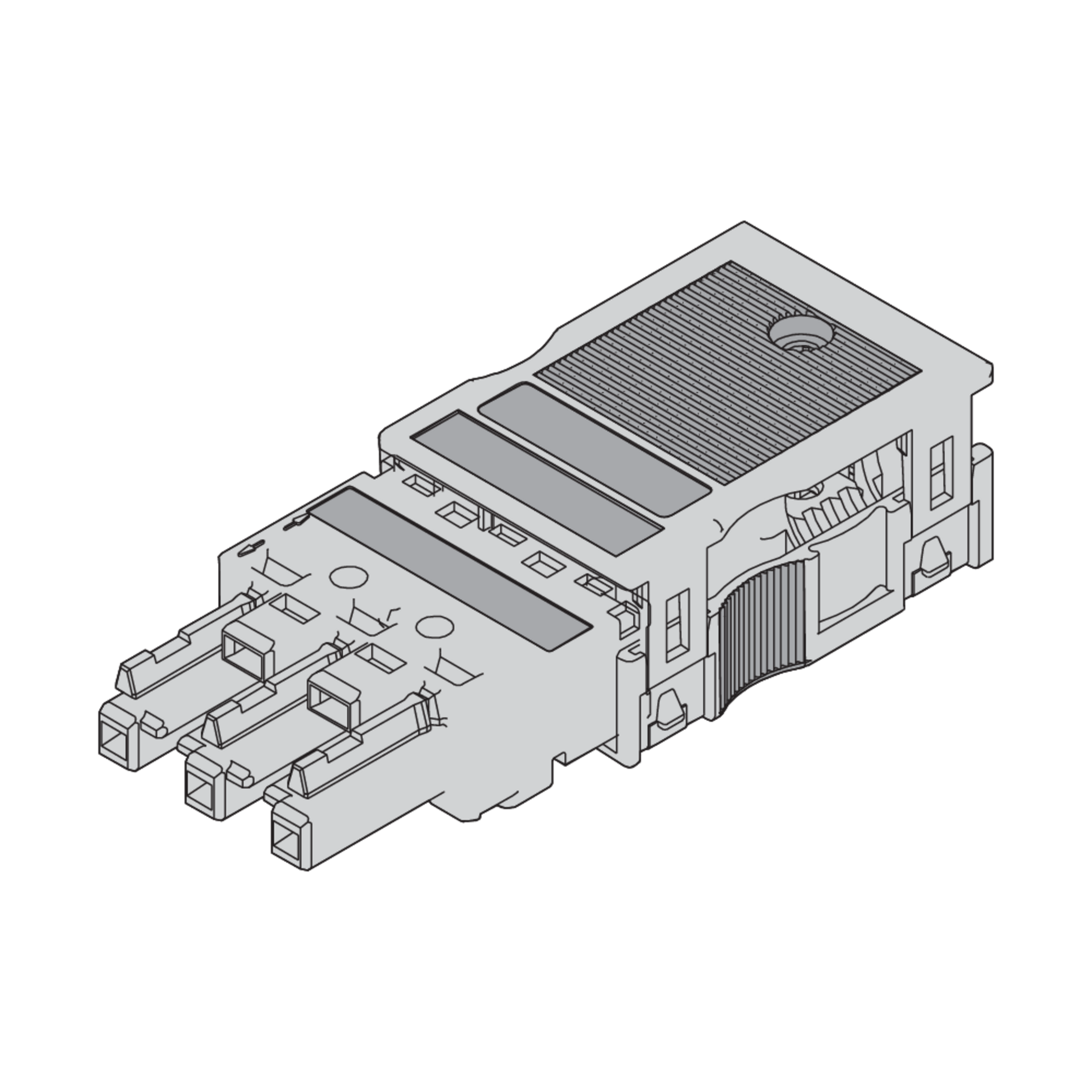

UVBU-3PK components are socket parts from the WAGO WINSTA MIDI system. The connectors are composed of a strain relief housing with a 3-pole output and a screwless plug-in connection. They are used to connect fine-stranded conductors with a connection cross-section of 0.5 to 4.0 mm² or multi-stranded conductors with a connection cross-section of 0.5 to 2.5 mm². Suitable for 250 V/4 kV/25 A.

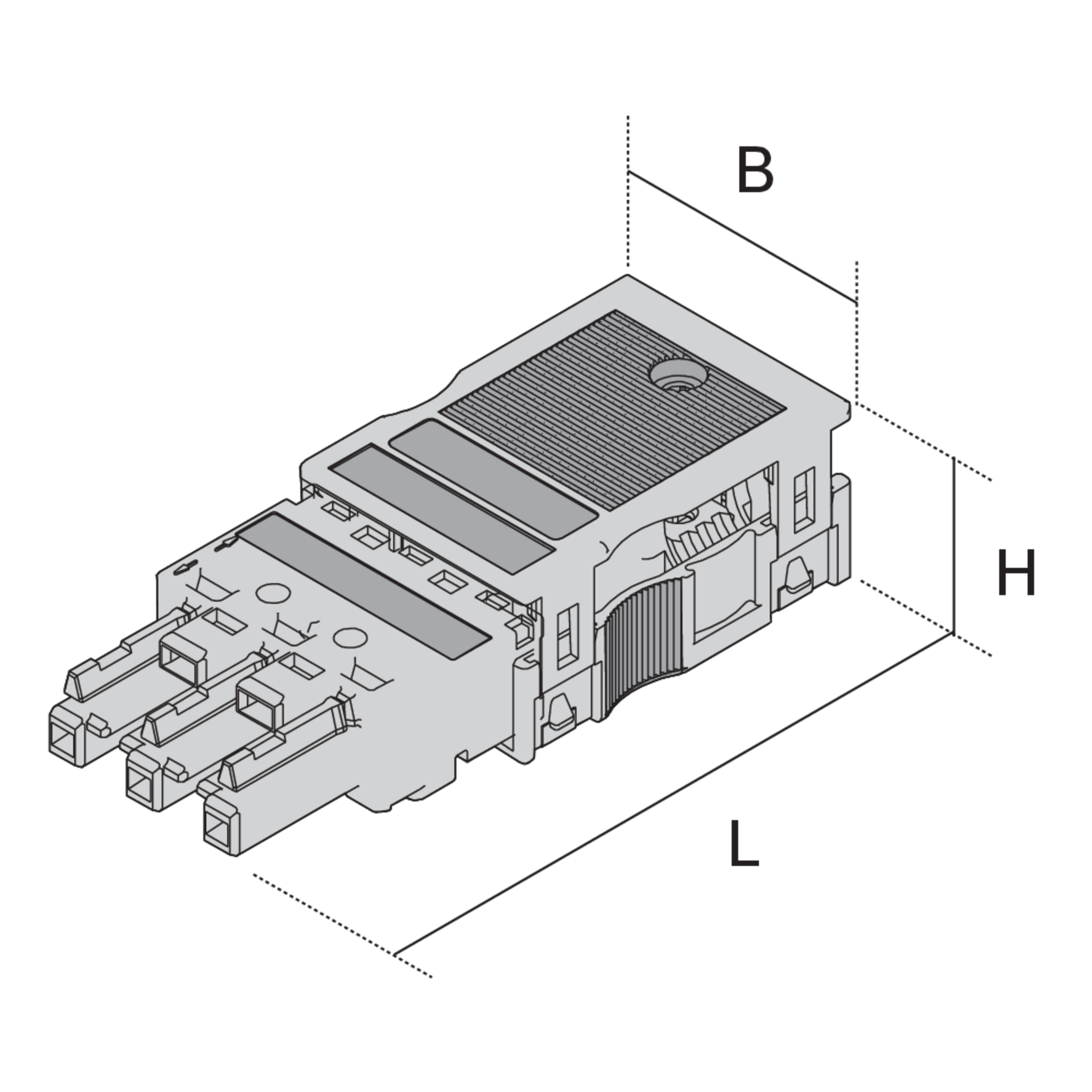

H
height
B
width
L
length
AQ
Connection cross-section
Output
Output
colour
color
G
Weight per storage unit
