Art.-Nr. UST45-R 3

shockproof socket,

Socket, 3x

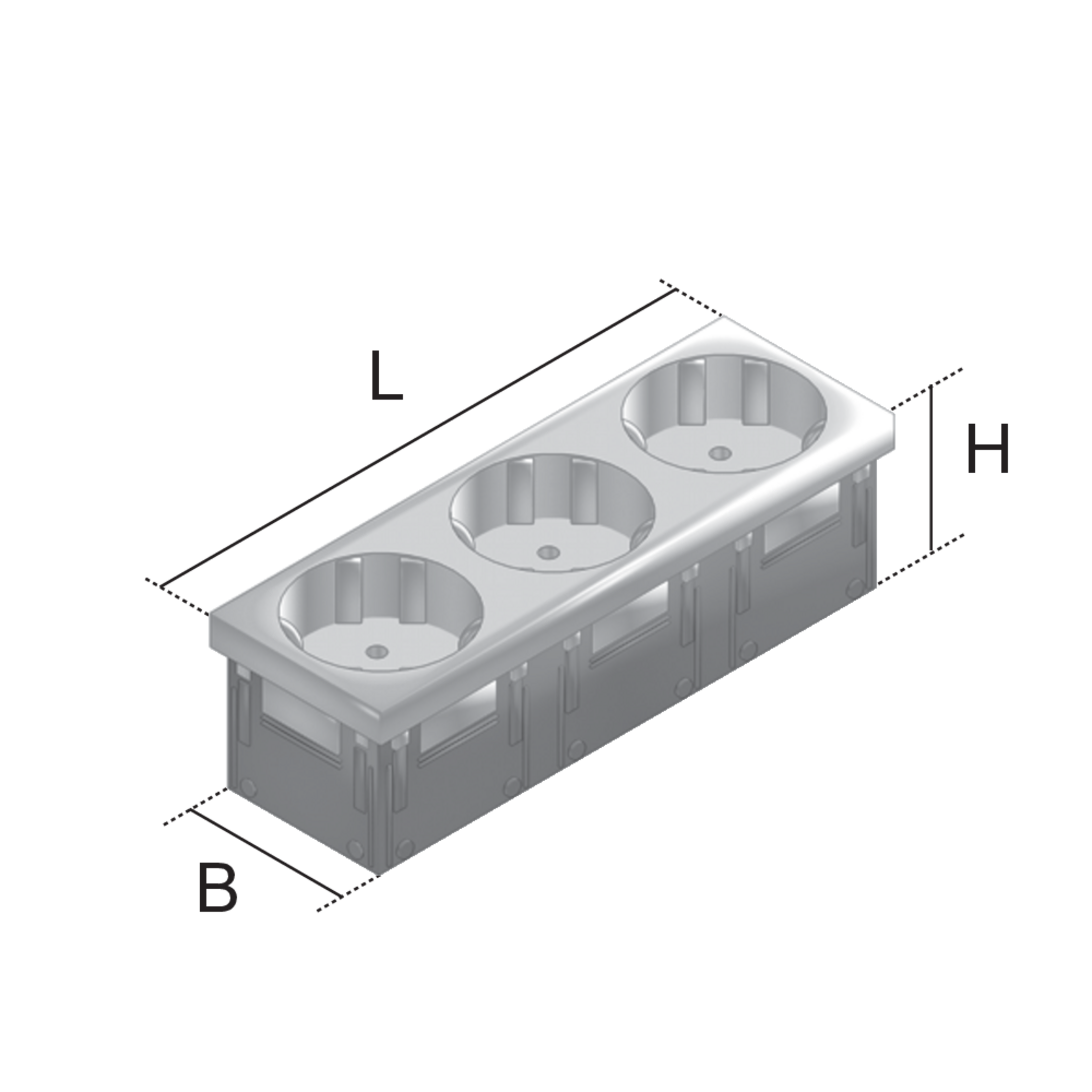

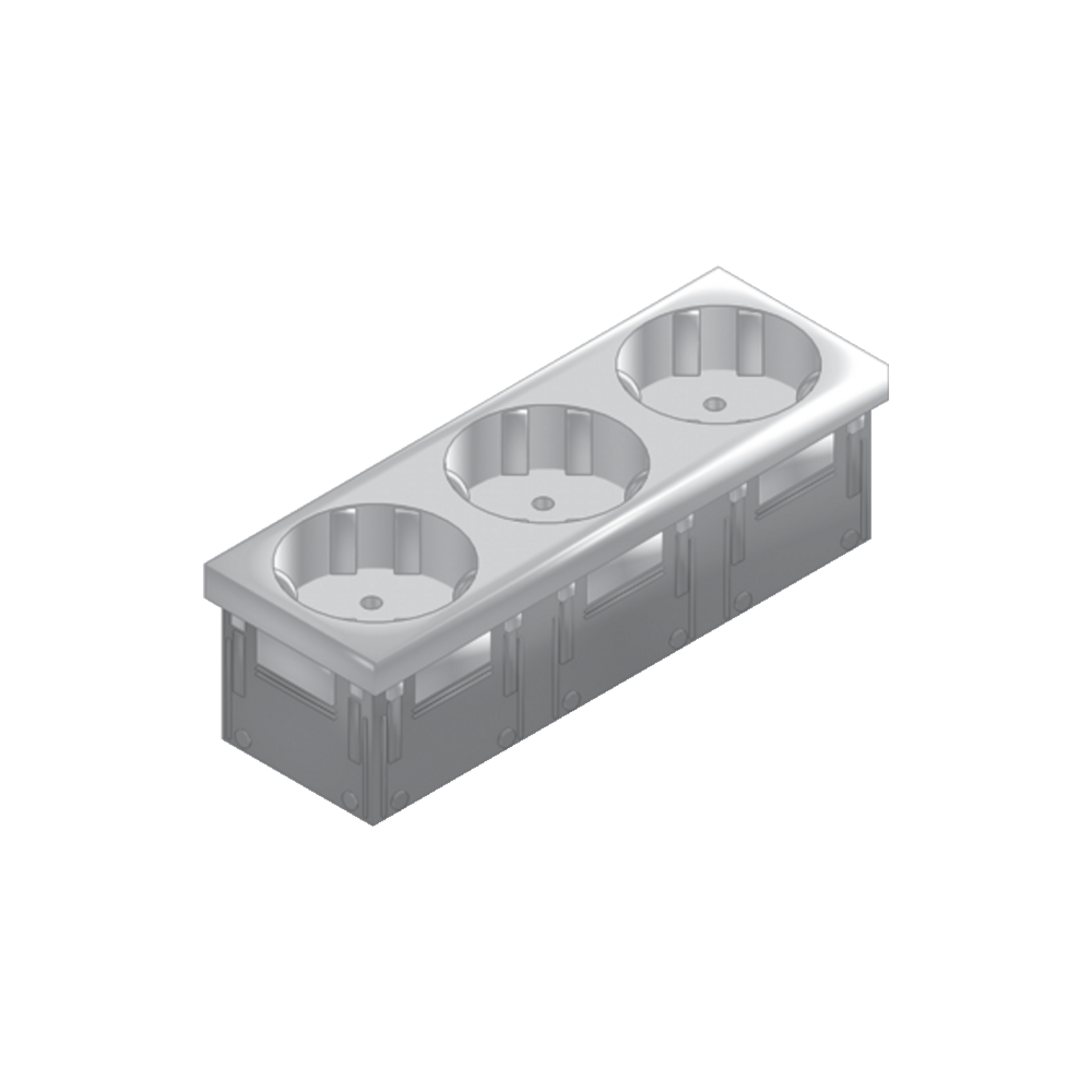

The UST45 3 components are one-piece, 3-way protective sockets in a 45x45 mm design. They can be inserted into the appropriate UAM cover plates using plug-in terminals. The sockets are made of high-quality polycarbonate and are available in different colours. The protective sockets have increased protection against accidental contact and are suitable for a rated voltage/current of AC 250 V, 10/16 A.

Art.-Nr.
UST45-R 3
height
42 mm
width
40 mm
length
135 mm
color
Ruby red
plug angle
33 °
Weight per storage unit
0.110 kg
RAL-Nummer
3003
Get in touchDownload datasheet

Variants

Article

H

height

B

width

L

length

colour

color

Ws

plug angle

G

Weight per storage unit

RAL

RAL-Nummer

  • UST45-G 3
    shockproof socket,
    height
    42 mm
    width
    40 mm
    length
    135 mm
    color
    Mint green
    plug angle
    33 °
    Weight per storage unit
    0.110 kg
    RAL-Nummer
    6029
    More information
  • UST45-O 3
    shockproof socket,
    height
    42 mm
    width
    40 mm
    length
    135 mm
    color
    Pure orange
    plug angle
    33 °
    Weight per storage unit
    0.110 kg
    RAL-Nummer
    2004
    More information
  • UST45-R 3
    shockproof socket,
    height
    42 mm
    width
    40 mm
    length
    135 mm
    color
    Ruby red
    plug angle
    33 °
    Weight per storage unit
    0.110 kg
    RAL-Nummer
    3003
    More information
  • UST45-W 3
    shockproof socket,
    height
    42 mm
    width
    40 mm
    length
    135 mm
    color
    Pure white
    plug angle
    33 °
    Weight per storage unit
    0.110 kg
    RAL-Nummer
    9010
    More information
