UKA 122R

Duct connector, round

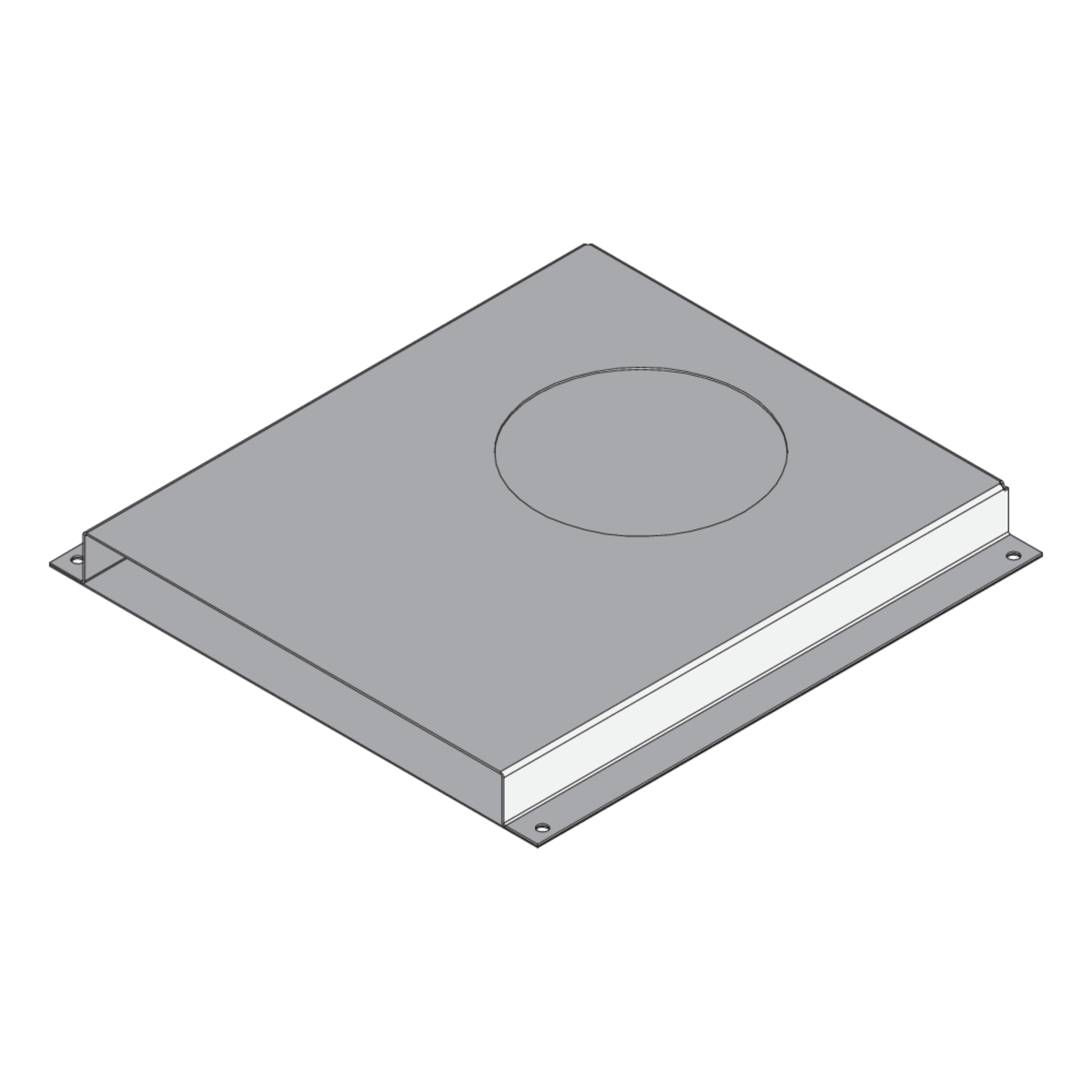

Channel connector UKA 122R for screed-covered underfloor channel, which is mounted on a CHALI brush channel flush with the screed. It has an installation opening for accommodating a round USK 120R-150 formwork body, which is removed during final assembly.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

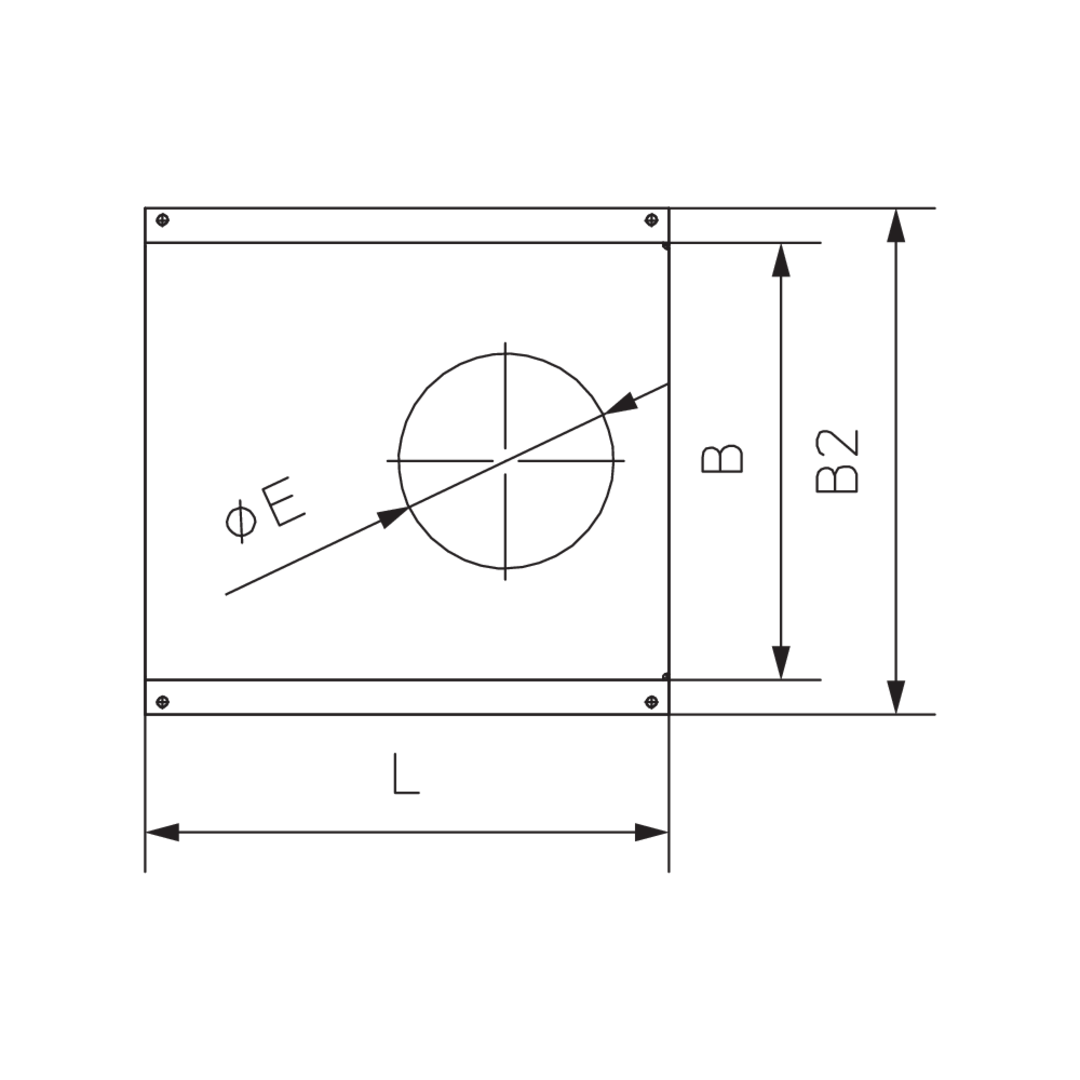

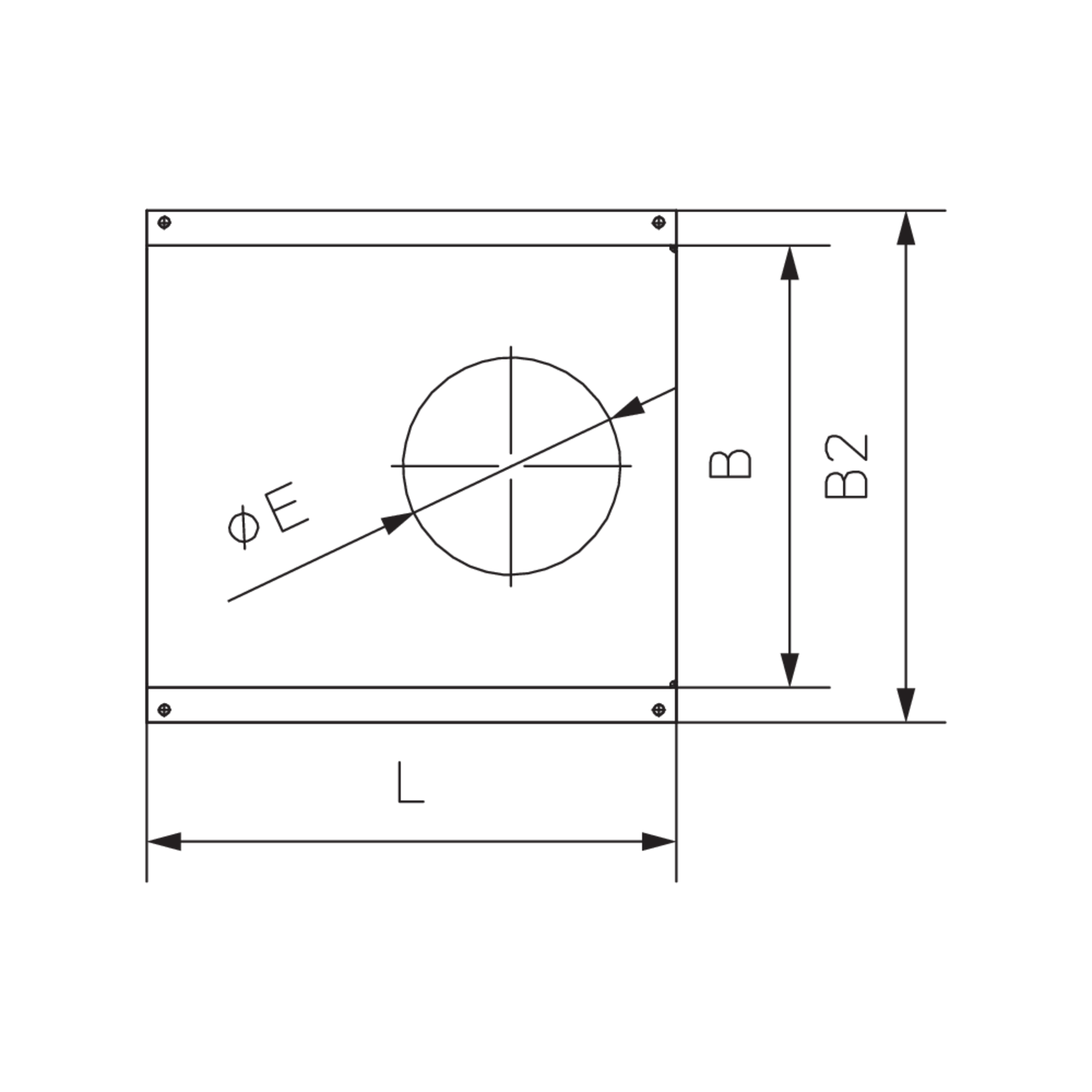

H

height

B1

width 1

B2

width 2

L

length

ØE

fitting dimension round

G

Weight per storage unit

Mounting type

  • UKA250 28-122R
    duct three compartments UKL 3-28-250S,
    height
    28 mm
    width 1
    250 mm
    width 2
    290 mm
    length
    300 mm
    fitting dimension round
    123 mm
    Weight per storage unit
    1.267 kg
    Mounting type
    Fastening to raw concrete floor
    More information
  • UKA250 38-122R
    duct three compartments UKL 3-28-250S,
    height
    38 mm
    width 1
    250 mm
    width 2
    290 mm
    length
    300 mm
    fitting dimension round
    123 mm
    Weight per storage unit
    1.334 kg
    Mounting type
    Fastening to raw concrete floor
    More information
  • UKA250 48-122R
    duct three compartments UKL 3-28-250S,
    height
    48 mm
    width 1
    250 mm
    width 2
    290 mm
    length
    300 mm
    fitting dimension round
    123 mm
    Weight per storage unit
    1.410 kg
    Mounting type
    Fastening to raw concrete floor
    More information
  • UKA350 28-122R
    duct three compartments UKL 3-28-250S,
    height
    28 mm
    width 1
    350 mm
    width 2
    390 mm
    length
    300 mm
    fitting dimension round
    123 mm
    Weight per storage unit
    1.700 kg
    Mounting type
    Fastening to raw concrete floor
    More information
  • UKA350 38-122R
    duct three compartments UKL 3-28-250S,
    height
    38 mm
    width 1
    350 mm
    width 2
    390 mm
    length
    300 mm
    fitting dimension round
    123 mm
    Weight per storage unit
    1.774 kg
    Mounting type
    Fastening to raw concrete floor
    More information
  • UKA350 48-122R
    duct three compartments UKL 3-28-250S,
    height
    48 mm
    width 1
    350 mm
    width 2
    390 mm
    length
    300 mm
    fitting dimension round
    123 mm
    Weight per storage unit
    1.849 kg
    Mounting type
    Fastening to raw concrete floor
    More information
