Variants
Article

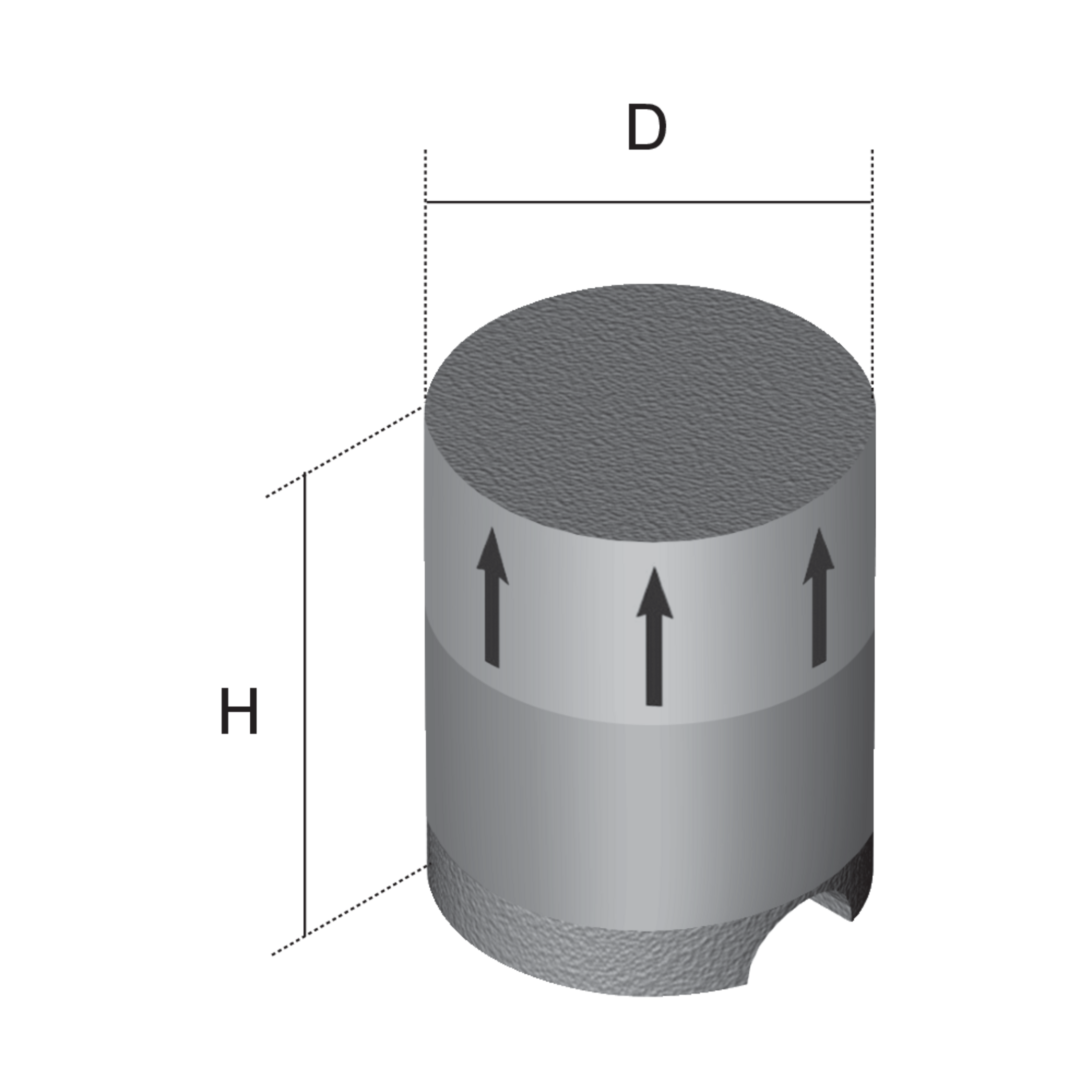

H
height
D
diameter
G
Weight per storage unit
- USK 120R-150
shuttering unit USK 120R-150, made ofheight150 mmdiameter122 mmWeight per storage unit0.100 kg

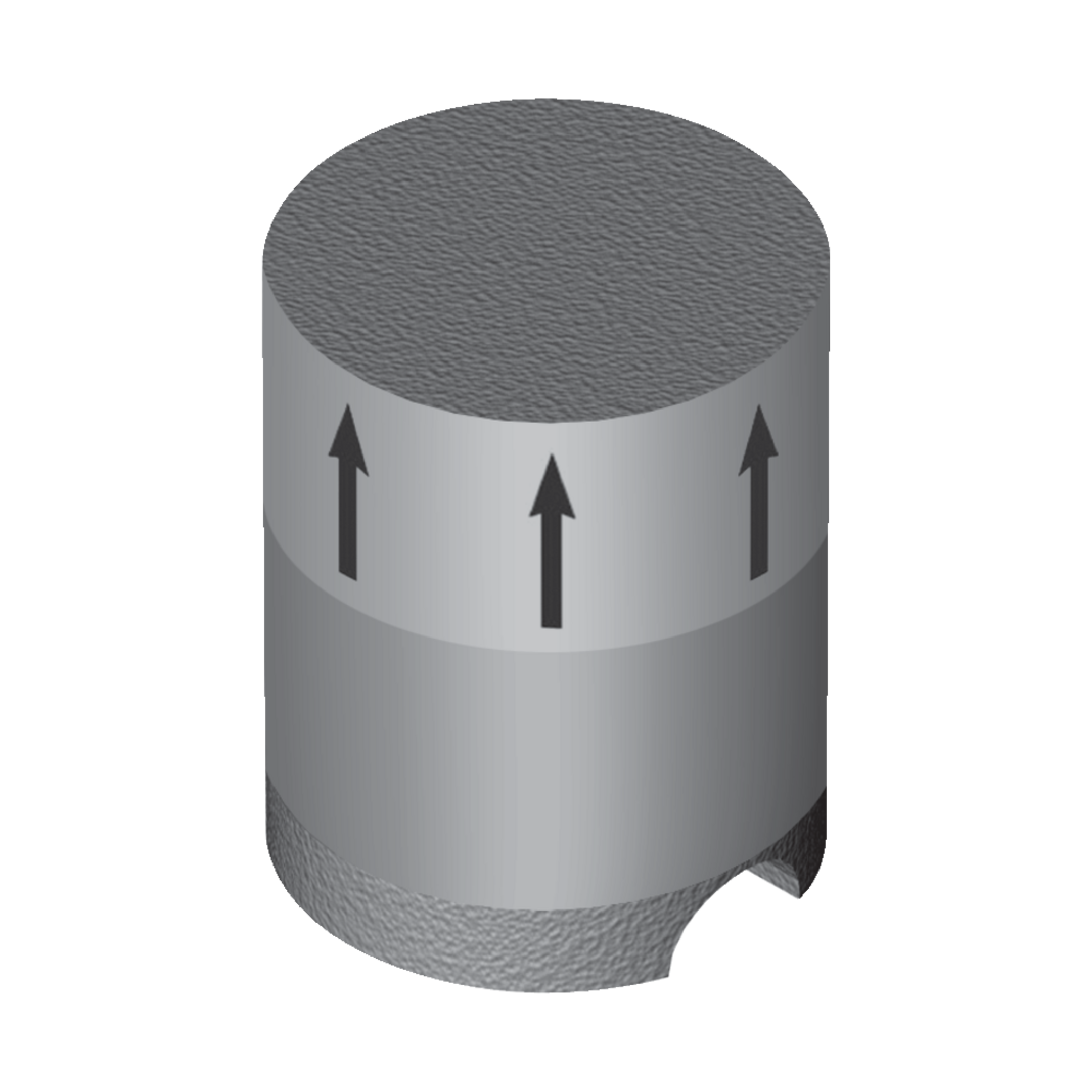

USKR
Shuttering unit, round
USKR products are round formwork bodies that are inserted into screed-covered underfloor ducts. The hollow bodies are installed in UBDHB false floor sockets or in UKDA assembly covers as lost formwork. After being inserted into the opening of the cover plate, they form solid units with the floor sockets. They are removed again using an integrated ripcord after the screed has hardened. The formwork bodies are made of plastic-coated airpop® (polystyrene) and are free of hexabromocyclododecane (HBCD). They are 150 mm high and have a diameter of 122 mm.
Tender texts
Downloads
de
en
de
de
en
de
en
de
en
en
Price list 2025 Building extension
Valid from February 1st, 2025, updated version from 31/03/2025.
Electrical and Electronic Devices – Information from Manufacturers for Commercial Users
Declaration
PDF, 106.06 KB
DownloadDownload
EC Declaration of Conformity for Underfloor systems
Installation equipment for electric cables and circuits
Underfloor Systems - Catalogue
Catalogue
Technical Information Screed-Covered Duct Systems
Technical Information
Installation Instructions USK R
Assembly Instructions
PDF, 302.40 KB
DownloadDownloadBIM- und CAD-Data
BIM Data Screed-Covered Duct Systems
BIM Data
ZIP, 8.66 MB
DownloadDownloadIncluded accessories
