Variants
Article

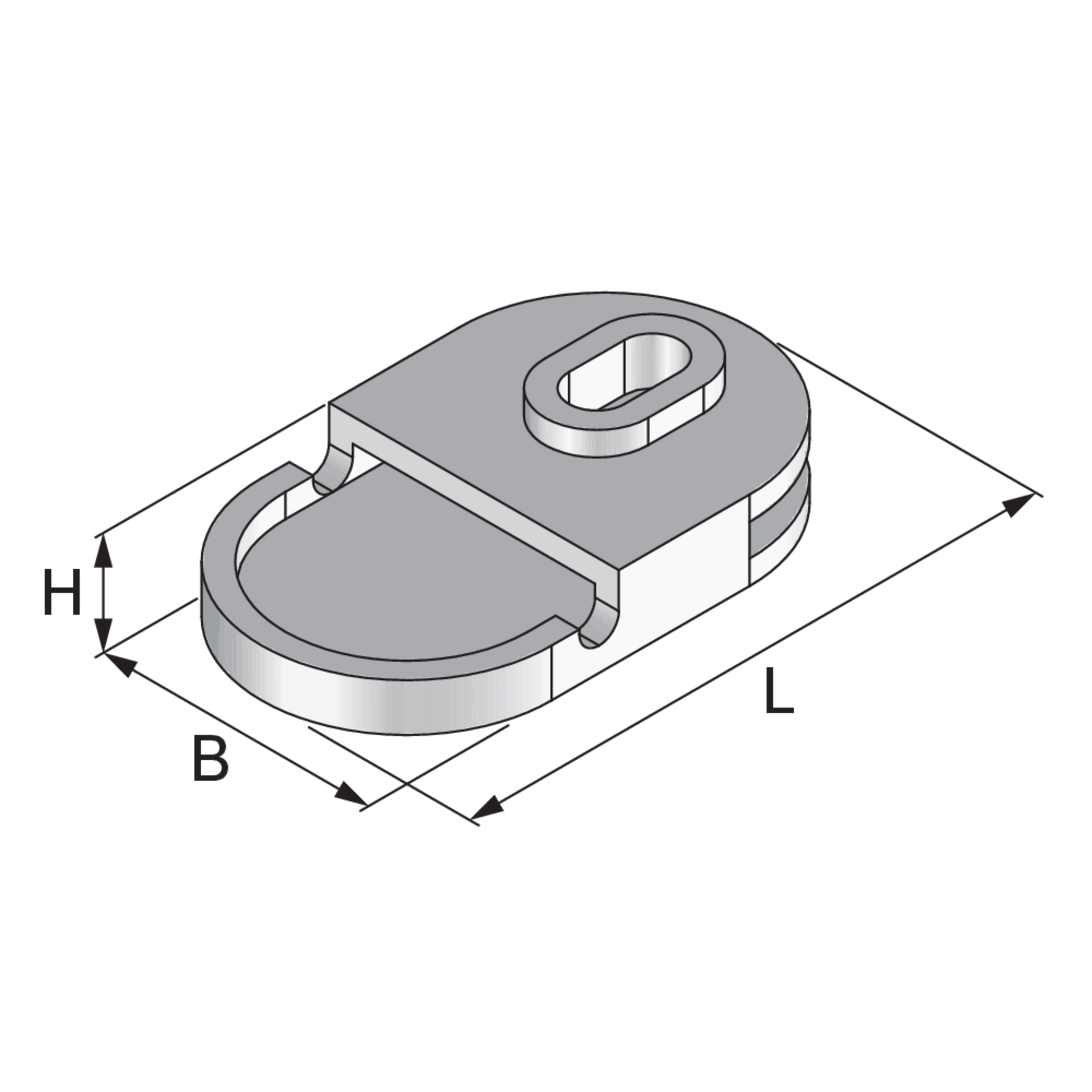

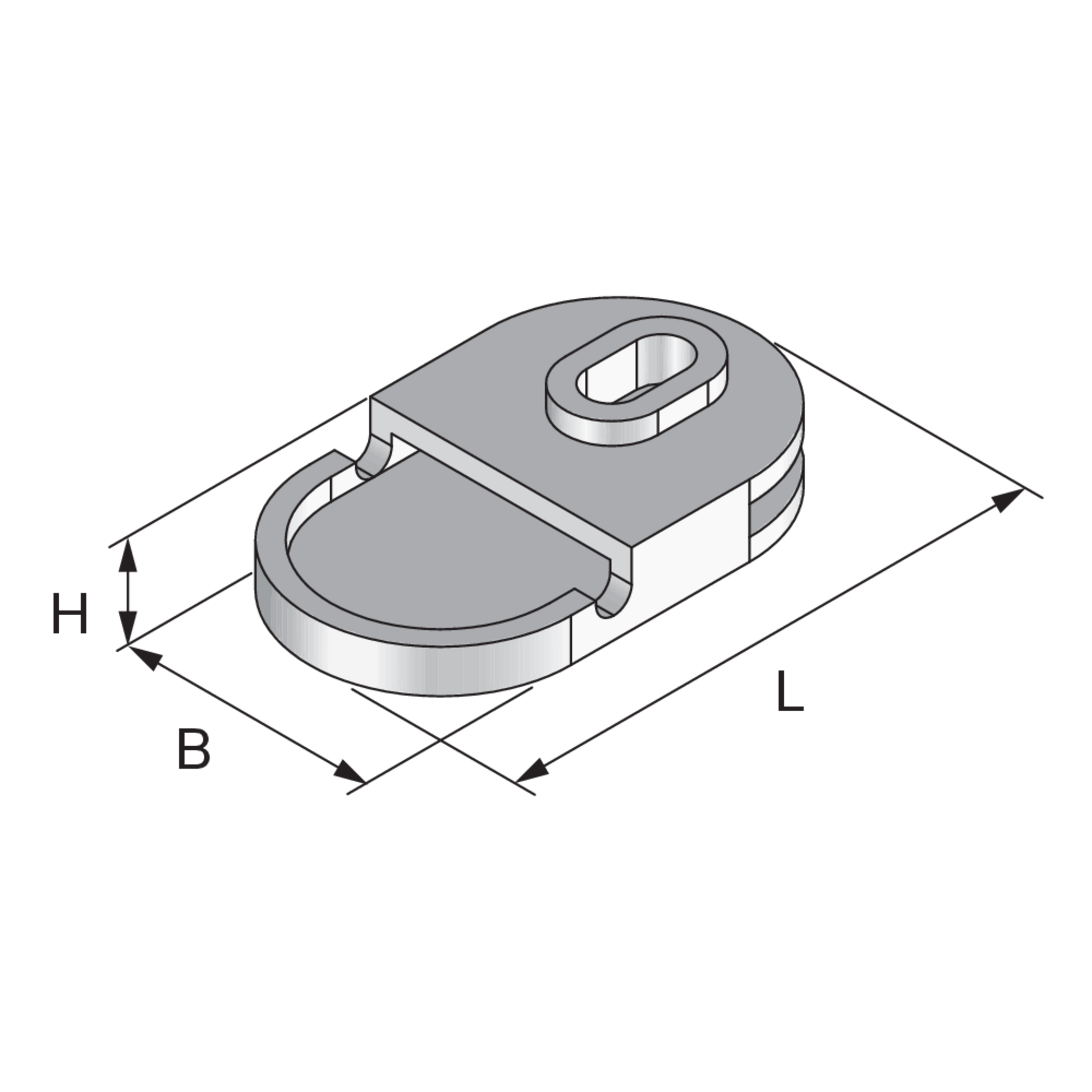

H
height
B
width
L
length
G
Weight per storage unit
- UGM-SLF
subsonic noise sleeve, made of plastic,height13 mmwidth37 mmlength62 mmWeight per storage unit0.010 kg
Art.-Nr. UGM-SLF

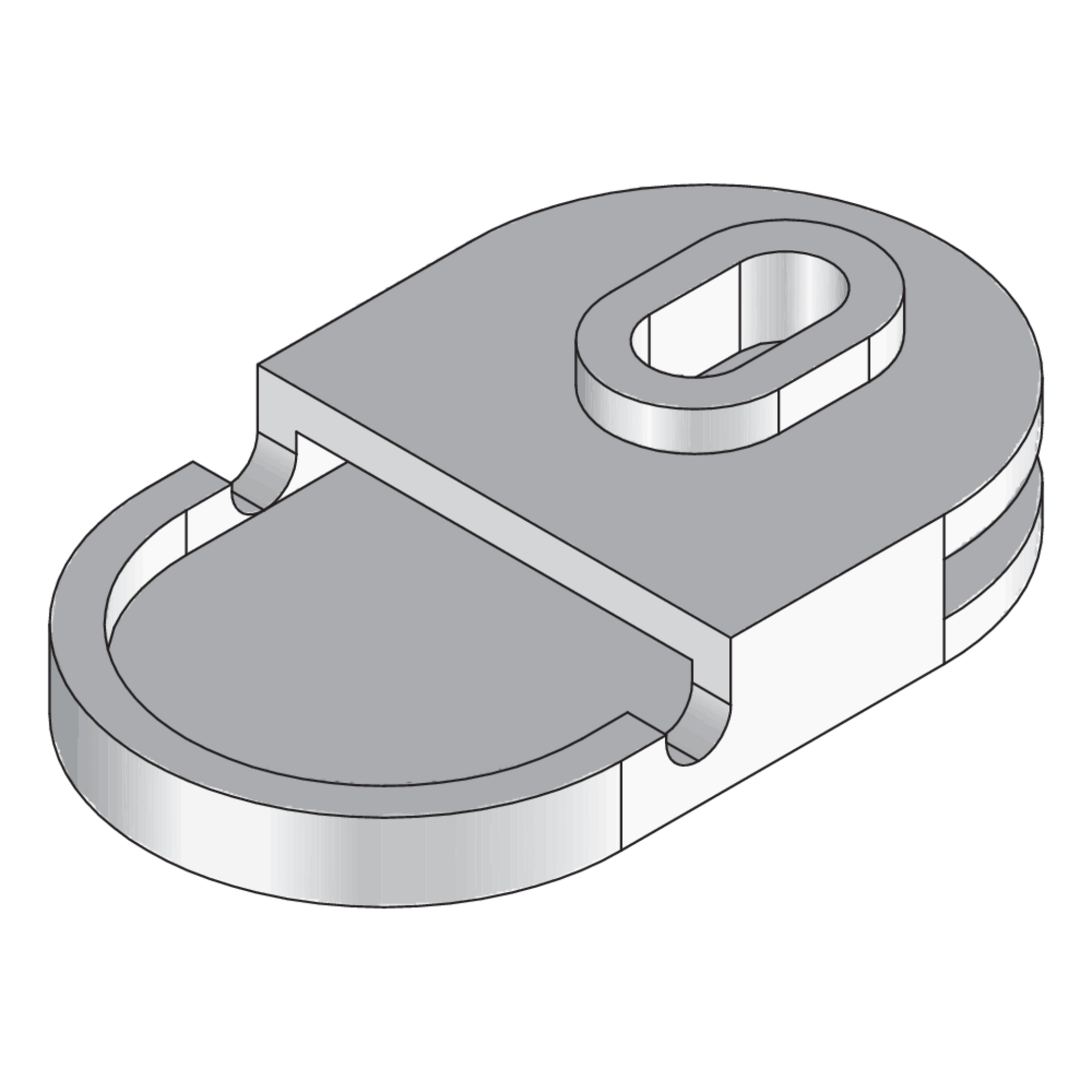

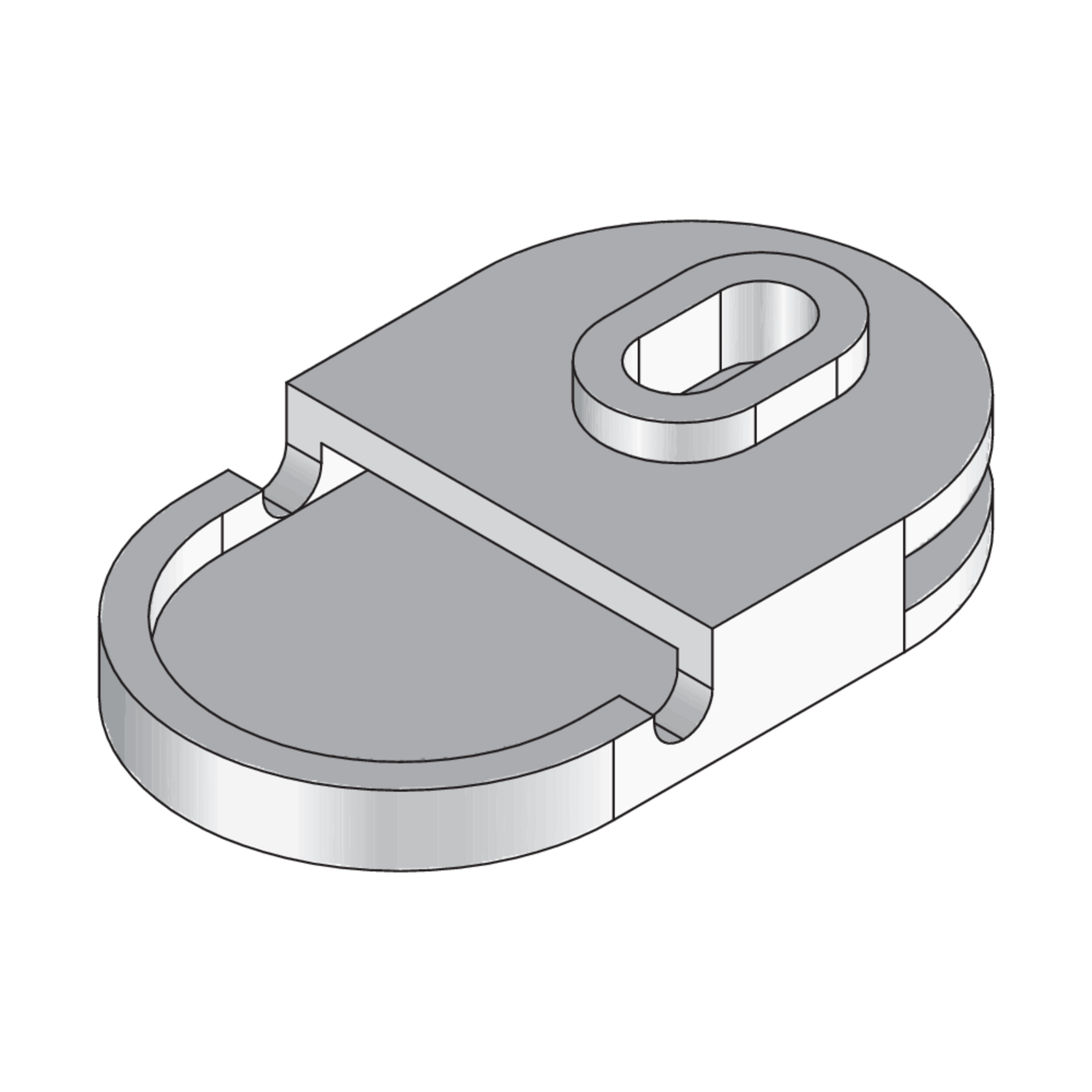

subsonic noise sleeve, made of plastic,
Subsonic noise sleeve socket - levelling support
UGM SLF articles are impact sound sleeves for screed-flush ducts. The products are used to decouple levelling bases from raw floor slabs. The sleeves are made of TPS/TPE, are halogen-free and have received VDE approval in accordance with DIN EN 50085-2-2.When using the UGM SLF, the levelling range is increased by 3 mm
- Art.-Nr.
- UGM-SLF
- height
- 13 mm
- width
- 37 mm
- length
- 62 mm
- Weight per storage unit
- 0.010 kg
VDE tested according to: DIN EN 50085-2-2
CE-Zeichen (Conformité Européenne): Ja
VDE-zertifiziert: Ja
Details
- VDE approval according to DIN EN 50085-2-2
