Art.-Nr. UGET-2-XLR 113

device carrier, made of galvanized

Mounting box assembly carrier, audio/video technology

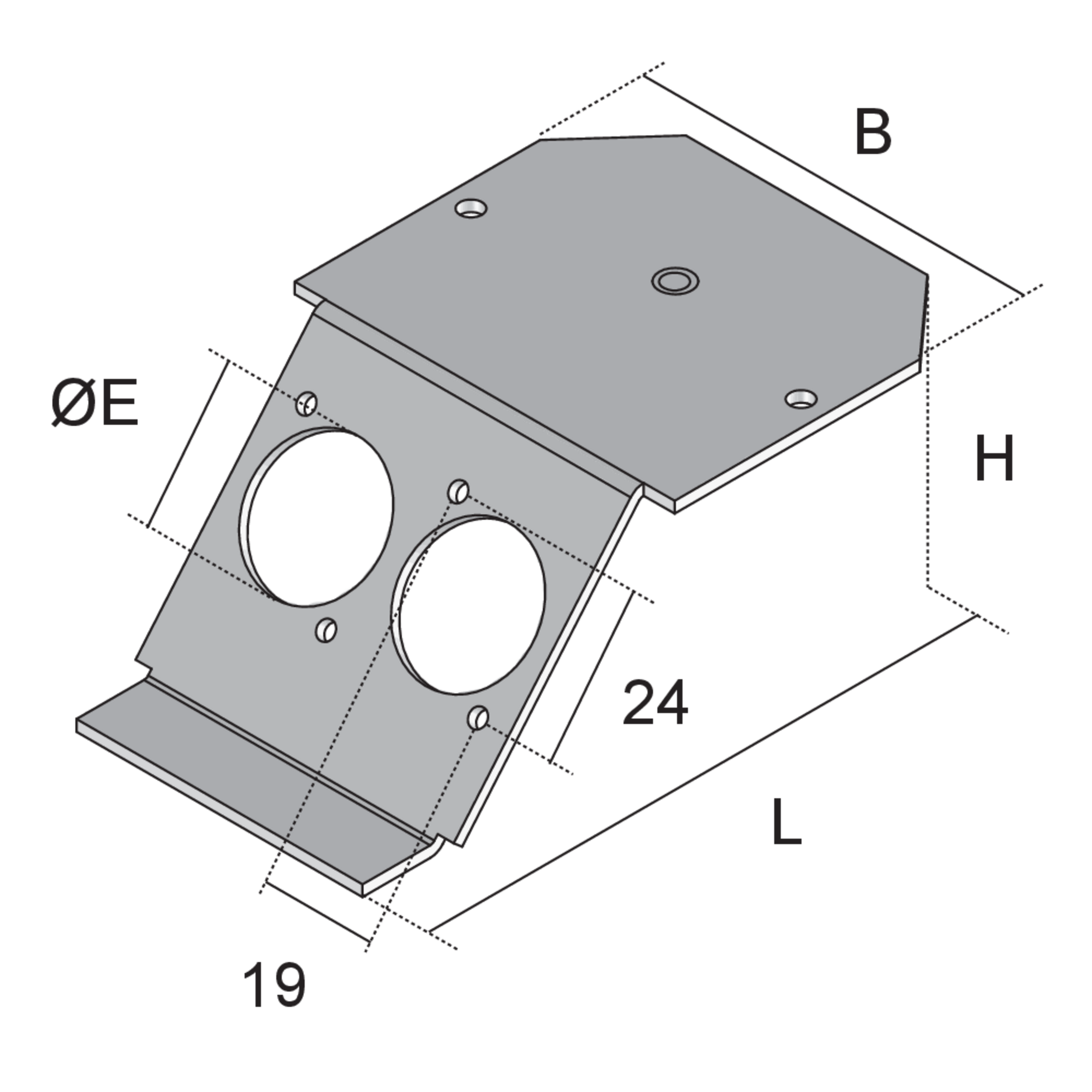

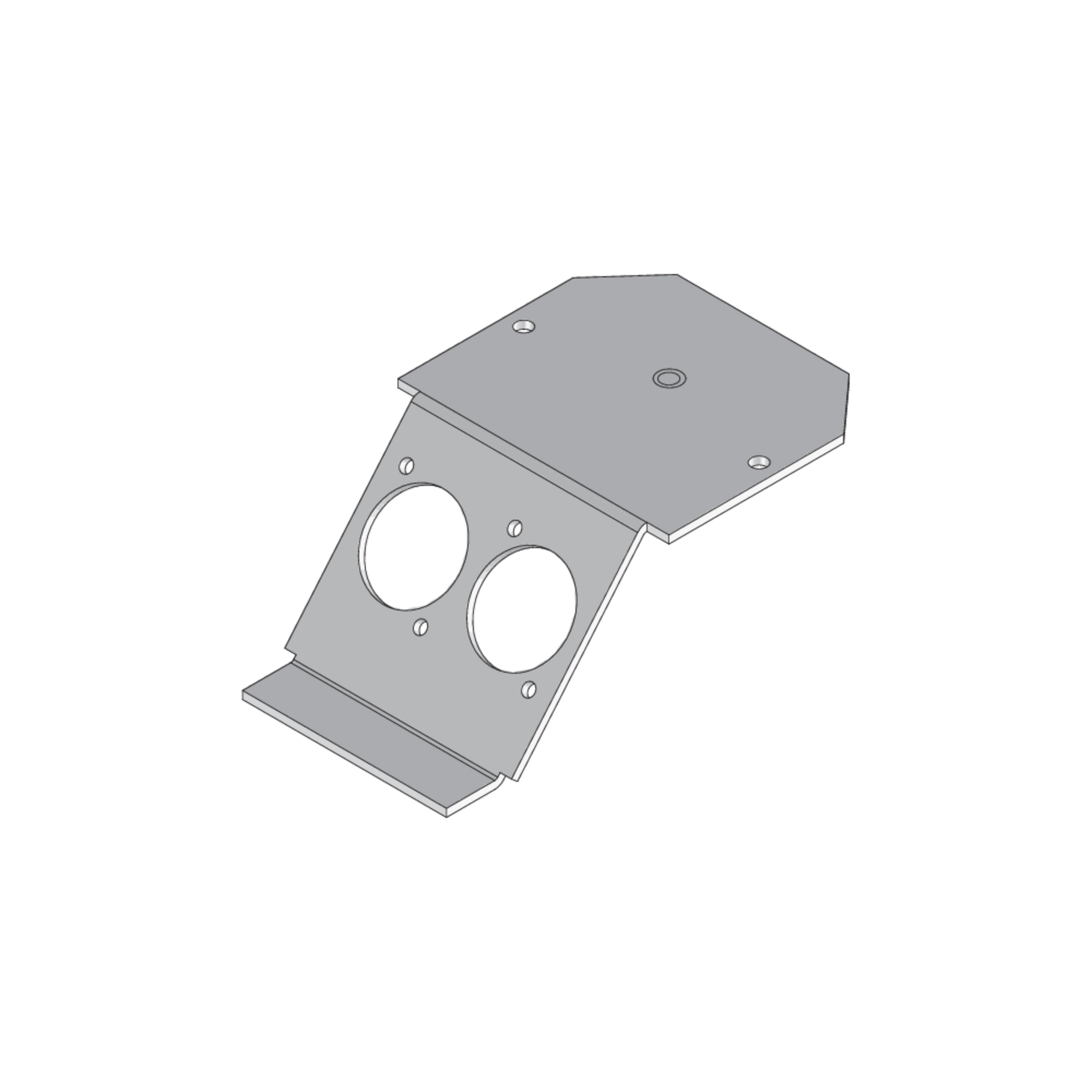

UGET 2 XLR components are mounting box installation supports including self-tapping screws from the underfloor systems range. The installation supports are bolted into the UG mounting boxes and are used to accommodate a maximum of 2 built-in audio technology connectors of the type D series XLR made by Neutrik. The device carriers are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346 in black (similar to RAL 9011) and are available with installation dimensions of E1 23.6 mm.

Art.-Nr.
UGET-2-XLR 113
height
42 mm
width
69 mm
length
107 mm
Max. number of installable data jacks
2
fitting dimension round
23,6 mm
color
Graphite black
RAL-Nummer
9011
Weight per storage unit
0.110 kg
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

data jacks

Max. number of installable data jacks

ØE

fitting dimension round

colour

color

RAL

RAL-Nummer

G

Weight per storage unit

Included accessories
  • UGET-2-XLR 113
    device carrier, made of galvanized
    height
    42 mm
    width
    69 mm
    length
    107 mm
    Max. number of installable data jacks
    2
    fitting dimension round
    23,6 mm
    color
    Graphite black
    RAL-Nummer
    9011
    Weight per storage unit
    0.110 kg
    Included accessories
