UG

Mounting box, angular

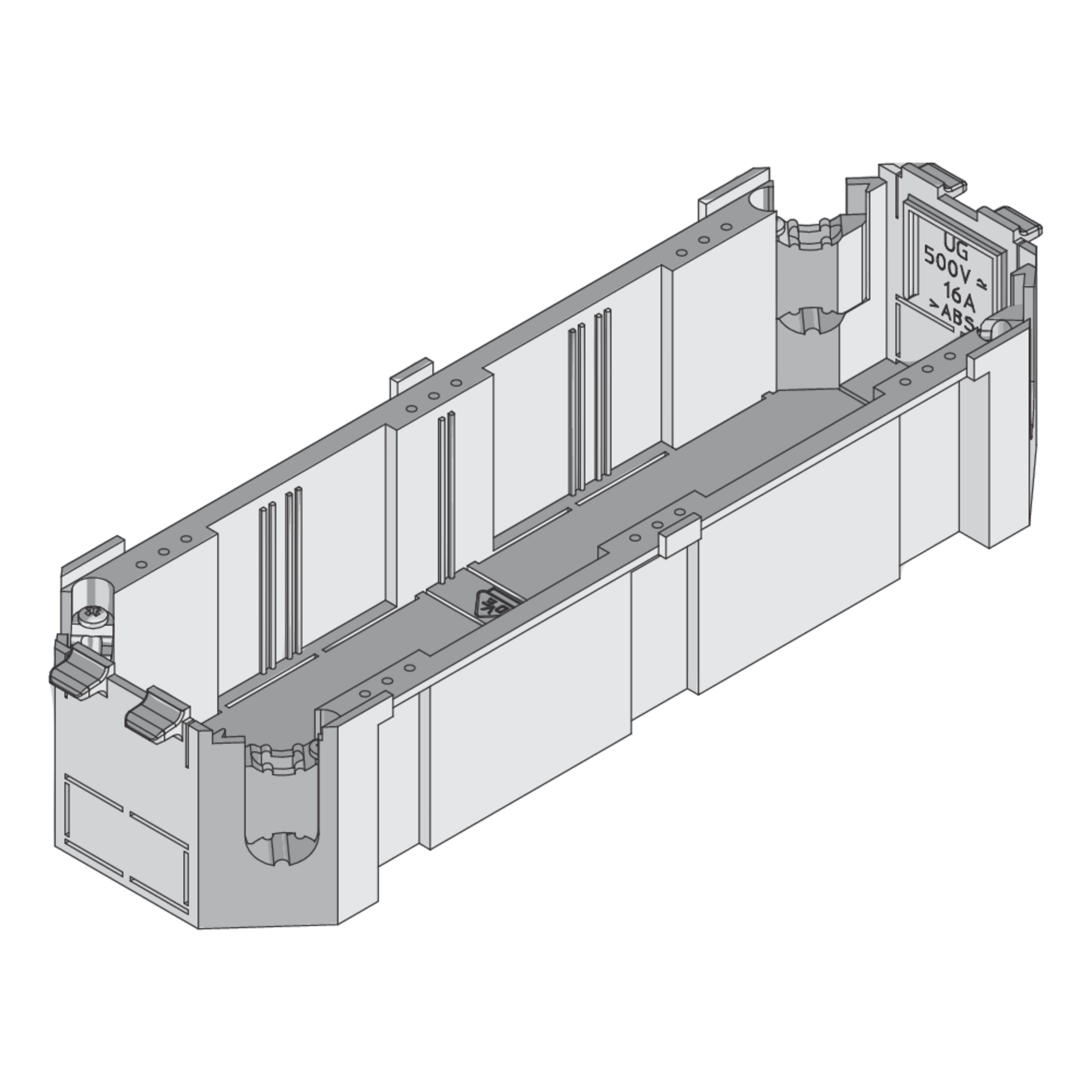

UG components are square mounting boxes consisting of a one-piece shell with a perforated base and a strain relief device for inserting the incoming cables. During assembly, the mounting boxes are snapped into installation units and can be equipped with three single or four snap-in modular installation units and two snap-in device connectors. The mounting boxes are made of acrylonitrile butadiene-styrene copolymer with a matt surface in graphite black (RAL 9011).

VDE tested according to: DIN EN 50085-2-2
CE-Zeichen (Conformité Européenne): Ja
VDE-zertifiziert: Ja
Get in touchDownload datasheet

Variants

Article

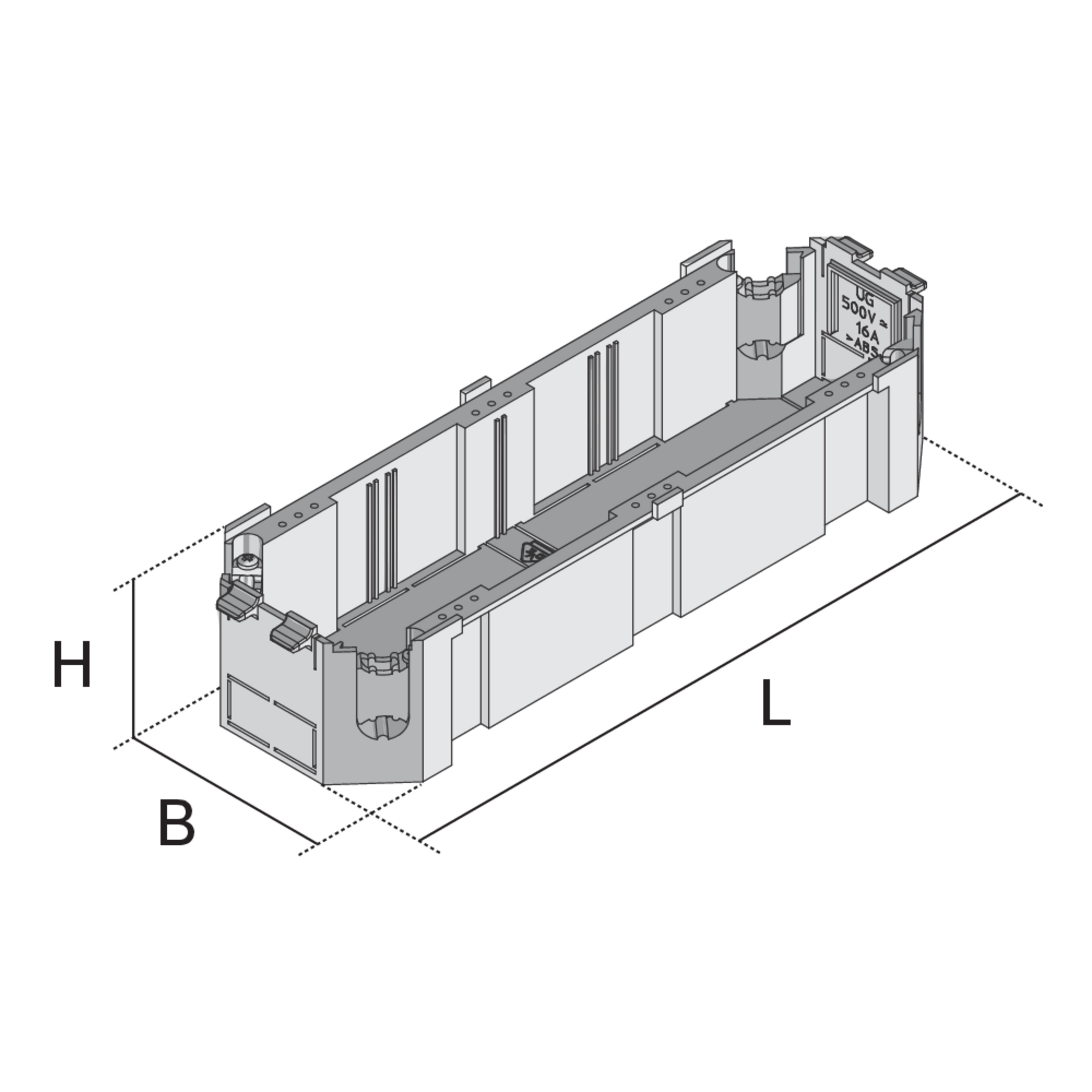

H

height

B

width

L

length

colour

color

Strain relief

Installation devices

Max. number of installation devices

RAL

RAL-Nummer

G

Weight per storage unit

Included accessories
  • UG
    device cup,
    height
    46 mm
    width
    74 mm
    length
    225 mm
    color
    Graphite black
    Strain relief
    4x for cable Ø 6 to 12 mm
    Max. number of installation devices
    3x hanging brackets or 4x 45x45 mm
    RAL-Nummer
    9011
    Weight per storage unit
    0.108 kg
    Included accessories
    More information

Details

  • VDE approval according to DIN EN 50085-2-2

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    Device Sockets and Installation Devices - Technical Information

    Technical Information

    PDF

    Choose languageChoose language

    Device Sockets and Installation Devices - Technical Information

    Choose language to download

    • de

    • en

    Floor installation systems /Underfloor Systems - Catalogue

    Catalogue for screed-flush and screed-covered duct systems, installation units, floor sockets, mounting boxes and accessories.

    PDF

    Choose languageChoose language

    Floor installation systems /Underfloor Systems - Catalogue

    Choose language to download

    • de

    • en

    Assembly instruction for device installation cups and installation devices

    Assembly Instructions

    PDF

    Choose languageChoose language

    Assembly instruction for device installation cups and installation devices

    Choose language to download

    • de

    • en

    VDE Certificate 40033550 for UEB, UEK

    Certified according to DIN EN 50085-2-2 (VDE 0604-2-2):2009-07; EN 50085-2-2:2008
    UEB3 R, UEBD2 R, UEB3 V, UEBD2 V, UEK3 R, UEKD2 R, UEK3 V, UEKD2 V

    PDF

    Choose languageChoose language

    VDE Certificate 40033550 for UEB, UEK

    Choose language to download

    • de

    Electrical and Electronic Devices – Information from Manufacturers for Commercial Users

    Declaration

    PDF (106.06 KB)

    DownloadDownload

    • de

    • en

    EC Declaration of Conformity for Underfloor systems

    Installation equipment for electric cables and circuits

    PDF

    Choose languageChoose language

    EC Declaration of Conformity for Underfloor systems

    Choose language to download

    • de

    • en

    • ru

    Price list 2026 Building extension

    Valid from February 1st, 2026

    PDF

    Choose languageChoose language

    Price list 2026 Building extension

    Choose language to download

    • de

    • en

    Price list 2026 Building extension (Excel)

    Valid from February 1, 2026

    ZIP

    Choose languageChoose language

    Price list 2026 Building extension (Excel)

    Choose language to download

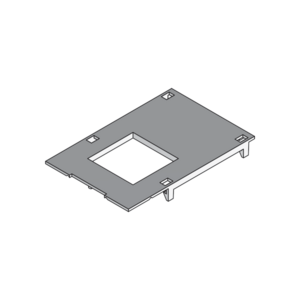

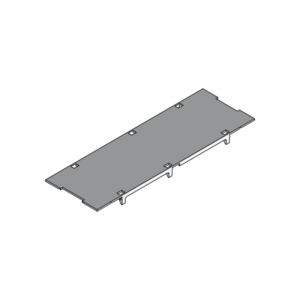

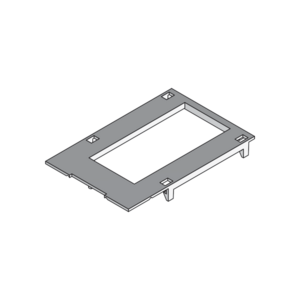

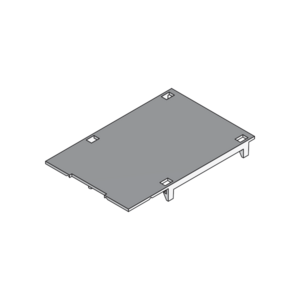

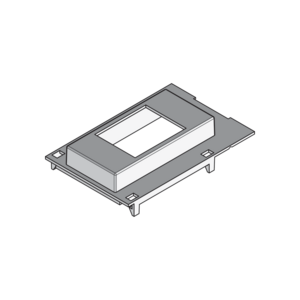

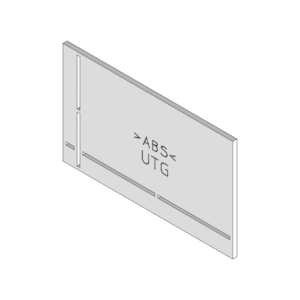

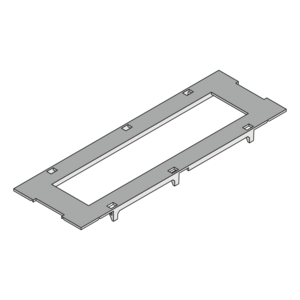

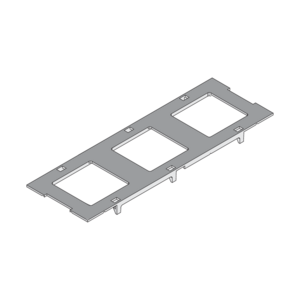

Included accessories
