UGET 2 KM

Mounting box assembly carrier, audio/video technology

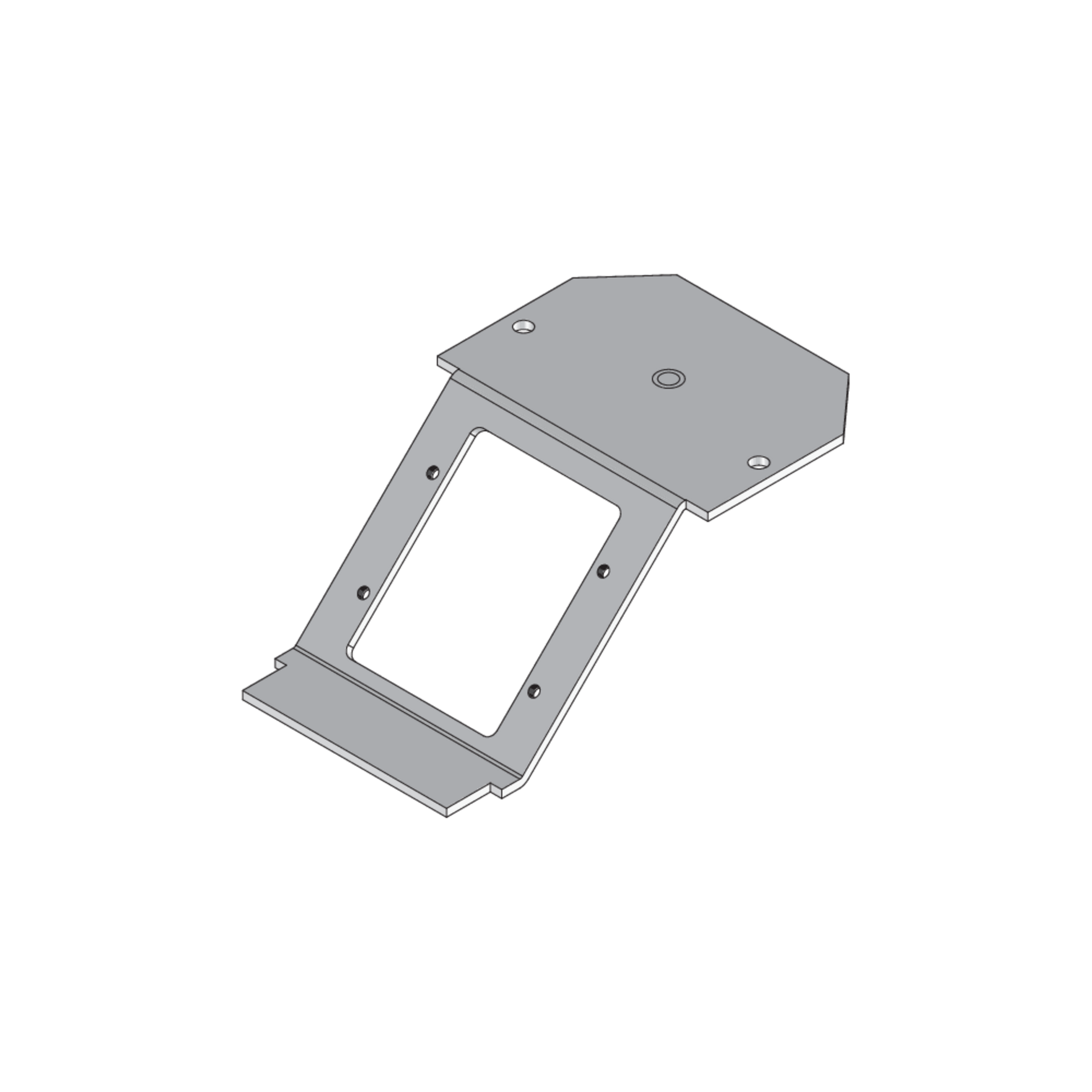

UGET 2 KM components are mounting box assembly carriers from the underfloor systems range. The installation supports are bolted into the UG mounting boxes and are used to accommodate a Kindermann 25x50 mm or 50x50 mm audio/video connection panel. The device carriers are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346 in black (similar to RAL 9011) and are available with installation dimensions of E1 48 mm and E2 38 mm.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

B

width

L

length

data jacks

Max. number of installable data jacks

E1

fitting dimension E1

E2

fitting dimension E2

colour

color

G

Weight per storage unit

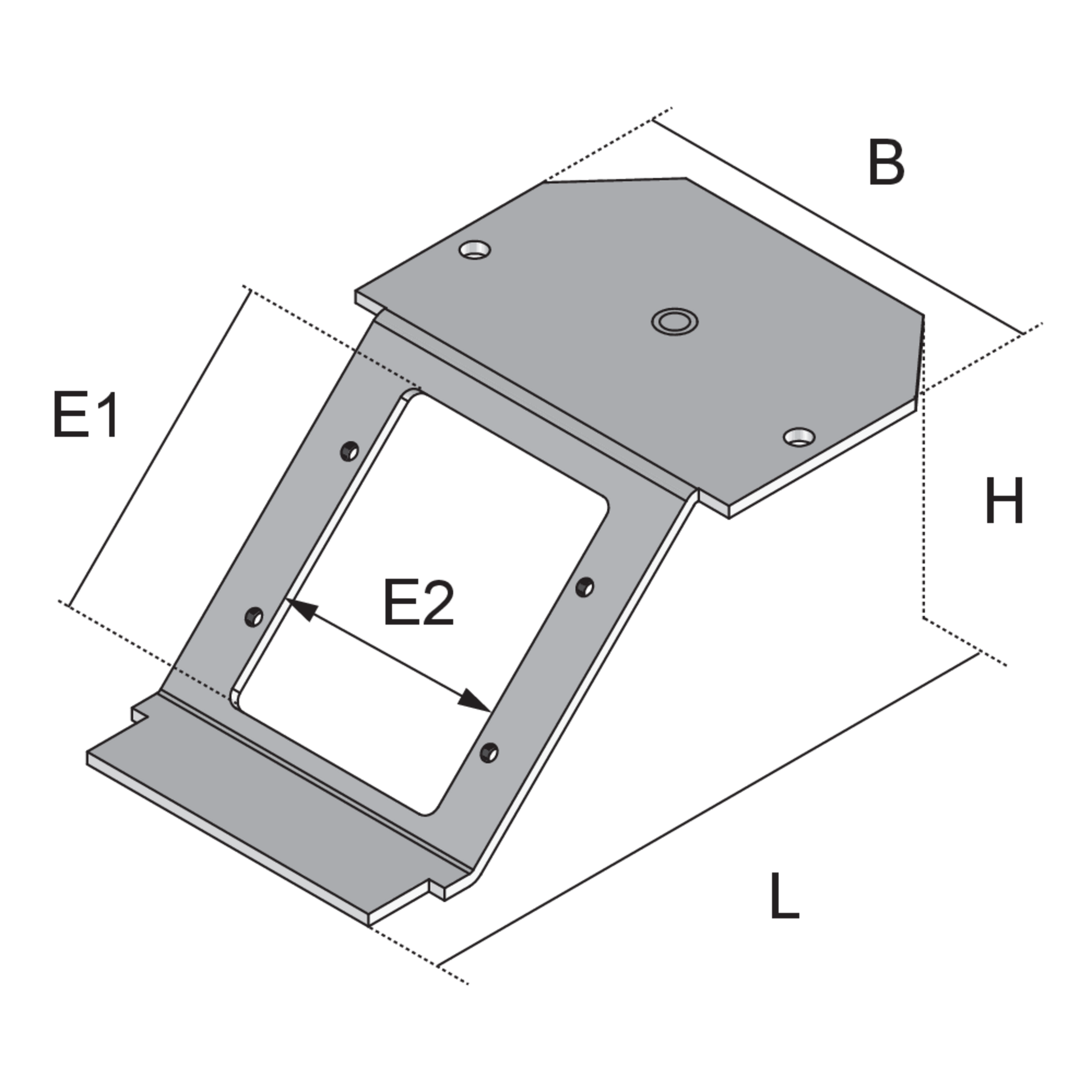

  • UGET-2-KM 113
    device carrier, made of galvanized
    height
    42 mm
    width
    69 mm
    length
    107 mm
    Max. number of installable data jacks
    1
    fitting dimension E1
    48 mm
    fitting dimension E2
    38 mm
    color
    RAL 9011 (graphite black)
    Weight per storage unit
    0.090 kg
