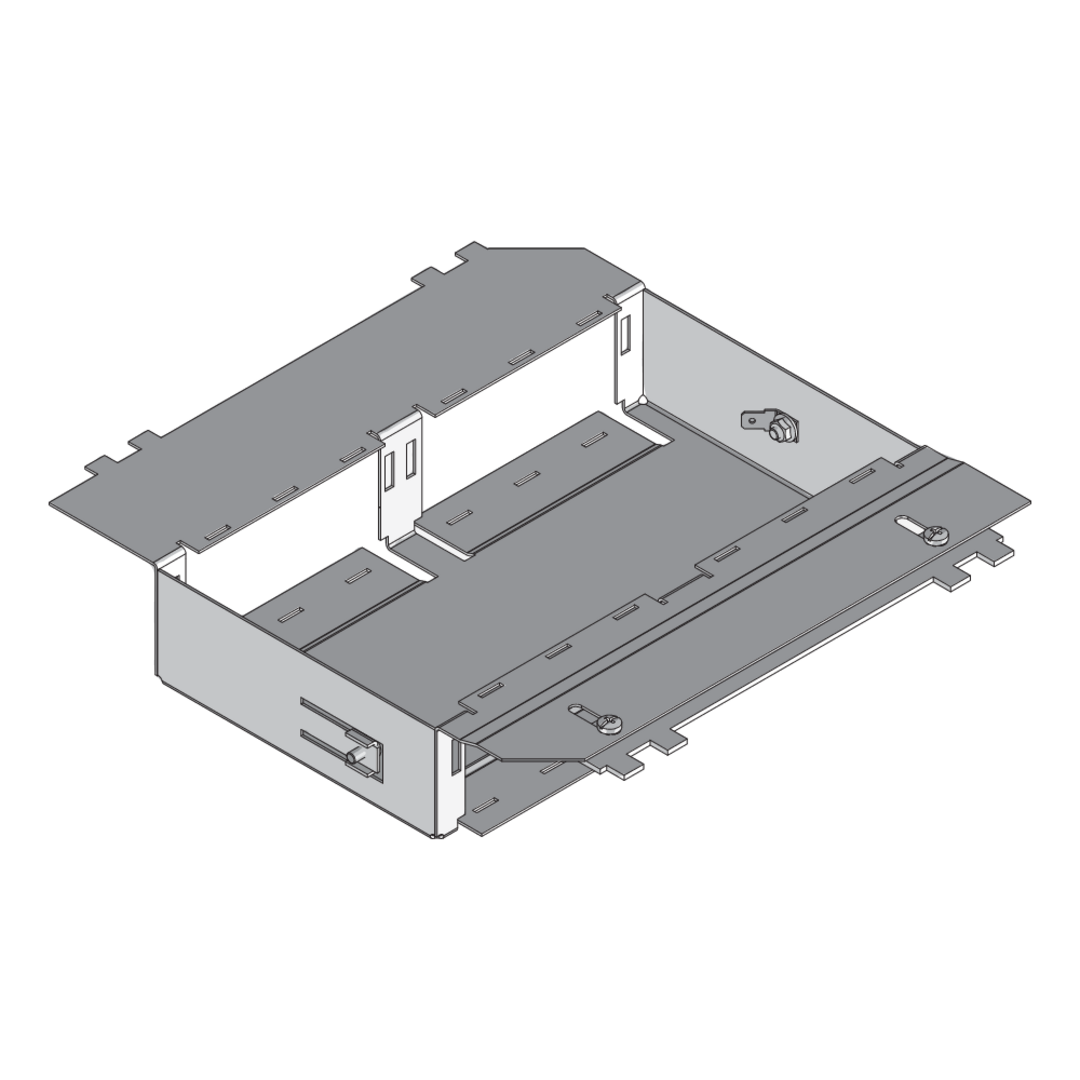

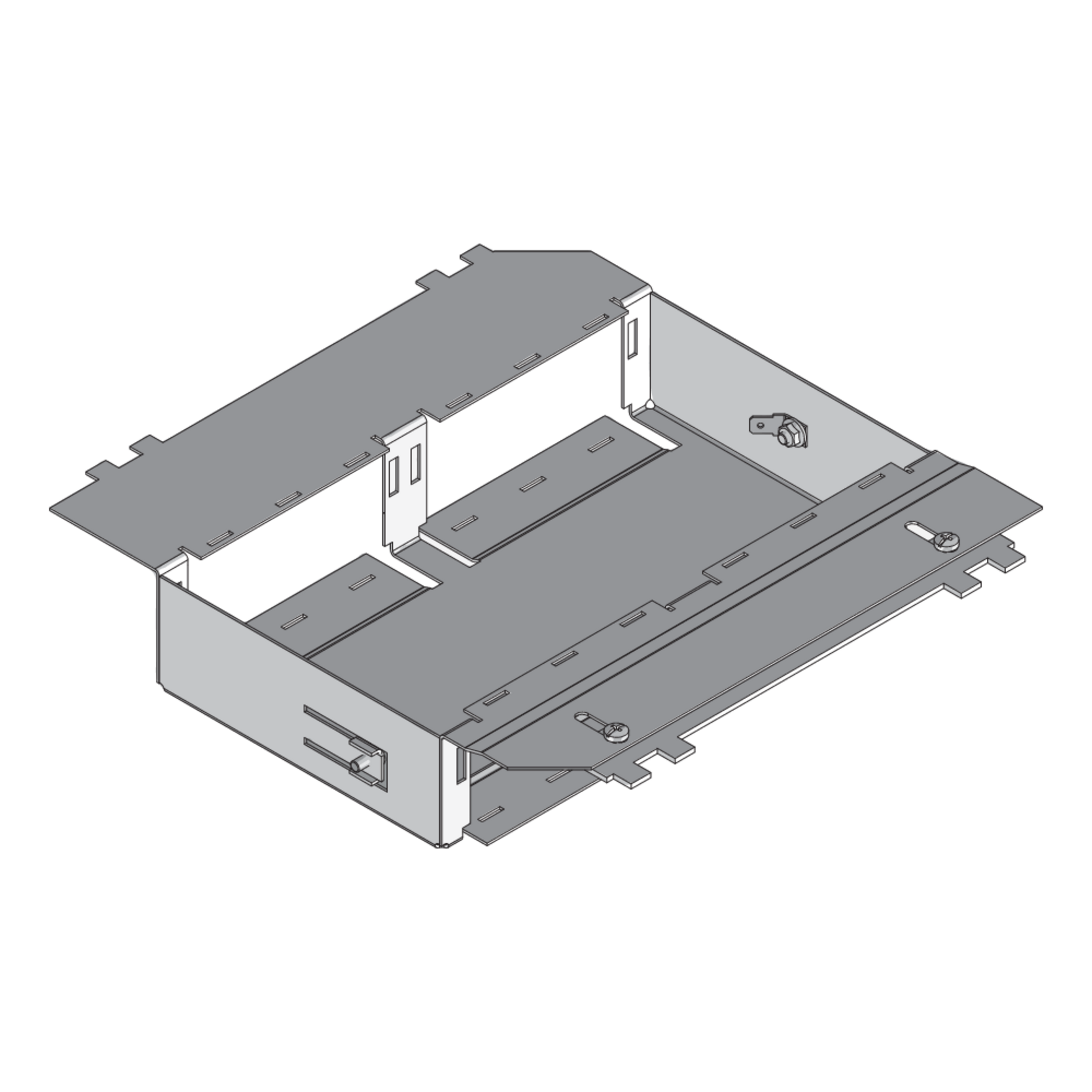

Mounting box insert, 3x, for stainless steel units, angular
The UGE3 VDDE components are service outlets with side panels that can be bolted into square stainless steel installation units suitable for up to three mounting boxes. The inserts can be equipped with up to four installation devices measuring 45x45 mm and up to 6 single data jacks. They are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346.

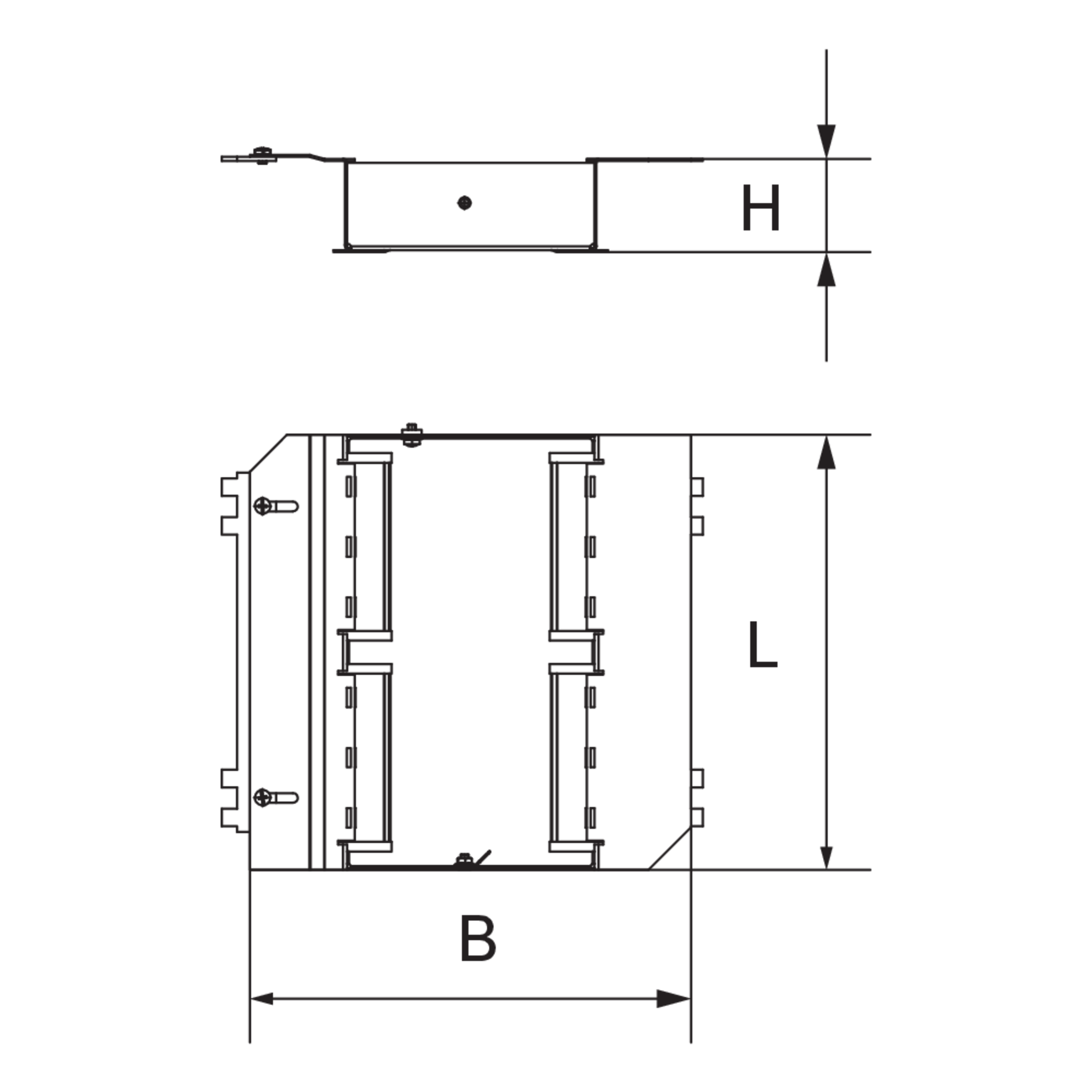

H
height
Hmin
minimum installation height
B
width
L
length
data jacks
Max. number of installable data jacks
Installation devices
Max. number of installation devices
G
Weight per storage unit
