UG45WA-3-1

Mounting box, pre-assembled, WAGO

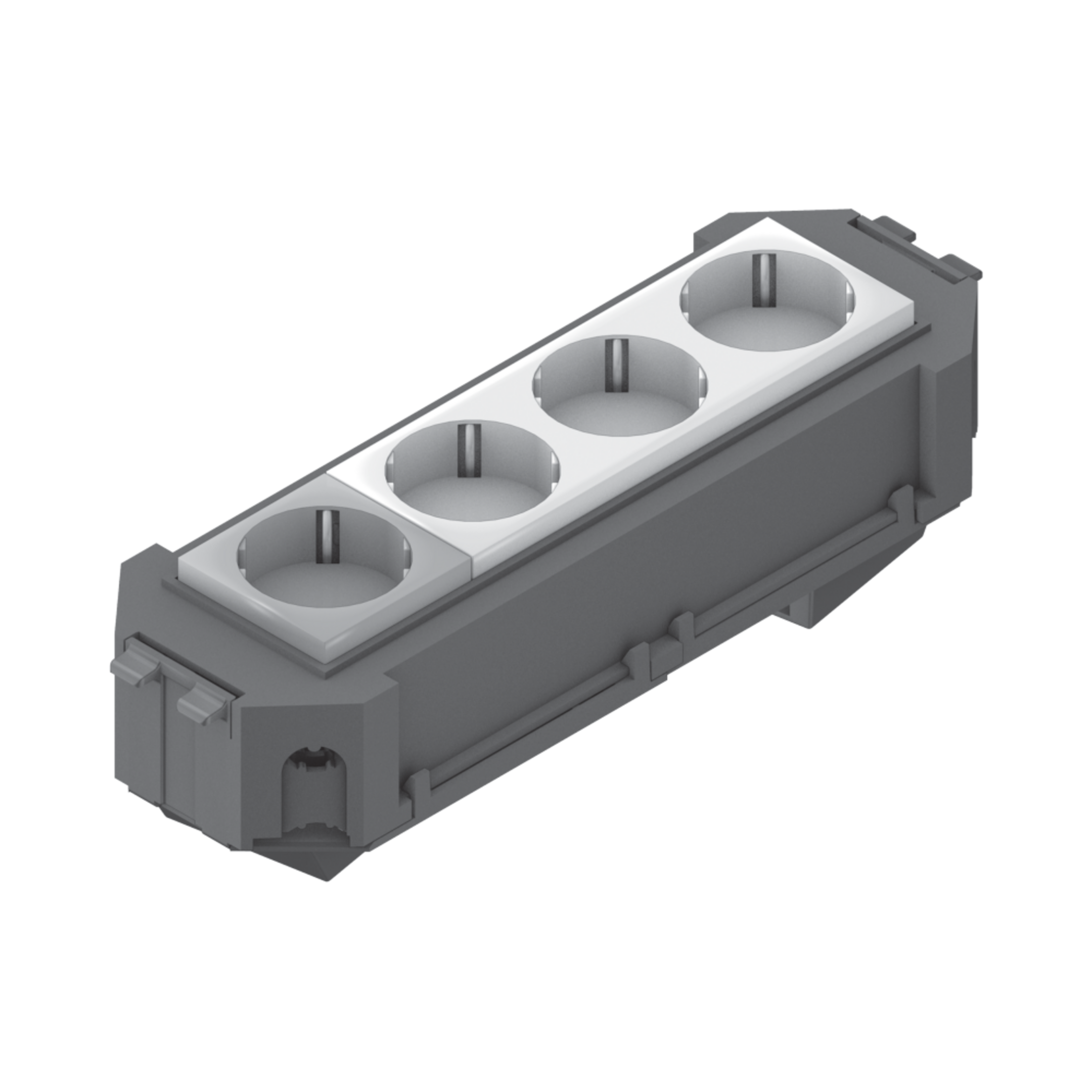

UG45WA-3-1 components are prefabricated mounting boxes. They are equipped with a WAGO 3-pin snap-in plug, a pre-wired socket (1 gang and 3 gangs) and all covers and mounting materials. The mounting boxes can be fitted with 3-pole connection cables with plug and socket and then inserted into an installation unit for raised and false floors.

Get in touchDownload datasheet

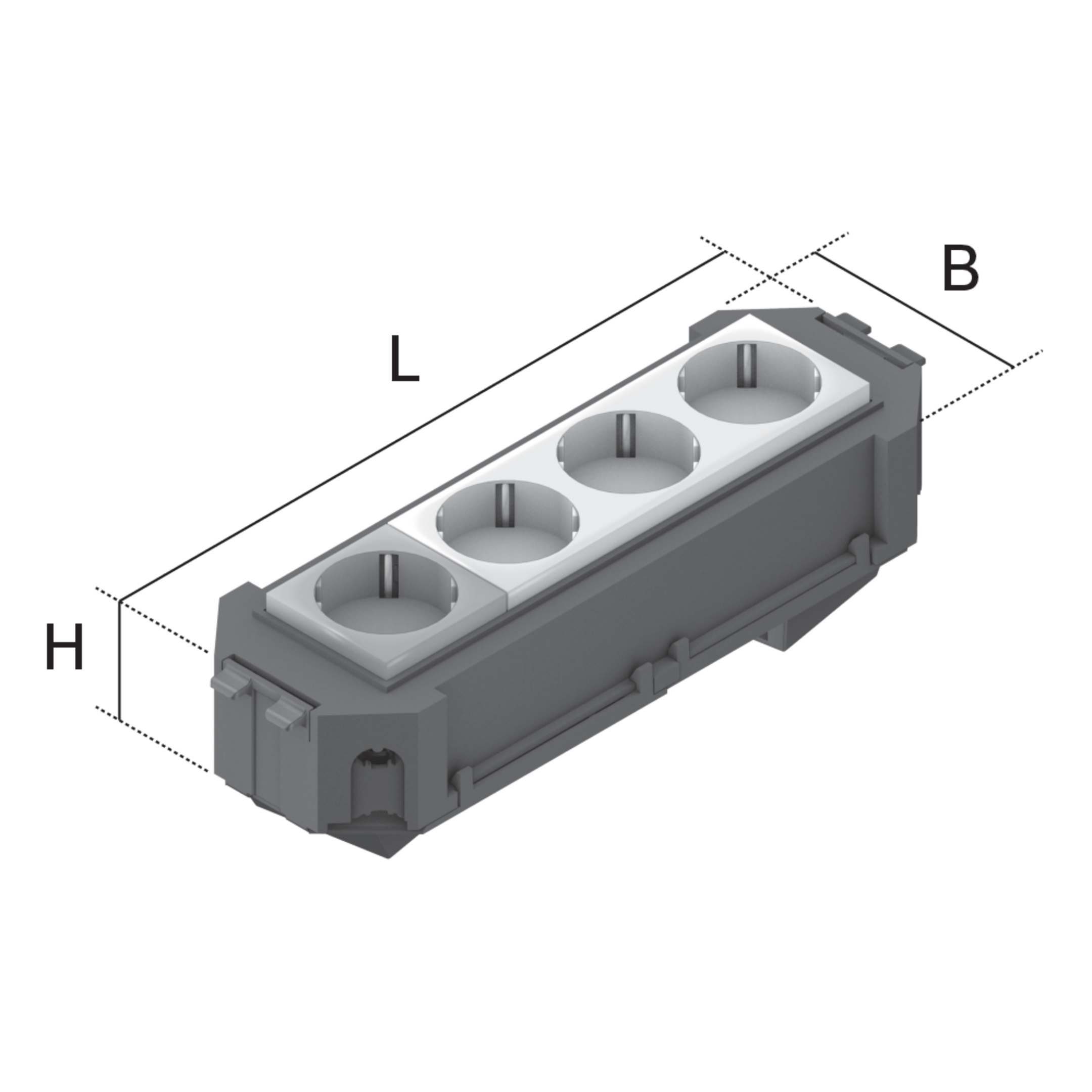

Variants

Article

H

height

B

width

L

length

Colour SCHUKO

Colour of SCHUKO sockets

Colour Snap-in

Colour of Snap-in

G

Weight per storage unit

  • UG45WA-O3W1
    device cup pre-assembled
    height
    67 mm
    width
    74 mm
    length
    225 mm
    Colour of SCHUKO sockets
    3x orange, 1x white
    Colour of Snap-in
    white/black
    Weight per storage unit
    0.349 kg
    More information
  • UG45WA-R3W1
    device cup pre-assembled
    height
    67 mm
    width
    74 mm
    length
    225 mm
    Colour of SCHUKO sockets
    3x red, 1x white
    Colour of Snap-in
    white/black
    Weight per storage unit
    0.349 kg
    More information
  • UG45WA-W3G1
    device cup pre-assembled
    height
    67 mm
    width
    74 mm
    length
    225 mm
    Colour of SCHUKO sockets
    3x white, 1x green
    Colour of Snap-in
    black/white
    Weight per storage unit
    0.349 kg
    More information
  • UG45WA-W3O1
    device cup pre-assembled
    height
    67 mm
    width
    74 mm
    length
    225 mm
    Colour of SCHUKO sockets
    3x white, 1x orange
    Colour of Snap-in
    black/white
    Weight per storage unit
    0.349 kg
    More information
  • UG45WA-W3R1
    device cup pre-assembled
    height
    67 mm
    width
    74 mm
    length
    225 mm
    Colour of SCHUKO sockets
    3x white, 1x red
    Colour of Snap-in
    black/white
    Weight per storage unit
    0.349 kg
    More information
