Art.-Nr. UG-R
Mounting boxes, round

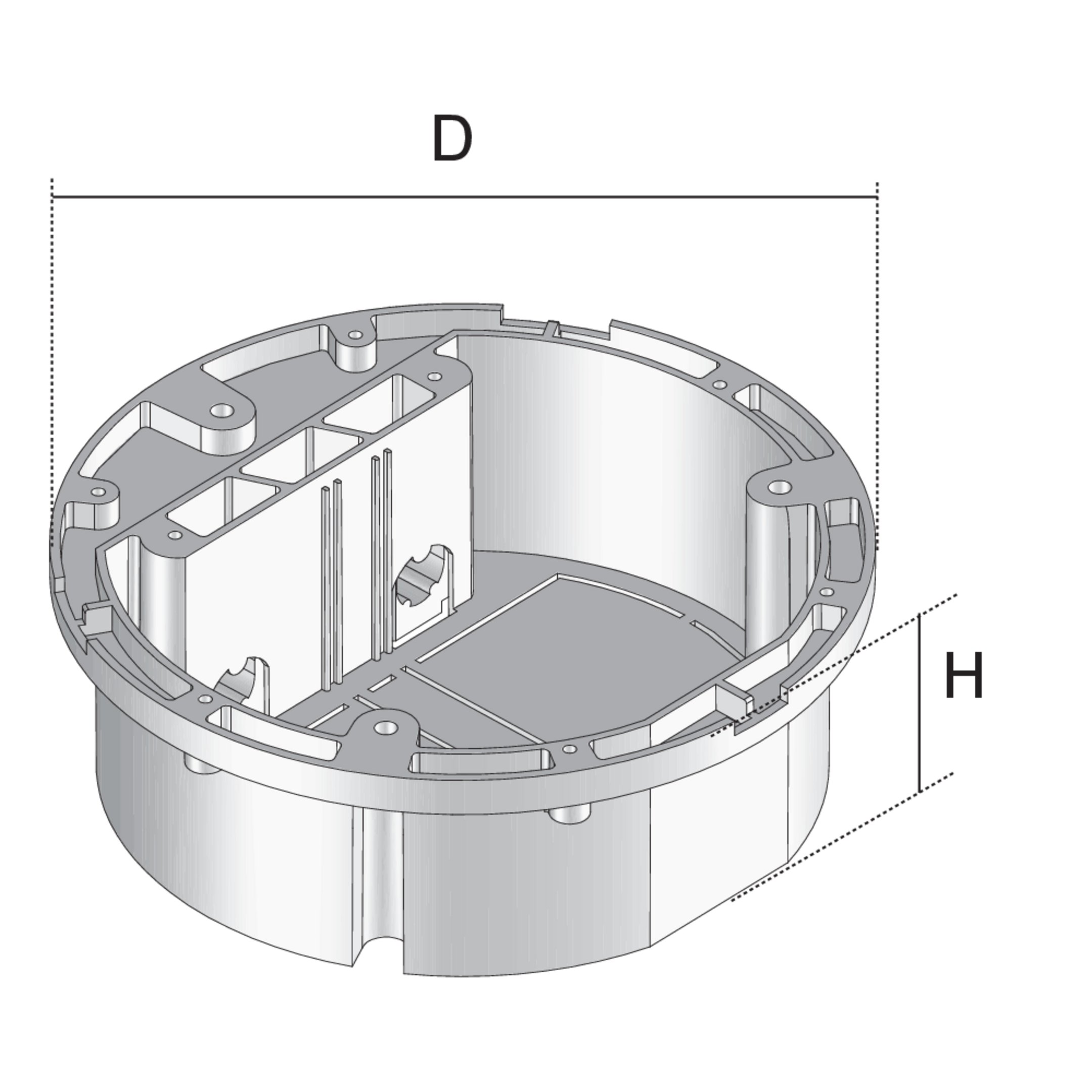

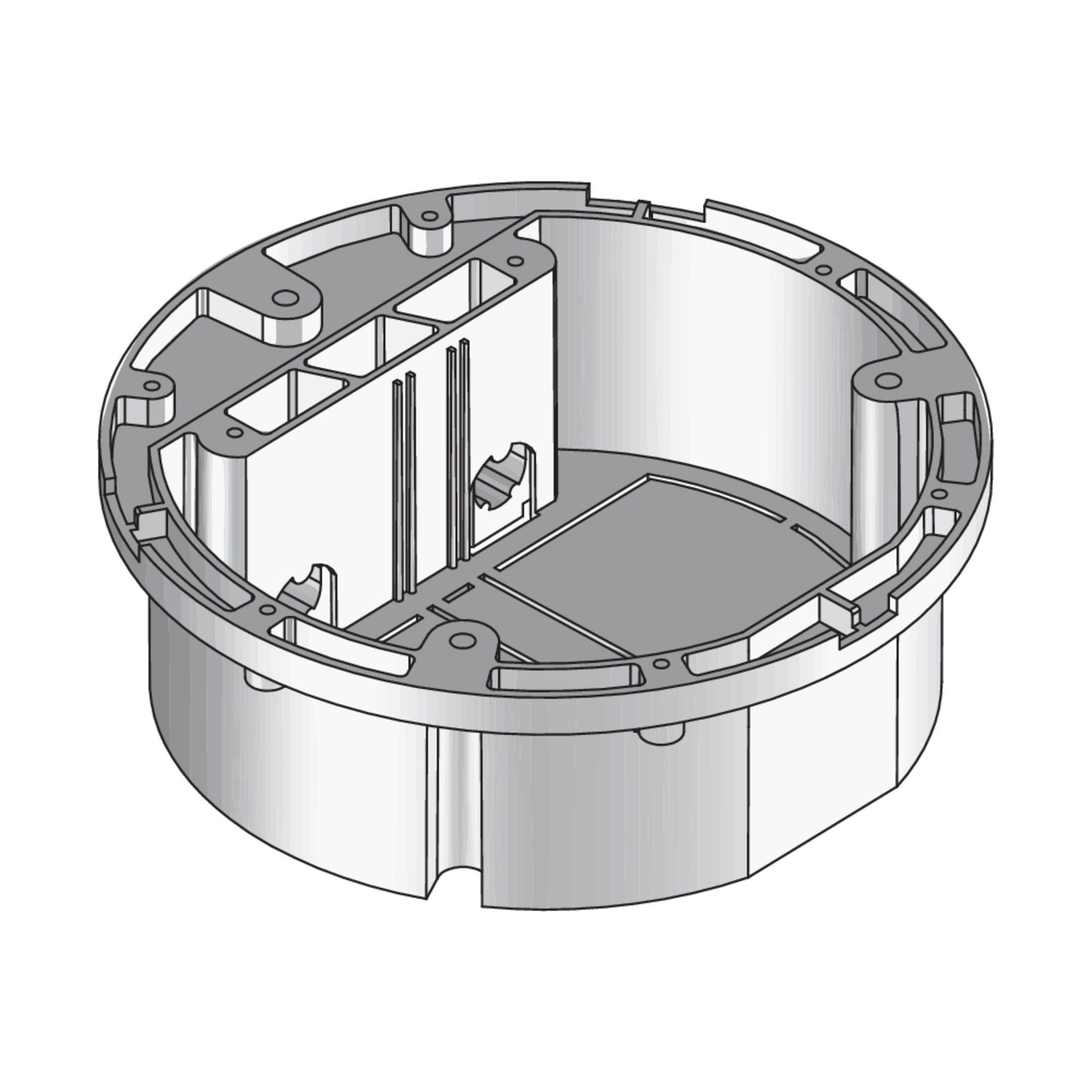

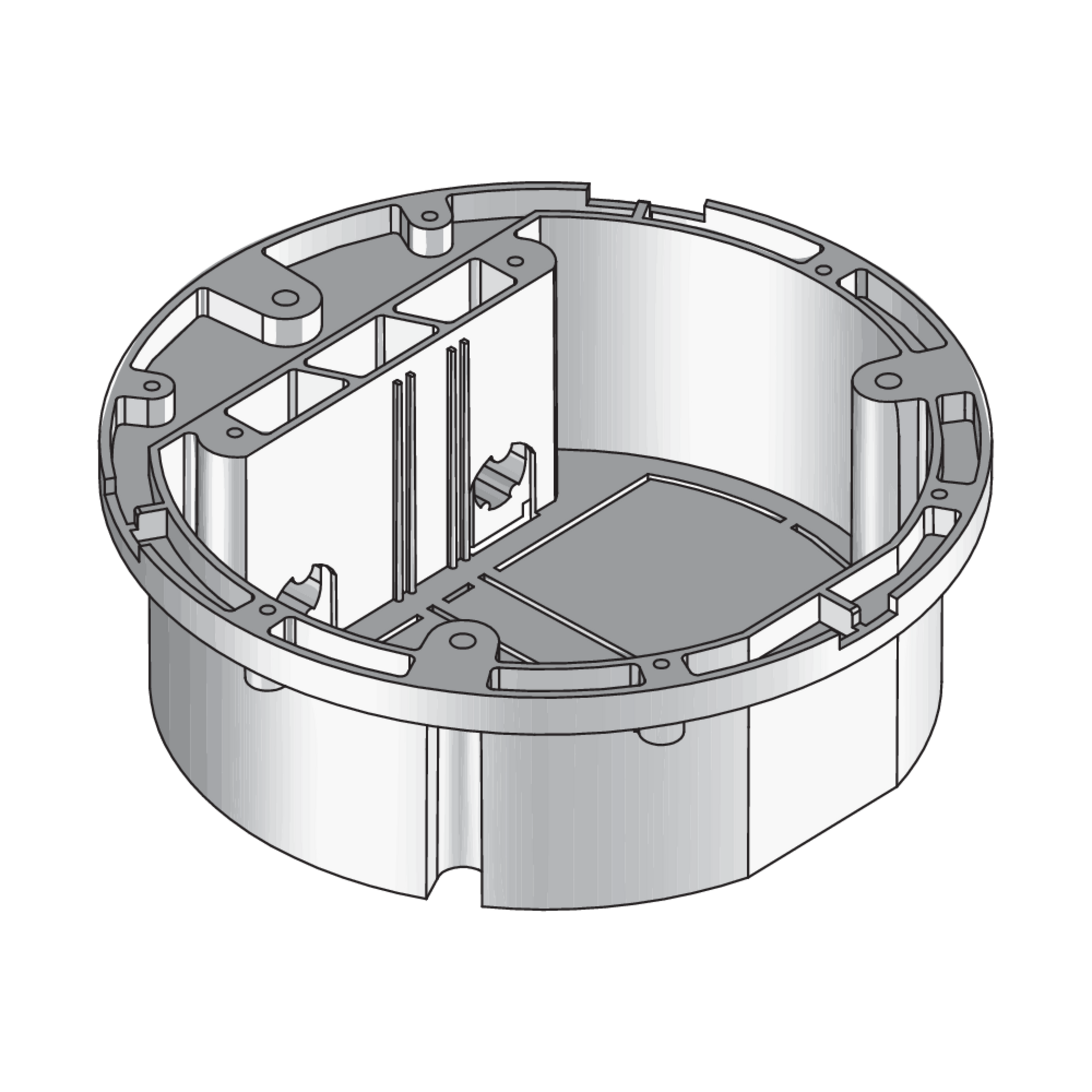

UG R components are round mounting boxes from the underfloor systems range that are used to accommodate installation devices. They are composed of a one-piece shell with a perforated base, two strain relief elements and two sheet metal screws. The mounting boxes can be bolted to BODO installation units or to angular, double single outlets and then fitted with single or double sockets. The mounting boxes are made of high-quality ABS copolymer (ABS) in graphite black (RAL 9011). They are 118 mm wide and 39 mm high.
H
height
D
Diameter (mm)
colour
color
RAL
RAL-Nummer
G
Weight per storage unit
en
de
Technical Information
en
de
Catalogue for screed-flush and screed-covered duct systems, installation units, floor sockets, mounting boxes and accessories.
de
Declaration
PDF (106.06 KB)
DownloadDownload
en
de
Installation equipment for electric cables and circuits
en
de
ru
Valid from February 1st, 2026
en
de
Valid from February 1, 2026
