UEKD2 V

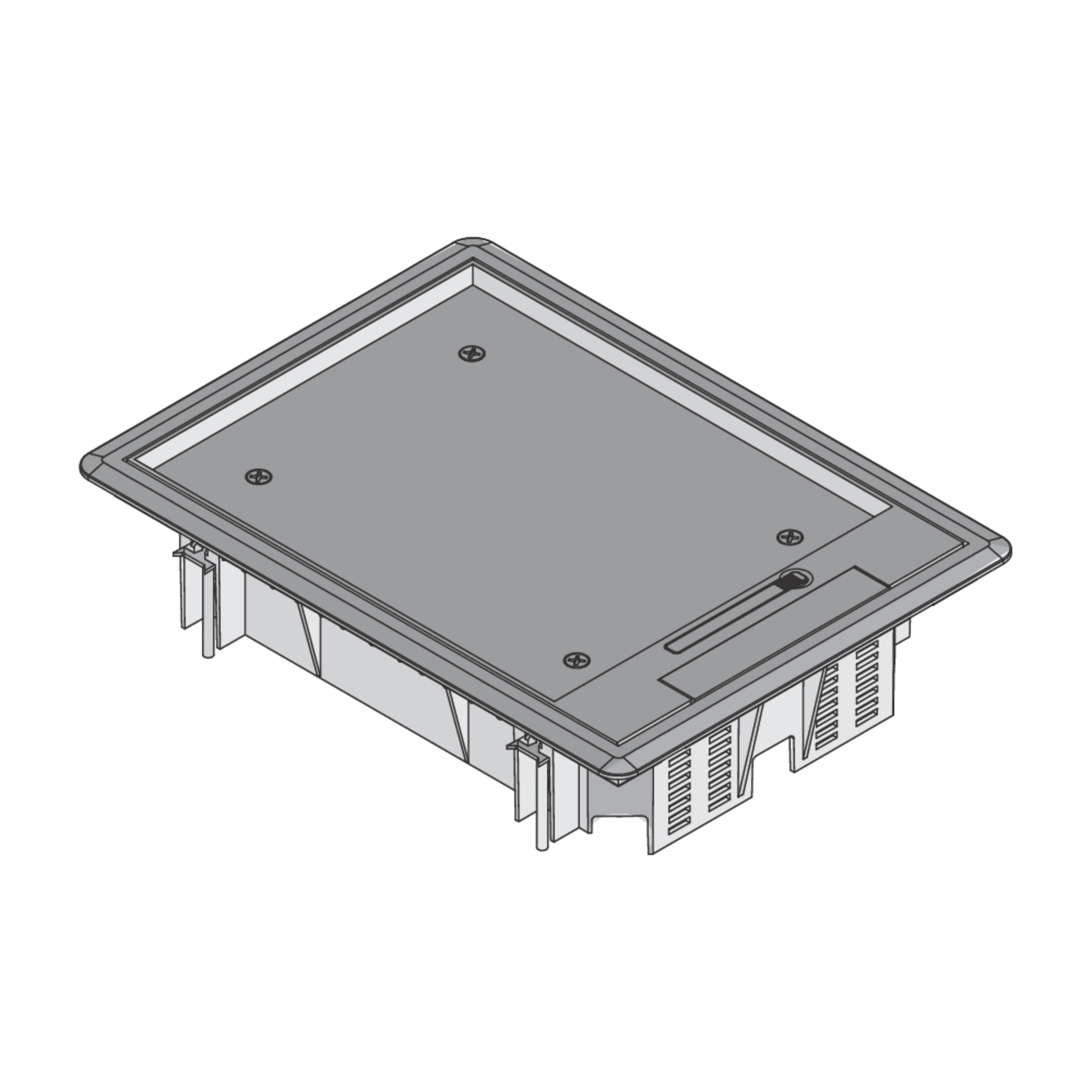

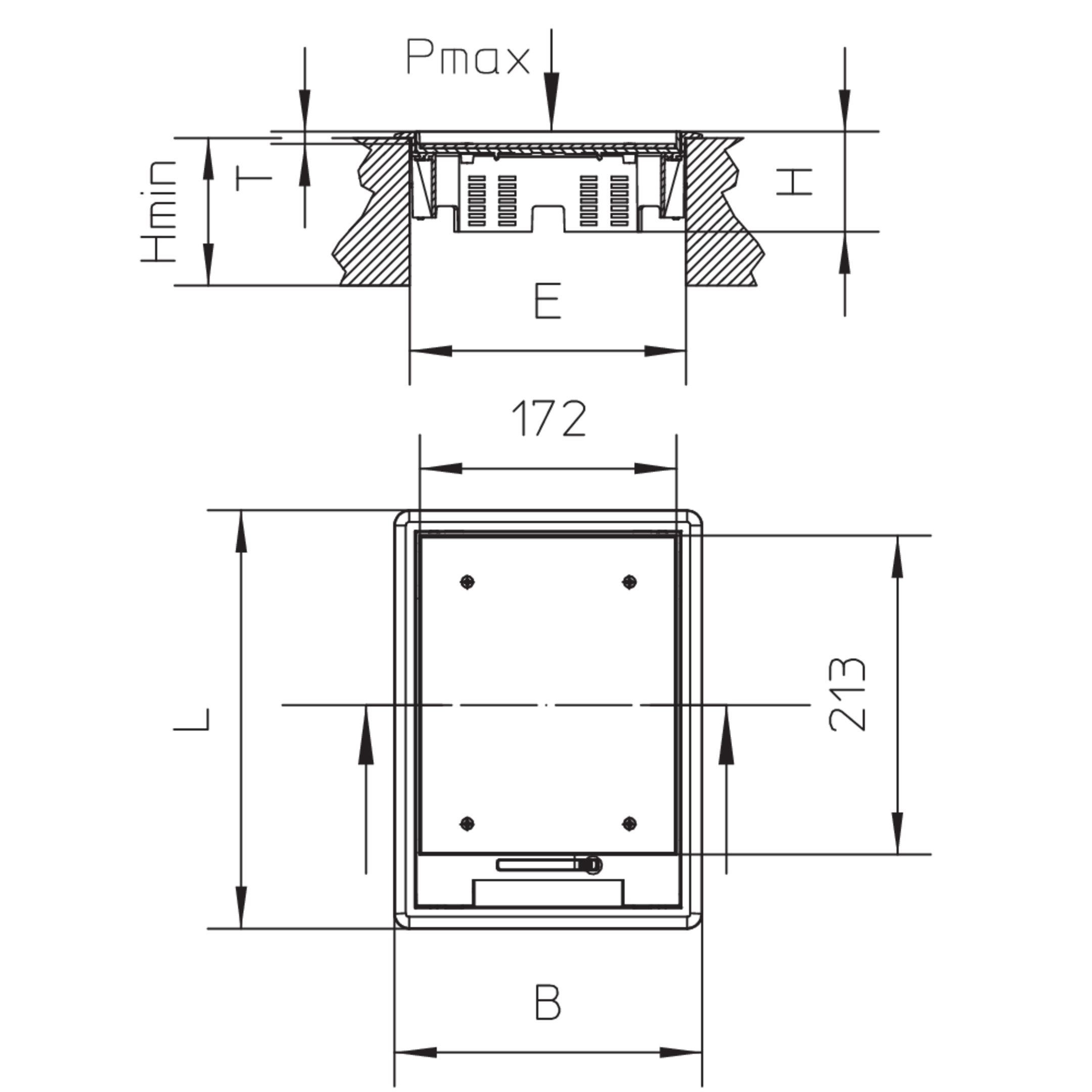

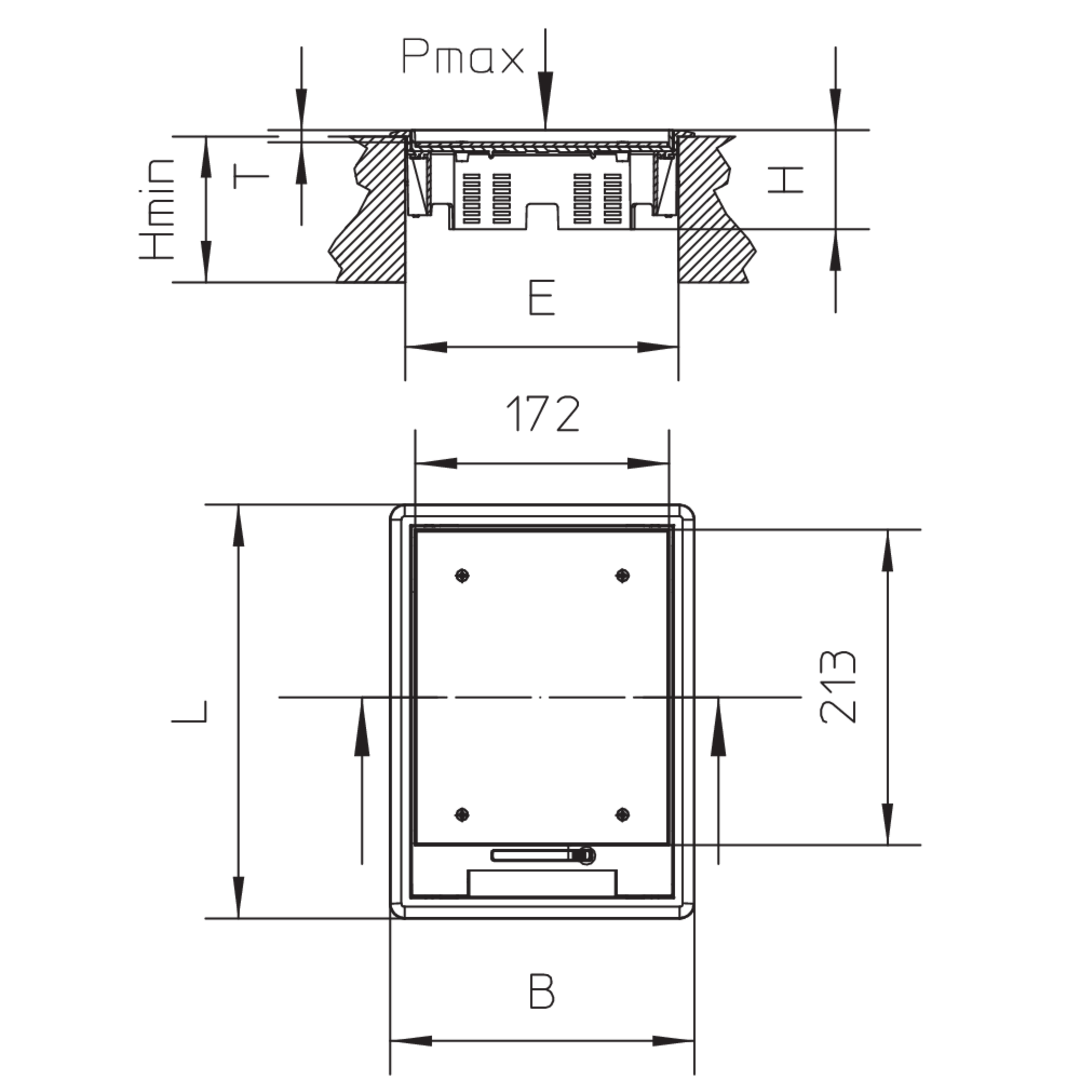

UEKD2 V installation units are angular, plastic hinged cover units with carpet protection frame. They are used in dry-cleaned rooms in assembly covers, floor sockets and in raised or false floor openings. They are designed for office traffic loads and can be used to gradually lower two mounting boxes when supplemented with snap-in ladders. The units have floor-level, swivelling cable outlets, opening levers and universal claws. The covers and frames are made of polyamide in graphite black (RAL 9011) and iron grey (RAL 7011). They have an IP protection rating of IP 30 in an unused condition, an IP protection rating of IP 20 when used, a minimum installation height of 81 mm, a maximum load of 2.00 kN and installation dimensions of 261 x 186 mm.
