UEKD1-1 V E

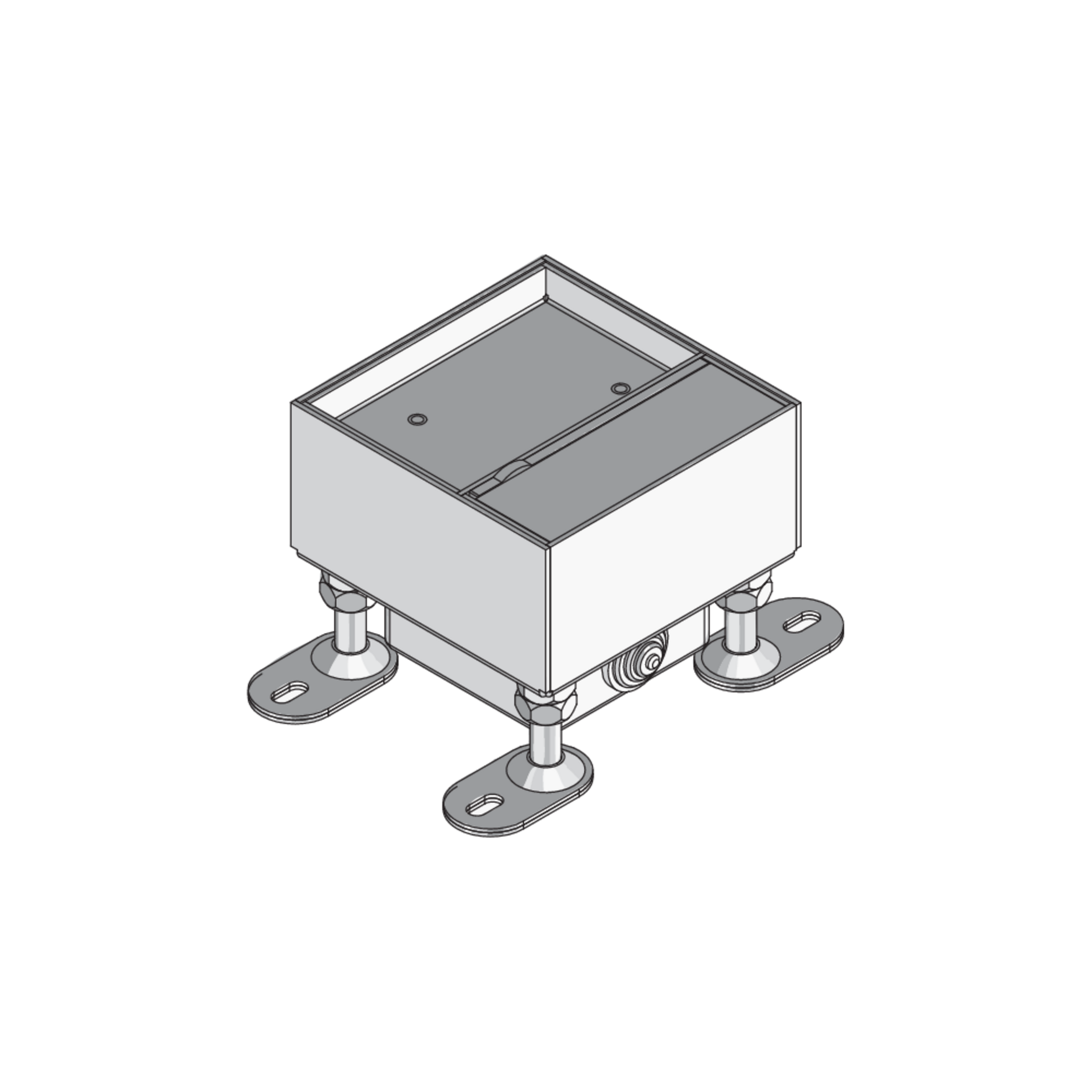

Stainless steel hinged cover single outlet cartridge, 1x, angular

UEKD1-1 V E components are square hinged cover single outlet cartridges with abutting edges. The installation units consist of a height-adjustable cartridge mounting frame with cable outlet cartridge, floor-level cable outlet and a housing for an installation device. They are installed in screed or false floors of dry-cleaned or damp-cleaned rooms with office traffic loads. The cartridges and frames are made of stainless steel, material no. 1.4301 (V2A), and the substructures of hot-dip galvanised sheet steel. They have installation dimensions of 115 x 115 mm, an IP protection class of IP 30 in an unused condition and a levelling range of 20 mm.

moistly maintained
Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

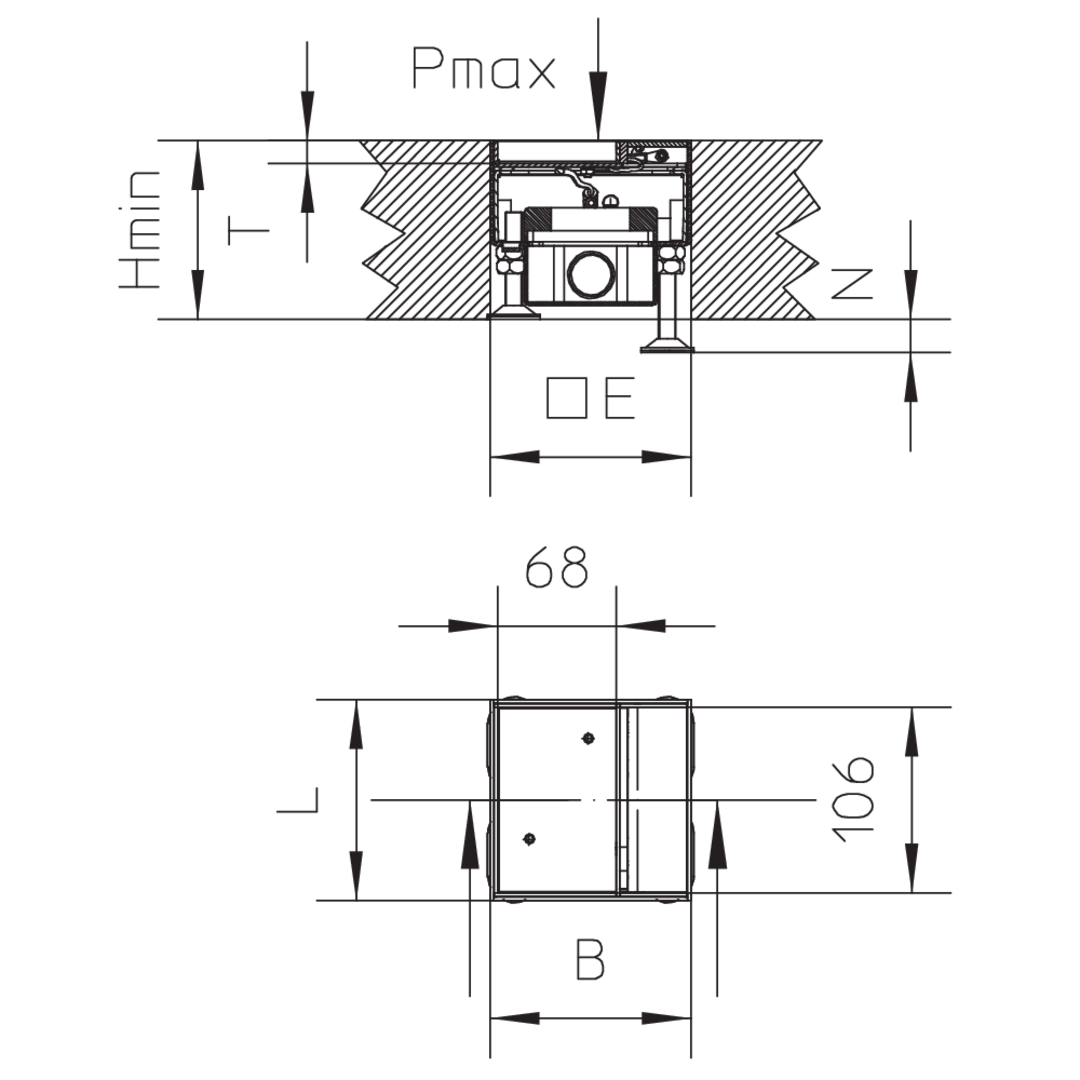

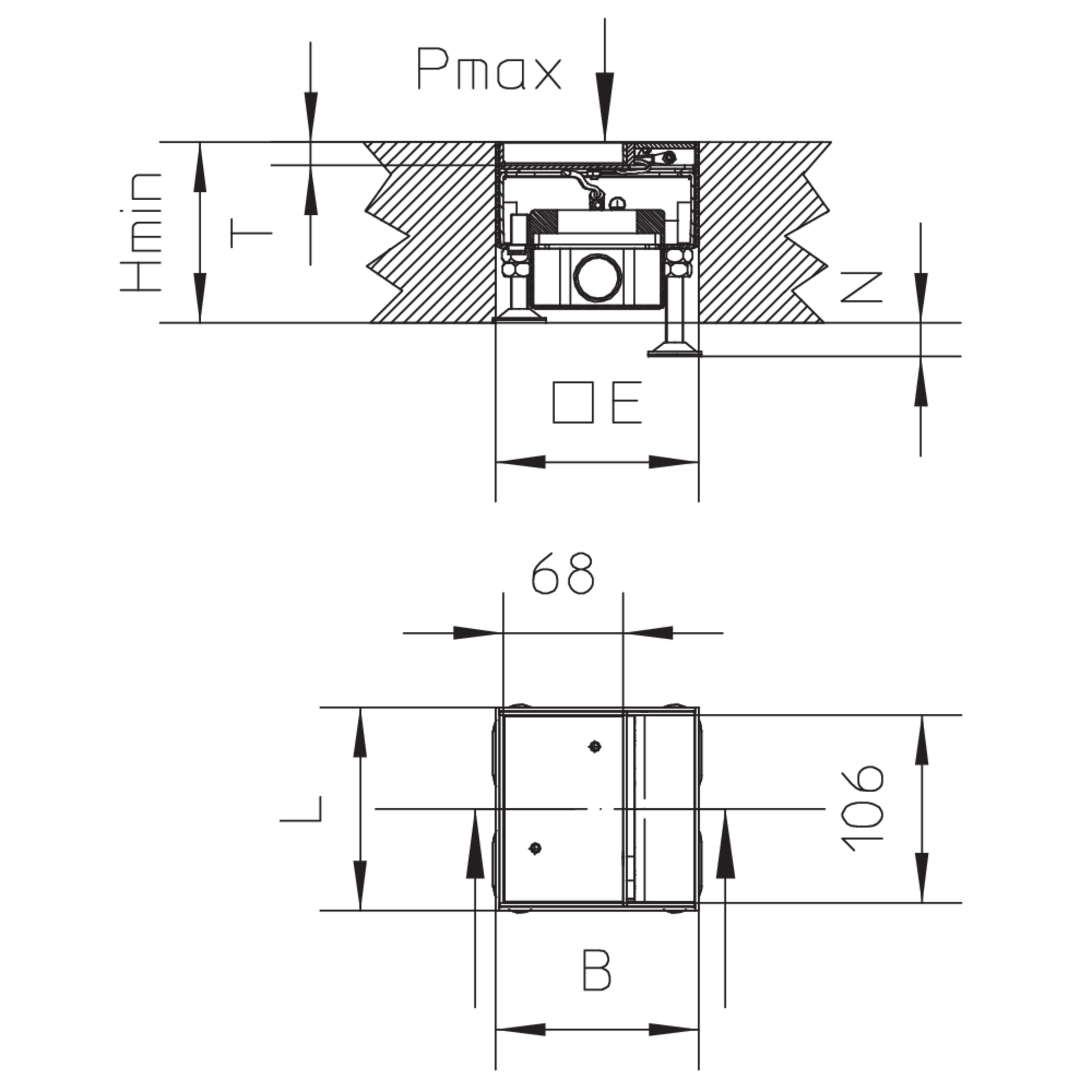

Hmin

minimum installation height

B

width

L

length

N

levelling range

Pmax

maximum load

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UEKD1-1 15-V E
    single outlet,
    minimum installation height
    100 mm
    width
    115 mm
    length
    115 mm
    levelling range
    20 mm
    maximum load
    2.00 kN
    fitting dimension
    115 x 115 mm
    IP protection level in used condition
    IP 20
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    12 mm
    Weight per storage unit
    1.599 kg
    Included accessories
    More information

Details

  • moistly maintained
  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 2/3 kN
