UEBDM V WD

Stainless steel tube cover unit, 3x, angular

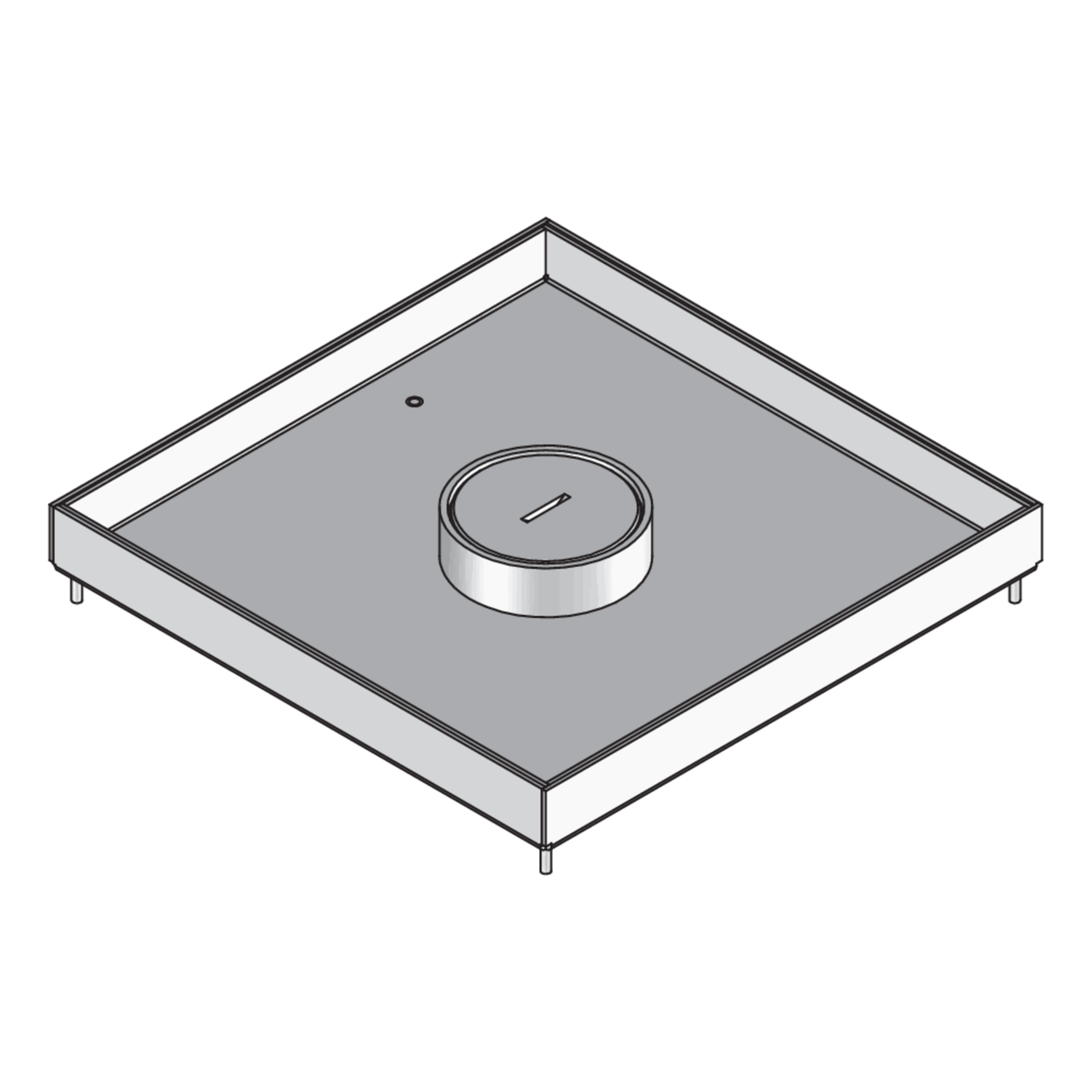

UEBDM V WD components are square tube cover units. They consist of a cartridge mounting frame with tube outlet, bolted tube mounting kit and rubber seal and are mounted using Phillips screws in screed junction boxes, assembly covers and raised or false floor openings in wet-cleaned rooms with office traffic loads. They can accommodate a maximum of 3 mounting boxes equipped with installation devices. The units are made of aluminium with an IP protection rating of IP 54 in an unused condition, an IP protection rating of IP 22 when used and a max. load of 2.00 kN. They are available with installation dimensions of 261 x 261 mm.

Load requirements according to: DIN EN 50085
CE-Zeichen (Conformité Européenne): Ja
VDE-zertifiziert: Ja
Get in touchDownload datasheet

Variants

Stainless steel, acc. to AISI 304 (BS 304S31)

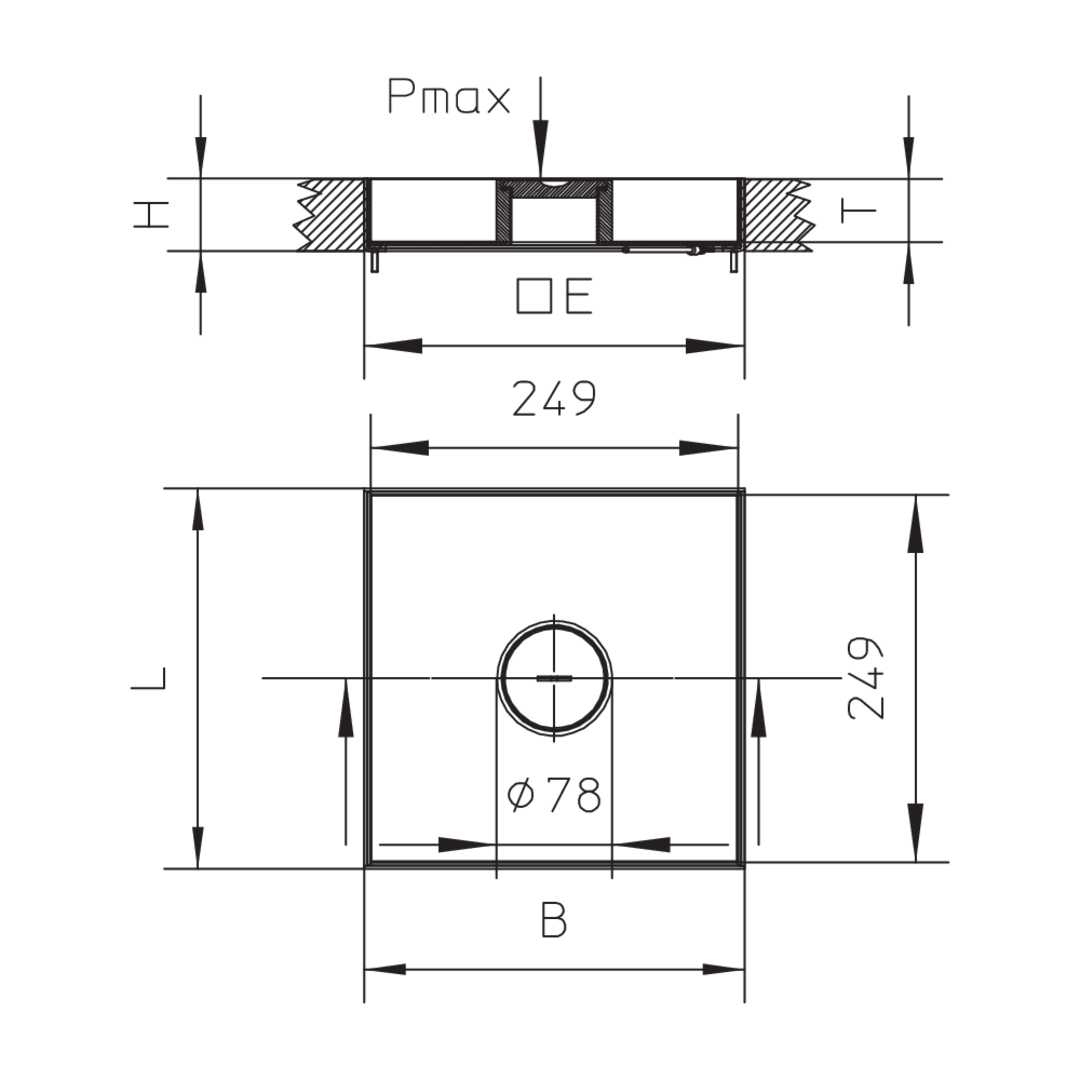

Article

H

height

Hmin

minimum installation height

B

width

L

length

Pmax

maximum load

mounting box

maximum number of installable device casings

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UEBDM 15-V-WD
    cartridge unit,
    height
    19 mm
    minimum installation height
    85 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    12 mm
    Weight per storage unit
    1.817 kg
    Included accessories
    More information
  • UEBDM 25-V-WD
    cartridge unit,
    height
    29 mm
    minimum installation height
    95 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    22 mm
    Weight per storage unit
    2.184 kg
    Included accessories
    More information
  • UEBDM 35-V-WD
    cartridge unit,
    height
    39 mm
    minimum installation height
    105 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    32 mm
    Weight per storage unit
    2.562 kg
    Included accessories
    More information
  • UEBDM 45-V-WD
    cartridge unit,
    height
    49 mm
    minimum installation height
    115 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    42 mm
    Weight per storage unit
    2.939 kg
    Included accessories
    More information

brass

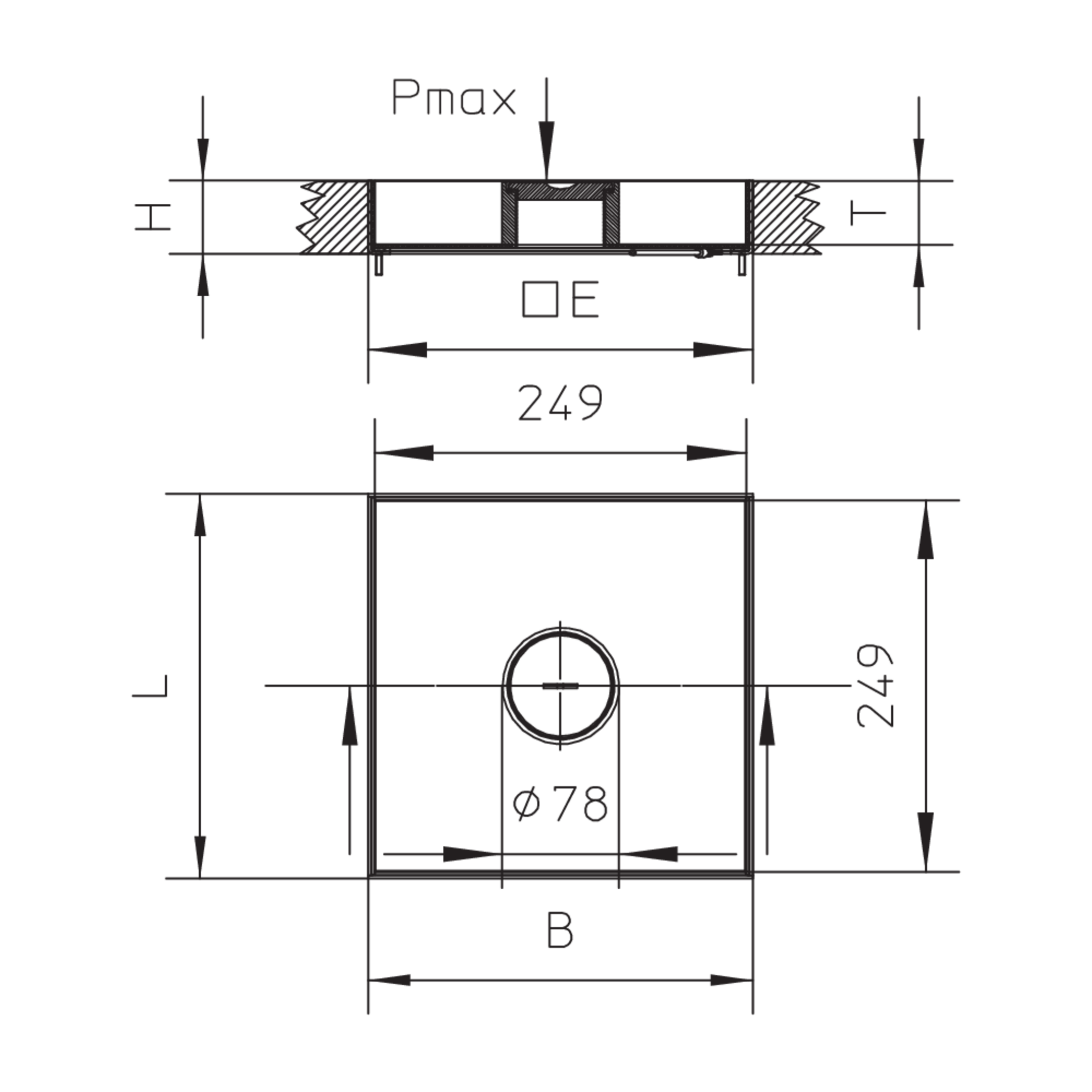

Article

H

height

Hmin

minimum installation height

B

width

L

length

Pmax

maximum load

mounting box

maximum number of installable device casings

E

fitting dimension

IPg

IP protection level in used condition

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UEBDM 25-V-WD MS
    cartridge unit,
    height
    29 mm
    minimum installation height
    95 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    16 mm
    Weight per storage unit
    5.324 kg
    Included accessories
    More information
  • UEBDM 35-V-WD MS
    cartridge unit,
    height
    39 mm
    minimum installation height
    105 mm
    width
    258 mm
    length
    258 mm
    maximum load
    2.00 kN
    maximum number of installable device casings
    3
    fitting dimension
    261 x 261 mm
    IP protection level in used condition
    IP 22
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    26 mm
    Weight per storage unit
    5.847 kg
    Included accessories
    More information

Details

  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 4/10 kN
