UEBD1-1 V E

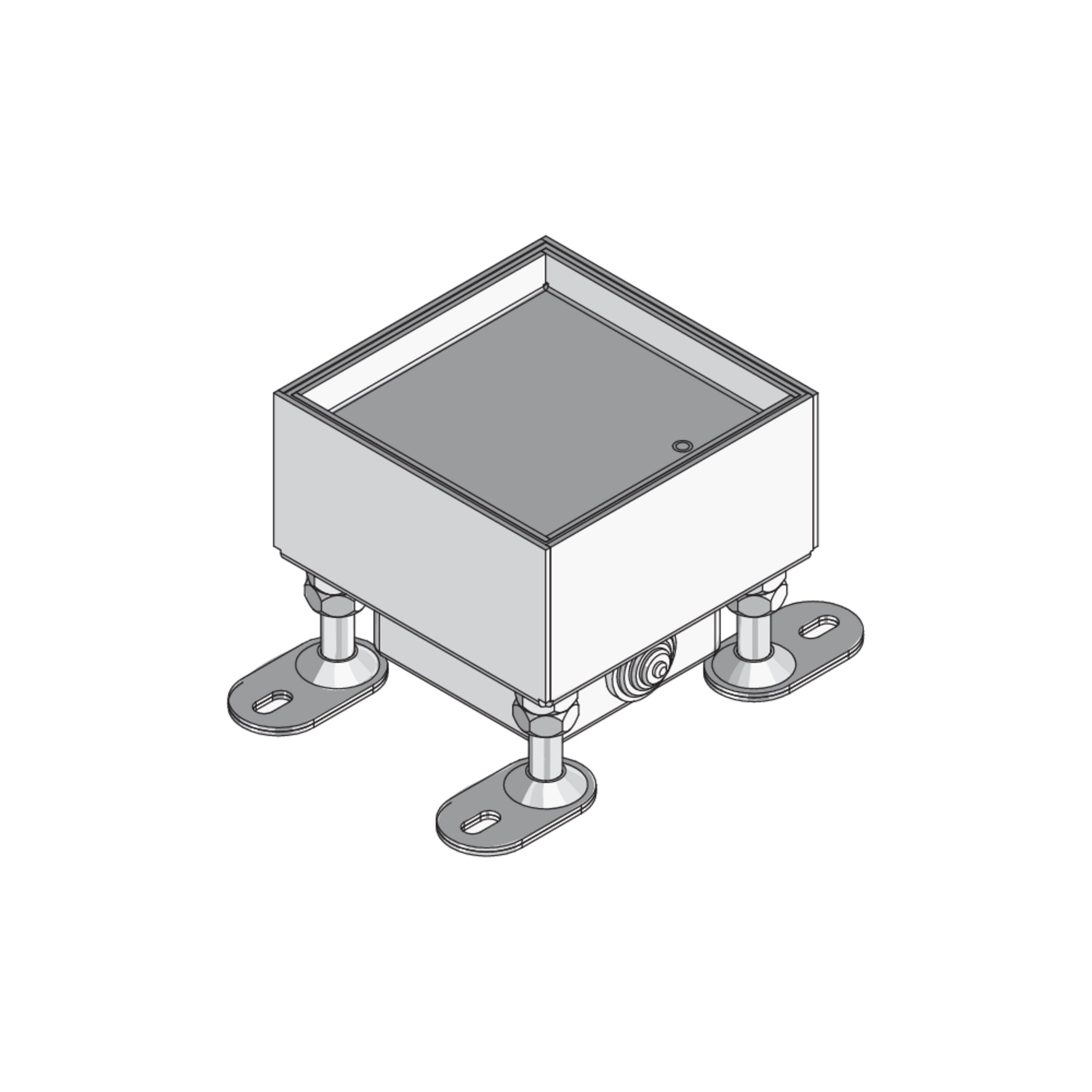

Stainless steel dummy cover unit, 1x, square

UEBD1-1 V E components are square dummy cover individual outlet cartridges with abutting edges. The installation units consist of an adjustable cartridge mounting frame with a dummy cartridge, a housing and a rubber seal and are installed directly in screed or false floors and used to accommodate an installation device. The single outlets are suitable for wet-cleaned rooms with office traffic loads. They are made of stainless steel, material no. 1.4301 (V2A), have installation dimensions of 115 x 115 mm, an IP protection class of IP 54 in the unused state and a levelling range of 20 mm.

wet maintained
Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

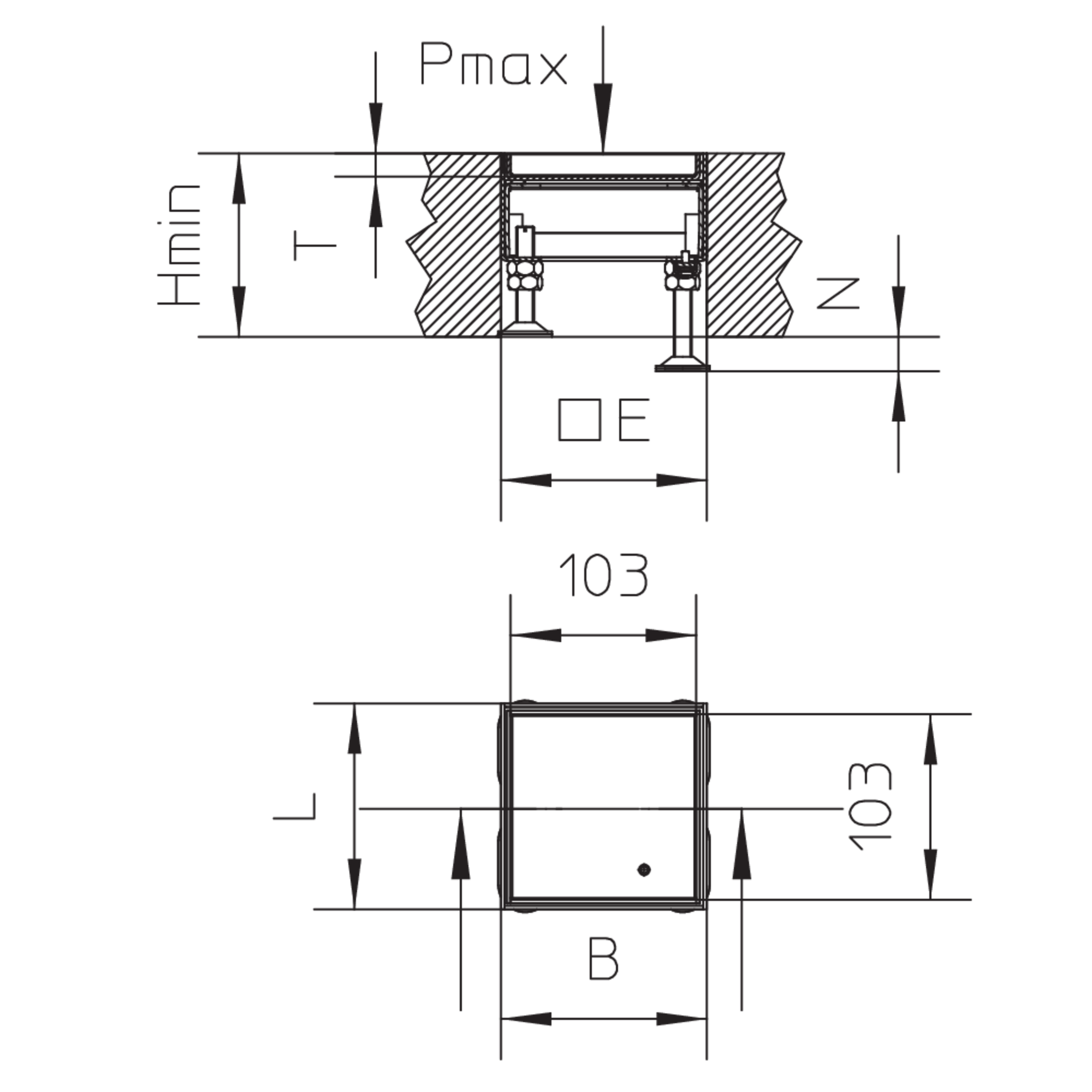

Hmin

minimum installation height

B

width

L

length

N

levelling range

Pmax

maximum load

E

fitting dimension

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

Included accessories
  • UEBD1-1 15-V E
    single outlet,
    minimum installation height
    100 mm
    width
    115 mm
    length
    115 mm
    levelling range
    20 mm
    maximum load
    2.00 kN
    fitting dimension
    115 x 115 mm
    IP protection level in unused condition
    IP 54
    Depth of flooring recess
    12 mm
    Weight per storage unit
    1.557 kg
