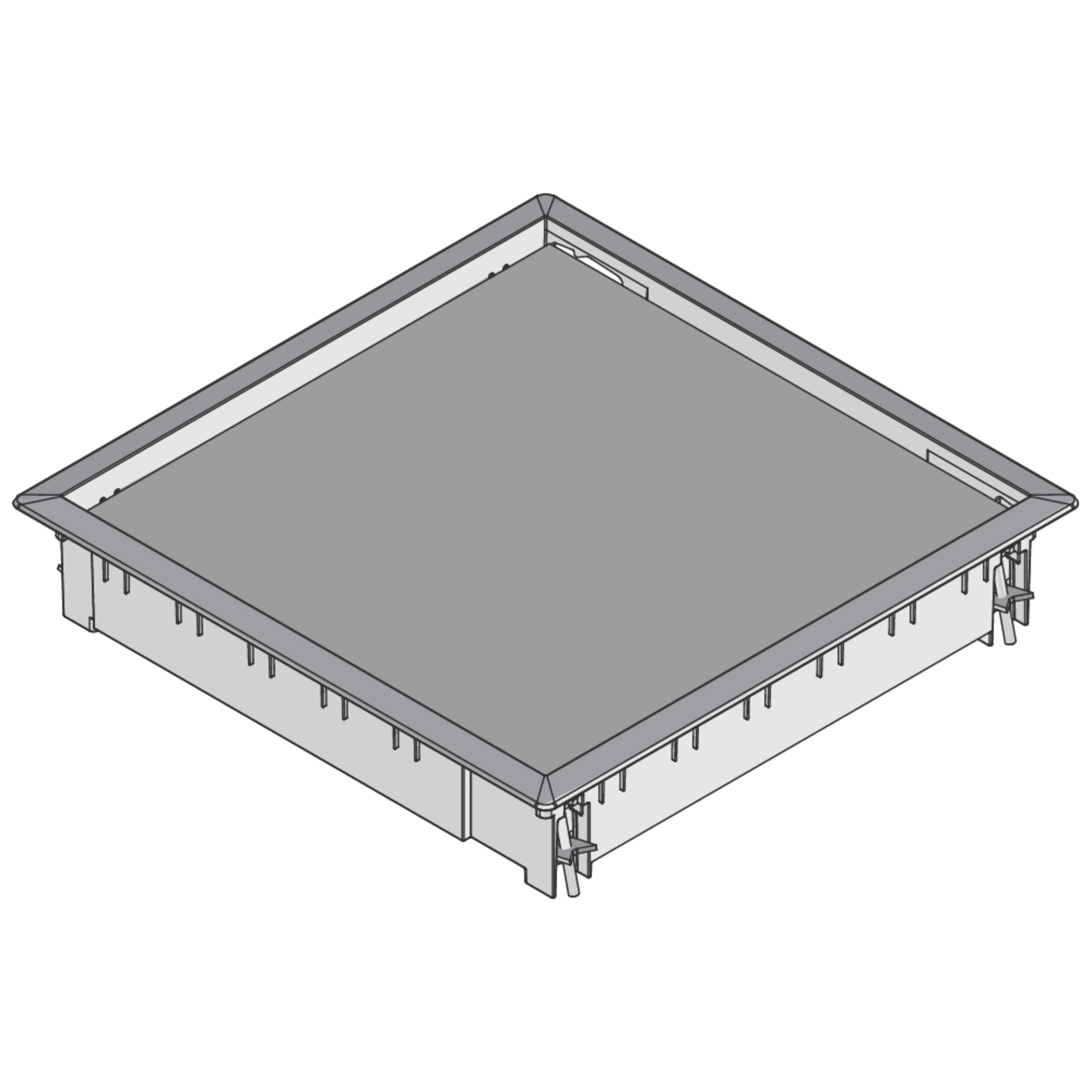

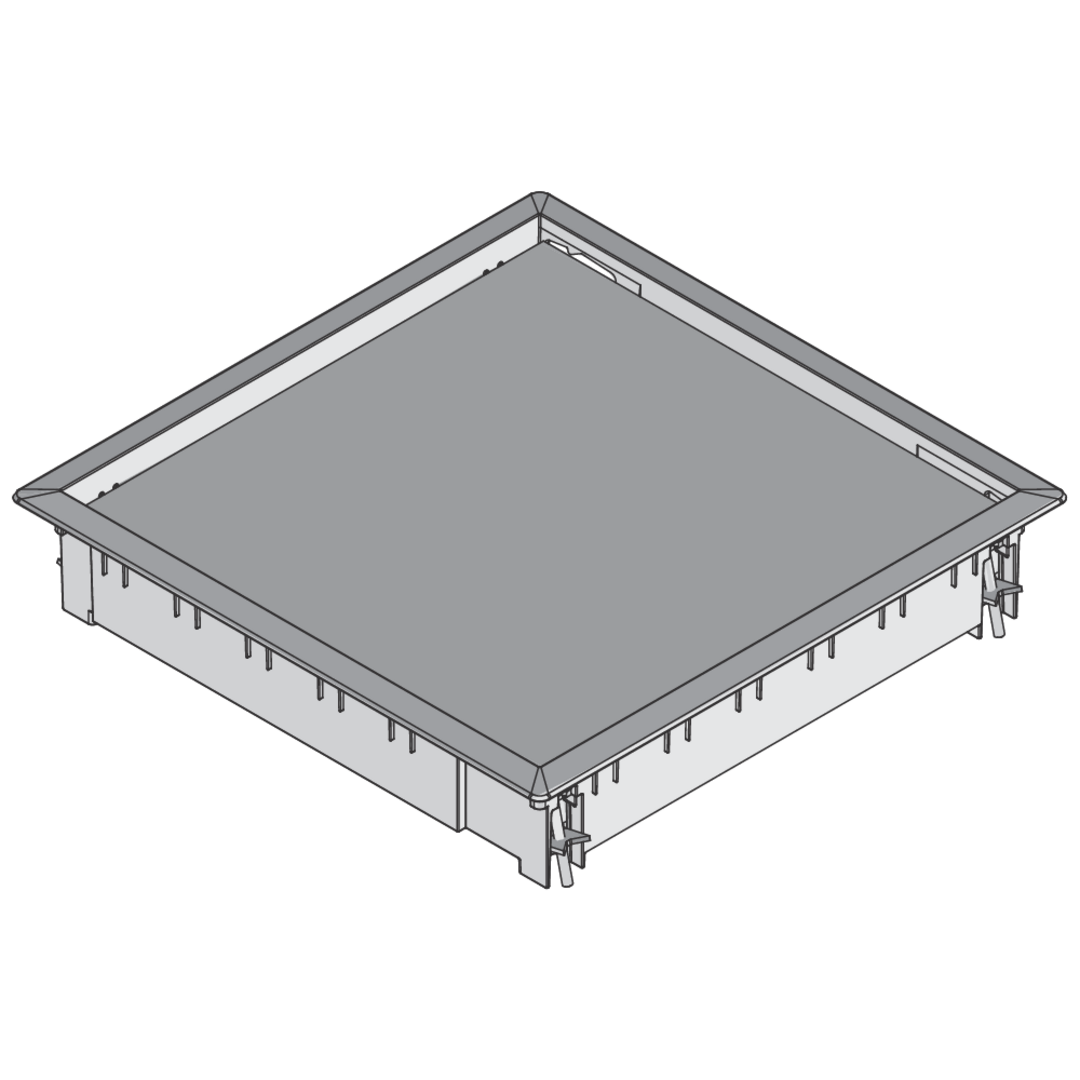

UEB3 V

Plastic dummy cover unit, 3x, angular

UEB3 V installation units are angular dummy cover units that are used in assembly covers, UBDHB screed junction boxes and raised or false floor openings. They act as a mounting frame for three mounting boxes and are suitable for dry-cleaned rooms with office traffic loads. The cover units have a carpet protection frame and are supplied with the universal fixing claws. The covers and frames are made of polyamide with matt surfaces in graphite black (RAL 9011) and iron grey (RAL 7011). They have an IP protection rating of IP 30 in an unused condition, a minimum installation height of 63 mm, installation dimensions of 260 x 260 and a maximum load of 2.00.

dry maintained
Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

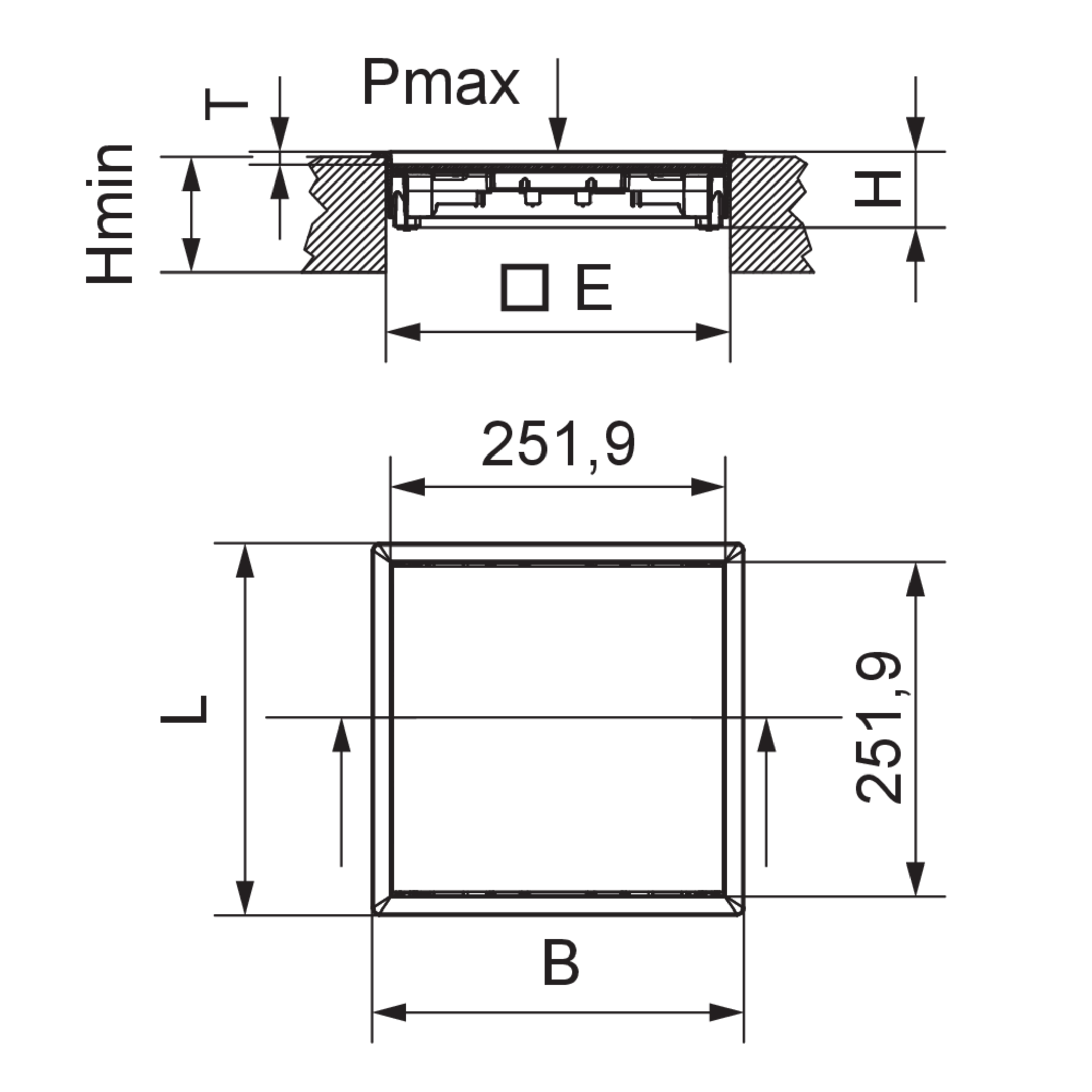

Variants

Article

H

height

Hmin

minimum installation height

B

width

L

length

Pmax

maximum load

Floor maintenance

E

fitting dimension

colour

color

IPn

IP protection level in unused condition

T

Depth of flooring recess

RAL

RAL-Nummer

G

Weight per storage unit

Included accessories
  • UEB3-V-G
    installation unit,
    height
    58 mm
    minimum installation height
    63 mm
    width
    280 mm
    length
    280 mm
    maximum load
    2.00 kN
    Floor maintenance
    Dry
    fitting dimension
    260 x 260 mm
    color
    Iron gray
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    10 mm
    RAL-Nummer
    7011
    Weight per storage unit
    2.273 kg
    Included accessories
    More information
  • UEB3-V-S
    installation unit,
    height
    58 mm
    minimum installation height
    63 mm
    width
    280 mm
    length
    280 mm
    maximum load
    2.00 kN
    Floor maintenance
    Dry
    fitting dimension
    260 x 260 mm
    color
    Graphite black
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    10 mm
    RAL-Nummer
    9011
    Weight per storage unit
    2.273 kg
    Included accessories
    More information

Details

  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 2/3 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM Data Installation Boxes

    BIM Data

    ZIP (13.12 MB)

    DownloadDownload

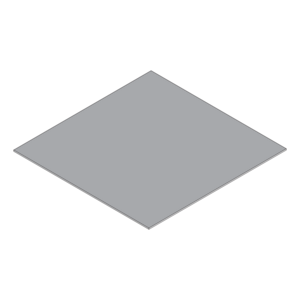

Included accessories
