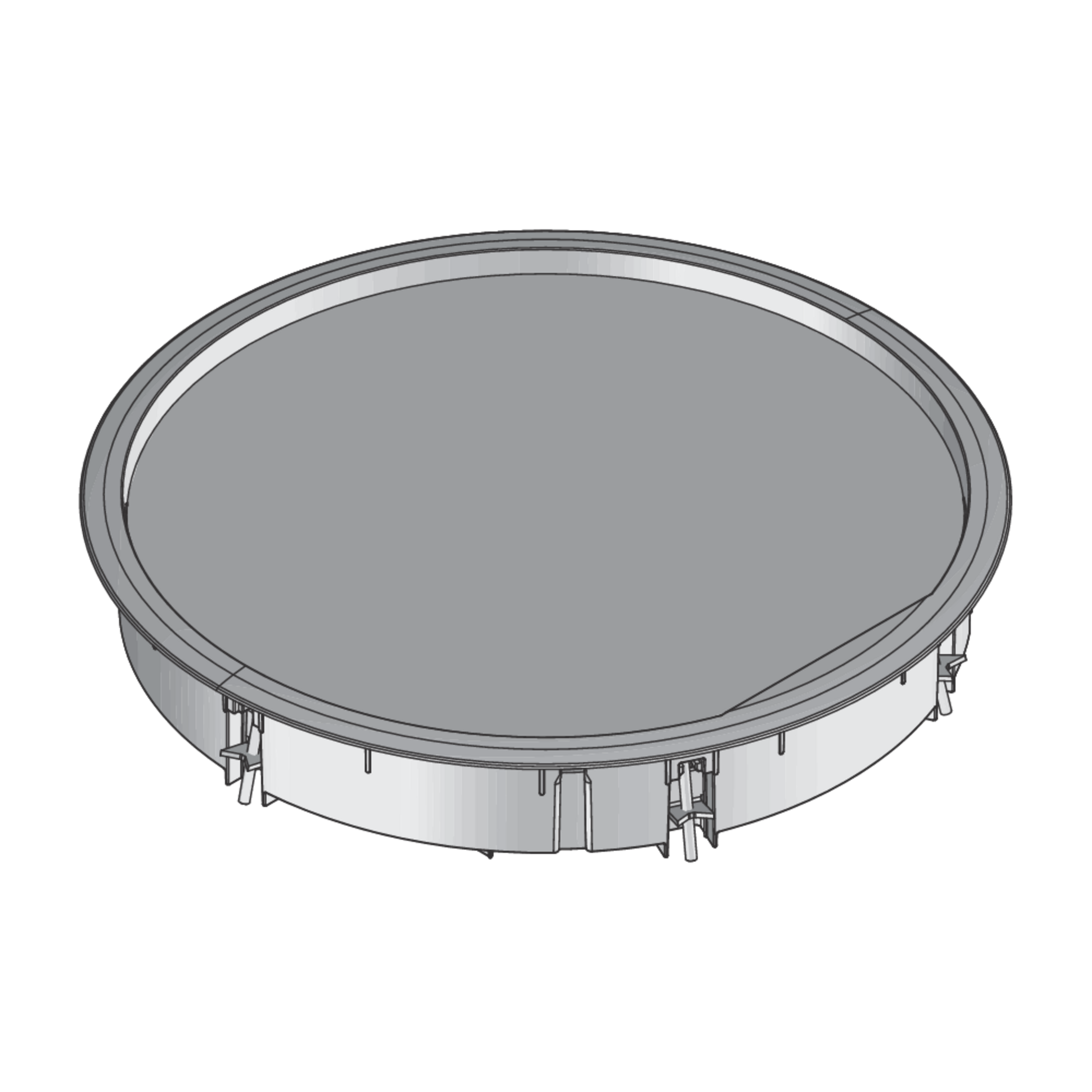

UEB3 R

Plastic dummy cover unit, 3x, round

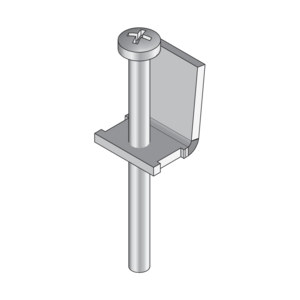

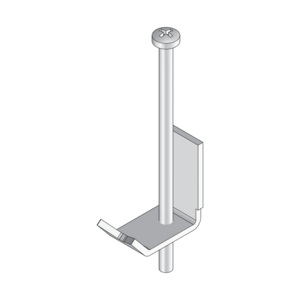

The installation units UEB3 R are round dummy cover units that are used in assembly covers, UBDHB floor sockets and raised or false floor openings. They act as a mounting frame for three mounting boxes and are suitable for dry-cleaned rooms with office traffic loads. The cover units have a carpet protection frame and are supplied with UDKS3-VR universal fixing claws. The covers and frames are made of polyamide with matt surfaces and the insert is made of hot-dip galvanised sheet steel. They have an IP protection rating of IP 30 in an unused condition, a minimum installation height of 54 mm, a maximum load of 2.00 kN and installation dimensions of 307 mm.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

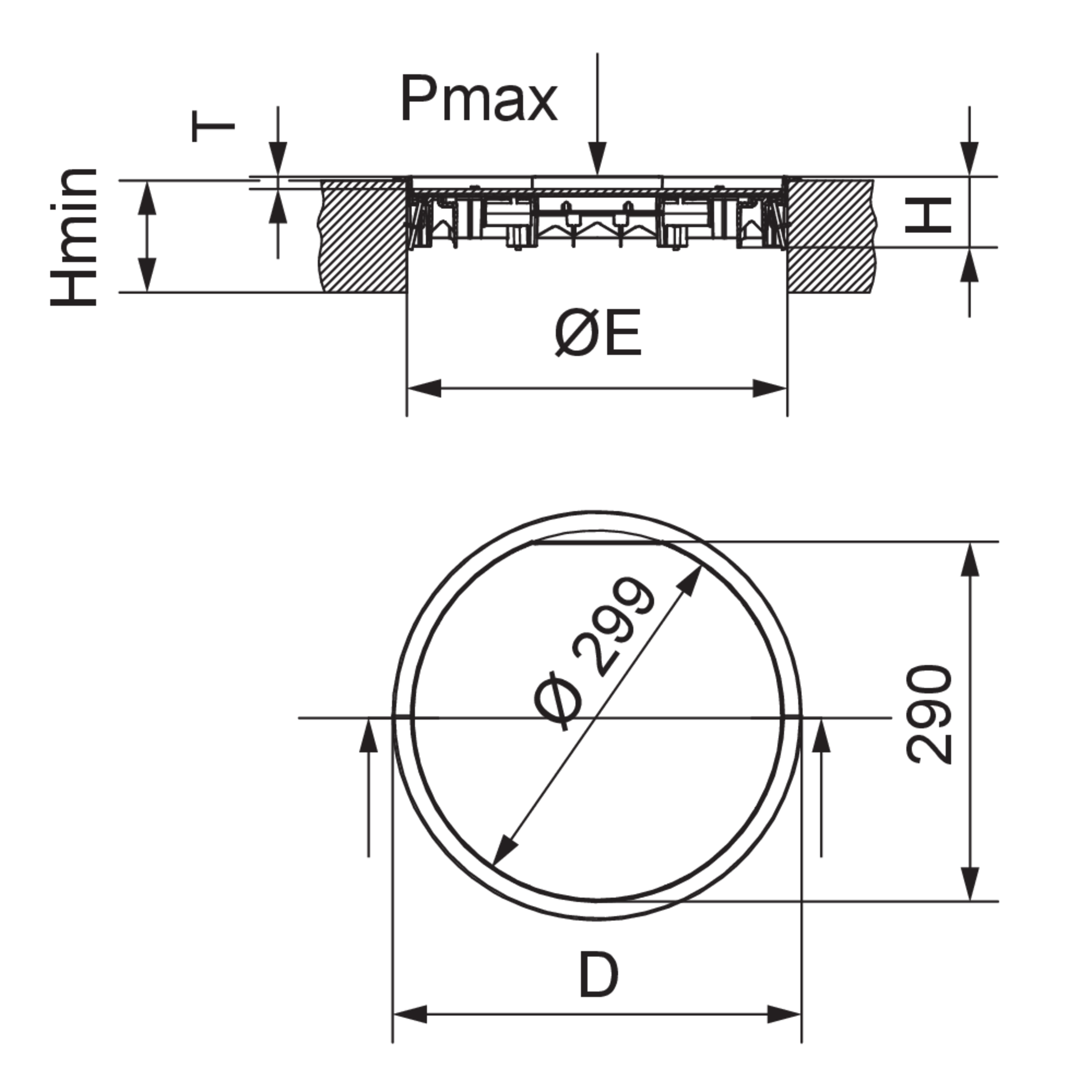

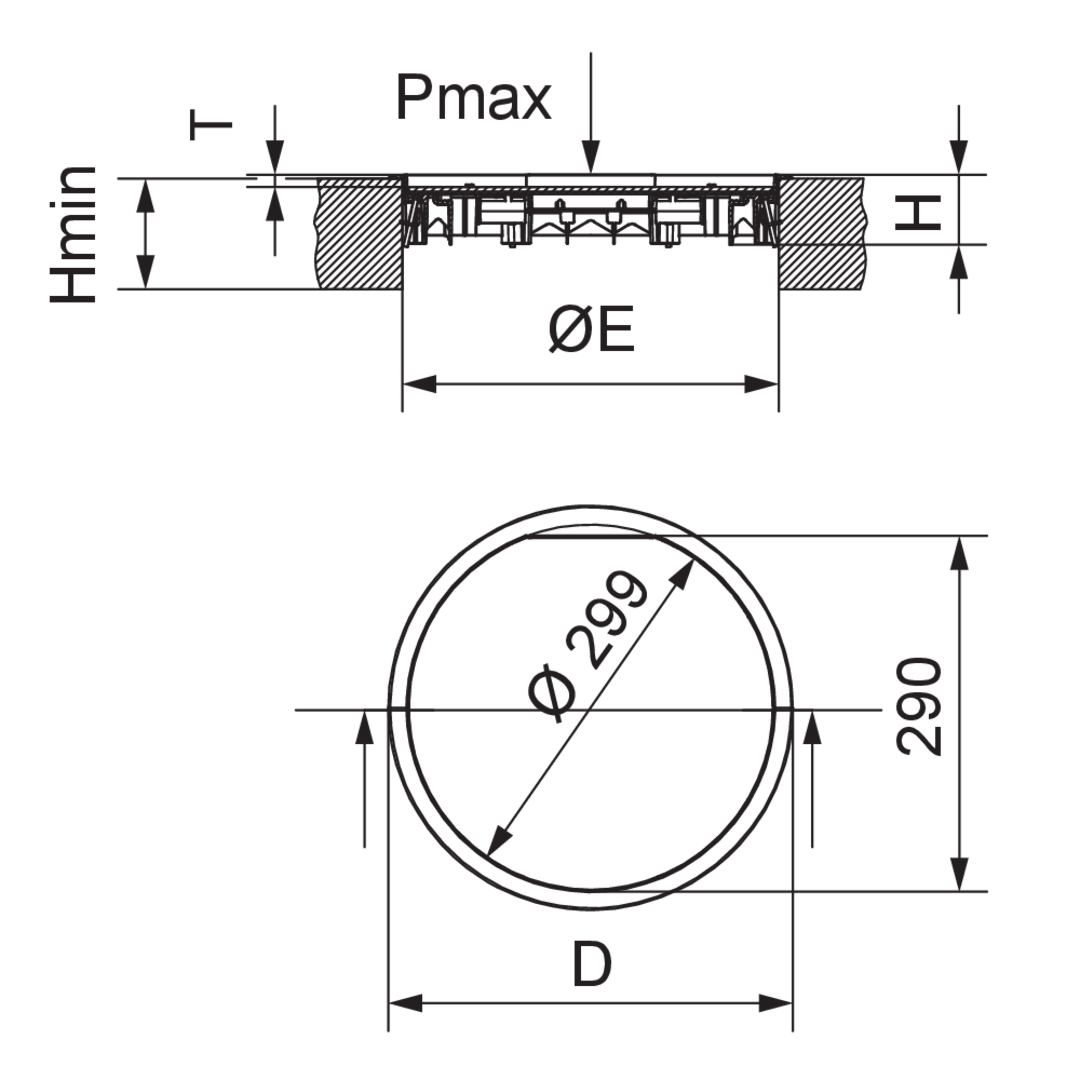

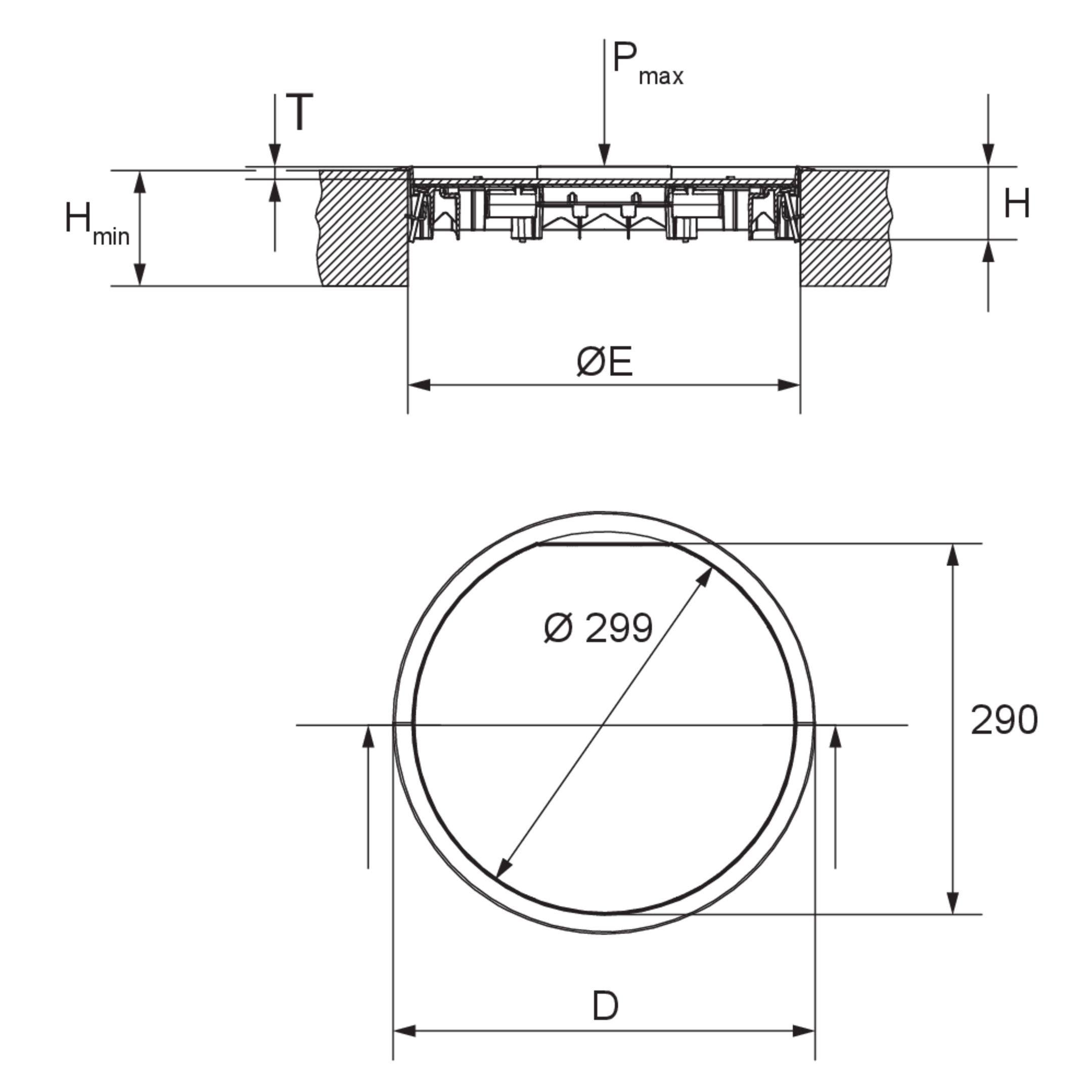

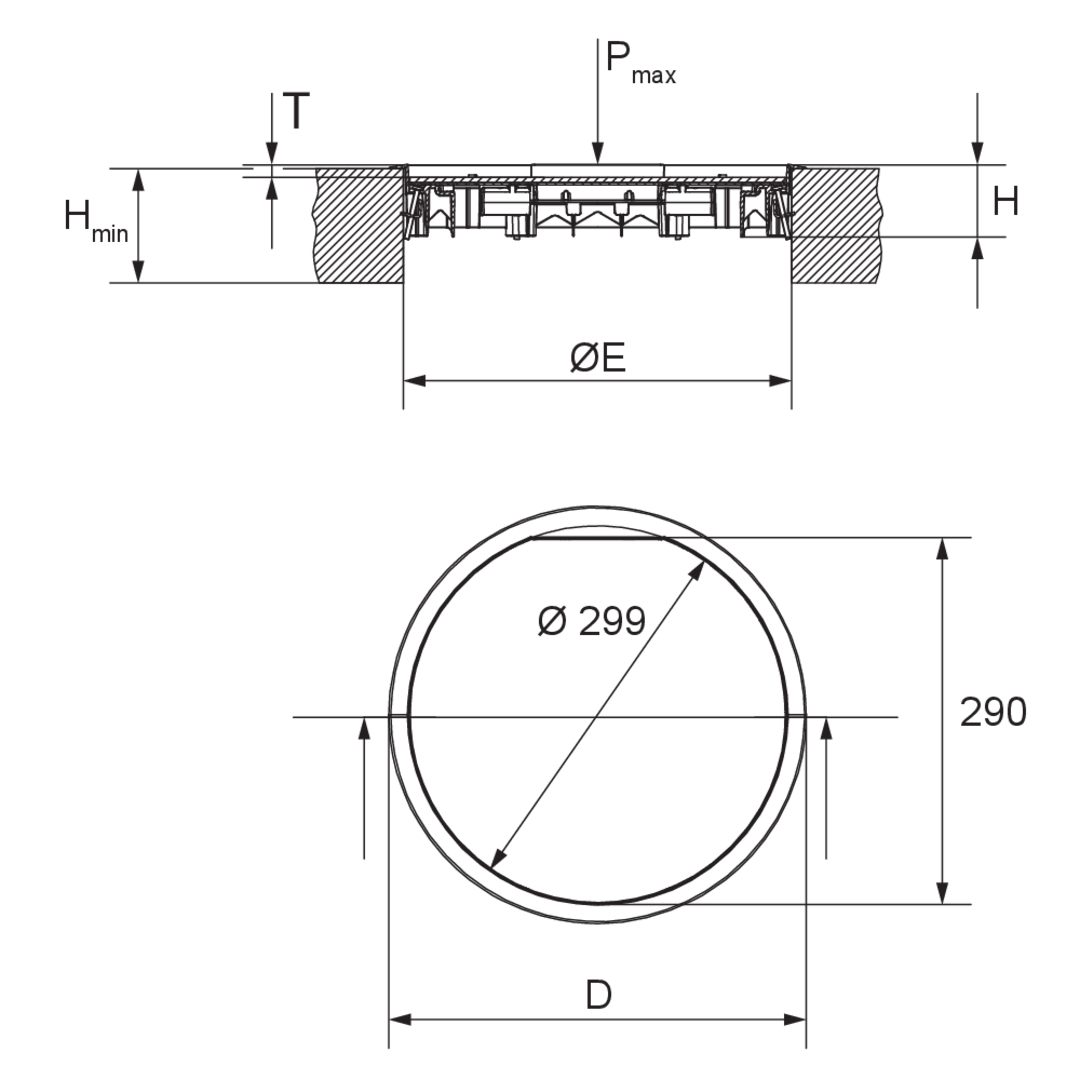

Variants

Article

H

height

Hmin

minimum installation height

Pmax

maximum load

ØB

Installation diameter

ØE

fitting dimension round

colour

color

IPn

IP protection level in unused condition

T

Depth of flooring recess

G

Weight per storage unit

  • UEB3-R-G
    installation unit,
    height
    58 mm
    minimum installation height
    54 mm
    maximum load
    2.00 kN
    Installation diameter
    330 mm
    fitting dimension round
    307 mm
    color
    RAL 7011 (iron gray)
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    10 mm
    Weight per storage unit
    2.554 kg
    Included accessories
    More information
  • UEB3-R-S
    installation unit,
    height
    58 mm
    minimum installation height
    54 mm
    maximum load
    2.00 kN
    Installation diameter
    330 mm
    fitting dimension round
    307 mm
    color
    RAL 9011 (graphite black)
    IP protection level in unused condition
    IP 30
    Depth of flooring recess
    10 mm
    Weight per storage unit
    2.554 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With inspection stamp dia. 13/130 mm: 2/3 kN

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
