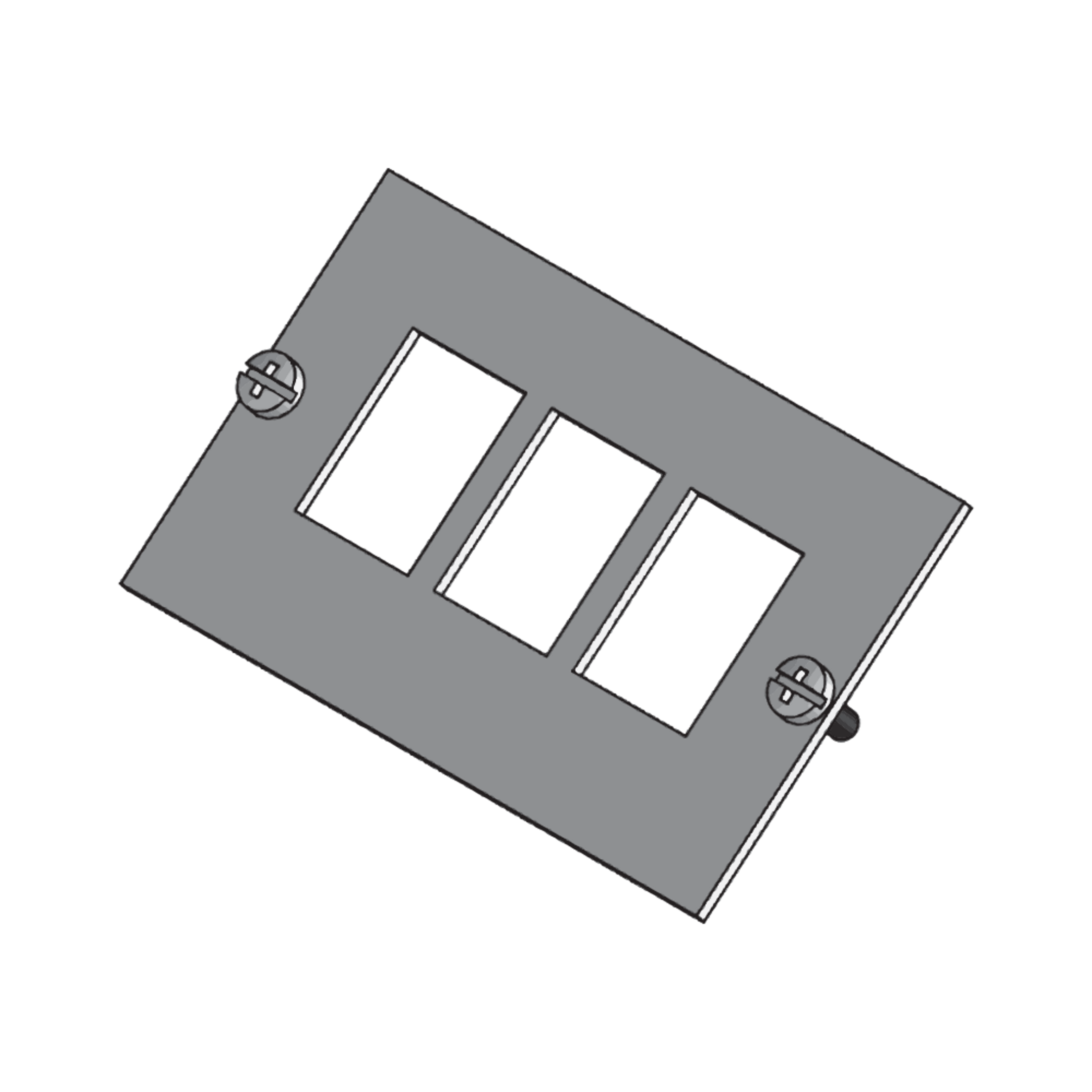

Mounting board, data technology
UDEP GG45 components are installation boards from the underfloor system range. The boards are bolted into data device carriers and are used to accommodate up to 3 Unilan PS-GG45 7A data jacks from Dätwyler or plug-in technology components from other manufacturers, such as 3M Deutschland GmbH or Brand-Rex. The installation boards are made of aluminium with a black coating on one side and have the installation dimensions of E1 20.1 mm and E2 14.7 mm.
H
height
B
width
data jacks
Max. number of installable data jacks
E1
fitting dimension E1
E2
fitting dimension E2
colour
color
G
Weight per storage unit
