UGETD

Device carrier, data, 3x UDEP

UGETD components are data device carriers from the underfloor systems range. The device carriers can be snapped into installation units with a precise fit. They can then be fitted with up to three UDEP installation boards for data, audio and video technology. The data device carriers are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346 in black (similar to RAL 9011) and are available with installation dimensions of E1 33.5 mm and E2 59.5 mm.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

Hmin

minimum installation height

B

width

L

length

E1

fitting dimension E1

E2

fitting dimension E2

colour

color

RAL

RAL-Nummer

G

Weight per storage unit

  • UGETD-3 226
    device carrier UGETD-3 226, for data-,
    height
    33 mm
    minimum installation height
    96 mm
    width
    75 mm
    length
    227 mm
    fitting dimension E1
    33.5 mm
    fitting dimension E2
    59.5 mm
    color
    Graphite black
    RAL-Nummer
    9011
    Weight per storage unit
    0.274 kg
    More information

Details

  • VDE/TÜV approval according to DIN EN 50085

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

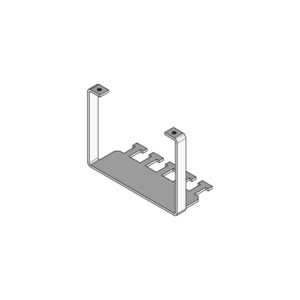

Included accessories
