Mounting board, plug-in systems

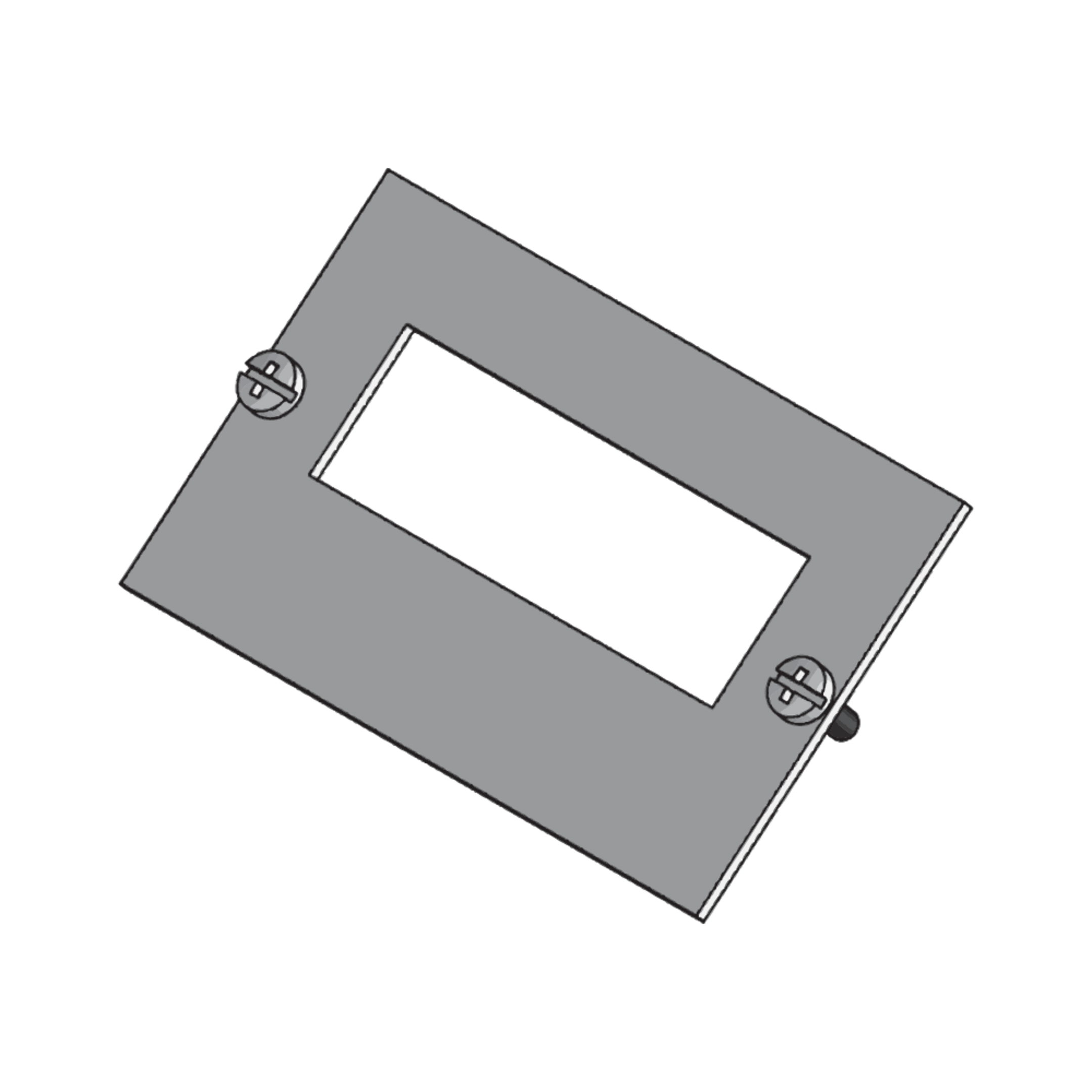

UDEP 5PK components are installation boards from the underfloor system range. The boards are bolted into data device carriers and are used to accommodate up to three 5-pin snap-in connector sockets with 400 V and 16 A. The installation boards are made of aluminium with a black coating on one side and have the installation dimensions of E1 16.6 mm and E2 52.5 mm.

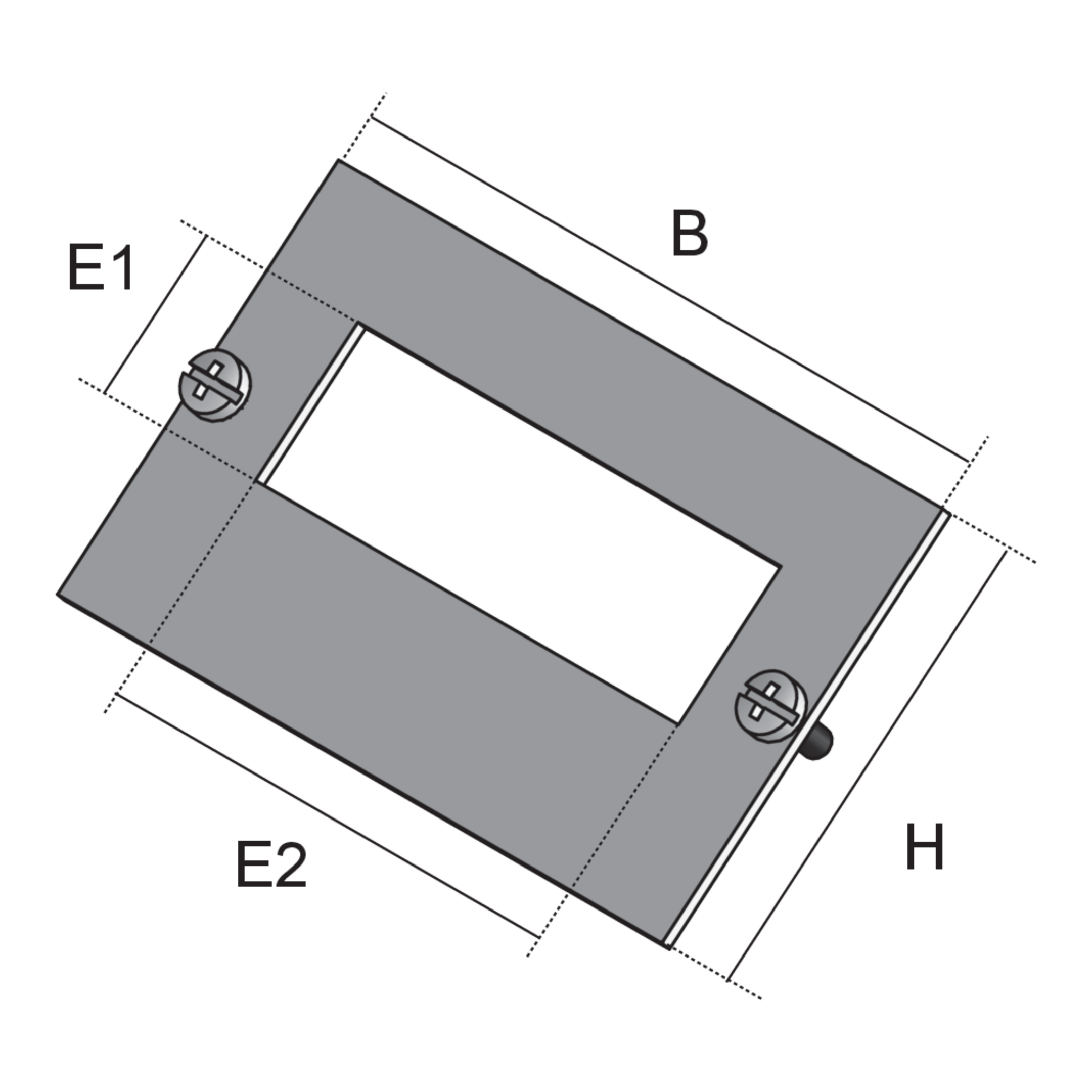

H
height
B
width
E1
fitting dimension E1
E2
fitting dimension E2
colour
color
Max. number of installable snap-in sockets
G
Weight per storage unit
