UBDHB 122R

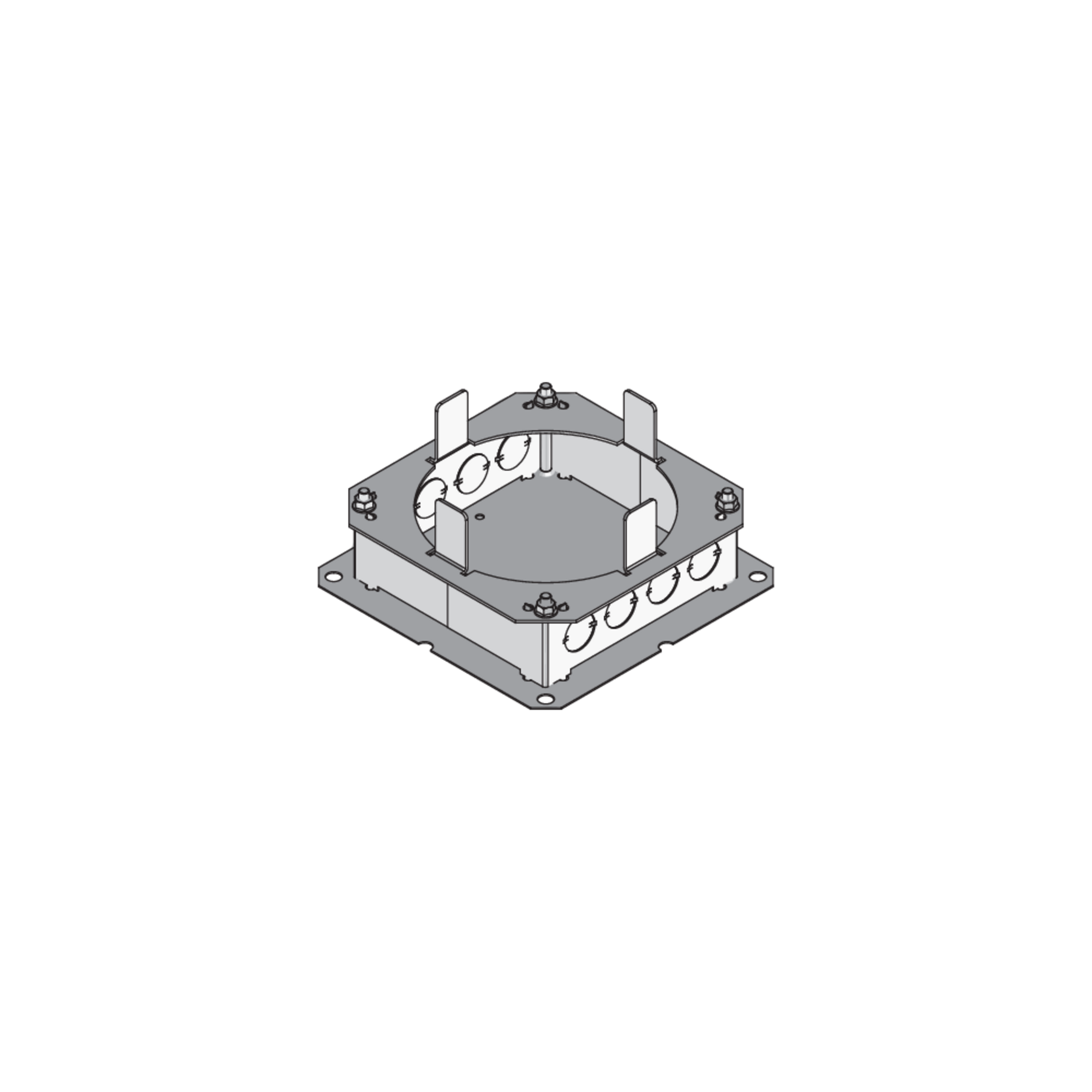

False floor socket, 1x, round

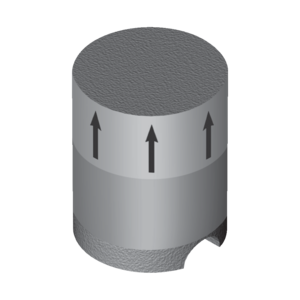

The UBDHB 122R components are false floor sockets that are installed as pull boxes and built-in boxes on screed-covered underfloor ducts. They have a mounting hole to accommodate a round formwork body, which is replaced by a round single BODO outlet during final installation. The supplied earthing clamps are used for equipotential bonding. The floor sockets with side walls that can be bent open on all sides are made of sendzimir hot-dip galvanised sheet steel in accordance with DIN EN 10346 and have VDE/TÜV approval in accordance with DIN EN 50085.

Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

Article

H

height

Hmin

minimum installation height

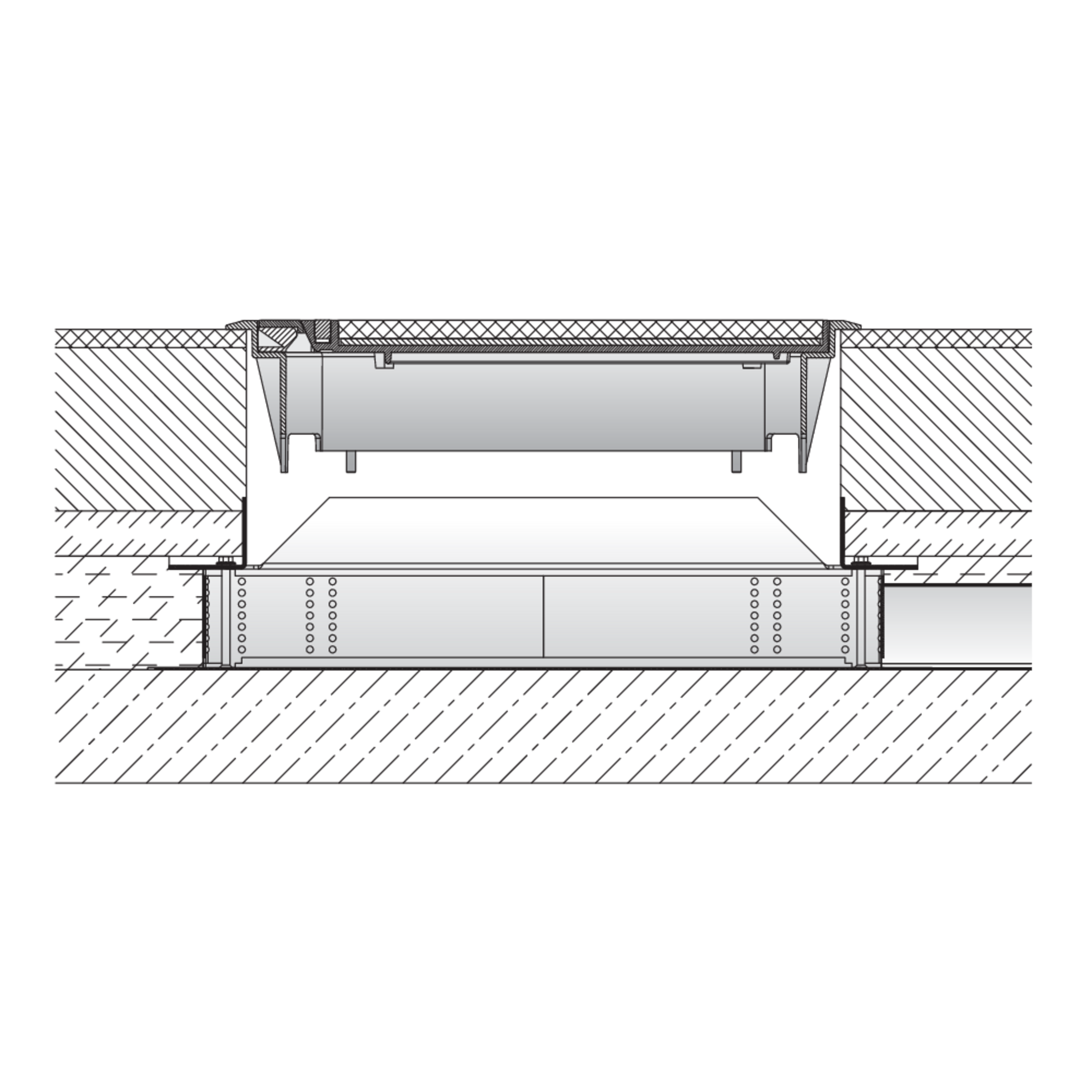

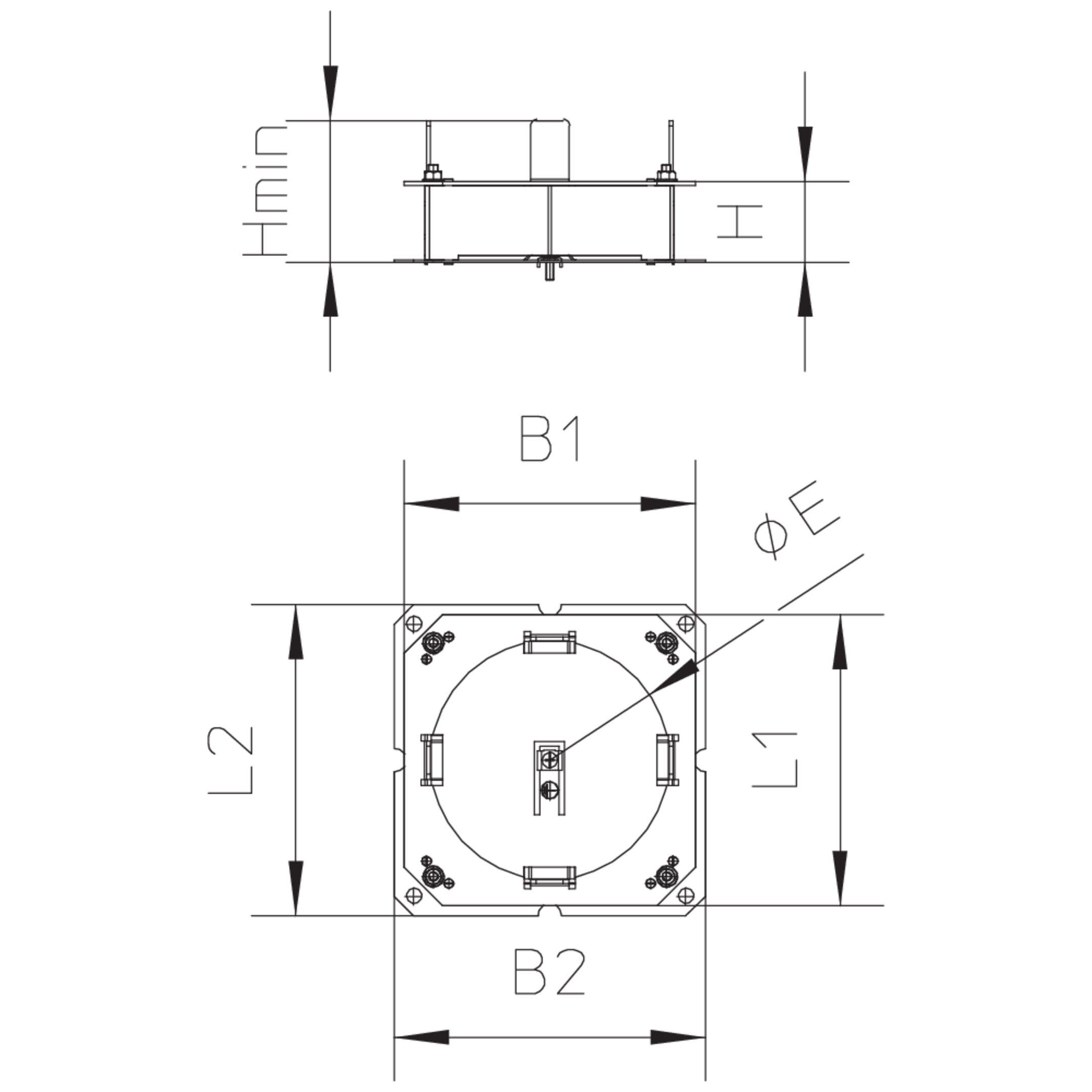

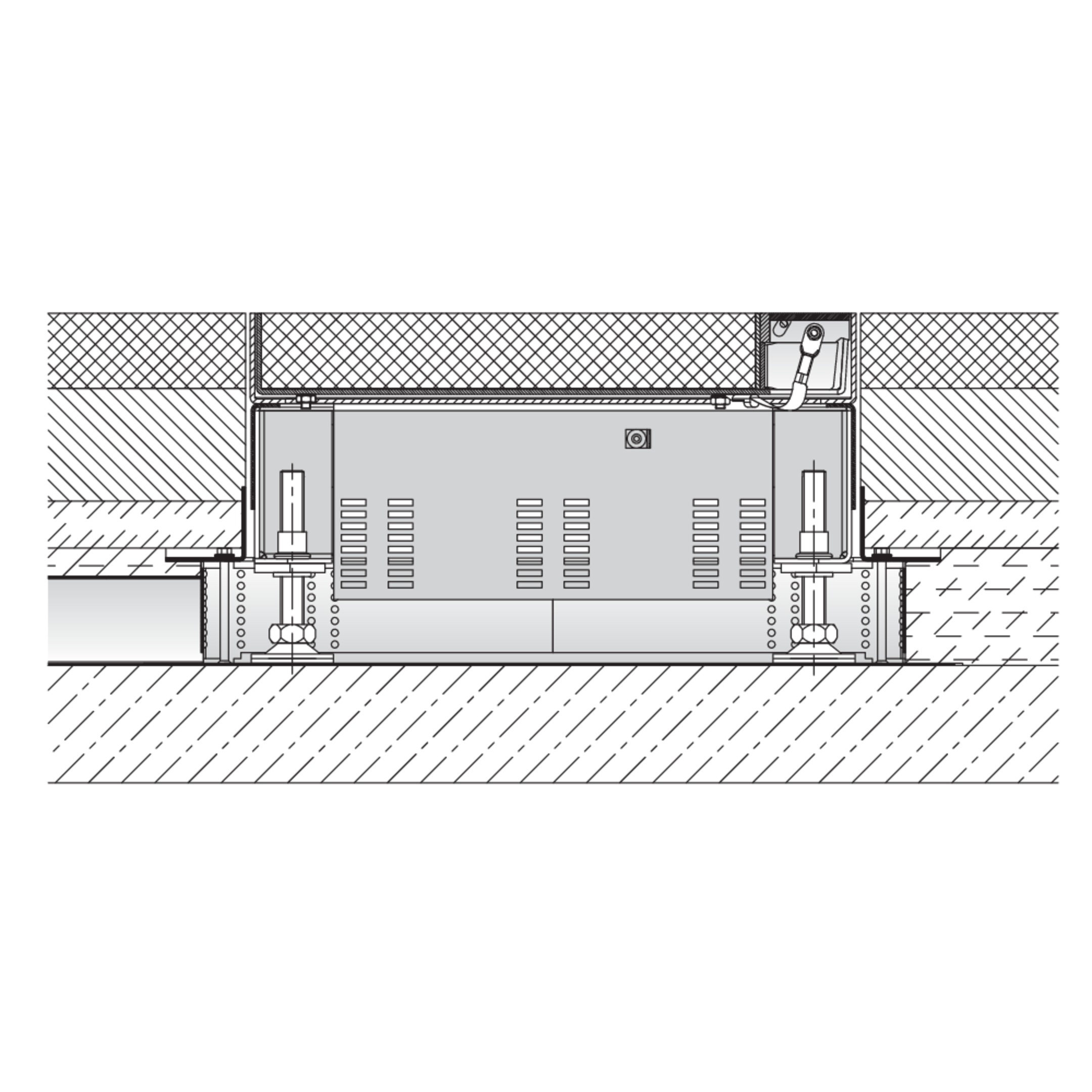

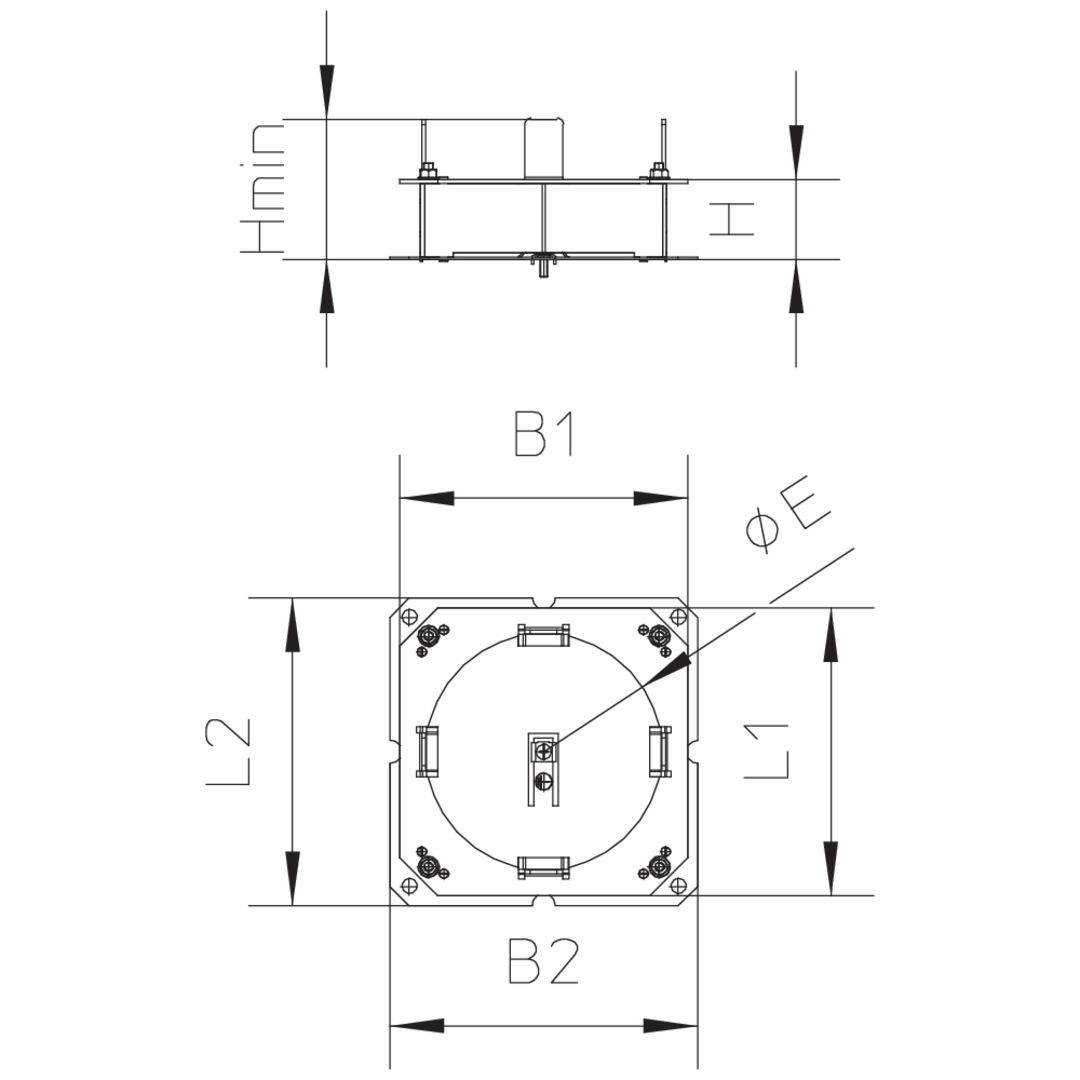

B1

width 1

B2

width 2

L1

length 1

L2

length 2

mounting box

maximum number of installable device casings

ØE

fitting dimension round

Included accessories
Included accessories

G

Weight per storage unit

Included accessories
  • UBDHB 38-122R
    floor box-hollow space UBDHB 38-122R,
    height
    42 mm
    minimum installation height
    73 mm
    width 1
    150 mm
    width 2
    160 mm
    length 1
    150 mm
    length 2
    160 mm
    maximum number of installable device casings
    1
    fitting dimension round
    123 mm
    Suitable for screed-flush underfloor ducts
    No (0)
    Suitable for screed-covered unterfloor ducts
    Yes (1)
    Weight per storage unit
    0.572 kg
    Included accessories
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
