Art.-Nr. 410200020315

Sinton X3

For stair landings

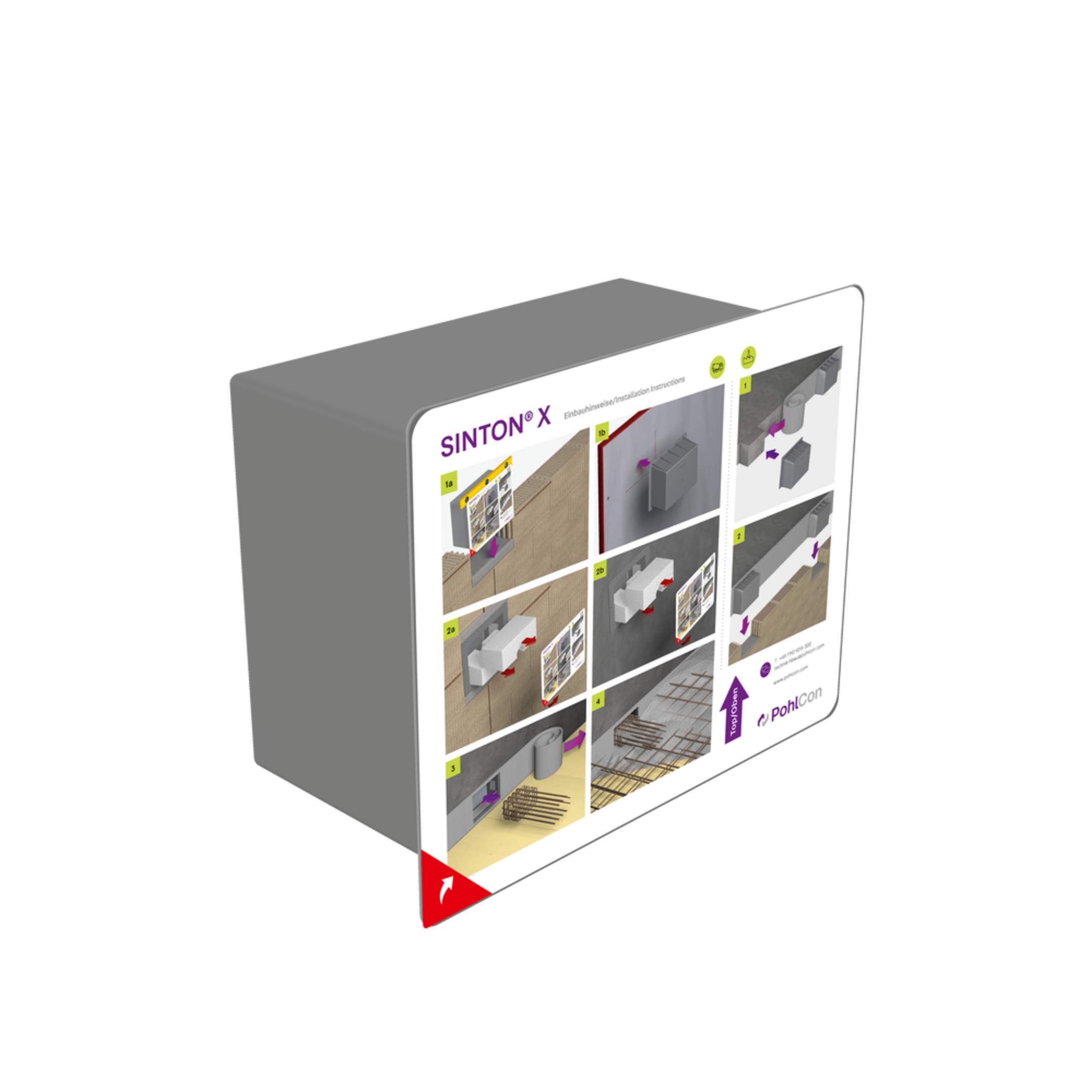

The SINTON® X impact sound insulation element decouples landings in stairwells from the walls and thus from living and working areas in terms of impact sound. SINTON® X consists of a plastic box with integrated sound insulation bearings for load transfer. Depending on the design, positive and negative transverse forces as well as horizontal forces can be transferred.

SINTON® X has been tested in accordance with DIN 7396 and meets the requirements for increased sound insulation in accordance with DIN 4109-5. SINTON® X is suitable for use in both masonry and concrete walls. The stair landings can be constructed in in-situ concrete or as prefabricated elements.

Art.-Nr.
410200020315
Width (internal dimension)
245 mm
Tiefe
150 mm
Height (internal dimension)
180 mm
Weight per storage unit
1.250 kg
Get in touchDownload datasheet

Variants

Article

B

Width (internal dimension)

T

Tiefe

H

Height (internal dimension)

G

Weight per storage unit

  • 410200020313
    Sinton X1
    Width (internal dimension)
    245 mm
    Tiefe
    150 mm
    Height (internal dimension)
    180 mm
    Weight per storage unit
    1.250 kg
    More information
  • 410200020314
    Sinton X2
    Width (internal dimension)
    245 mm
    Tiefe
    150 mm
    Height (internal dimension)
    180 mm
    Weight per storage unit
    1.250 kg
    More information
  • 410200020315
    Sinton X3
    Width (internal dimension)
    245 mm
    Tiefe
    150 mm
    Height (internal dimension)
    180 mm
    Weight per storage unit
    1.250 kg
    More information

Details

  • Reduction in impact sound ΔL*w ≥ 23 dB
  • Flexible use in the prefabricated structure and on the building site
  • Optional variant X-T type-approved reinforcement cage
  • Fire-resistance rating of R90 provided the minimum centre distances for the on-site reinforcement are observed
  • For in-situ and prefabricated landings
  • Meets requirements for increased sound insulation according to DIN 4109-5
  • Acoustic testing in accordance with DIN 7396
