SINTON® X-T

For stair landings

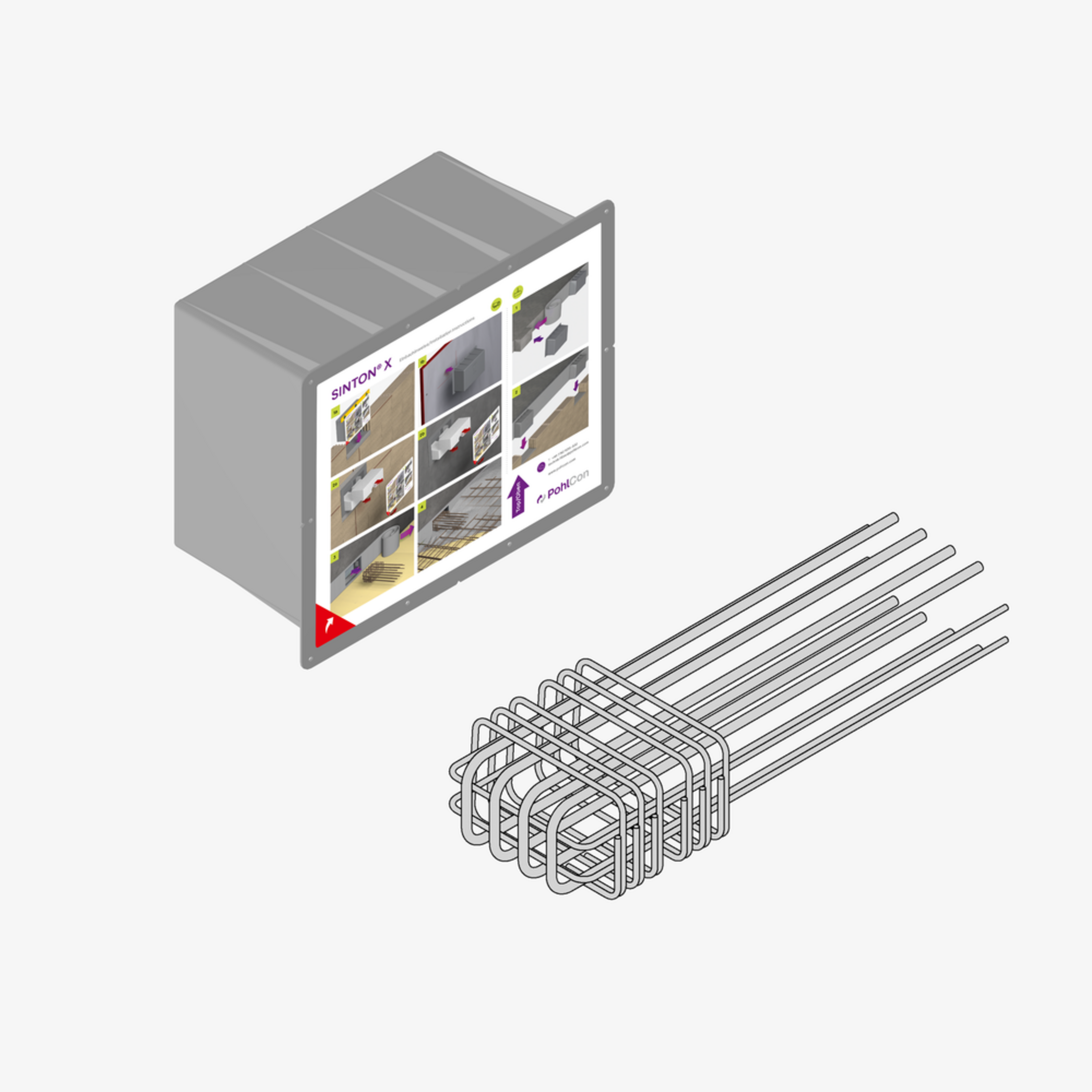

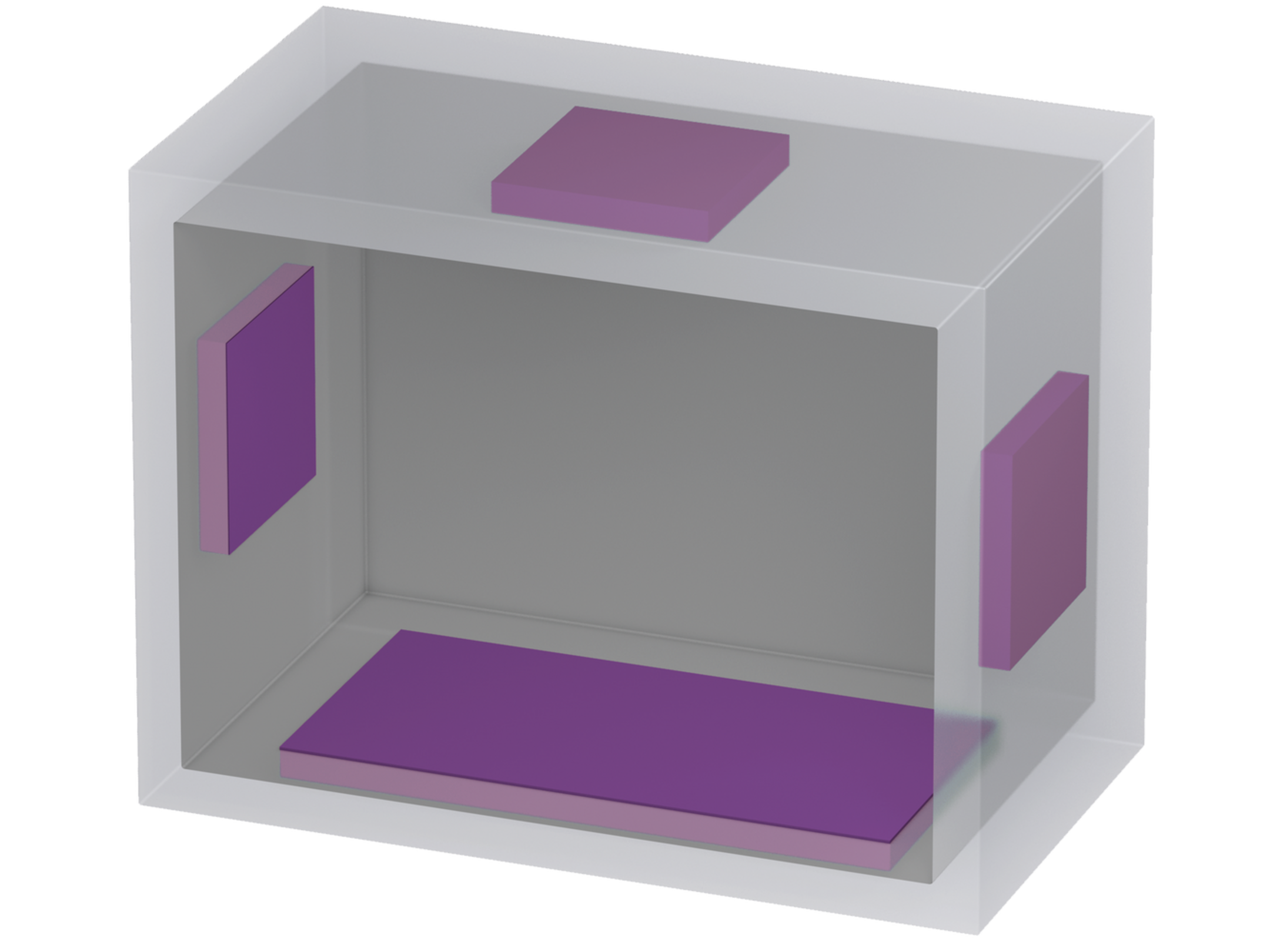

SINTON® X-T consists of the impact sound insulation element Sinton® X, supplemented by the prefabricated, type-tested reinforcement cage, the supporting element Sinton® T.

Get in touchDownload datasheet

Variants

Type: T1

Article

B

Width (internal dimension)

T

Tiefe

H

Height (internal dimension)

G

Weight per storage unit

  • 410300025052
    Sinton X1 T1
    Width (internal dimension)
    245 mm
    Tiefe
    150 mm
    Height (internal dimension)
    180 mm
    Weight per storage unit
    5.580 kg
    More information
  • 410300025053
    Sinton X2 T1
    Width (internal dimension)
    245 mm
    Tiefe
    150 mm
    Height (internal dimension)
    180 mm
    Weight per storage unit
    5.580 kg
    More information
  • 410300025054
    Sinton X3 T1
    Width (internal dimension)
    245 mm
    Tiefe
    150 mm
    Height (internal dimension)
    180 mm
    Weight per storage unit
    5.580 kg
    More information

Type: T2

Article

B

Width (internal dimension)

T

Tiefe

H

Height (internal dimension)

G

Weight per storage unit

  • 410300025055
    Sinton X1 T2
    Width (internal dimension)
    245 mm
    Tiefe
    150 mm
    Height (internal dimension)
    180 mm
    Weight per storage unit
    6.670 kg
    More information
  • 410300025056
    Sinton X2 T2
    Width (internal dimension)
    245 mm
    Tiefe
    150 mm
    Height (internal dimension)
    180 mm
    Weight per storage unit
    6.670 kg
    More information
  • 410300025057
    Sinton X3 T2
    Width (internal dimension)
    245 mm
    Tiefe
    150 mm
    Height (internal dimension)
    180 mm
    Weight per storage unit
    6.670 kg
    More information

Details

  • Reduction in impact sound ΔL*w ≥ 23 dB
  • Flexible use in the prefabricated structure and on the building site
  • Type-tested
  • Fire-resistance rating of R90 provided the minimum centre distances for the on-site reinforcement are observed
  • Reinforcement cage supplied for reliable planning and reduced costs

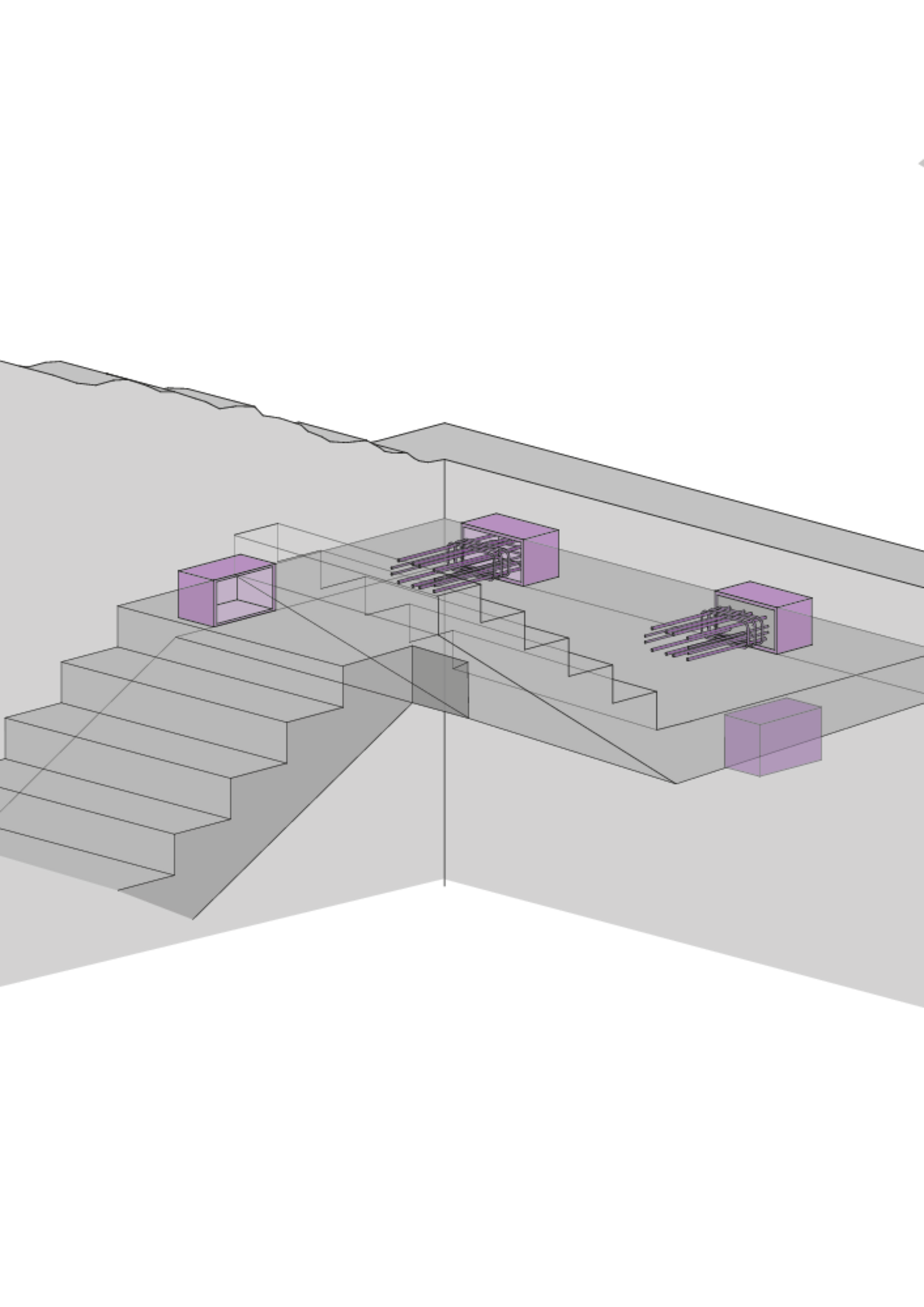

  • For in-situ and prefabricated landings
  • Meets requirements for increased sound insulation according to DIN 4109-5
  • Acoustic testing in accordance with DIN 7396

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    Technical Information SINTON®

    Technical Information

    PDF

    Choose languageChoose language

    Technical Information SINTON®

    Choose language to download

    • de

    Type Approval SINTON® X

    Type Test

    PDF (4.84 MB)

    DownloadDownload

    • de

    Expert Report Fire Protection SINTON® X

    Fire protection assessment of reinforced concrete brackets in combination with the SINTON X impact sound insulation element for classification in fire resistance class F 90 or R 90.

    PDF (1,017.30 KB)

    DownloadDownload

    • de

    Test report: acoustic testing of Sinton® X

    Test report no. 5214033726.3: Acoustic testing of Sinton® X impact sound insulation elements in accordance with DIN 7396 on the test bench

    PDF (9.47 MB)

    DownloadDownload

    • de

    • en

    Price list 2026 Shell construction / facade

    Valid from February 1st, 2026

    PDF

    Choose languageChoose language

    Price list 2026 Shell construction / facade

    Choose language to download

Included accessories

    Services: From planning to utilisation

    We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.

    Consulting, planning, design

    Customised solutions
