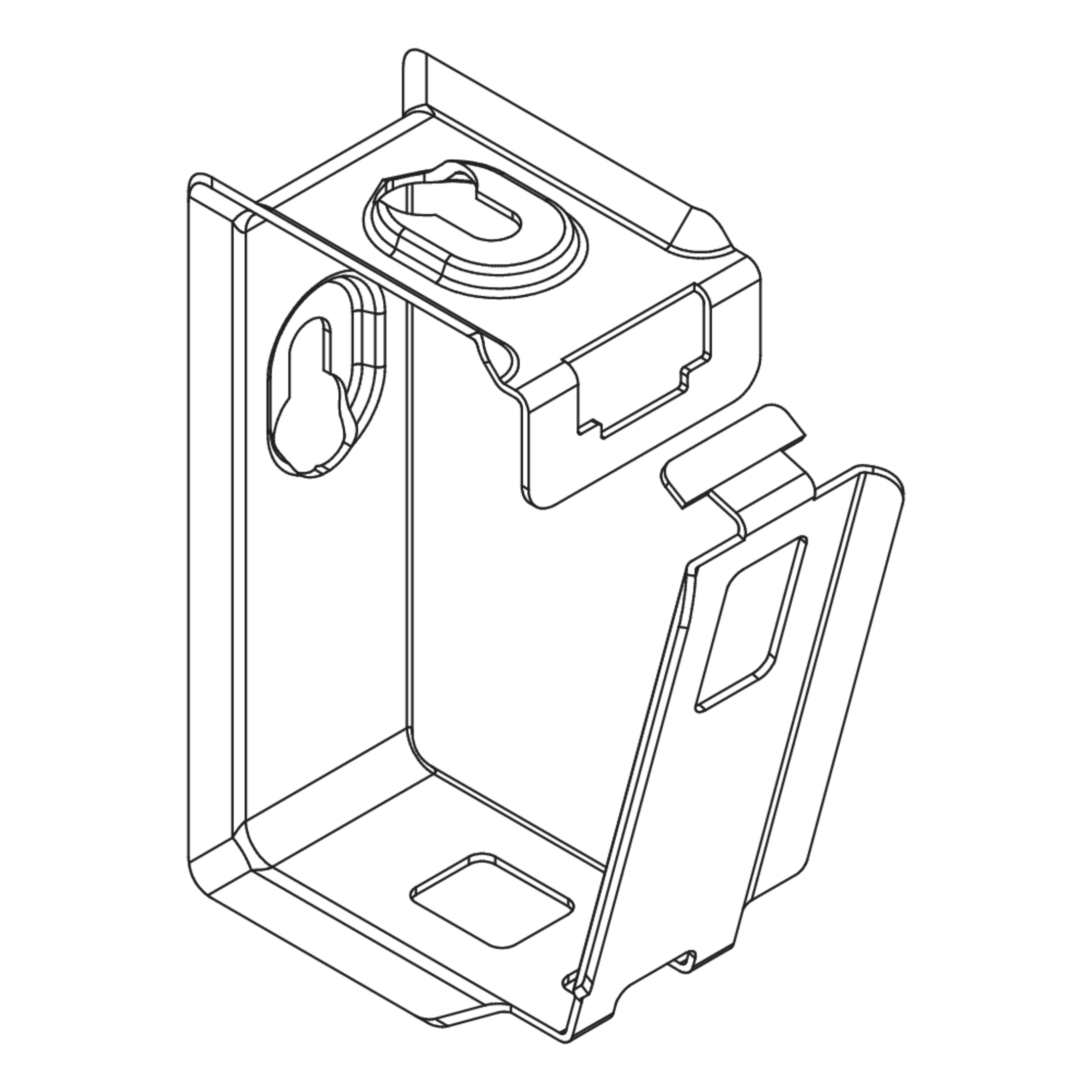

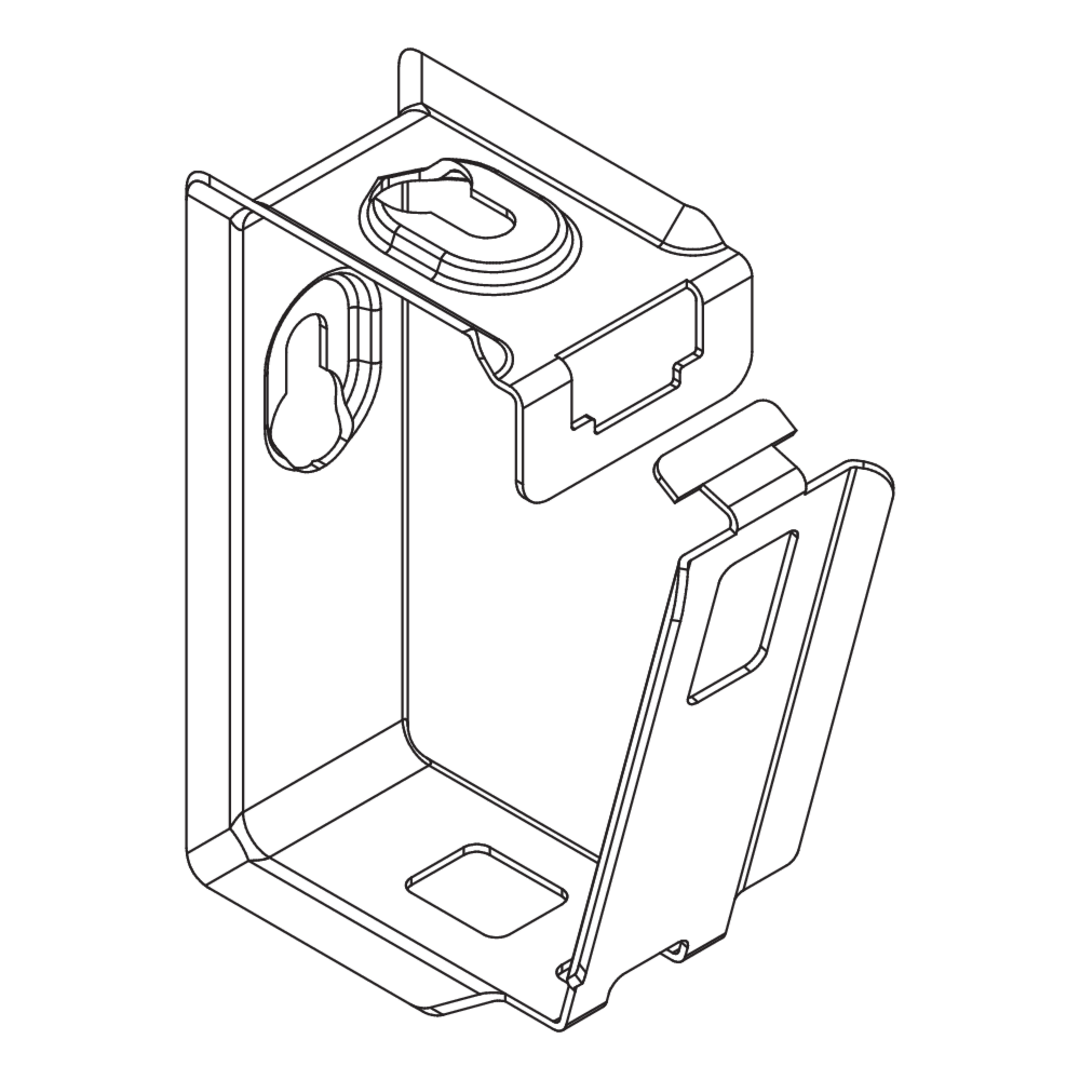

Multiple cable holder, metal, maintenance of function
The multiple cable holder SH QS is used for flexible and cost-effective routing of installation cables or smaller cable bundles on walls or ceilings. It is 66 or 92 mm high and designed for a maximum load of up to 1.50 or 3 kg/m. The multiple cable holder is made of sendzimir hot-dip galvanised steel making it suitable for use in E30-E90 circuit integrity systems. Installation must be carried out using fastening elements that are approved for fire protection applications.

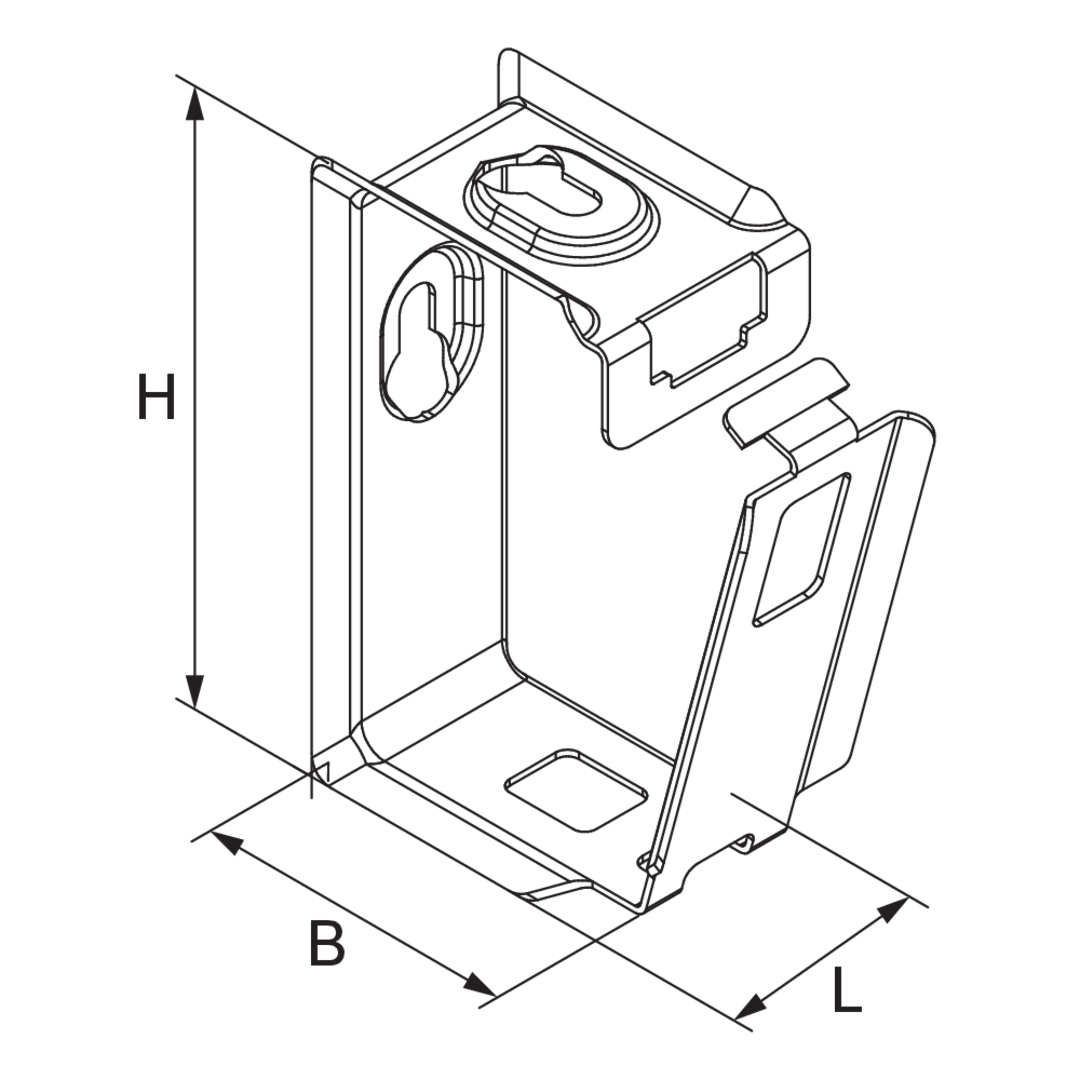

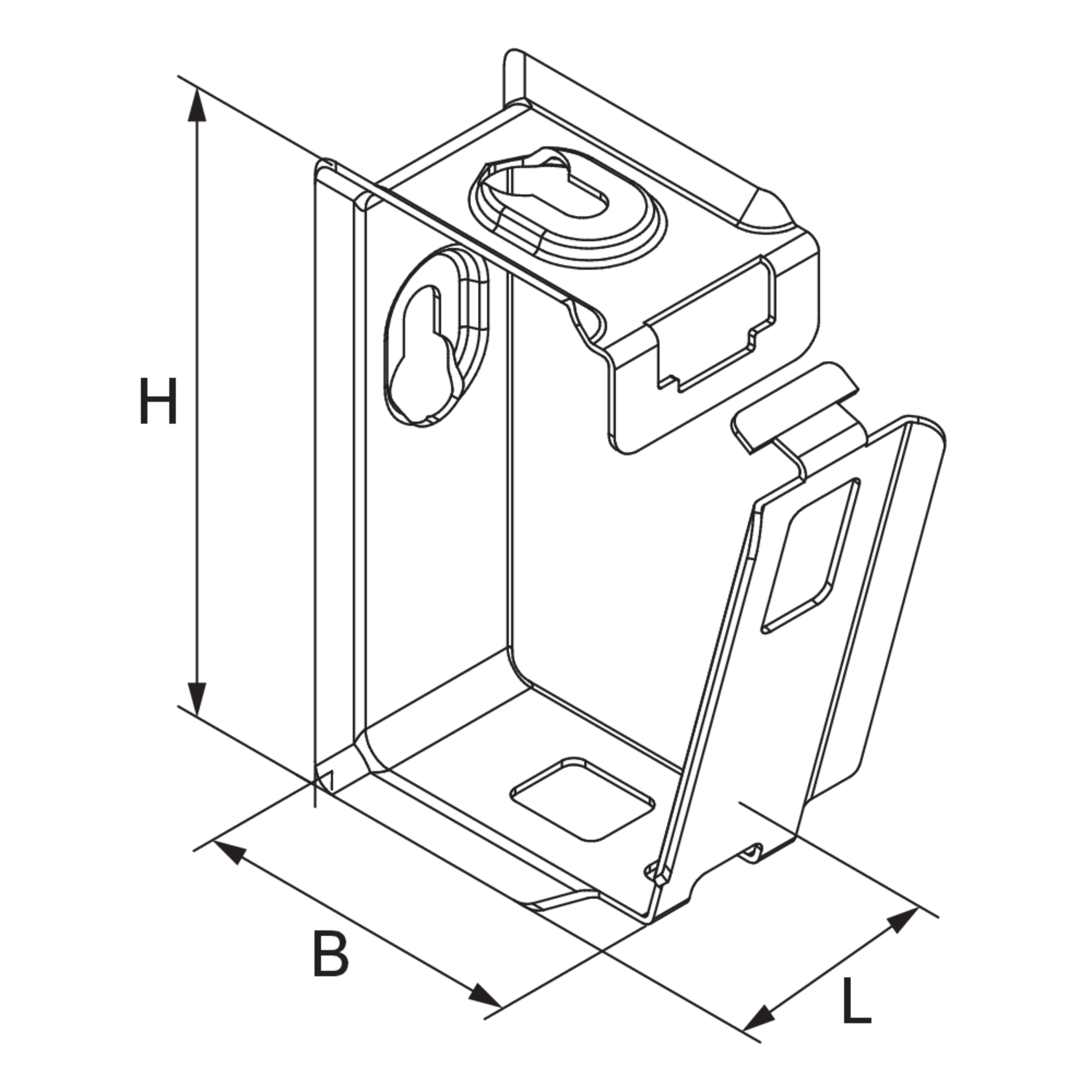

H
height
B
width
L
length
cables
max. number of cables
G
Weight per storage unit
de
Catalog
PDF (333.05 KB)
DownloadDownload
de
General building authority test certificate
DIN 4102-12
Cable manufacturers: Dätwyler, Eupen, Leoni Studer, Prysmian, Nexans
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Cable load: ≤ 1.5 kg/m; ≤ 3.0 kg/m
Fastening distance: ≤ 0.6 m
Cable types: JE-H(St)H, JE-H(St)HRH
Period of validity: 15/06/2030
PDF (1.36 MB)
DownloadDownload
de
en
ru
Valid from February 1st, 2026
de
en
Valid from February 1, 2026
