SEMS

Hexagonal nut with flange, DIN EN 1661

Hexagon nuts with flange SEMS (in line with DIN EN 1661) are used in combination with suitable bolts in numerous applications, e.g. when installing ceiling brackets, storm protection brackets for cable trays, cable ladders or outlet plates. The nuts are available in threads M6 to M10. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

steel, galvanic zinc plated

Article

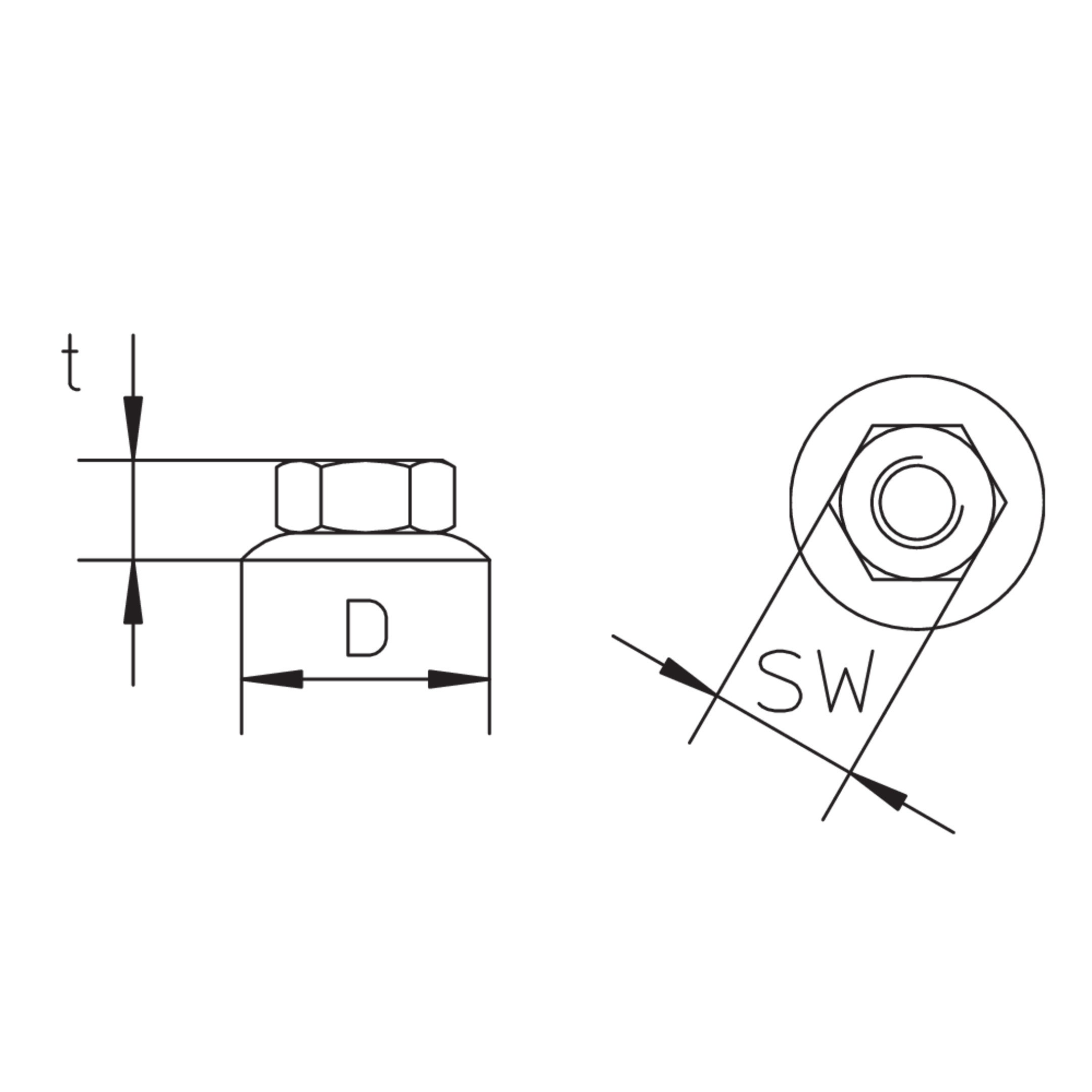

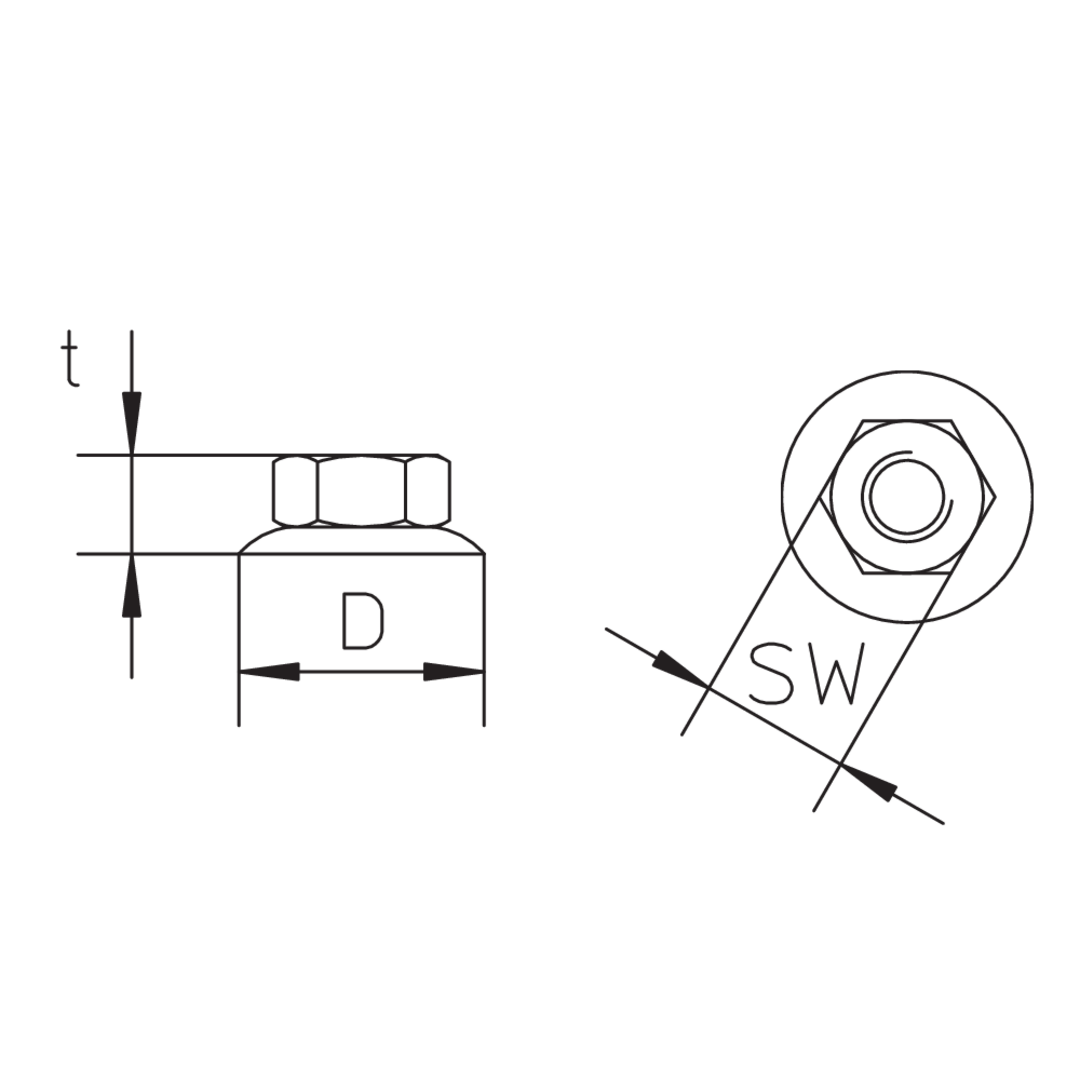

t

material thickness

D

diameter

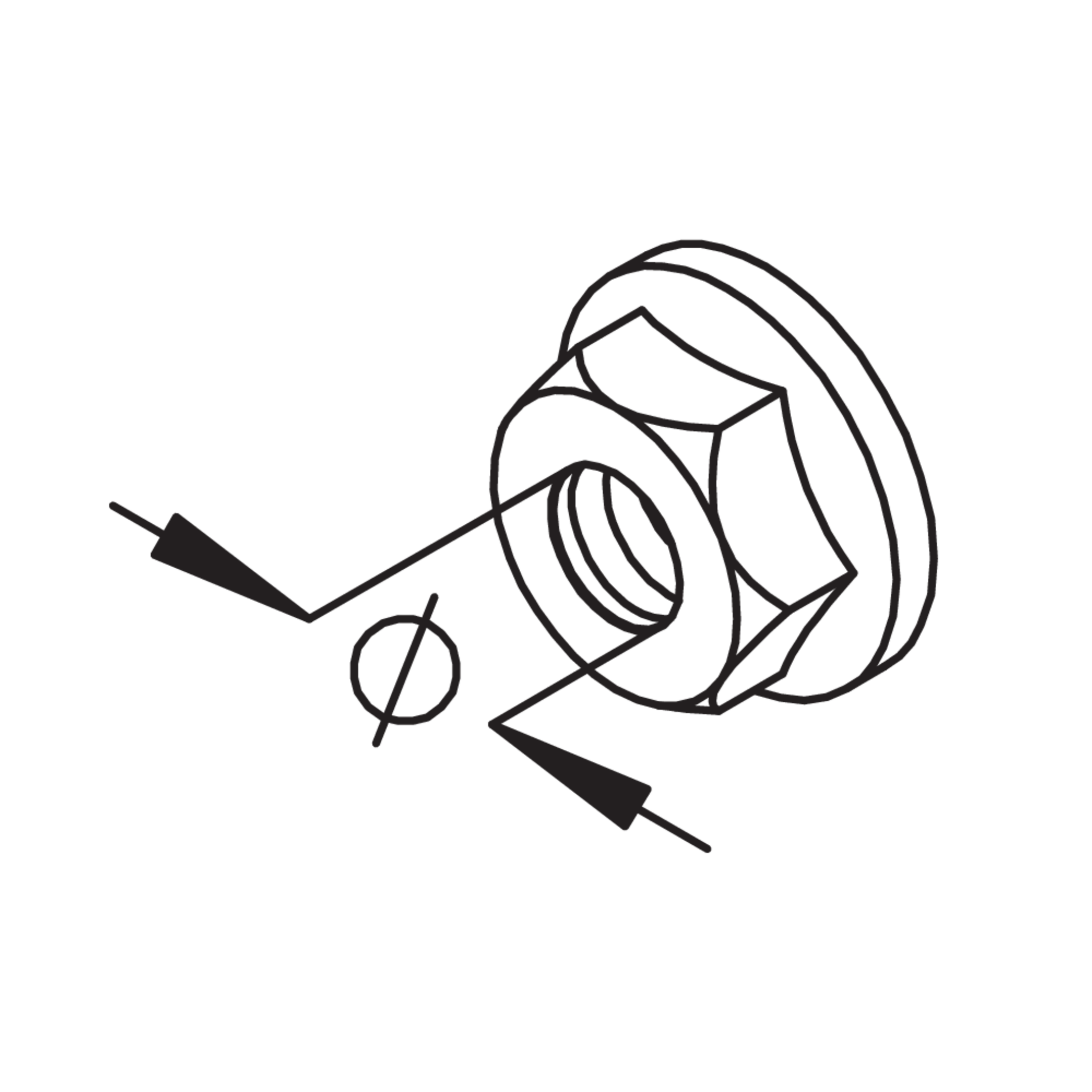

Ø

thread diameter

SW

wrench size

G

Weight per storage unit

  • SEMS 6
    Hexagon nut, self-locking
    material thickness
    5.50 mm
    diameter
    14 mm
    thread diameter
    6 mm
    wrench size
    10 mm
    Weight per storage unit
    0.002 kg
    More information
  • SEMS 8
    Hexagon nut, self-locking
    material thickness
    7.50 mm
    diameter
    17 mm
    thread diameter
    8 mm
    wrench size
    13 mm
    Weight per storage unit
    0.006 kg
    More information
  • SEMS 10
    Hexagon nut, self-locking
    material thickness
    9.50 mm
    diameter
    21 mm
    thread diameter
    10 mm
    wrench size
    17 mm
    Weight per storage unit
    0.010 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

t

material thickness

D

diameter

Ø

thread diameter

SW

wrench size

G

Weight per storage unit

  • SEMS 6E
    Hexagon nut, self-locking
    material thickness
    5.50 mm
    diameter
    14 mm
    thread diameter
    6 mm
    wrench size
    10 mm
    Weight per storage unit
    0.003 kg
    More information
  • SEMS 8E
    Hexagon nut, self-locking
    material thickness
    7.50 mm
    diameter
    17 mm
    thread diameter
    8 mm
    wrench size
    13 mm
    Weight per storage unit
    0.006 kg
    More information
  • SEMS 10E
    hexagon nut, self-locking
    material thickness
    9.50 mm
    diameter
    21 mm
    thread diameter
    10 mm
    wrench size
    15 mm
    Weight per storage unit
    0.011 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

t

material thickness

D

diameter

Ø

thread diameter

SW

wrench size

G

Weight per storage unit

  • SEMS 6E4
    Hexagon flange nuts
    material thickness
    5.5 mm
    diameter
    14 mm
    thread diameter
    6 mm
    wrench size
    10 mm
    Weight per storage unit
    0.003 kg
    More information
