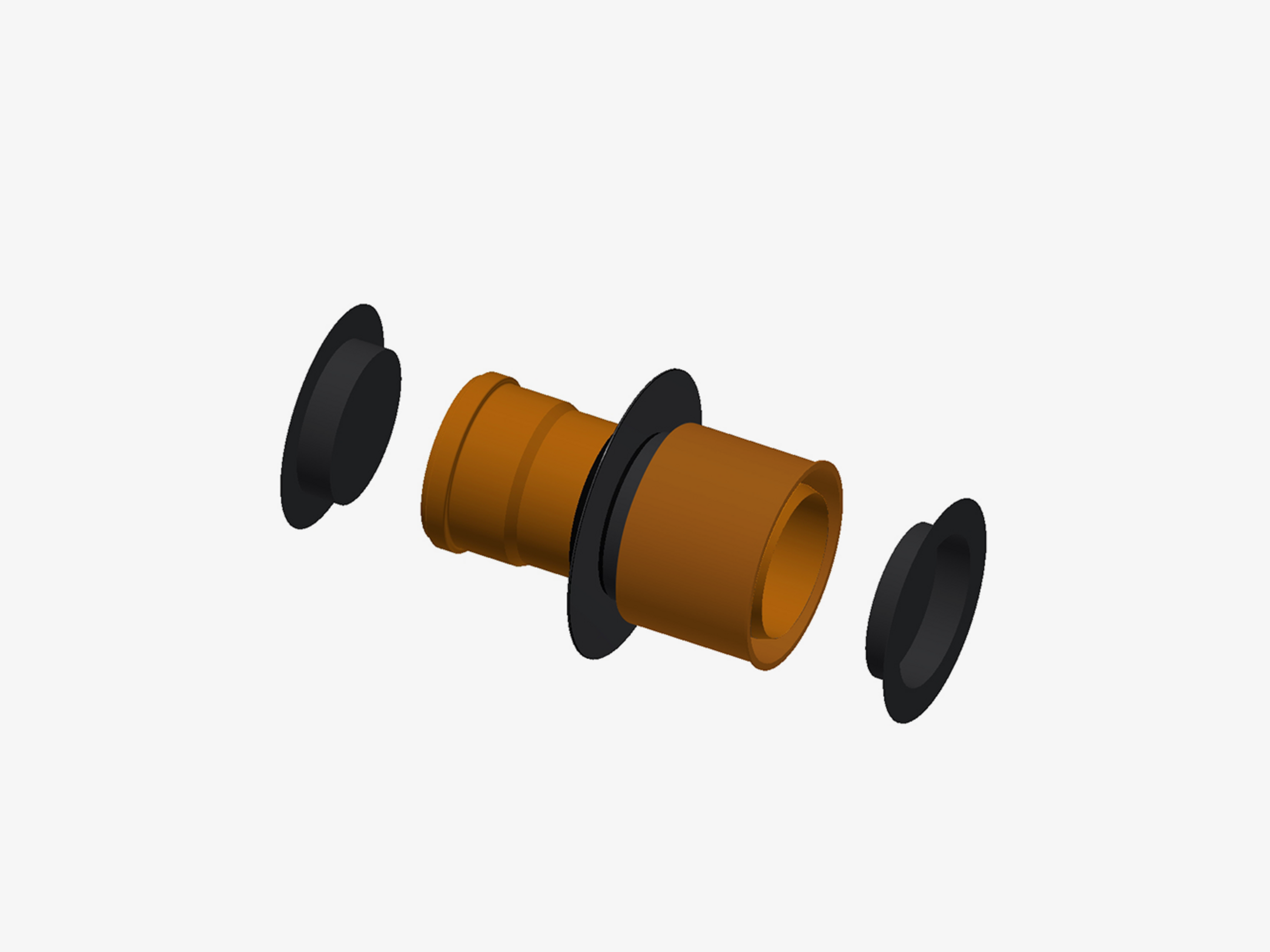

PENTAFLEX® Transwand PVC

PENTAFLEX® Transwand PVC is a waterproof wall lead-through for cast-in-place or precast walls. It consists of a PVC pipe and is available with socket and cover sleeve. The pipe diameter DN is 110 - 200 mm. The bushing is suitable for walls 240 - 500 mm thick and a water pressure of up to 5.0 bar. A polystyrene ring is used instead of a pull-over sleeve for walls 310 – 500 mm thick.
