PENTAFLEX® Floor Drain PP

Waterproof penetration

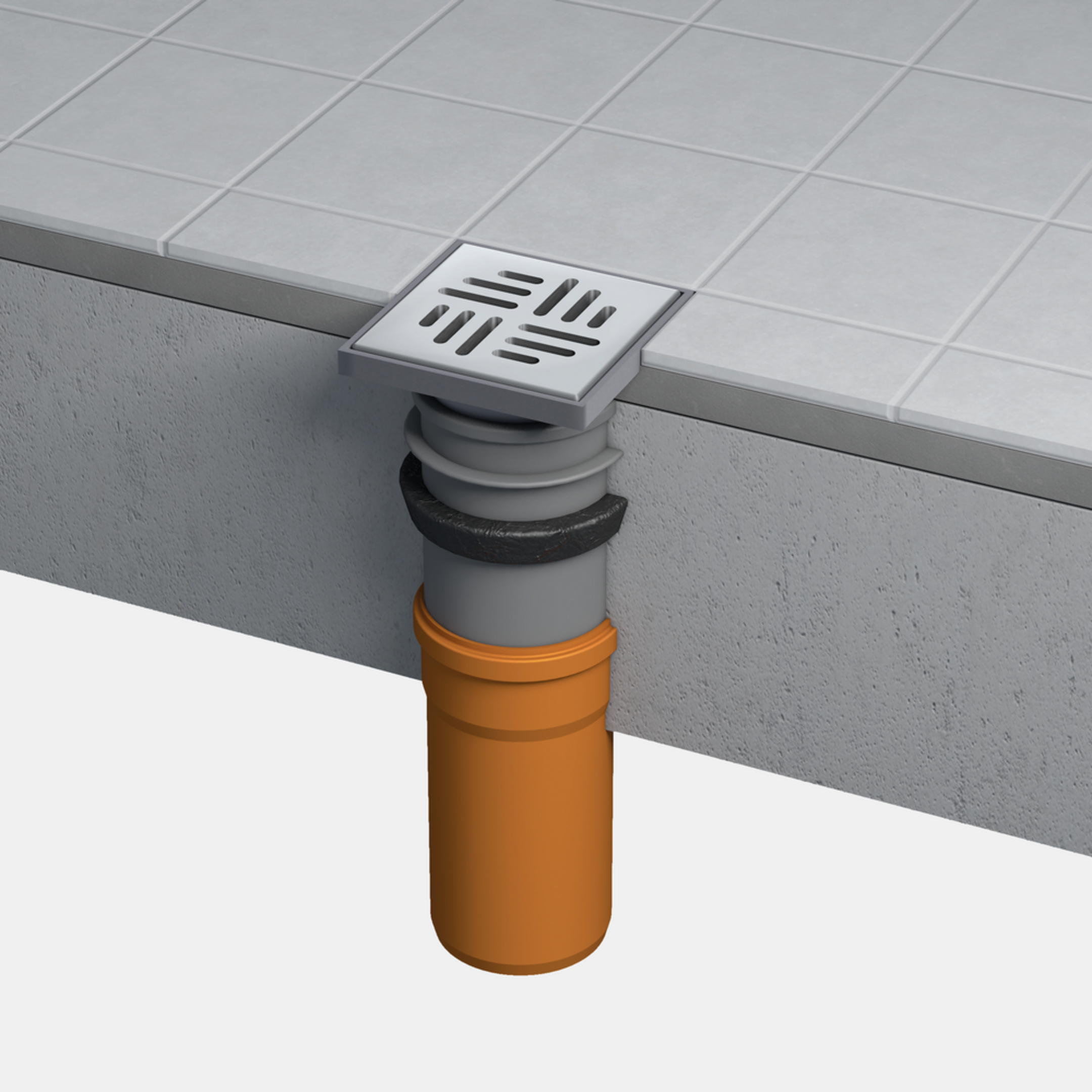

The PENTAFLEX® Floor Drain PP is designed for use with watertight reinforced concrete slabs and consists of a PP pipe and a slotted grate made of stainless steel or ABS plastic. It can be walked on and, depending on the version, can bear loads of up to 0.3 t. The pipe diameter DN is 110 mm. Top section height-adjustable by 50 mm. The floor drain is also available with fire resistance class R 90 or Multistop on request.

Variants

Article

max. Belastung (kg)

Durchmesser Nominal

Maße Deckel

Werkstoff Deckel

G

Gewicht je Lagermengeneinheit

  • 111200004235
    Boden 110 1,5 Edel
    max. Belastung (kg)
    1500 kg
    Durchmesser Nominal
    110 mm
    Maße Deckel
    138x138 mm
    Werkstoff Deckel
    Edelstahl
    Gewicht je Lagermengeneinheit
    1.558 kg
  • 111200004236
    Boden 110 0,3 ABS
    max. Belastung (kg)
    300 kg
    Durchmesser Nominal
    110 mm
    Maße Deckel
    138x138 mm
    Werkstoff Deckel
    ABS
    Gewicht je Lagermengeneinheit
    1.176 kg
  • 111200004238
    Boden 110 0,3 Edel
    max. Belastung (kg)
    300 kg
    Durchmesser Nominal
    110 mm
    Maße Deckel
    138x138 mm
    Werkstoff Deckel
    Edelstahl
    Gewicht je Lagermengeneinheit
    1.338 kg
