LK K

Cable clip, plastic

The cable clip LK K is used for flexible and cost-effective routing of installation cables or smaller cable bundles on ceilings. It is 16 mm high making it suitable for applications with low installation heights. It is made of halogen-free and silicone-free polyamide and is available with two temperature resistance levels: It is flame-retardant up to 750°C and up to 960°C according to the glow wire test in compliance with VDE 0471/DIN IEC 695 part 2-1. The cable clamp holds 8 to 16 cables. This information relates to NYM cable (3x1.5 mm²).

Get in touchDownload datasheet

Variants

polyamide

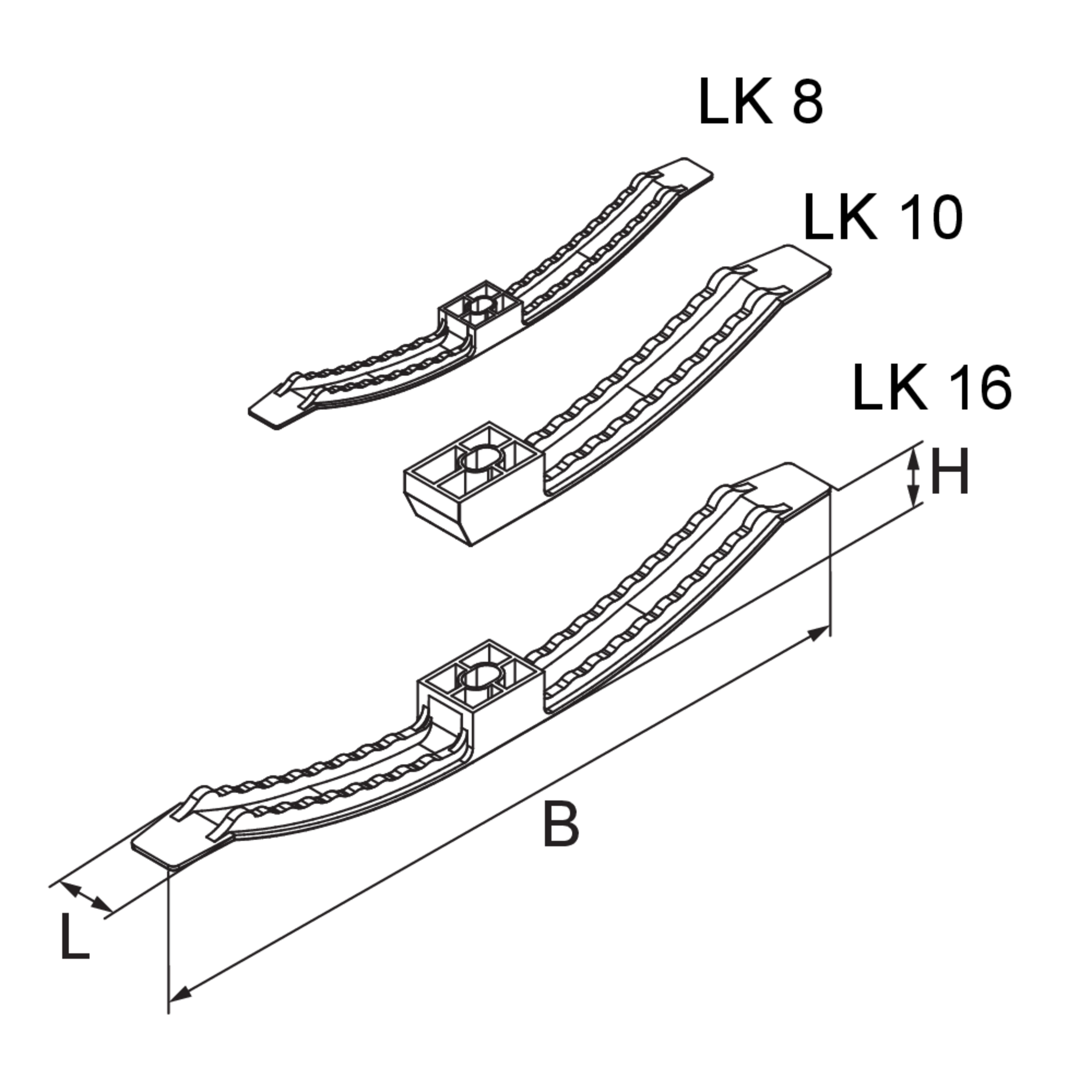

Article

H

height

B

width

L

length

Colour collecting bracket

cables

max. number of cables

Tmax

Test temperature

RAL

RAL-Nummer

G

Weight per storage unit

  • LK 8 K
    Cable clamp
    height
    14 mm
    width
    152 mm
    length
    19 mm
    Colour collecting bracket
    Light grey
    max. number of cables
    8
    Test temperature
    750 °C
    RAL-Nummer
    7035
    Weight per storage unit
    0.012 kg
    More information
  • LK 8 FWK
    Cable clamp
    height
    14 mm
    width
    152 mm
    length
    19 mm
    Colour collecting bracket
    Stone grey
    max. number of cables
    8
    Test temperature
    960 °C
    RAL-Nummer
    7030
    Weight per storage unit
    0.011 kg
    More information
  • LK 10 K
    Cable clamp
    height
    15 mm
    width
    126 mm
    length
    19 mm
    Colour collecting bracket
    Light grey
    max. number of cables
    10
    Test temperature
    750 °C
    RAL-Nummer
    7035
    Weight per storage unit
    0.011 kg
    More information
  • LK 10 FWK
    Cable clamp
    height
    15 mm
    width
    126 mm
    length
    19 mm
    Colour collecting bracket
    Stone grey
    max. number of cables
    10
    Test temperature
    960 °C
    RAL-Nummer
    7030
    Weight per storage unit
    0.009 kg
    More information
  • LK 16 K
    Cable clamp
    height
    15 mm
    width
    226 mm
    length
    19 mm
    Colour collecting bracket
    Light grey
    max. number of cables
    16
    Test temperature
    750 °C
    RAL-Nummer
    7035
    Weight per storage unit
    0.017 kg
    More information
  • LK 16 FWK
    Cable clamp
    height
    15 mm
    width
    226 mm
    length
    19 mm
    Colour collecting bracket
    Stone grey
    max. number of cables
    16
    Test temperature
    960 °C
    RAL-Nummer
    7030
    Weight per storage unit
    0.016 kg
    More information
