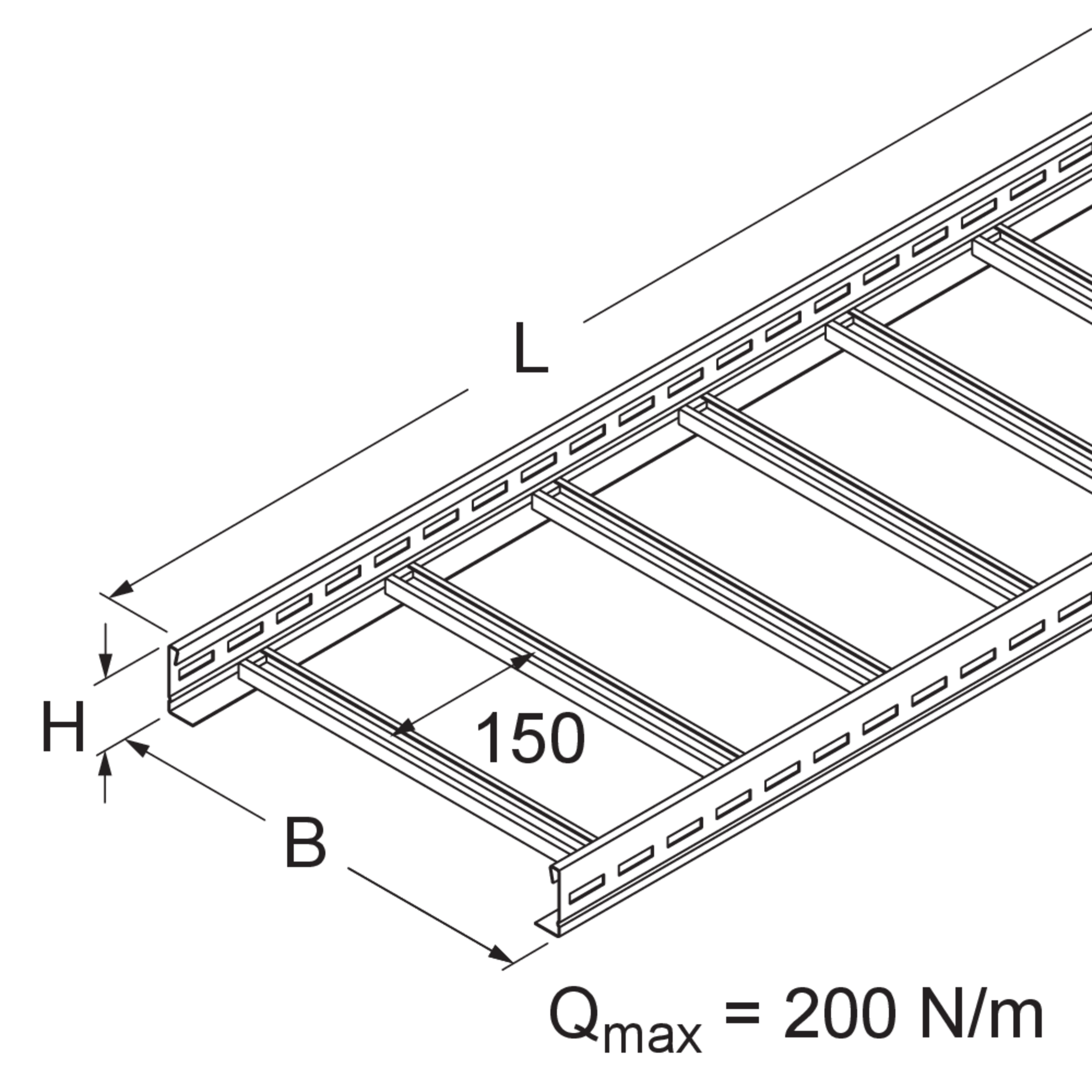

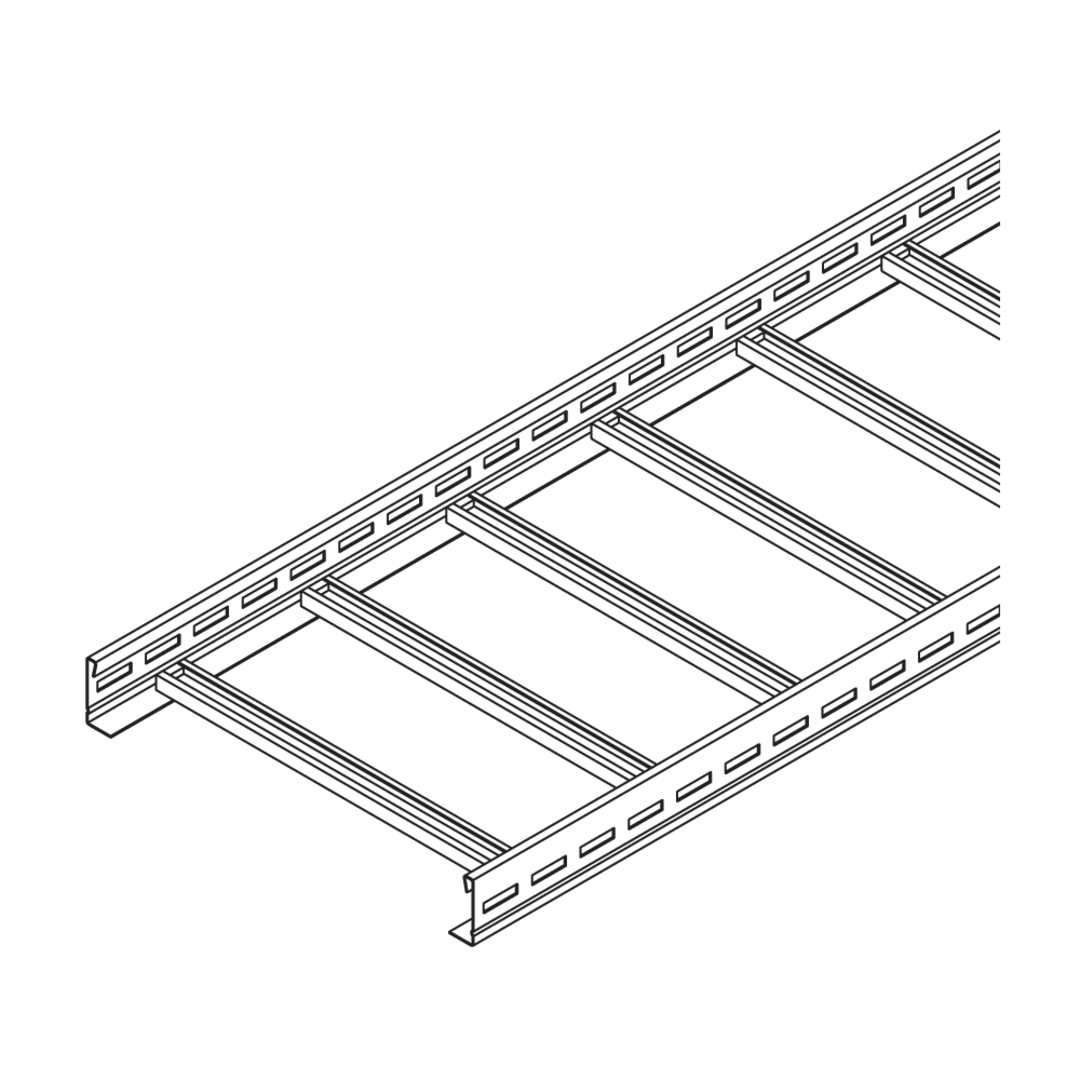

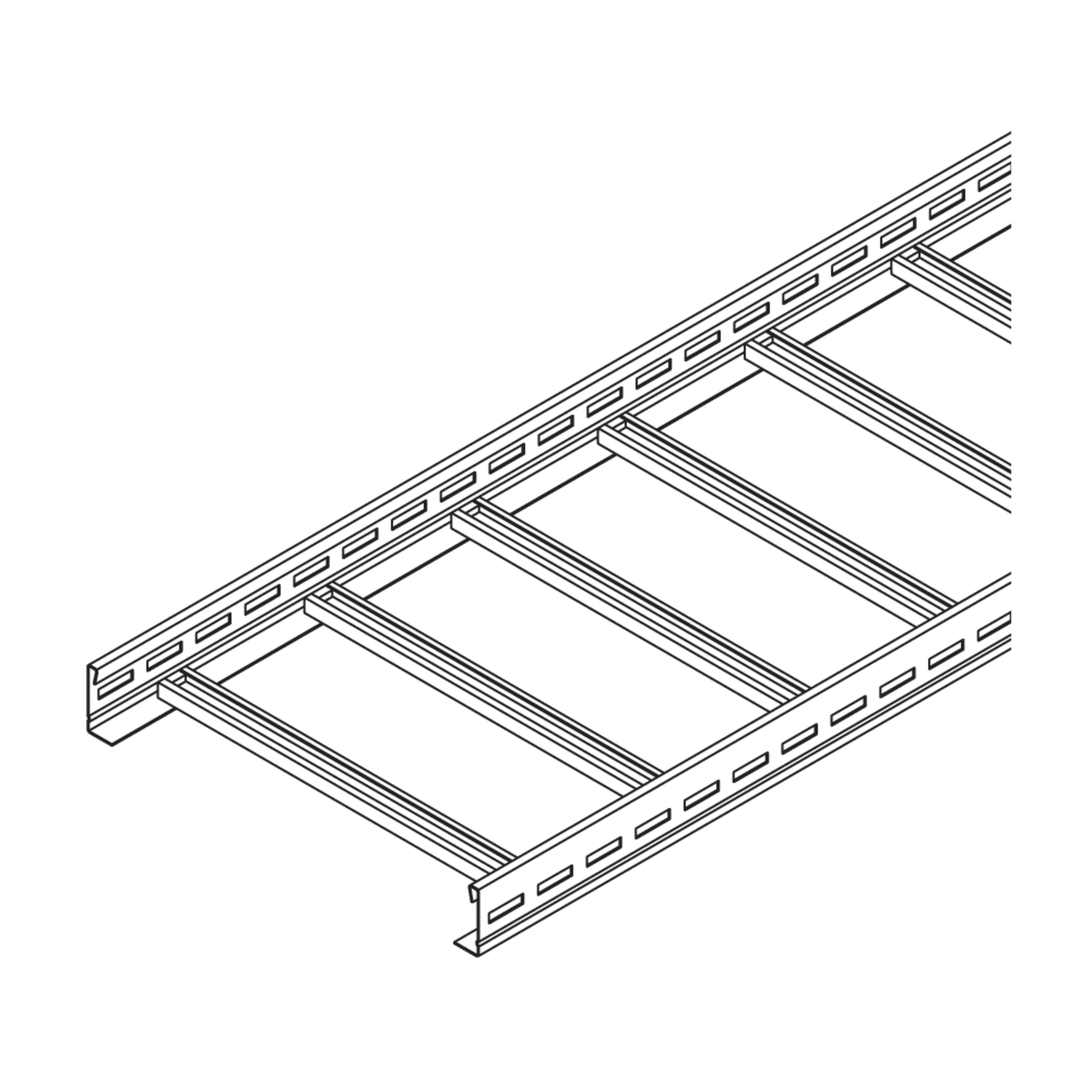

LGG-BS 60

Cable ladder, L profile, height = 60 mm, maintenance of function

No stepping
Fire protection
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

H

height

HH

Height

B

width

L

length

Pmax

maximum load

A

cross section area

G

Weight per storage unit

  • LGG-BS 60-20-3S
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    200 mm
    length
    3000 mm
    maximum load
    1.50 kN
    cross section area
    81 cm2
    Weight per storage unit
    9.290 kg
    More information
  • LGG-BS 60-30-3S
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    300 mm
    length
    3000 mm
    maximum load
    1.50 kN
    cross section area
    122 cm2
    Weight per storage unit
    10.670 kg
    More information
  • LGG-BS 60-40-3S
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    400 mm
    length
    3000 mm
    maximum load
    1.50 kN
    cross section area
    162 cm2
    Weight per storage unit
    12.050 kg
    More information
  • LGG-BS 60-20-6S
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    200 mm
    length
    6000 mm
    maximum load
    1.50 kN
    cross section area
    81 cm2
    Weight per storage unit
    18.580 kg
    More information
  • LGG-BS 60-30-6S
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    300 mm
    length
    6000 mm
    maximum load
    1.50 kN
    cross section area
    122 cm2
    Weight per storage unit
    21.340 kg
    More information
  • LGG-BS 60-40-6S
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    400 mm
    length
    6000 mm
    maximum load
    1.50 kN
    cross section area
    162 cm2
    Weight per storage unit
    24.090 kg
    More information

Steel, hot-dip galvanised

Article

H

height

HH

Height

B

width

L

length

Pmax

maximum load

A

cross section area

G

Weight per storage unit

  • LGG-BS 60-20-3F
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    200 mm
    length
    3000 mm
    maximum load
    1.50 kN
    cross section area
    81 cm2
    Weight per storage unit
    9.850 kg
    More information
  • LGG-BS 60-30-3F
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    300 mm
    length
    3000 mm
    maximum load
    1.50 kN
    cross section area
    122 cm2
    Weight per storage unit
    11.280 kg
    More information
  • LGG-BS 60-40-3F
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    400 mm
    length
    3000 mm
    maximum load
    1.50 kN
    cross section area
    162 cm2
    Weight per storage unit
    12.700 kg
    More information
  • LGG-BS 60-20-6F
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    200 mm
    length
    6000 mm
    maximum load
    1.50 kN
    cross section area
    81 cm2
    Weight per storage unit
    19.690 kg
    More information
  • LGG-BS 60-30-6F
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    300 mm
    length
    6000 mm
    maximum load
    1.50 kN
    cross section area
    122 cm2
    Weight per storage unit
    22.560 kg
    More information
  • LGG-BS 60-40-6F
    Cable ladder, fire prevention L-BS
    height
    60 mm
    Height
    60 mm
    width
    400 mm
    length
    6000 mm
    maximum load
    1.50 kN
    cross section area
    162 cm2
    Weight per storage unit
    25.390 kg
    More information

Details

  • No stepping
  • Fire protection

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    PDF

    Choose languageChoose language

    Price list 2025 Building extension

    Choose language to download

    • de

    MPABS-2402542 - Fire protection statement

    DIN 4102-12
    Standardised supporting structure: Cable ladders
    Fire resistance duration: F30; F60; F90
    Functional maintenance classes: E30; E60; F90
    Cable load: ≤ 20 kg/m
    Fastening distance: ≤ 1.2 m
    Period of validity: 15.01.2030

    PDF, 4.85 MB

    DownloadDownload

    • de

    GA-2017/068 - Expert statement

    DIN 4102-12
    Fire protection fastening on load-bearing timber components
    Fire resistance duration: F30; F60
    Functional maintenance classes: E30; E60
    Cable load: ≤ 10 kg/m, ≤ 20 kg/m, ≤ 30 kg/m
    Mounting distance: ≤ 1.5 m
    Period of validity: 22/08/2027

    PDF, 1.49 MB

    DownloadDownload

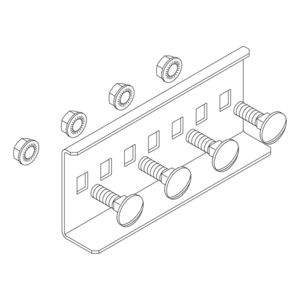

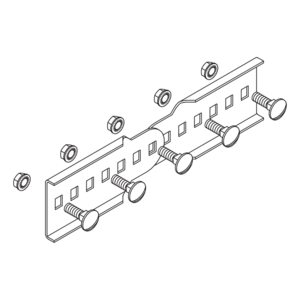

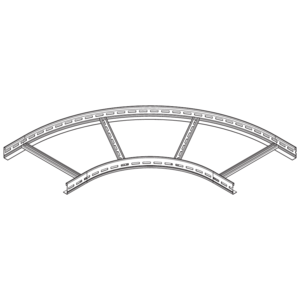

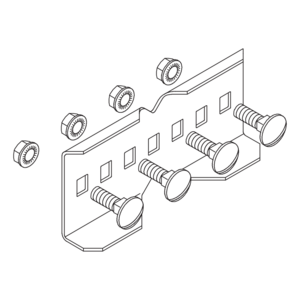

Included accessories
