Art.-Nr. KBSWS F
Bracket fixing for steel girders and walls

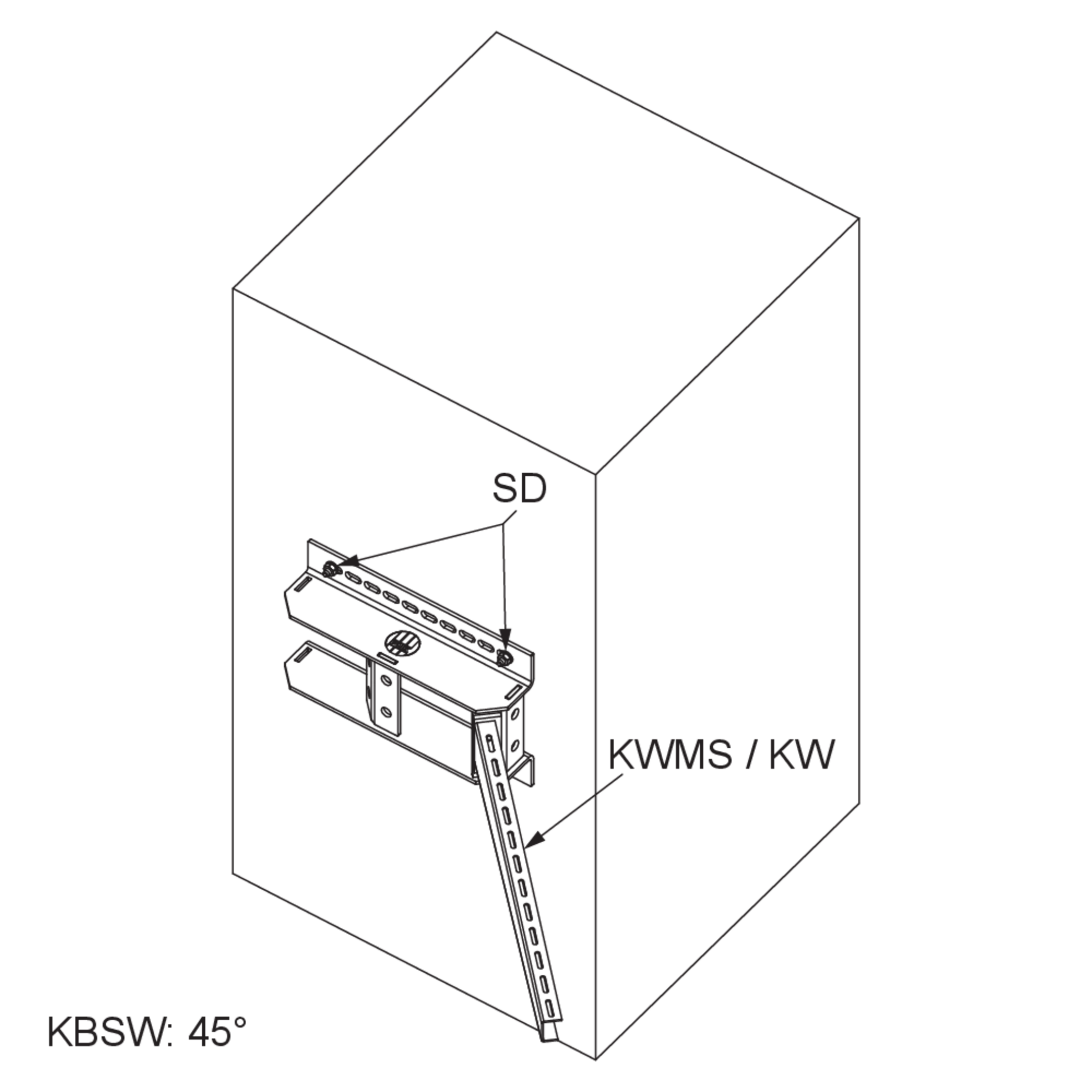

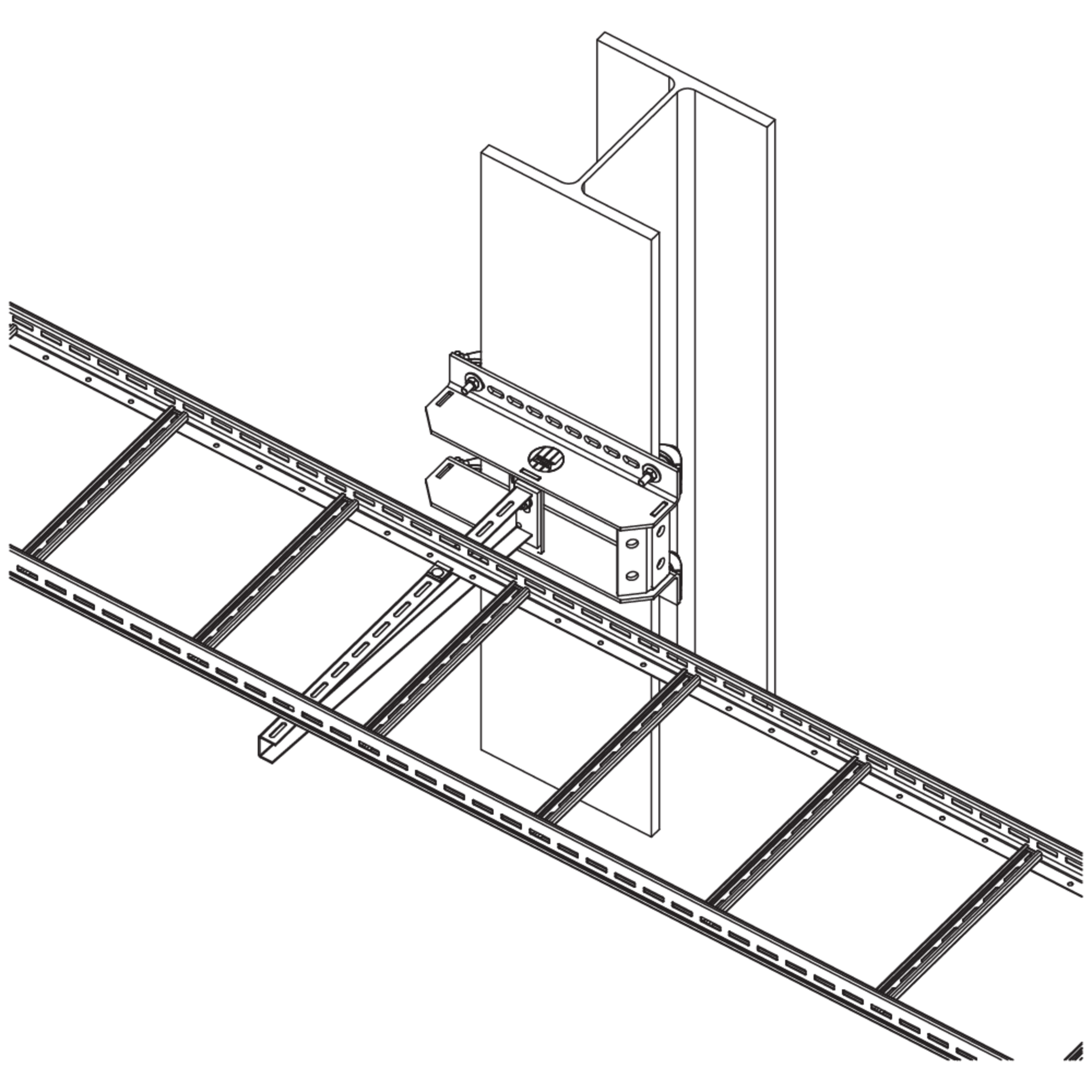

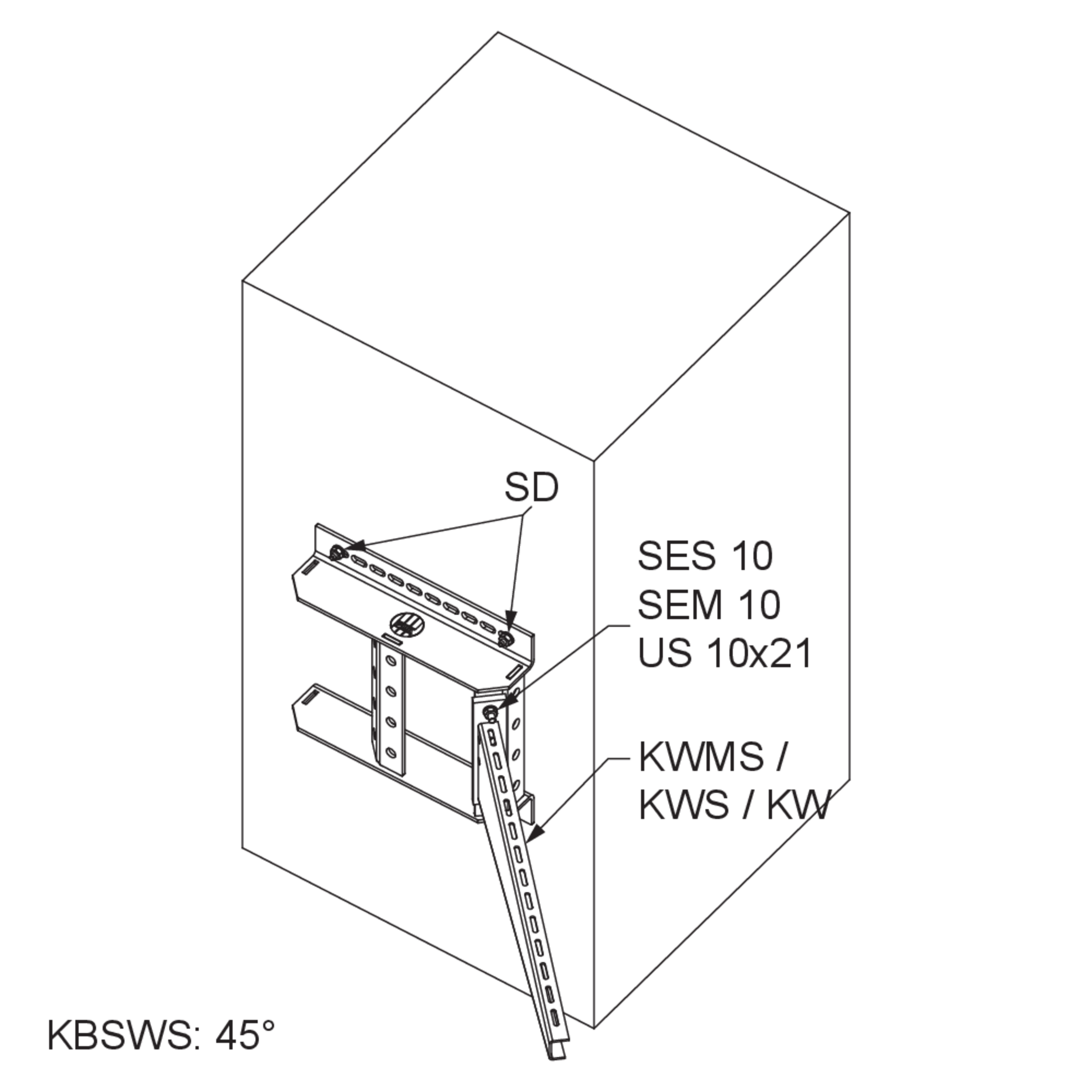

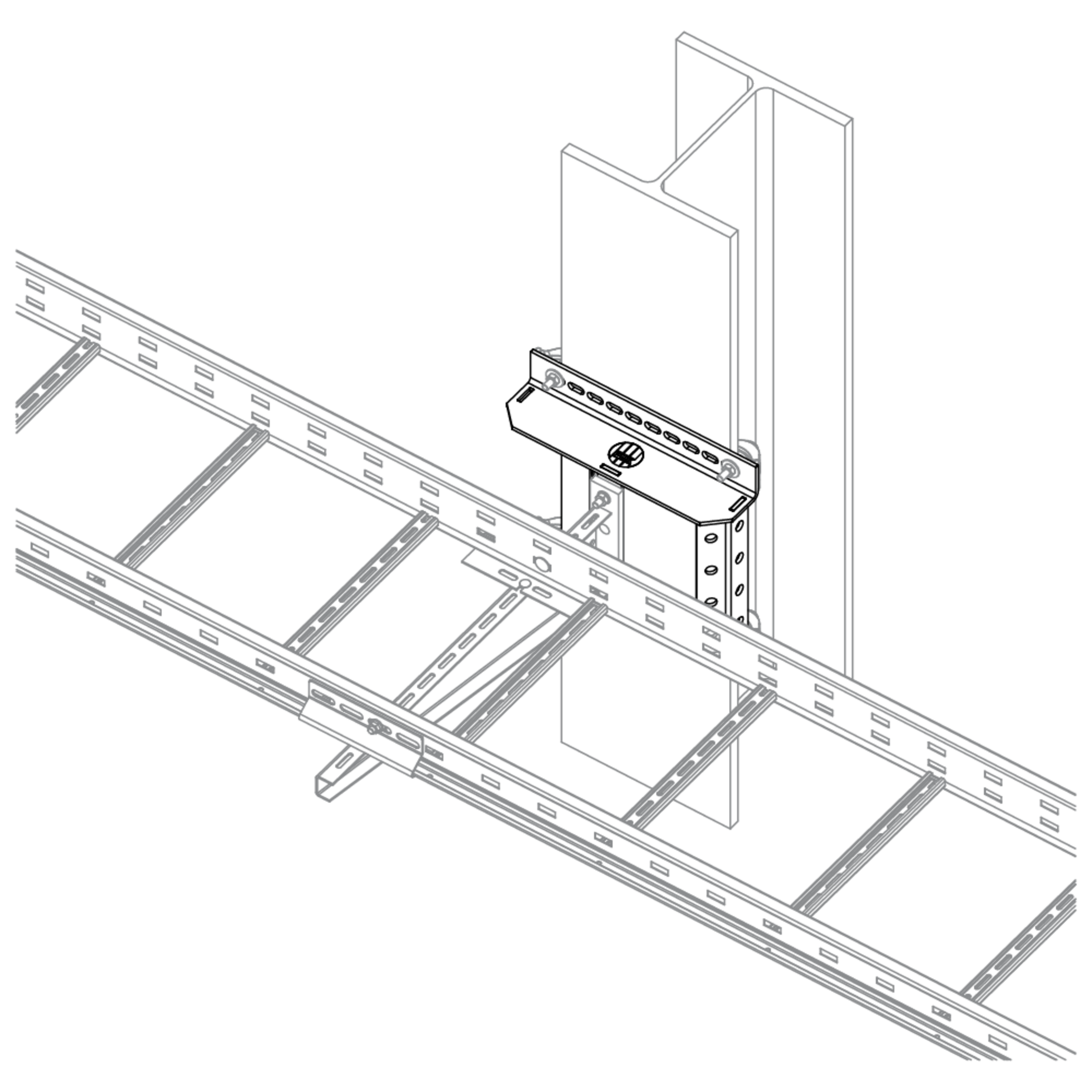

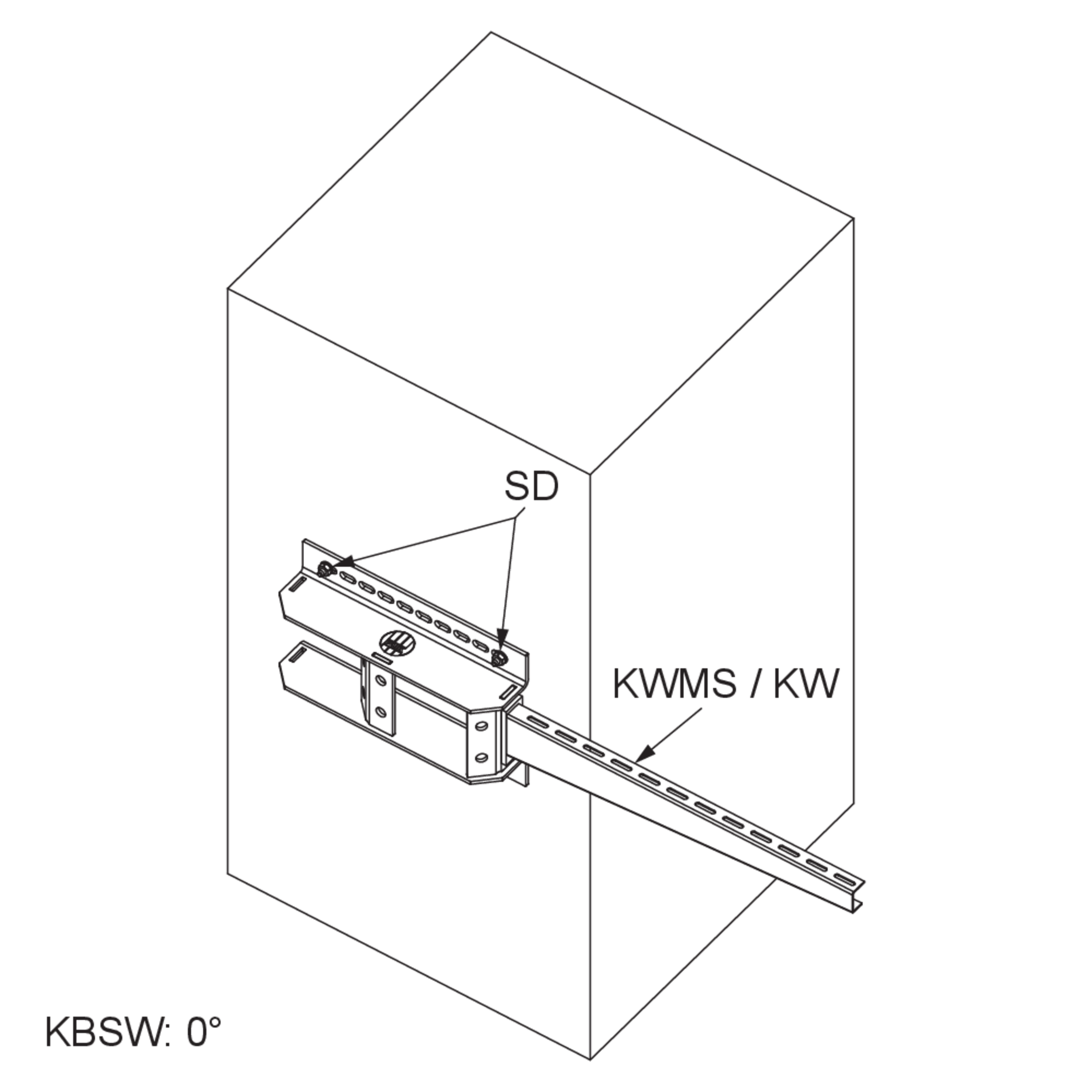

Bracket fixing (heavy) for dowelling or clamping for universal fixing with 0°, 45° or 90° bracket arrangement. Suitable for clamping range from 100 to 300 mm. 4 clamping points are required for clamp fixing.

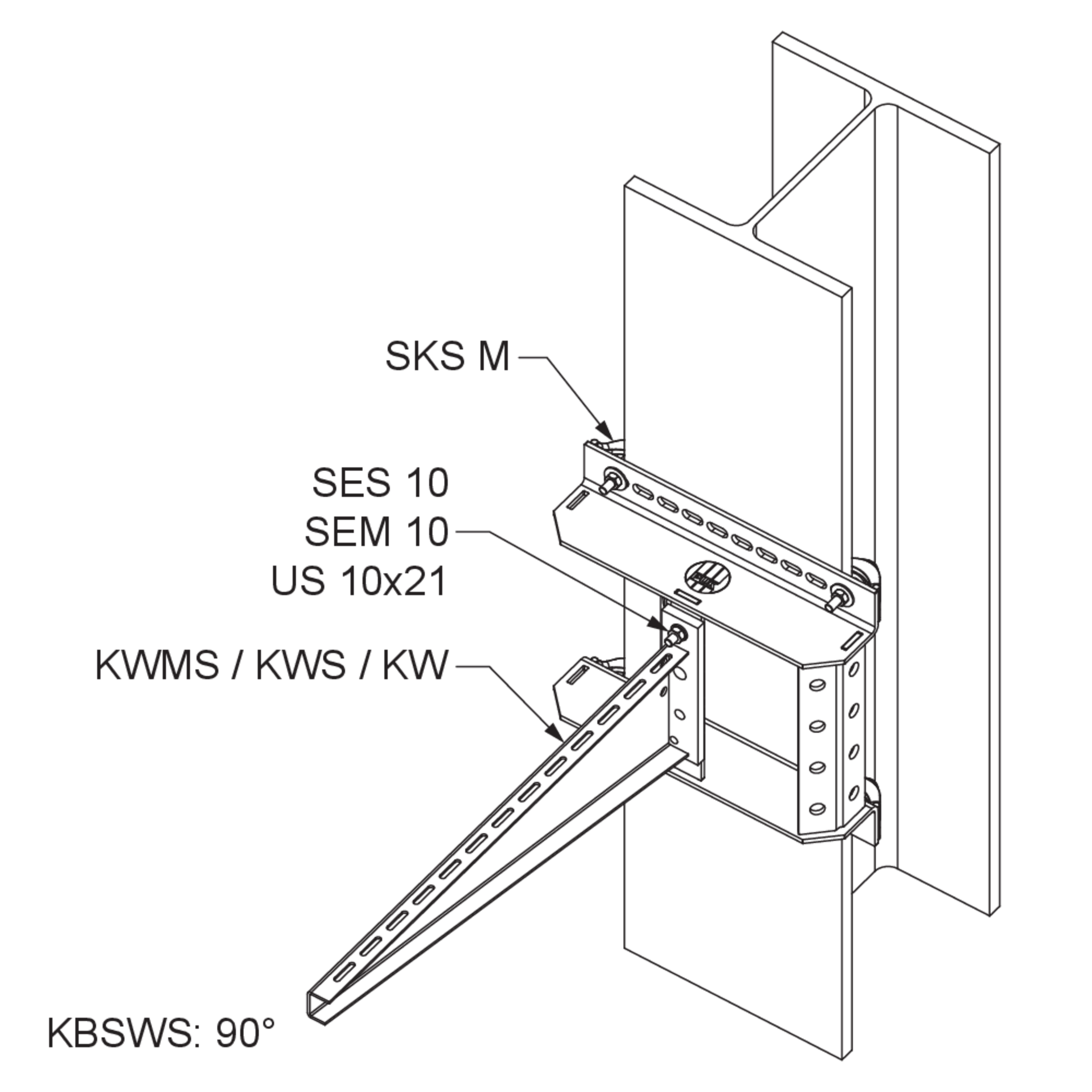

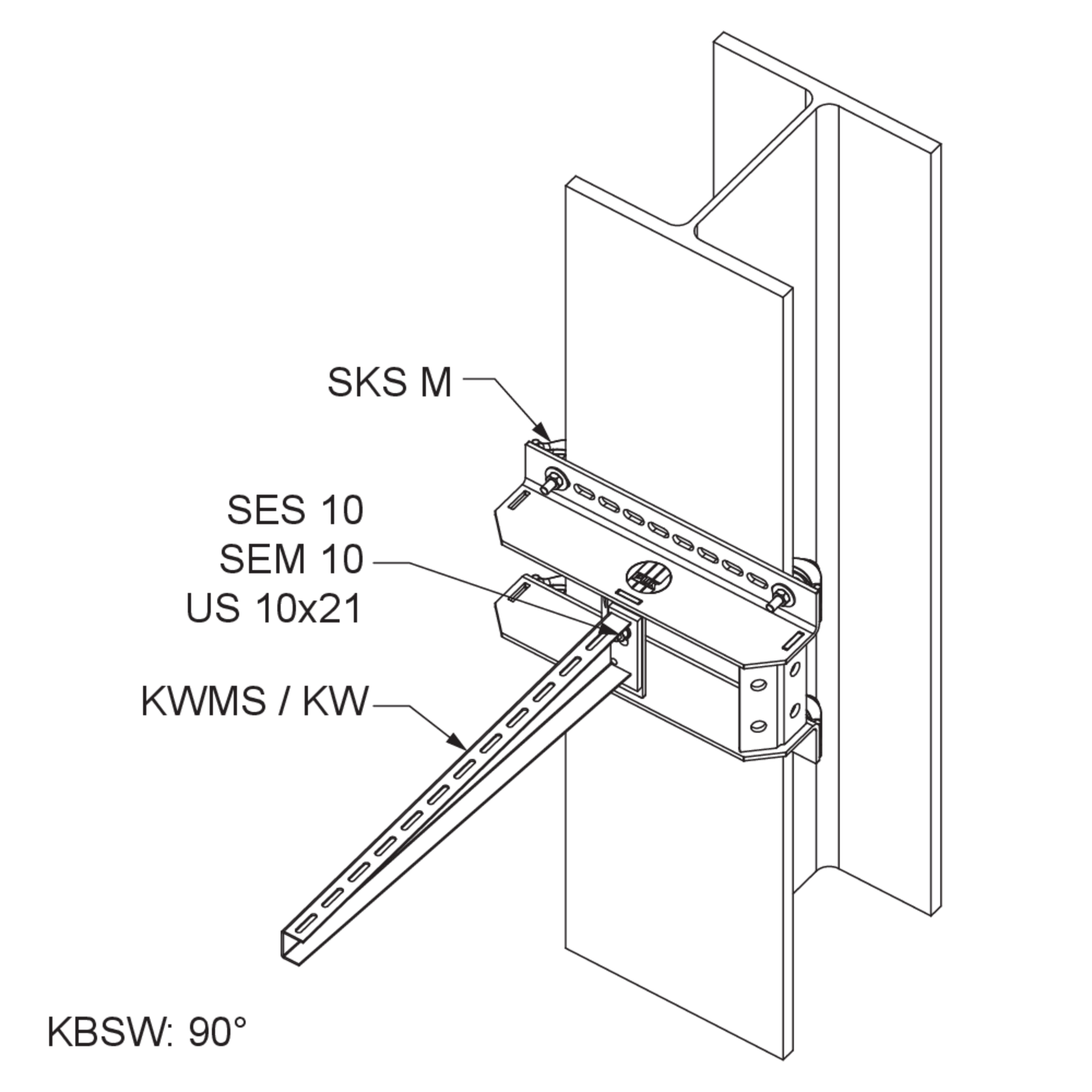

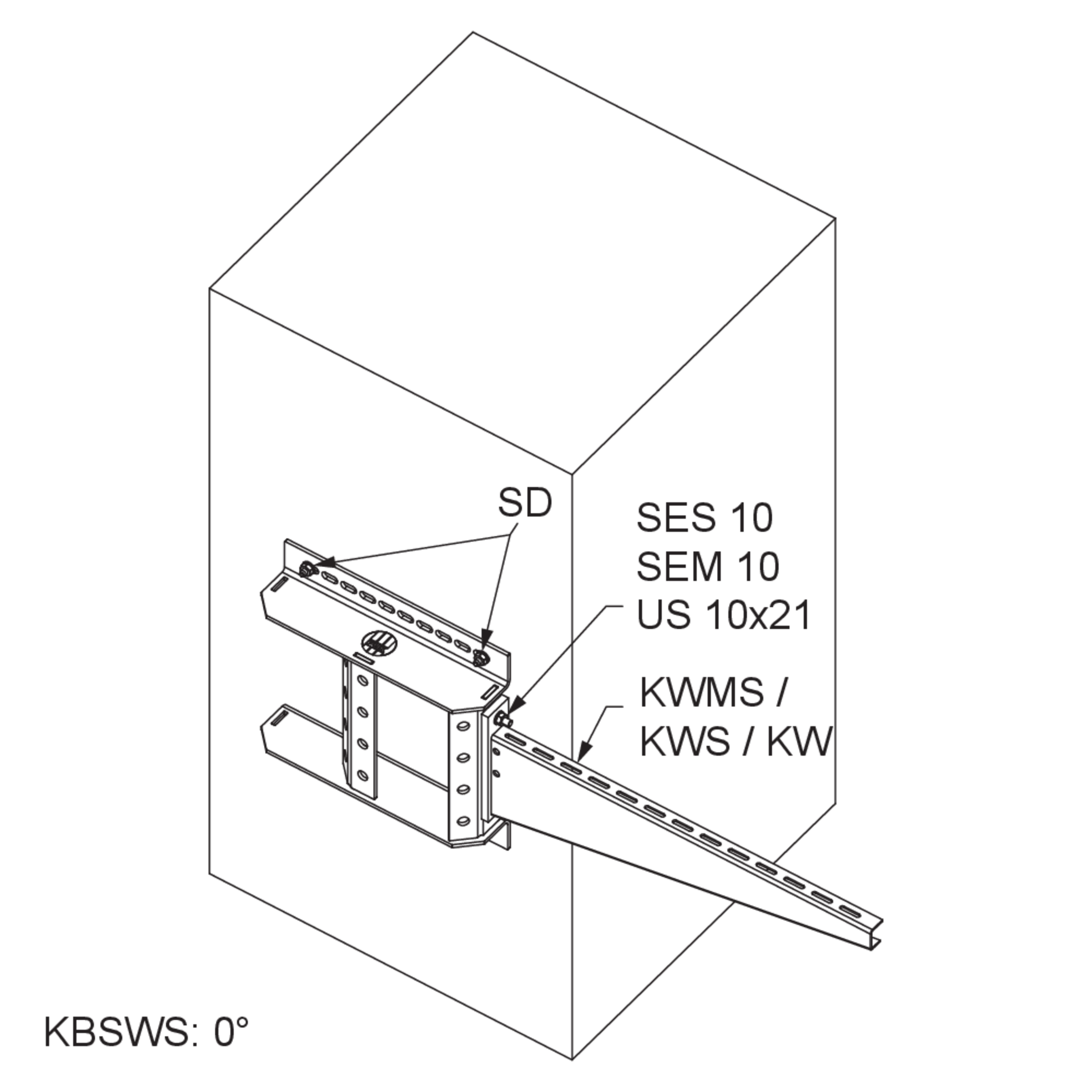

The maximum bracket loads of the brackets to be used apply for 0°, 45°, 90° dowel fixing and 90° clamp fixing. When clamping at 0° and 45°, the friction ratios must be observed.

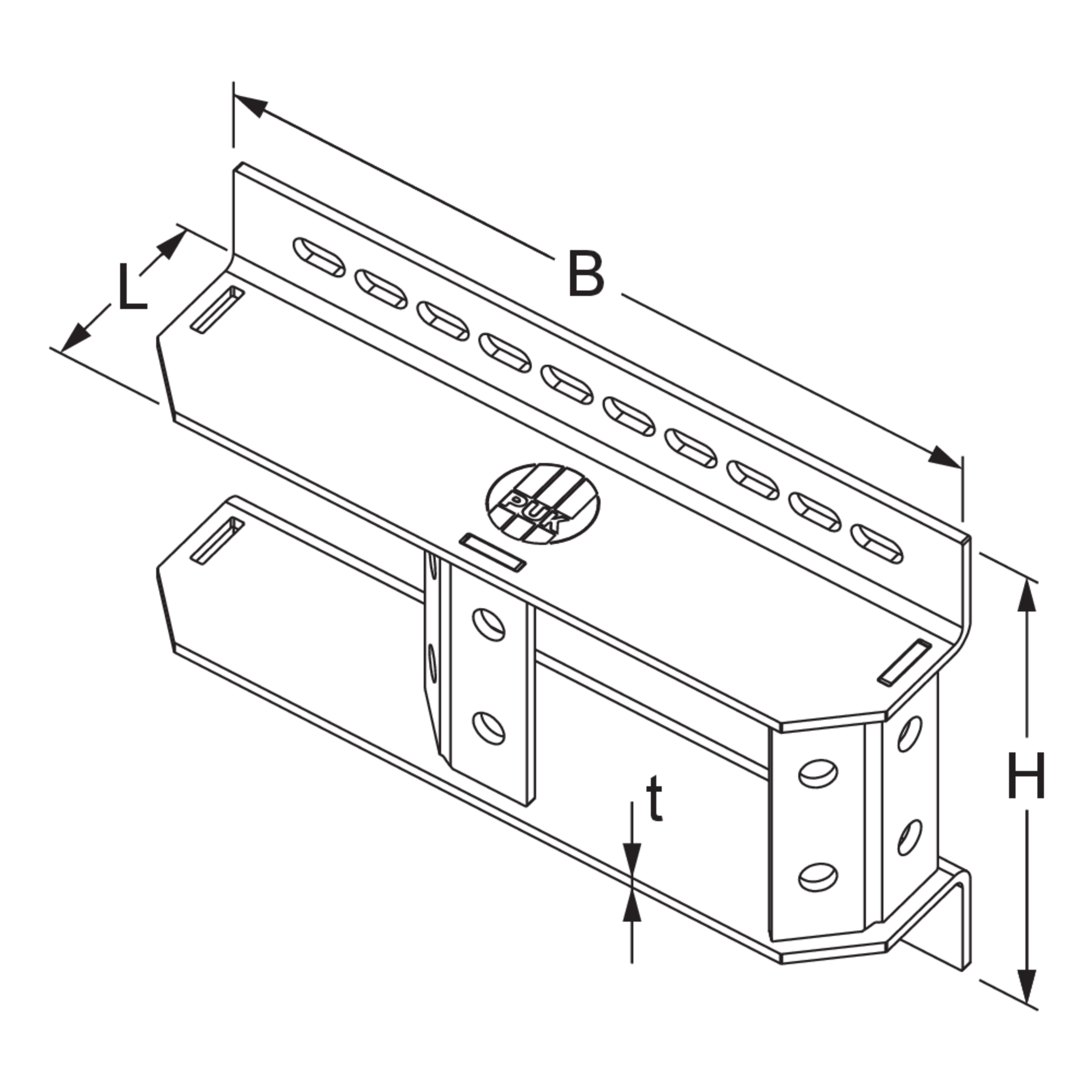

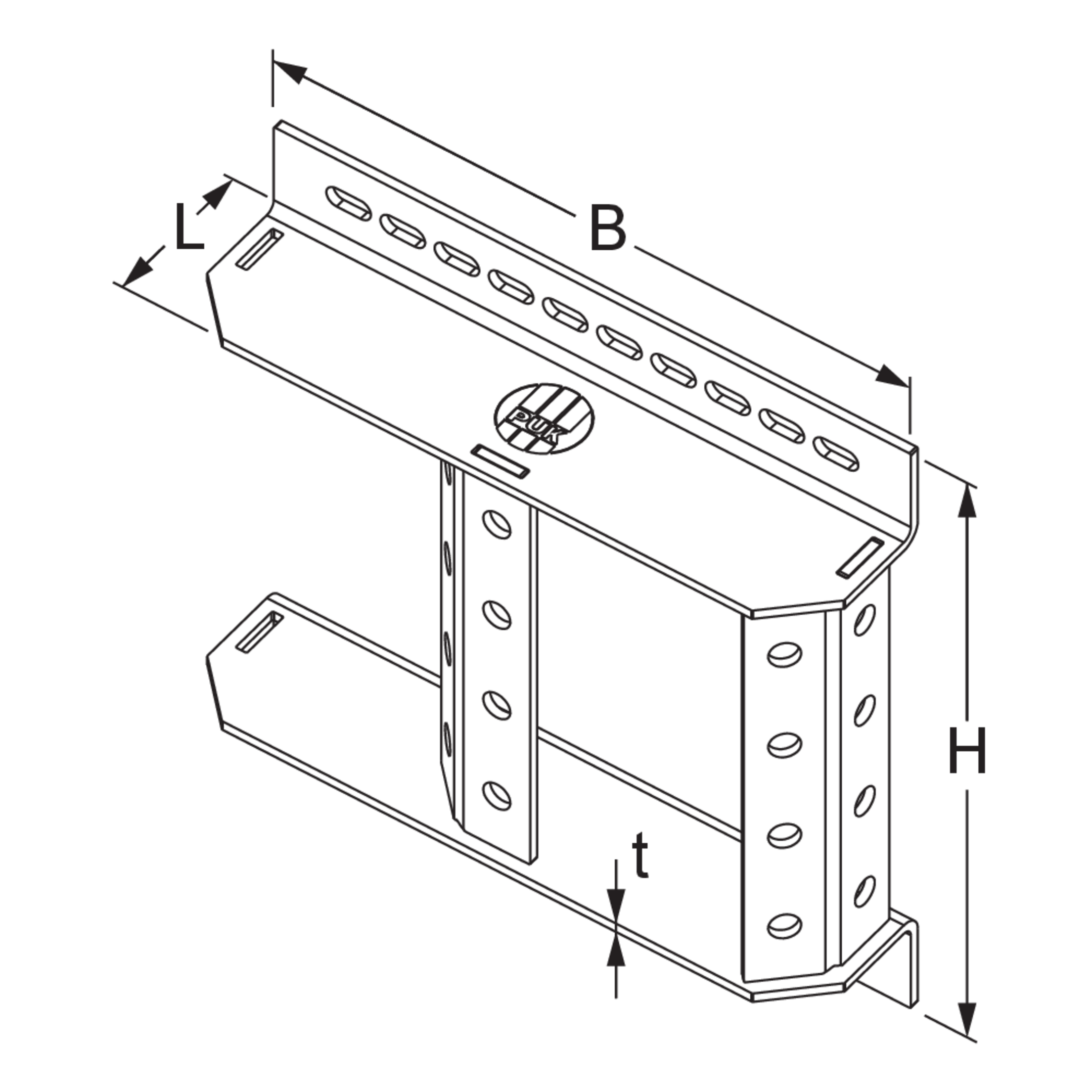

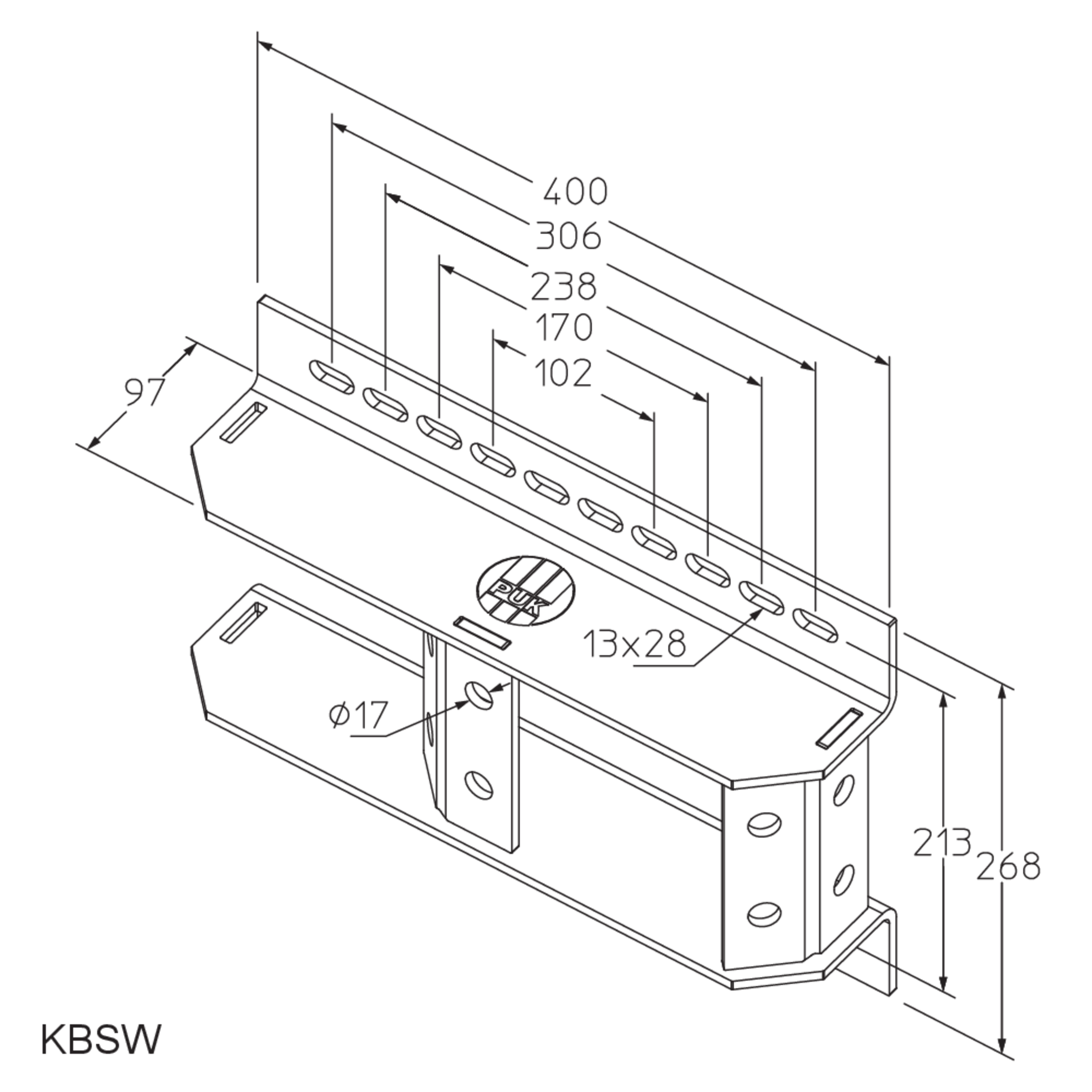

H
height
B
width
L
length
t
material thickness
G
Weight per storage unit
de
en
Valid from February 1st, 2025, updated version from 31/03/2025.
