SKS M

Beam clamp set

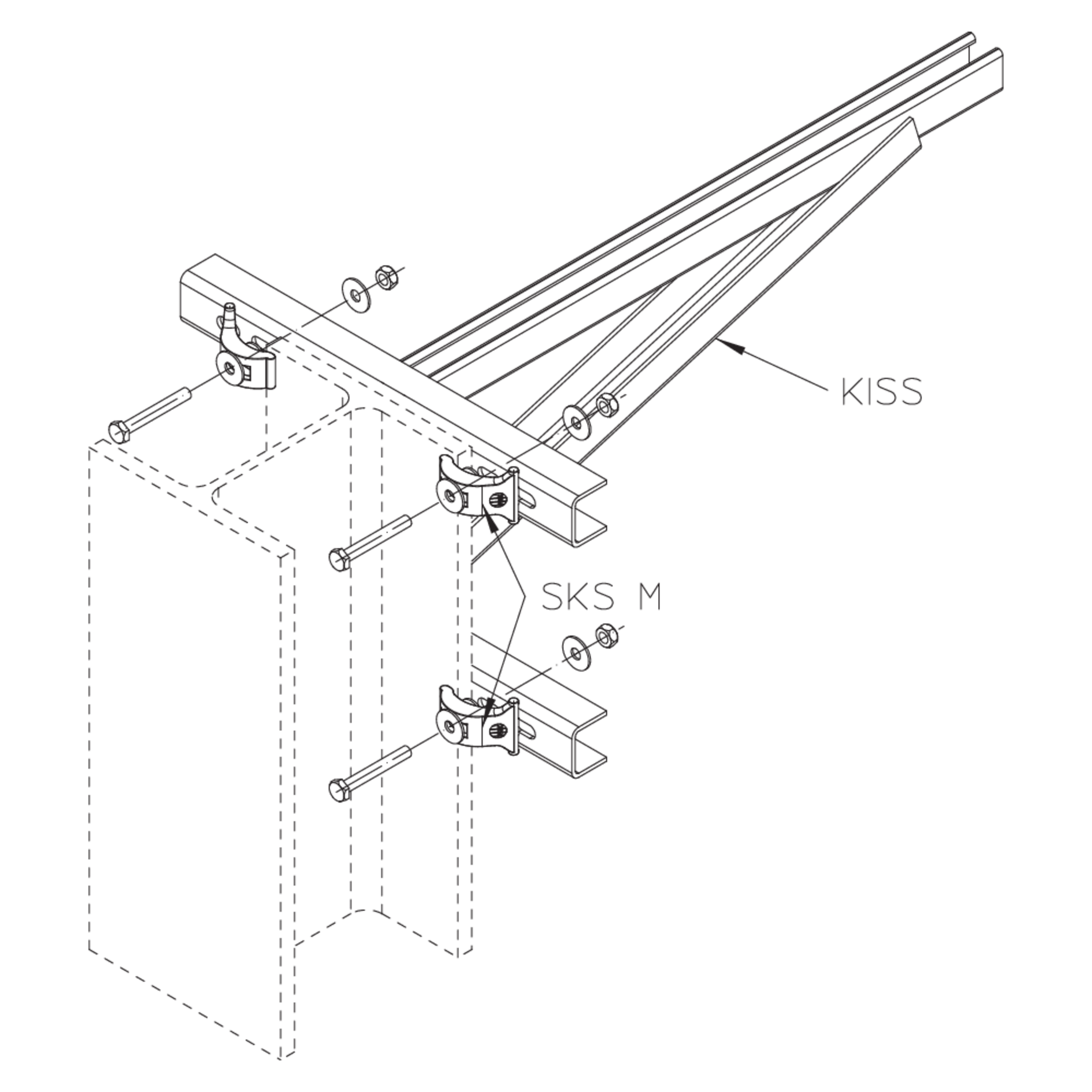

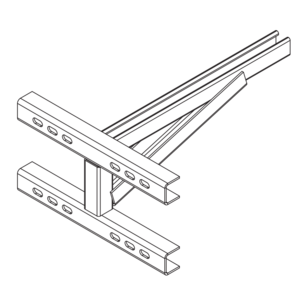

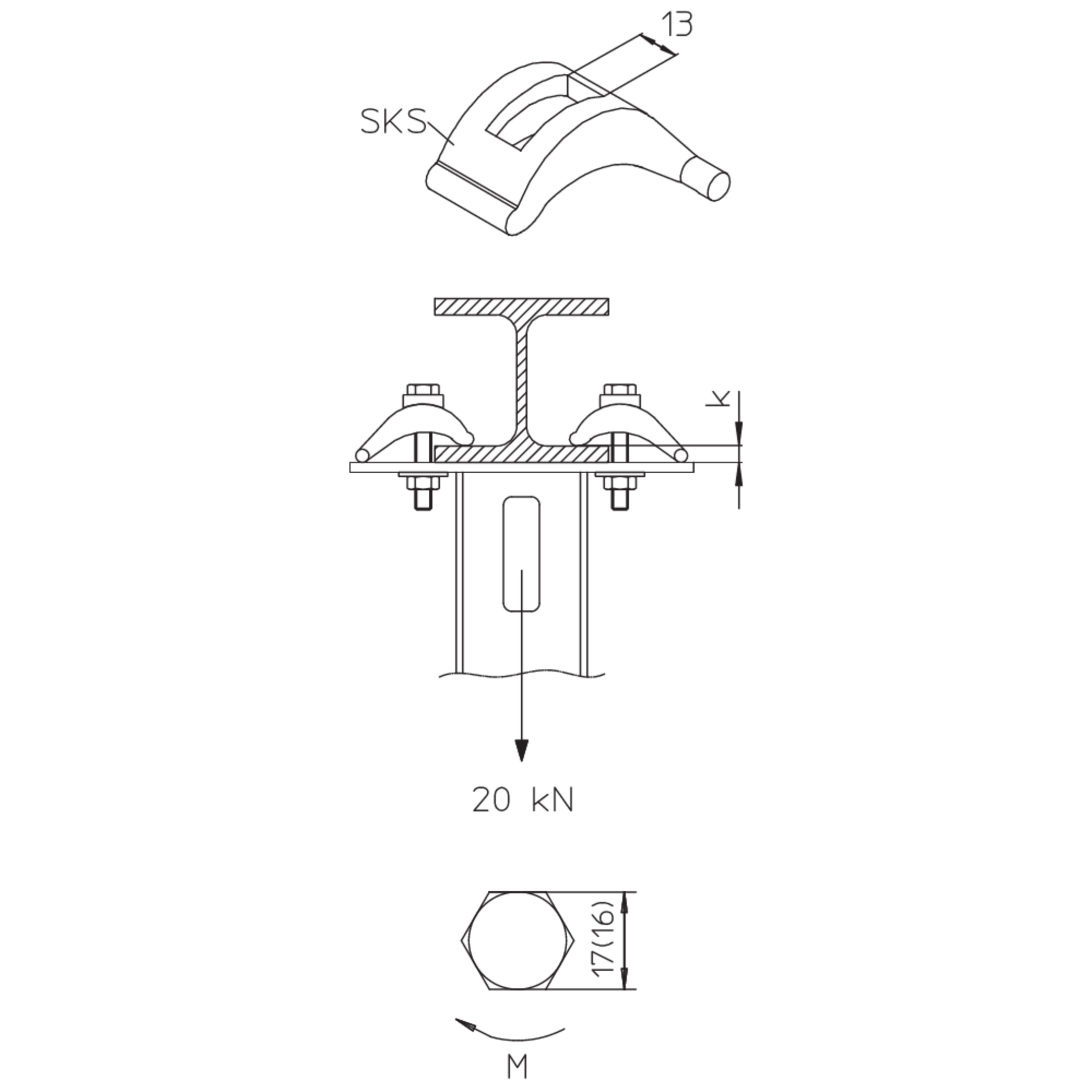

The beam clamp set SKS M is used to mount KISS brackets on steel beams. It can be loaded up to a maximum of 20 kN. The clamping range extends from 10 - 30 mm. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

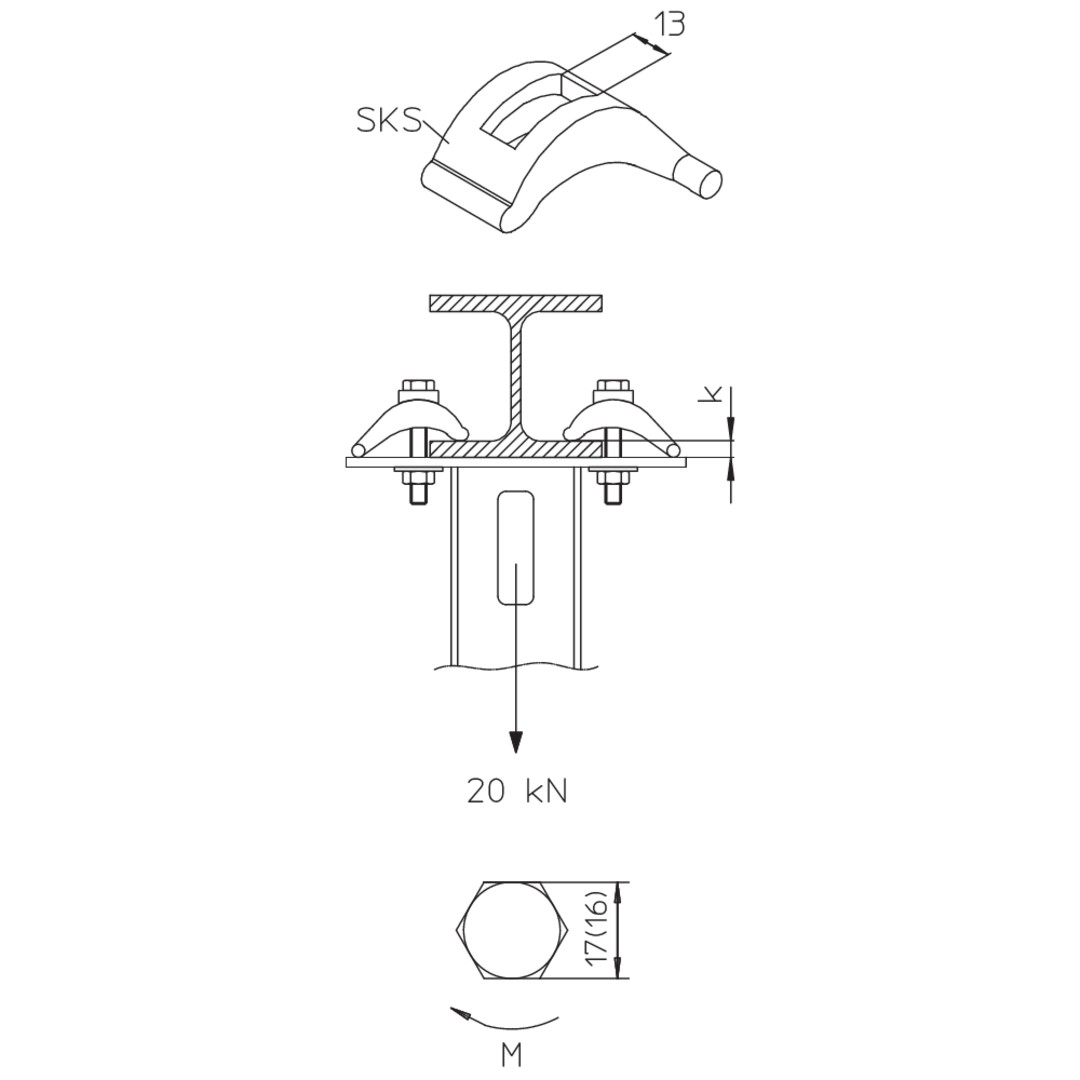

Pmax

maximum load

M

torque

k

clamping range

G

Weight per storage unit

Included accessories
  • SKS MF
    Beam clamps SKS MF
    maximum load
    20.00 kN
    torque
    50 Nm
    clamping range
    10 - 30 mm
    Weight per storage unit
    0.518 kg
    Included accessories
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

Pmax

maximum load

M

torque

k

clamping range

G

Weight per storage unit

Included accessories
  • SKS ME4
    Beam clamps SKS ME4
    maximum load
    20.00 kN
    torque
    50 Nm
    clamping range
    10 - 30 mm
    Weight per storage unit
    0.522 kg
    Included accessories
    More information

Details

    Tender texts

    Ausschreiben.de

    Tender texts for this product

    Open Link
    Heinze.de

    Tender texts for this product

    Open Link

    Downloads

    BIM- und CAD-Data

      BIM Data Cablele Support System Fastening Accessories (Revit)

      BIM Data

      ZIP (39.32 MB)

      DownloadDownload

    Included accessories
