JXA W 29/20

Anchor channel, hot-rolled, toothed, with round or I anchor

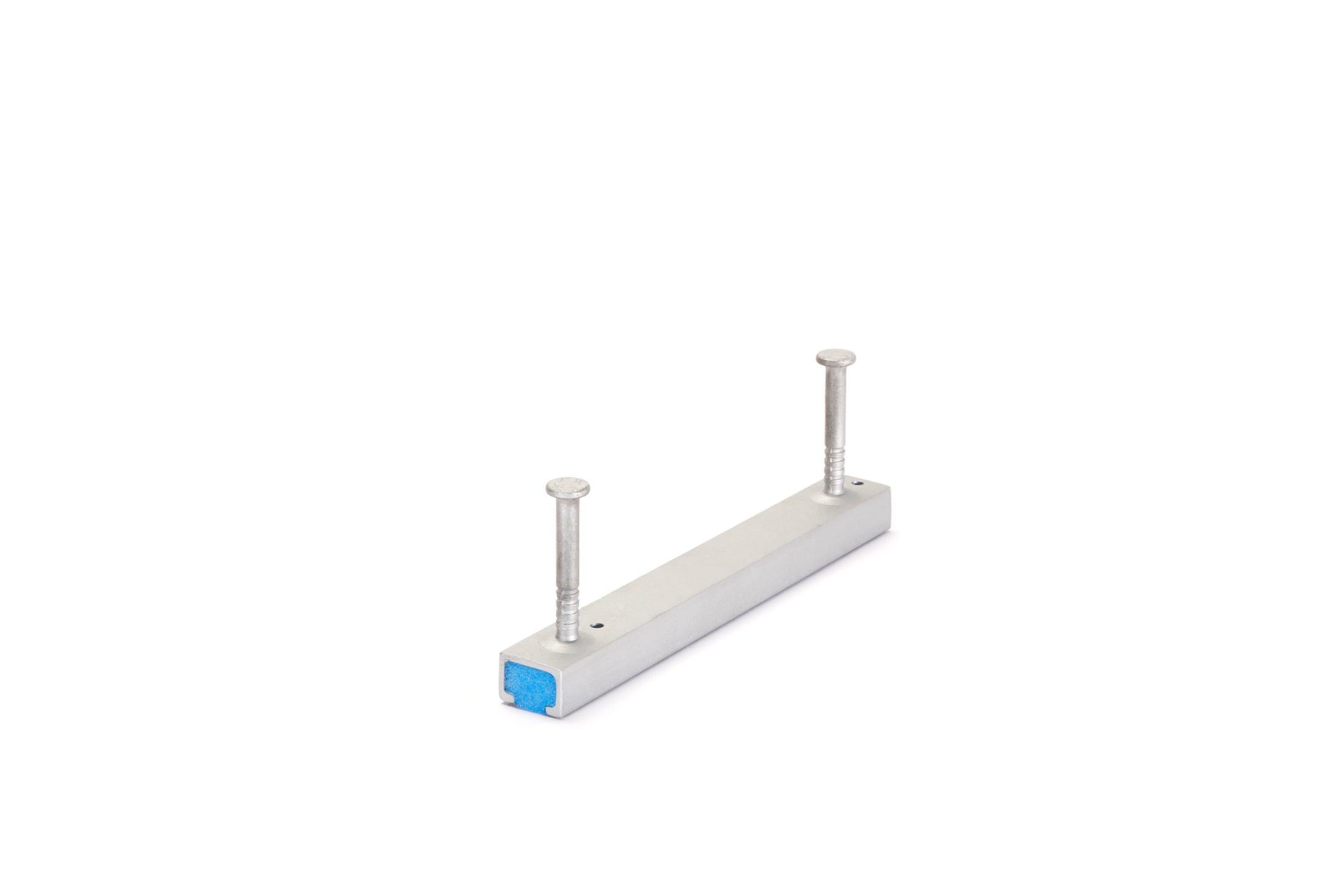

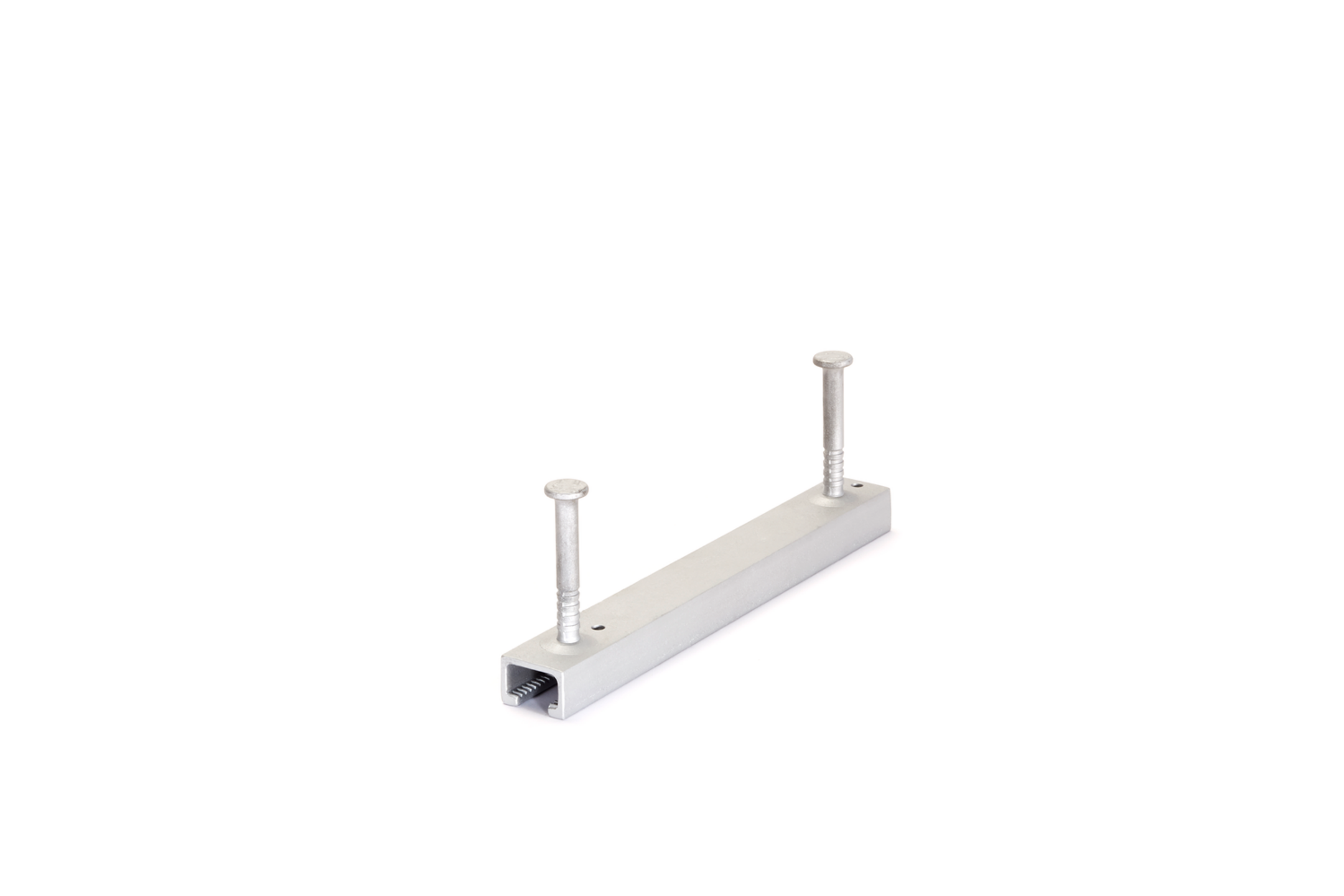

The anchor channel JXA W 29/20 is approved throughout Europe by ETA-09/0338 and almost worldwide by ICC-ES ESR‐2854. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE. It is made of hot-dip galvanised steel (fv) or stainless steel (A4). It can be supplied in any desired length up to a maximum of 6 m and is paired with the bolts JXD M12 - JXD M12. The profile is 29 mm wide and 20 mm high. The filling is made of polyethylene (PE).

Fire protection
Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
European Technical Assessment: ETA-09/0338
Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

H

installation height

HP

profile height

BP

profile width

L

length

t

Material strength profile

Number of anchors

G

Weight per storage unit

  • JXARW2920 FVK-0150
    JORDAHL anchor channel toothed W29/20
    installation height
    85 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    150 mm
    Material strength profile
    2.5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.345 kg
    More information
  • JXARW2920 FVK-0200
    JORDAHL anchor channel toothed W29/20
    installation height
    85 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    200 mm
    Material strength profile
    2.5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.430 kg
    More information
  • JXARW2920 FVK-0250
    JORDAHL anchor channel toothed W29/20
    installation height
    85 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    250 mm
    Material strength profile
    2.5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.515 kg
    More information
  • JXARW2920 FVK-0300
    JORDAHL anchor channel toothed W29/20
    installation height
    85 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    300 mm
    Material strength profile
    2.5 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    0.645 kg
    More information
  • JXARW2920 FVK-0350
    JORDAHL anchor channel toothed W29/20
    installation height
    85 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    350 mm
    Material strength profile
    2.5 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    0.730 kg
    More information
  • JXARW2920 FVK-0400
    JORDAHL anchor channel toothed W29/20
    installation height
    85 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    400 mm
    Material strength profile
    2.5 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    0.816 kg
    More information
  • JXARW2920 FVK-0550
    JORDAHL anchor channel toothed W29/20
    installation height
    85 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    550 mm
    Material strength profile
    2.5 mm
    Number of anchors
    4 pcs
    Weight per storage unit
    1.116 kg
    More information
  • JXARW2920 FVK-0800
    JORDAHL anchor channel toothed W29/20
    installation height
    85 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    800 mm
    Material strength profile
    2.5 mm
    Number of anchors
    5 pcs
    Weight per storage unit
    1.587 kg
    More information
  • JXARW2920 FVK-1050
    JORDAHL anchor channel toothed W29/20
    installation height
    85 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    1050 mm
    Material strength profile
    2.5 mm
    Number of anchors
    6 pcs
    Weight per storage unit
    2.057 kg
    More information
  • JXARW2920 FVK-3000
    JORDAHL anchor channel toothed W29/20
    installation height
    85 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    3000 mm
    Material strength profile
    2.5 mm
    Number of anchors
    16 pcs
    Weight per storage unit
    5.828 kg
    More information
  • JXARW2920 FVK-6000
    JORDAHL anchor channel toothed W29/20
    installation height
    85 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    6000 mm
    Material strength profile
    2.5 mm
    Number of anchors
    31 pcs
    Weight per storage unit
    1.935 kg
    More information

Details

  • Fire protection
  • Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
  • European Technical Assessment: ETA-09/0338
  • Approved throughout Europe by ETA-09/0338
  • Environmental Product Declaration EPD-JDL-20200260-IBB1-DE
  • ICC‐ES Evaluation Report ESR‐2854
