JXA PC W 29/20

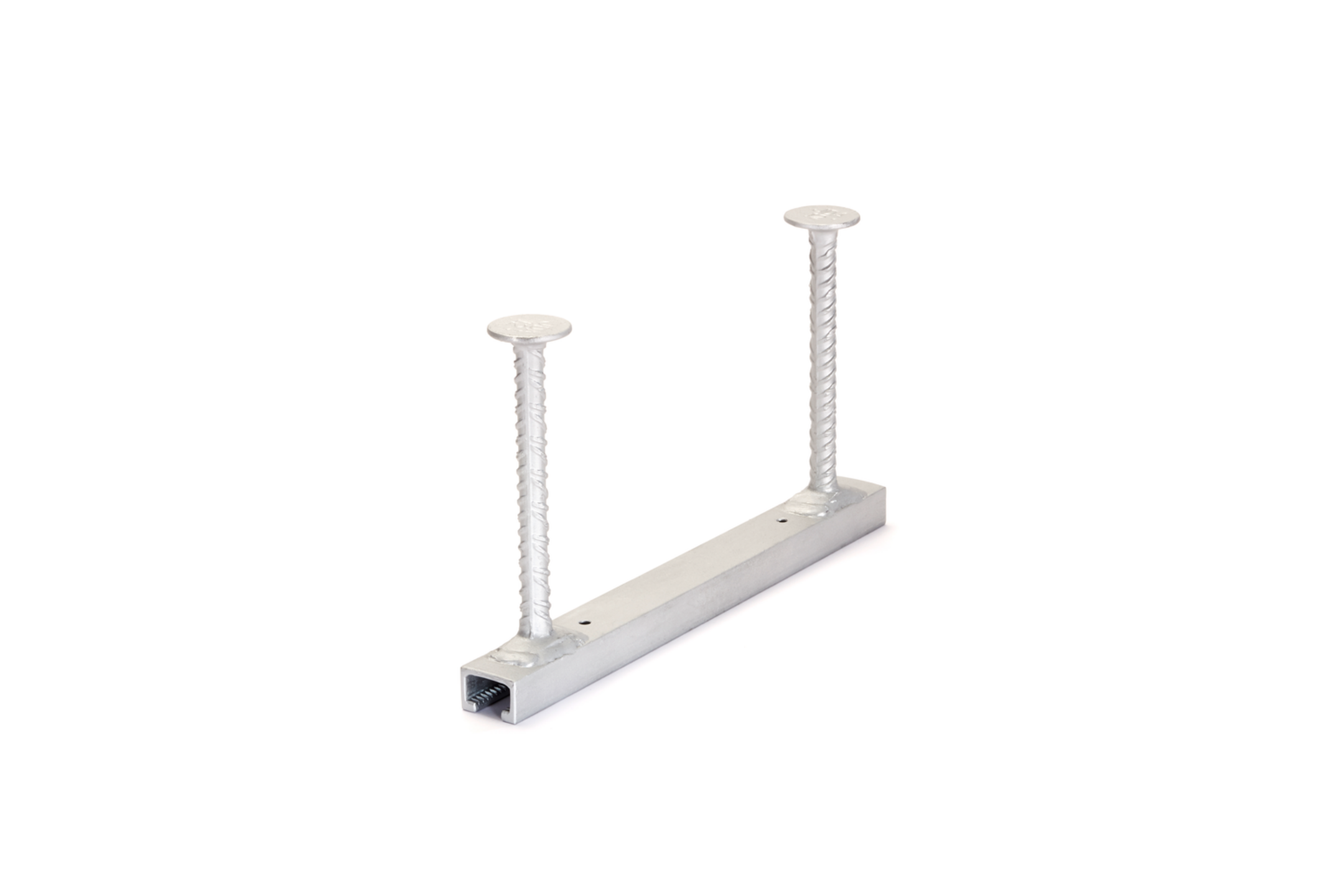

Anchor channel, hot-rolled, toothed, ribbed anchor with large undercut profile

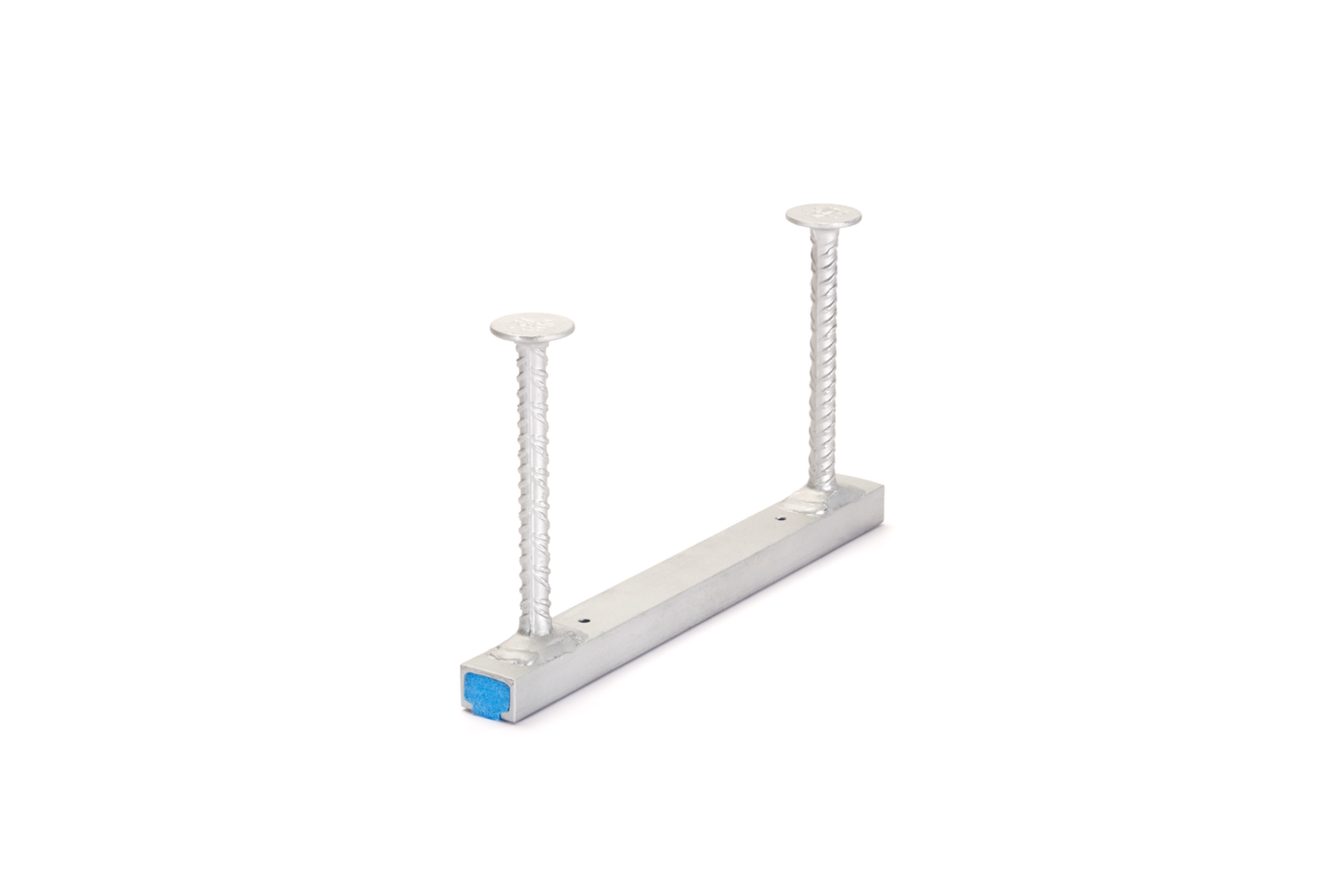

The anchor channel JXA PC W 29/20 is made of hot-dip galvanised steel (fv) or stainless steel (A4). The material is 2.5 mm thick and it can be supplied in any desired length up to a maximum of 6 m. It is paired with the bolts JXD M10 - JXD M12. The profile is 29 mm wide and 20 mm high. The filling is made of polyethylene (PE).

Fire protection
Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

H

installation height

HP

profile height

BP

profile width

L

length

t

Material strength profile

Number of anchors

G

Weight per storage unit

  • JXAPCW2920-0150-FVK
    JORDAHL anchor channel toothed PC W29/20
    installation height
    165 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    150 mm
    Material strength profile
    2.5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.653 kg
    More information
  • JXAPCW2920-0200-FVK
    JORDAHL anchor channel toothed PC W29/20
    installation height
    165 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    200 mm
    Material strength profile
    2.5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.738 kg
    More information
  • JXAPCW2920-0250-FVK
    JORDAHL anchor channel toothed PC W29/20
    installation height
    165 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    250 mm
    Material strength profile
    2.5 mm
    Number of anchors
    2 pcs
    Weight per storage unit
    0.823 kg
    More information
  • JXAPCW2920-0300-FVK
    JORDAHL anchor channel toothed PC W29/20
    installation height
    165 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    300 mm
    Material strength profile
    2.5 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    0.909 kg
    More information
  • JXAPCW2920-0350-FVK
    JORDAHL anchor channel toothed PC W29/20
    installation height
    165 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    350 mm
    Material strength profile
    2.5 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    1.193 kg
    More information
  • JXAPCW2920-0400-FVK
    JORDAHL anchor channel toothed PC W29/20
    installation height
    165 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    400 mm
    Material strength profile
    2.5 mm
    Number of anchors
    3 pcs
    Weight per storage unit
    1.278 kg
    More information
  • JXAPCW2920-0550-FVK
    JORDAHL anchor channel toothed PC W29/20
    installation height
    165 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    550 mm
    Material strength profile
    2.5 mm
    Number of anchors
    4 pcs
    Weight per storage unit
    1.533 kg
    More information
  • JXAPCW2920-0800-FVK
    JORDAHL anchor channel toothed PC W29/20
    installation height
    165 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    800 mm
    Material strength profile
    2.5 mm
    Number of anchors
    5 pcs
    Weight per storage unit
    2.158 kg
    More information
  • JXAPCW2920-1050-FVK
    JORDAHL anchor channel toothed PC W29/20
    installation height
    165 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    1050 mm
    Material strength profile
    2.5 mm
    Number of anchors
    6 pcs
    Weight per storage unit
    2.783 kg
    More information
  • JXAPCW2920-3000-FVK
    JORDAHL anchor channel toothed PC W29/20
    installation height
    165 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    3000 mm
    Material strength profile
    2.5 mm
    Number of anchors
    16 pcs
    Weight per storage unit
    7.696 kg
    More information
  • JXAPCW2920-6000-FVK
    JORDAHL anchor channel toothed PC W29/20
    installation height
    165 mm
    profile height
    20 mm
    profile width
    29 mm
    length
    6000 mm
    Material strength profile
    2.5 mm
    Number of anchors
    31 pcs
    Weight per storage unit
    2.532 kg
    More information

Details

  • Fire protection

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link
