JTB-AR

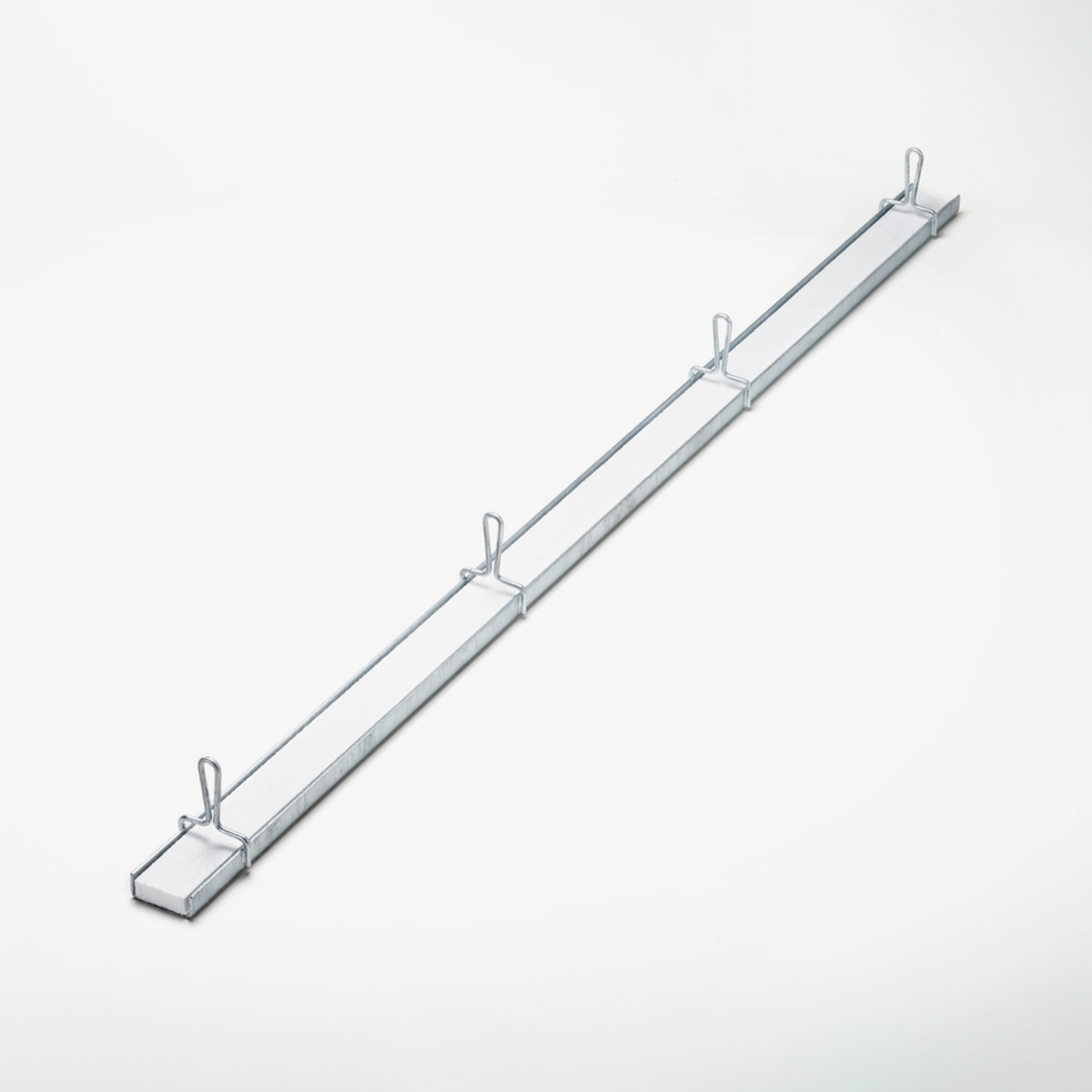

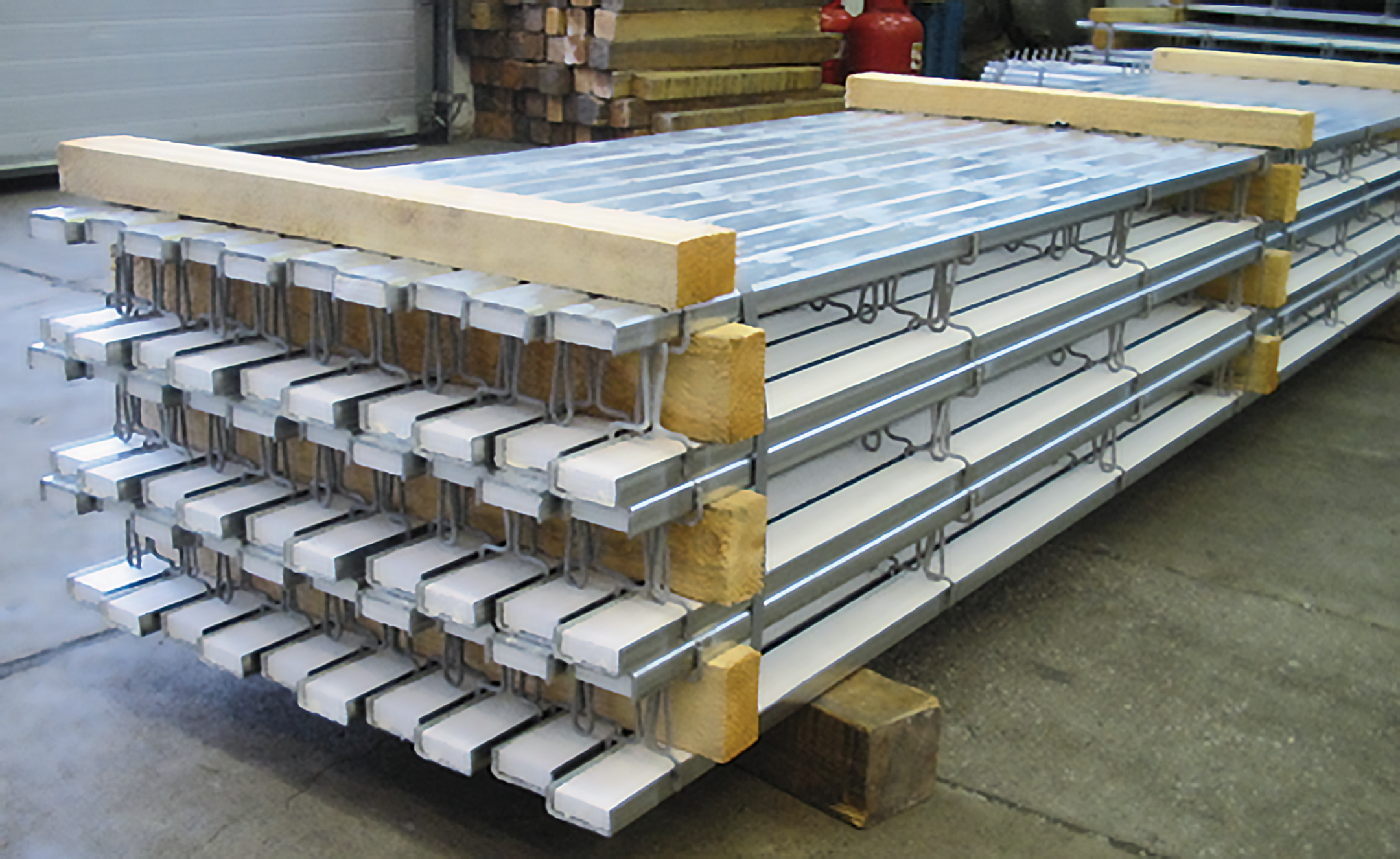

Profiled metal sheet channel rail for fastening profiled sheets to reinforced concrete components

The profiled metal sheet channel JTB-AR is approved by the building supervisory authority (technical approval number: Z-21.4-161. It is made of hot-dip galvanized steel (fv) or stainless steel (A4). With a bearing length of 3000 mm, the channel is available with a profile width of 60 mm. The profile height is 22 mm, the material thickness is 3 mm. Our end anchors are certified as well and available for customized cut-to-length channels. These are fastened to the channels with self-tapping bolts. The filling is made of polystyrene (PS).

General building approval: Z-21.4-161
Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

A

cross section area

G

Weight per storage unit

  • TBAR150 FVG-3000
    JORDAHL profiled metal sheet channels
    profile height
    22 mm
    profile width
    60 mm
    length
    3000 mm
    Material strength profile
    3 mm
    cross section area
    2.97 cm2
    Weight per storage unit
    2.540 kg
    More information
  • TBAR450 FVG-3000
    JORDAHL profiled metal sheet channels
    profile height
    22 mm
    profile width
    60 mm
    length
    3000 mm
    Material strength profile
    3 mm
    cross section area
    2.97 cm2
    Weight per storage unit
    2.400 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

A

cross section area

G

Weight per storage unit

  • TBAR150 A4G-3000
    JORDAHL profiled metal sheet channels
    profile height
    22 mm
    profile width
    60 mm
    length
    3000 mm
    Material strength profile
    3 mm
    cross section area
    2.97 cm2
    Weight per storage unit
    2.540 kg
    More information
  • TBAR450 A4G-3000
    JORDAHL profiled metal sheet channels
    profile height
    22 mm
    profile width
    60 mm
    length
    3000 mm
    Material strength profile
    3 mm
    cross section area
    2.97 cm2
    Weight per storage unit
    2.400 kg
    More information

Details

  • General building authority approval Z-21.4-161

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

    • de

    • en

    Technical information Channels and Accessories

    Technical information

    PDF

    Choose languageChoose language

    Technical information Channels and Accessories

    Choose language to download

    Installation instructions Profiled Metal Sheet Channels JTB

    Assembly instructions for: JTB-AR, JTB-uni and JTB-LA

    PDF (356.50 KB)

    DownloadDownload

    • de

    General building approval Z-21.4-161 Trapezoidal Sheet Fastening Rail JTB

    Approval

    PDF (1,015.82 KB)

    DownloadDownload

    Certificate of conformity for JTB

    Certificate

    PDF (72.43 KB)

    DownloadDownload

    • de

    • en

    Price list 2026 Shell construction / facade

    Valid from February 1st, 2026

    PDF

    Choose languageChoose language

    Price list 2026 Shell construction / facade

    Choose language to download

BIM- und CAD-Data

    CAD for Profiled metal sheet channels JTB-AR and JTB-uni

    CAD data

    ZIP (77.42 KB)

    DownloadDownload

    BIM for Profiled metal sheet channels JTB-AR and JTB-uni

    BIM data

    ZIP (447.10 KB)

    DownloadDownload
