JM W 72/48

Mounting channels, hot-rolled

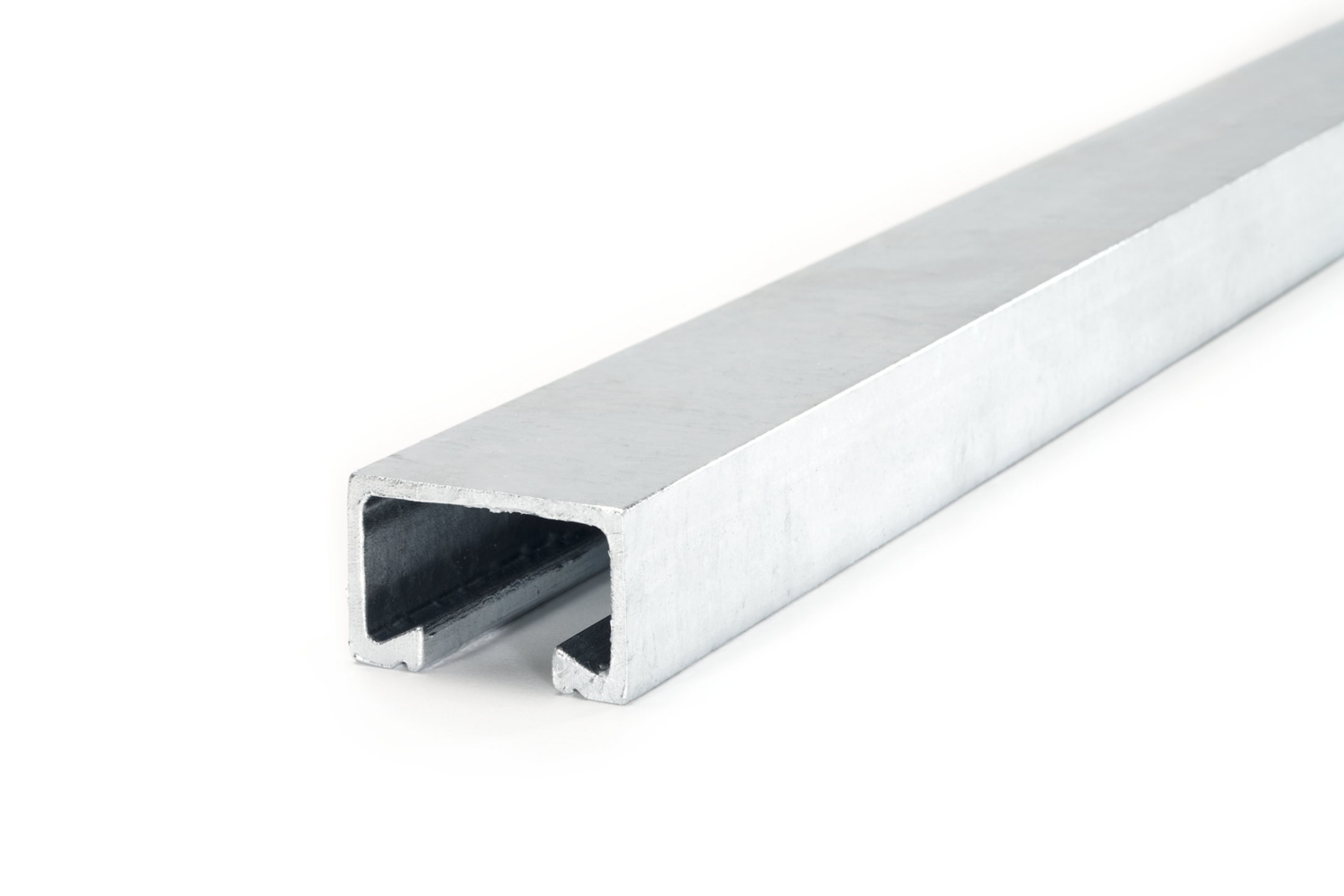

The mounting channel JM W 72/48 is approved throughout Europe by ETA-15/0386. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE and is made of hot-dip galvanised steel (fv), stainless steel (A4) and rolled plain steel (wb). This mounting channel has a static load-bearing capacity of the normal force (NRd) of 66.1 kN and shear force (VRd) of 65.8 kN. It is available with a total length of 6000 mm and is paired with the bolts JA M20 - JA M30. The profile is 72 mm wide and 48 mm high.

Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE

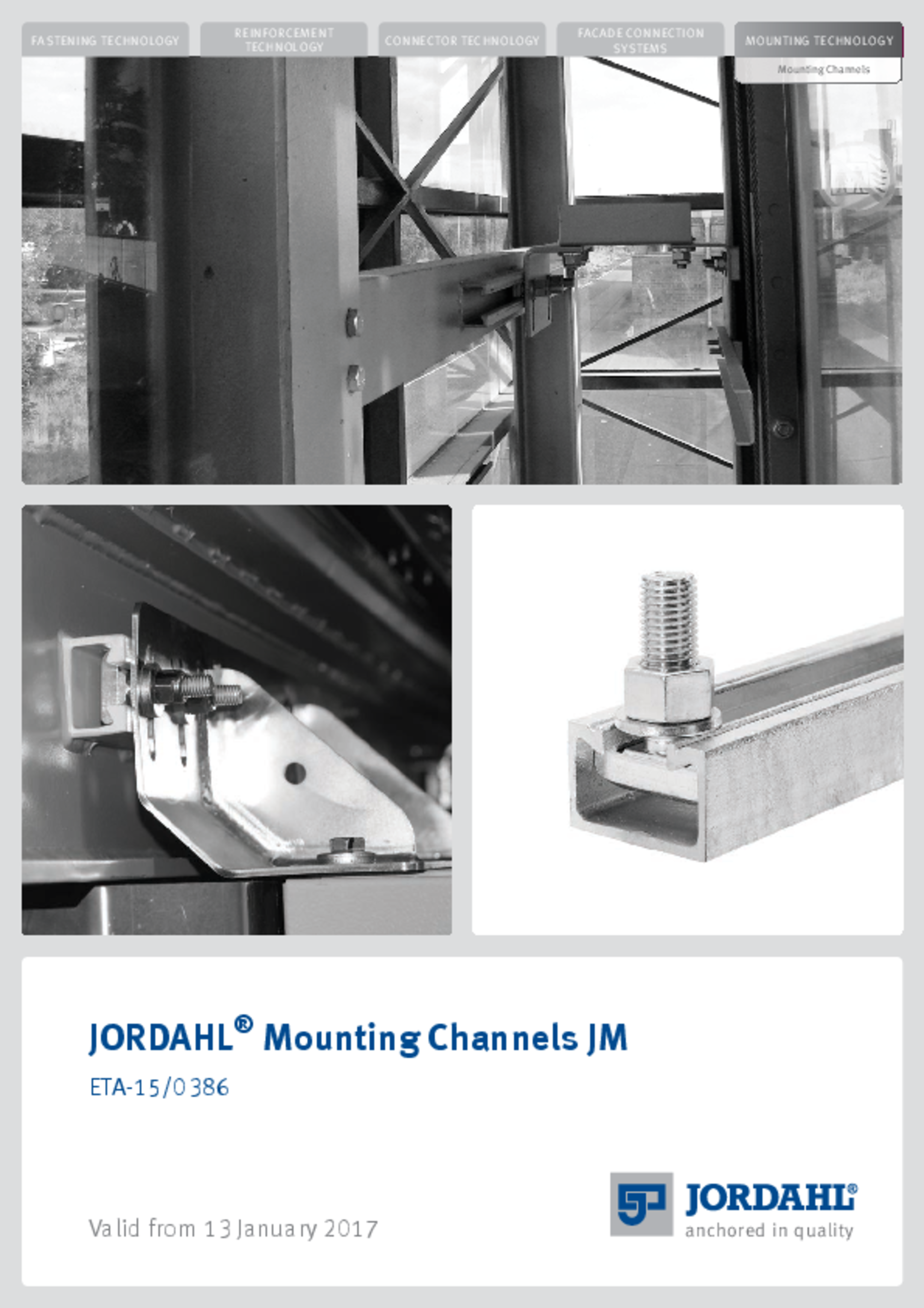

European Technical Assessment: ETA-15/0386
Get in touchDownload datasheet

Variants

steel, bright

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

A

cross section area

G

Weight per storage unit

  • JMW7248 R-6000
    JORDAHL mounting channel W72/48
    profile height
    48 mm
    profile width
    72 mm
    length
    6000 mm
    Material strength profile
    5 mm
    cross section area
    11.265 cm2
    Weight per storage unit
    54.803 kg
    More information

Steel, hot-dip galvanised

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

A

cross section area

G

Weight per storage unit

  • JMW7248 FV-6000
    JORDAHL mounting channel W72/48
    profile height
    48 mm
    profile width
    72 mm
    length
    6000 mm
    Material strength profile
    5 mm
    cross section area
    11.265 cm2
    Weight per storage unit
    58.362 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

A

cross section area

G

Weight per storage unit

  • JMW7248 A4-6000
    JORDAHL mounting channel W72/48
    profile height
    48 mm
    profile width
    72 mm
    length
    6000 mm
    Material strength profile
    5 mm
    cross section area
    11.265 cm2
    Weight per storage unit
    54.072 kg
    More information

Videos

To protect your personal data, YouTube videos are deactivated. By clicking the button, you agree to the data transfer to YouTube. Please refer to our privacy policy.

Details

  • Approved throughout Europe by ETA-15/0386
  • Environmental Product Declaration EPD-JDL-20200260-IBB1-DE

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    CAD Details Mounting Channels JM

    CAD Data

    ZIP (527.16 KB)

    DownloadDownload

    BIM Data Mounting Channels JM

    BIM Data

    ZIP (266.84 KB)

    DownloadDownload
