JM W 40/22

Mounting channels, hot-rolled

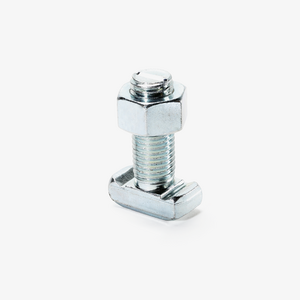

The mounting channel JM W 40/22 is approved throughout Europe by ETA-15/0386. It also has environmental product declaration EPD-JDL-20200260-IBB1-DE and is made of hot-dip galvanised steel (fv), stainless steel (A4) and rolled plain steel (wb). This mounting channel has a static load-bearing capacity of the normal force (NRd) of 11.7 kN and shear force (VRd) of 11.4 kN. It is available with a total length of 6000 mm and is paired with the bolts JC M10 - JC M16. The profile is 40 mm wide and 22 mm high.

Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
European Technical Assessment: ETA-15/0386
Get in touchDownload datasheet

Variants

steel, bright

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

A

cross section area

G

Weight per storage unit

  • JMW4022 R-6000

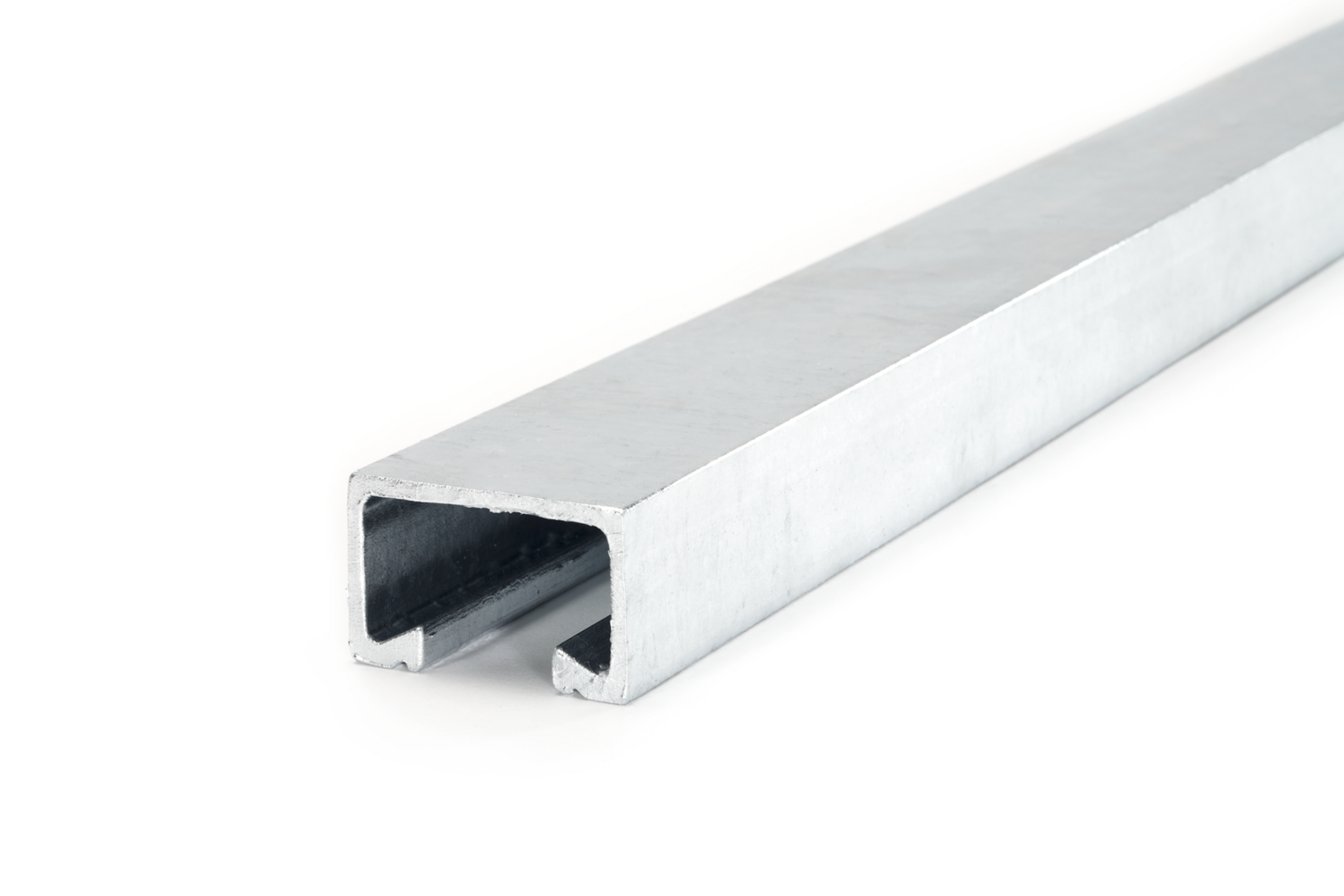

    JORDAHL mounting channel W40/22
    profile height
    22 mm
    profile width
    40 mm
    length
    6000 mm
    Material strength profile
    2.4 mm
    cross section area
    2.746 cm2
    Weight per storage unit
    13.946 kg
    More information

Steel, hot-dip galvanised

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

A

cross section area

G

Weight per storage unit

  • JMW4022 FV-6000
    JORDAHL mounting channel W40/22
    profile height
    22 mm
    profile width
    40 mm
    length
    6000 mm
    Material strength profile
    2.4 mm
    cross section area
    2.746 cm2
    Weight per storage unit
    14.040 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

HP

profile height

BP

profile width

L

length

t

Material strength profile

A

cross section area

G

Weight per storage unit

  • JMW4022 A4-6000
    JORDAHL mounting channel W40/22
    profile height
    22 mm
    profile width
    40 mm
    length
    6000 mm
    Material strength profile
    2.4 mm
    cross section area
    2.746 cm2
    Weight per storage unit
    12.747 kg
    More information

Details

  • Environmental Product Declaration (EPD): EPD-JDL-20200260-IBB1-DE
  • European Technical Assessment: ETA-15/0386
  • Approved throughout Europe by ETA-15/0386
  • Environmental Product Declaration EPD-JDL-20200260-IBB1-DE

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

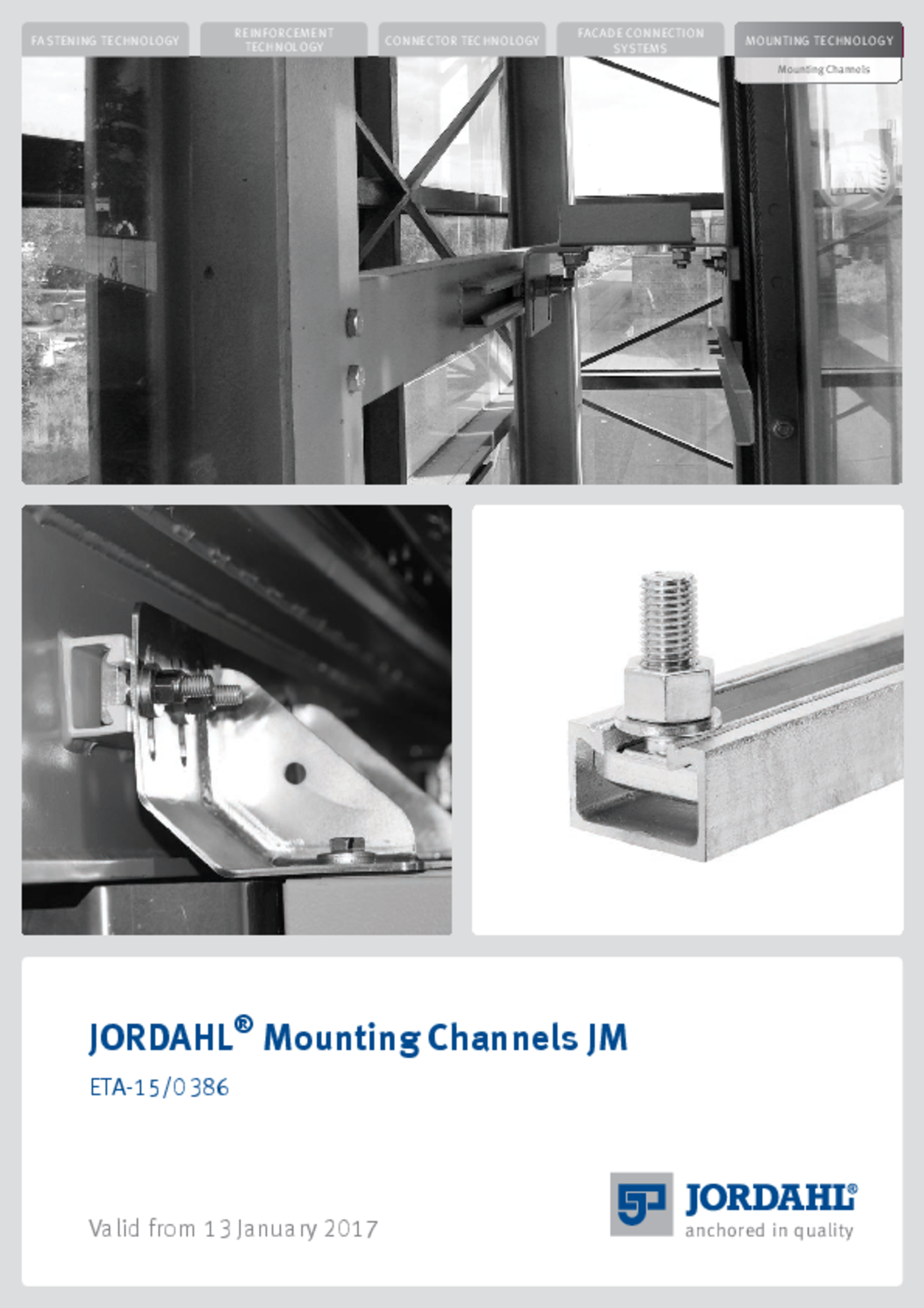

    CAD Details Mounting Channels JM
