ISOPRO® IPO

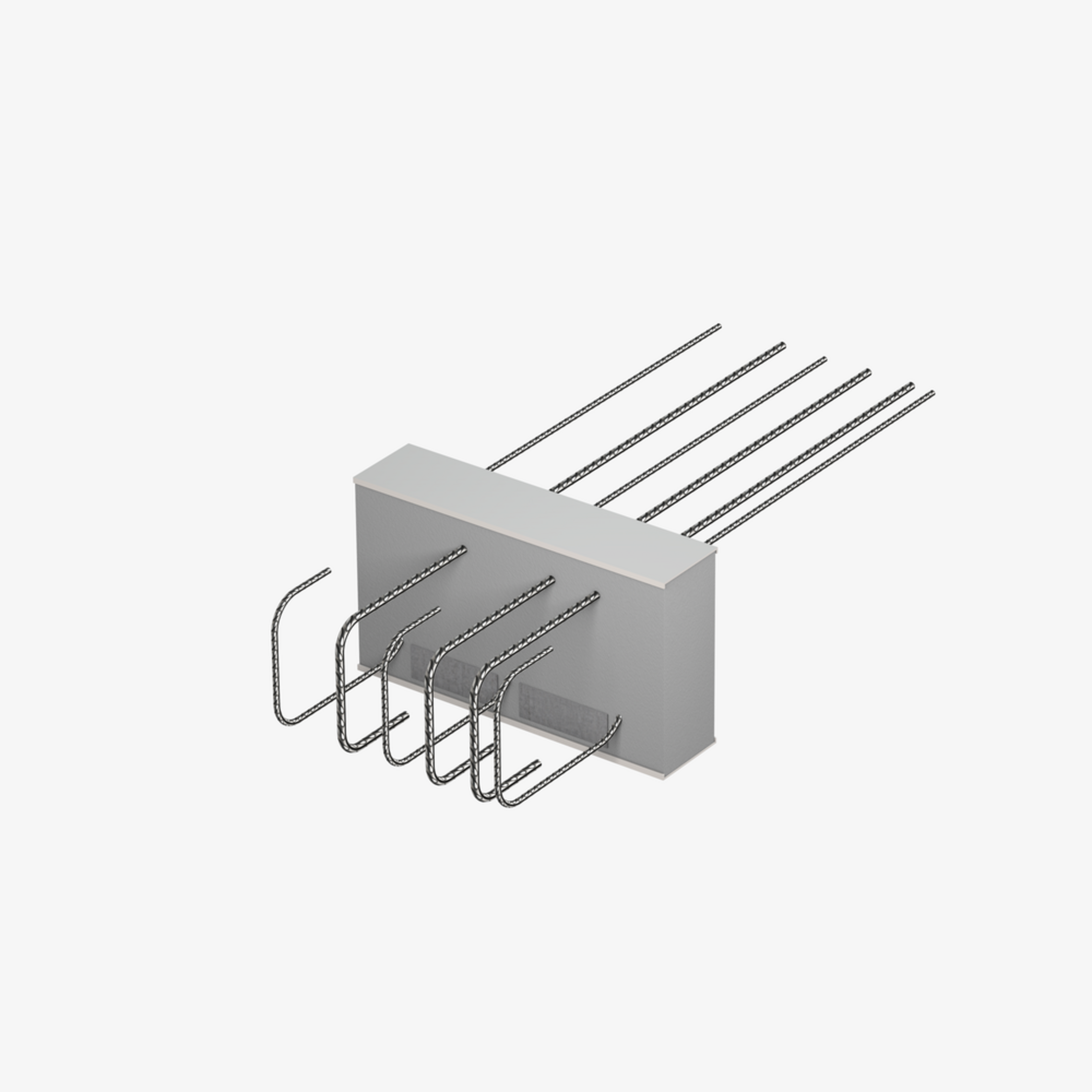

ISOPRO® IPO is a thermally insulated connection with an 80 mm insulating body for connecting ceiling slabs with reinforced concrete brackets used as supports for masonry or precast elements. It is suitable for transmitting positive shear forces, the resulting negative moments and horizontal forces. These elements are used at specific points depending on the relevant structural requirements. The stainless steel rebar is resistant to corrosion. It complies with fire protection requirements: ISOPRO® IPO is available for fire protection structures up to REI 120. Please specify the load-bearing capacity, element height and fire protection version when ordering.
European Technical Assessment: ETA-17/0466
Details
- Approved throughout Europe by ETA-17/0466
Tender texts
Downloads
de
en
ru
de
en
de
en
de
de
en
de
en
ISOPRO® Thermal insulation elements - Technical information
Technical Information
Installation instructions ISOPRO® Thermal insulation
Installation instruction for ISOPRO® IP
European Technical Assessment (ETA) ISOPRO®
ETA-17/0466
Construction Approval ISOPRO®
The general building authority type approval Z-15.7-354 (in conjunction with ETA-17/0466) confirms the suitability and applicability of the ISOPRO® connection in accordance with national building regulations. Valid until 19 May 2031.
PDF (1,016.09 KB)
DownloadDownload
Declaration of Performance ISOPRO®
Declaration of Performance for ISOPRO® thermal insulation elements
Price list 2026 Shell construction / facade
Valid from February 1st, 2026
Planner software ISODESIGN
Software for designing our thermal insulation elements ISOPRO and ISOPRO 120, version 1.4.4
ZIP (53.31 MB)
DownloadDownloadIncluded accessories
Anzahl:
Services: From planning to utilisation
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
