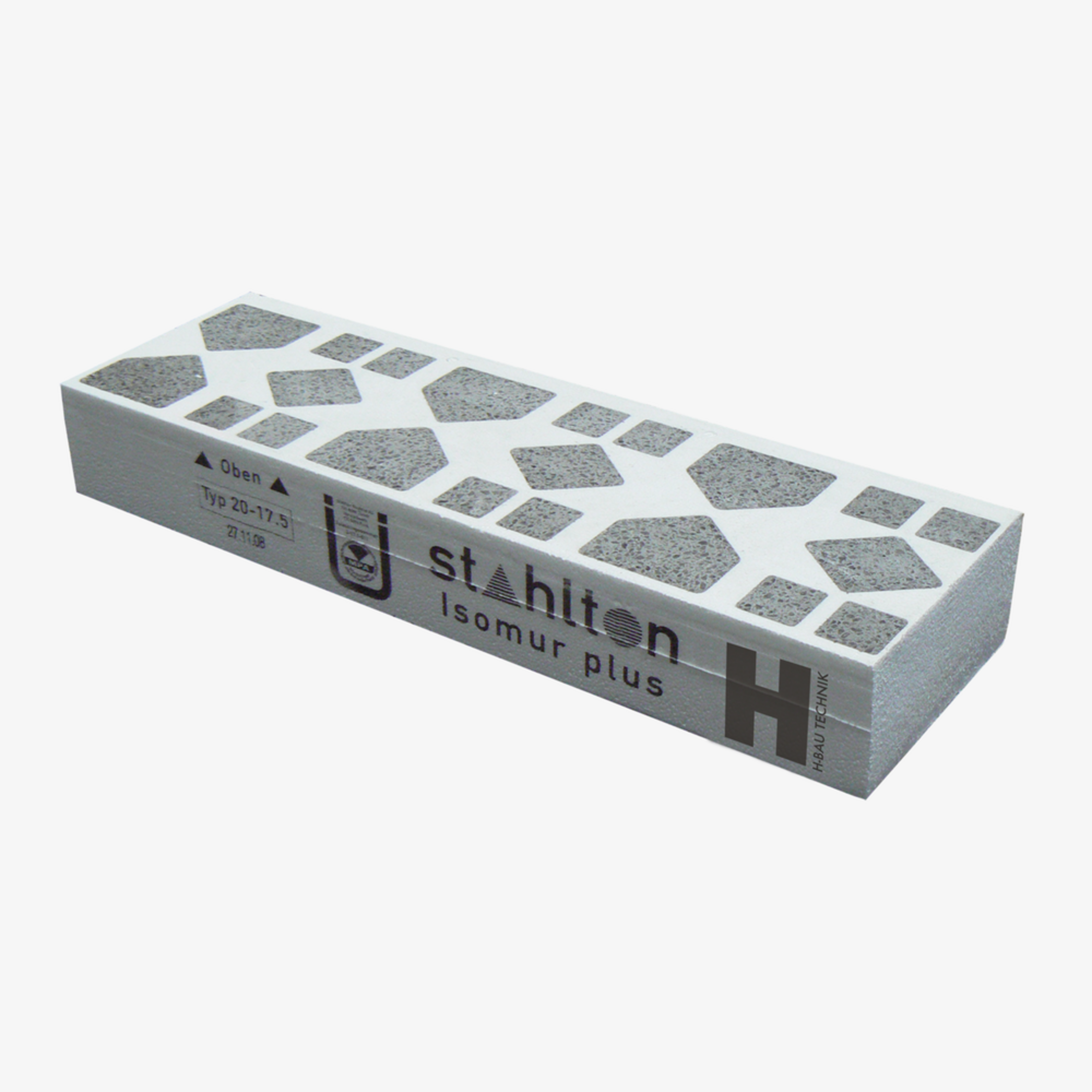

The load-bearing thermal insulation element ISOMUR® plus is suitable for the lower and/or upper area of the masonry. It provides efficient thermal insulation and has a high load-bearing capacity in accordance with ETA-18/1063. The characteristic compressive strength is ≥ 25.0 N/mm². ISOMUR® plus elements can be installed in seismic zones 1-3 according to DIN EN 1998-1, Eurocode 8. The element consists of foamed polystyrene with an integrated load-bearing structure made of high-strength lightweight concrete. It is 600 mm long and 115 to 240 mm wide.
G
Weight per storage unit
de
en
Technical Information
de

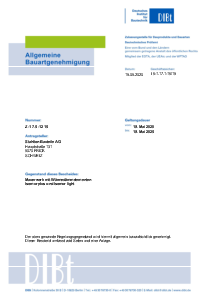

The general building authority type approval Z-17.5-1215 for masonry with ISOMUR® plus and ISOMUR® light thermal insulation elements. Valid until 19 May 2030.
PDF (1.42 MB)
DownloadDownload
de
Valid from February 1st, 2026
PDF (16.57 MB)
DownloadDownloadAnzahl:
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
