Art.-Nr. GKAB S
Mesh cable tray drop-out plate
The mesh cable tray outlet plate GKAB supports compliance with required bending radii in the vertical design of cables and lines. It is mounted on the mesh cable tray with two KLU clamping assemblies. The spacing of the longitudinal wires of the mesh cable tray is not important during installation, but the spacing of the cross wires should be at least 94 mm. The mesh cable tray outlet plate GKAB is made of sendzimir hot-dip galvanised steel.
H
height
B
width
L
length
t
material thickness
R
radius
G
Weight per storage unit
de
en
Assembly instructions for G 50, G 100, GI, GTD 30, GTDW, GVR, GV 30, GVD 30, GVU, GVK, GV-L, GBH, GBHK, GTR, GK-A, GD, GDR, GD-SW,
de
en
Technical Information
de

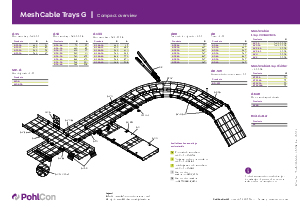

Compact overview of mesh cable trays and accessories: G 50, G 100, GDR, GD, GKAB, DB, DKSL, KDU, KDAG, KHUSS, GBAG, HB, KWF, KHA, KW, KA, connectors, dividers, spacer brackets
