Art.-Nr. FR B6E

Spring washer

Spring washer

Spring washers FR, designed according to the former DIN 127, provide the optimum preload for bolted connections. Sizes B 6 to B 12 are available. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.

Art.-Nr.
FR B6E

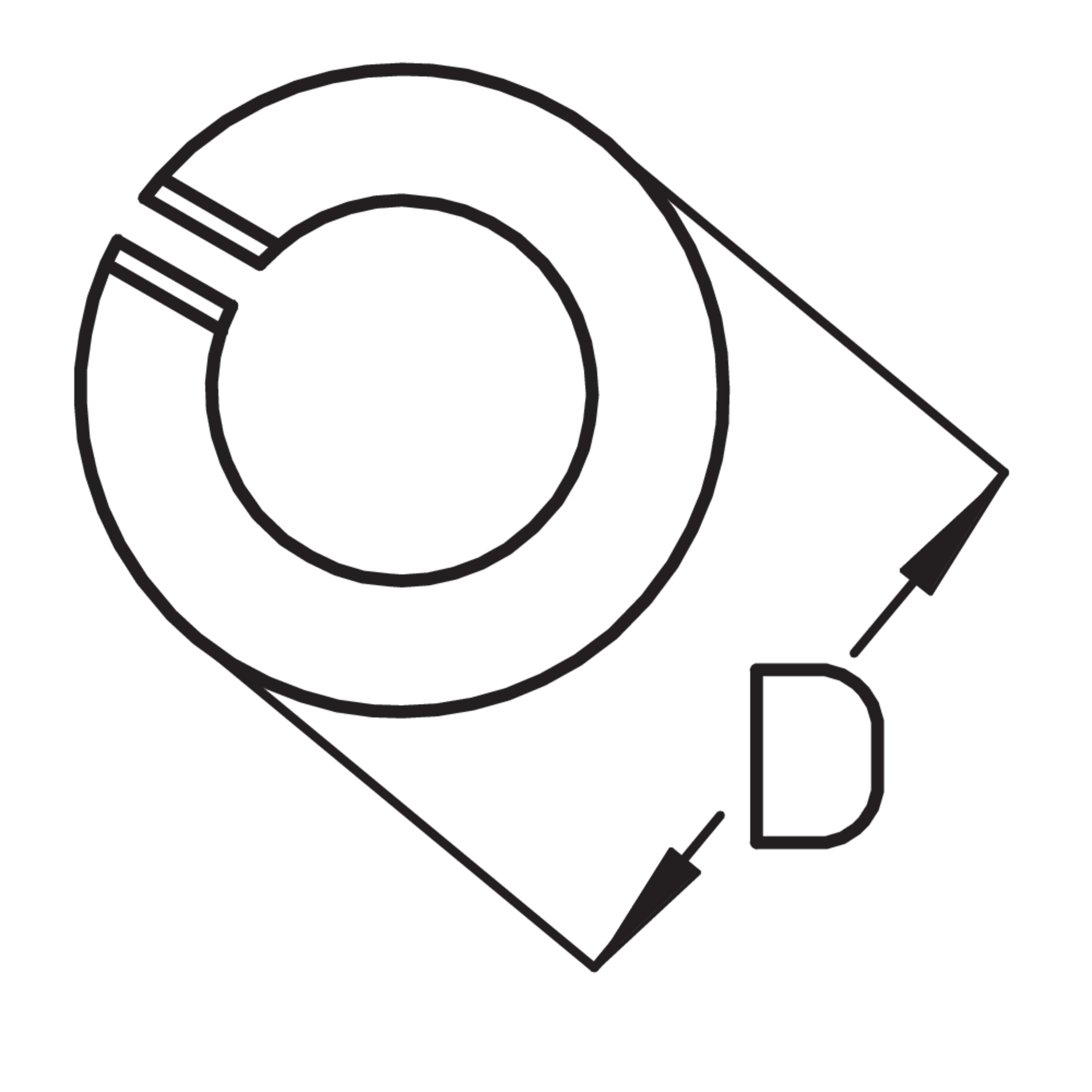

Diameter (mm)
11.8 mm

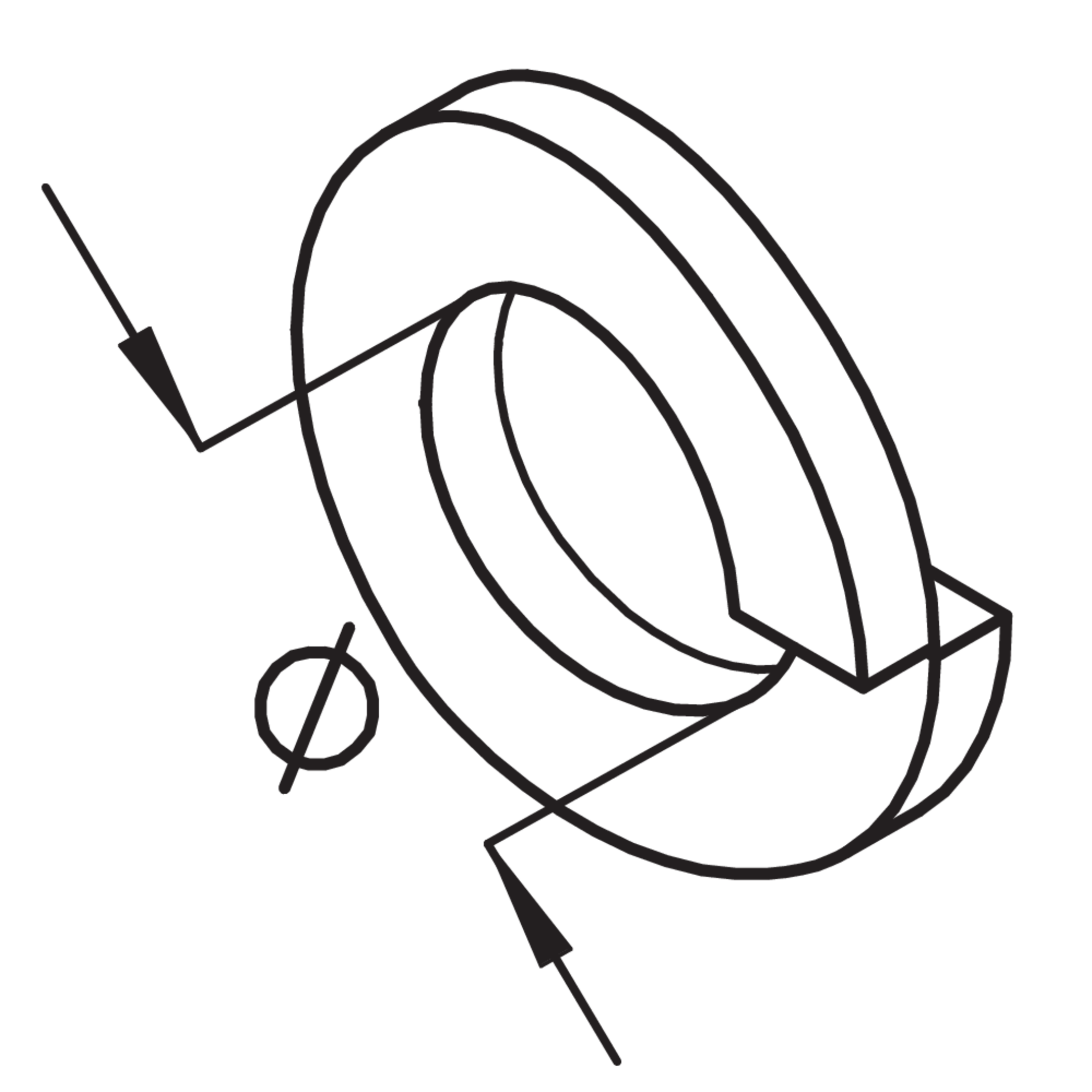

inner diameter
6.1 mm
Weight per storage unit
0.001 kg
Get in touchDownload datasheet

Variants

steel, galvanic zinc plated

Article

D

Diameter (mm)

Ø

inner diameter

G

Weight per storage unit

  • FR B10
    Spring washer
    Diameter (mm)
    18.1 mm
    inner diameter
    10.2 mm
    Weight per storage unit
    0.002 kg
    More information
  • FR B12
    Spring washer
    Diameter (mm)
    21.1 mm
    inner diameter
    12.2 mm
    Weight per storage unit
    0.002 kg
    More information
  • FR B6
    Spring washer
    Diameter (mm)
    11.8 mm
    inner diameter
    6.1 mm
    Weight per storage unit
    0.001 kg
    More information
  • FR B8
    Spring washer
    Diameter (mm)
    14.8 mm
    inner diameter
    8.1 mm
    Weight per storage unit
    0.001 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

D

Diameter (mm)

Ø

inner diameter

G

Weight per storage unit

  • FR B10E
    Spring washer
    Diameter (mm)
    18.1 mm
    inner diameter
    10.2 mm
    Weight per storage unit
    0.002 kg
    More information
  • FR B12E
    Spring washer
    Diameter (mm)
    21.1 mm
    inner diameter
    12.2 mm
    Weight per storage unit
    0.002 kg
    More information
  • FR B6E
    Spring washer
    Diameter (mm)
    11.8 mm
    inner diameter
    6.1 mm
    Weight per storage unit
    0.001 kg
    More information
  • FR B8E
    Spring washer
    Diameter (mm)
    14.8 mm
    inner diameter
    8.1 mm
    Weight per storage unit
    0.001 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

D

Diameter (mm)

Ø

inner diameter

G

Weight per storage unit

  • FR B10E4
    Spring washer
    Diameter (mm)
    18.1 mm
    inner diameter
    10.2 mm
    Weight per storage unit
    0.002 kg
    More information
  • FR B12E4
    Spring washer
    Diameter (mm)
    21.1 mm
    inner diameter
    12.2 mm
    Weight per storage unit
    0.002 kg
    More information
  • FR B6E4
    Spring washer
    Diameter (mm)
    11.8 mm
    inner diameter
    6.1 mm
    Weight per storage unit
    0.001 kg
    More information
  • FR B8E4
    Spring washer
    Diameter (mm)
    14.8 mm
    inner diameter
    8.1 mm
    Weight per storage unit
    0.001 kg
    More information
