FIBERNOX® V-ROD straight

Straight, corrosion-resistant reinforcement bar

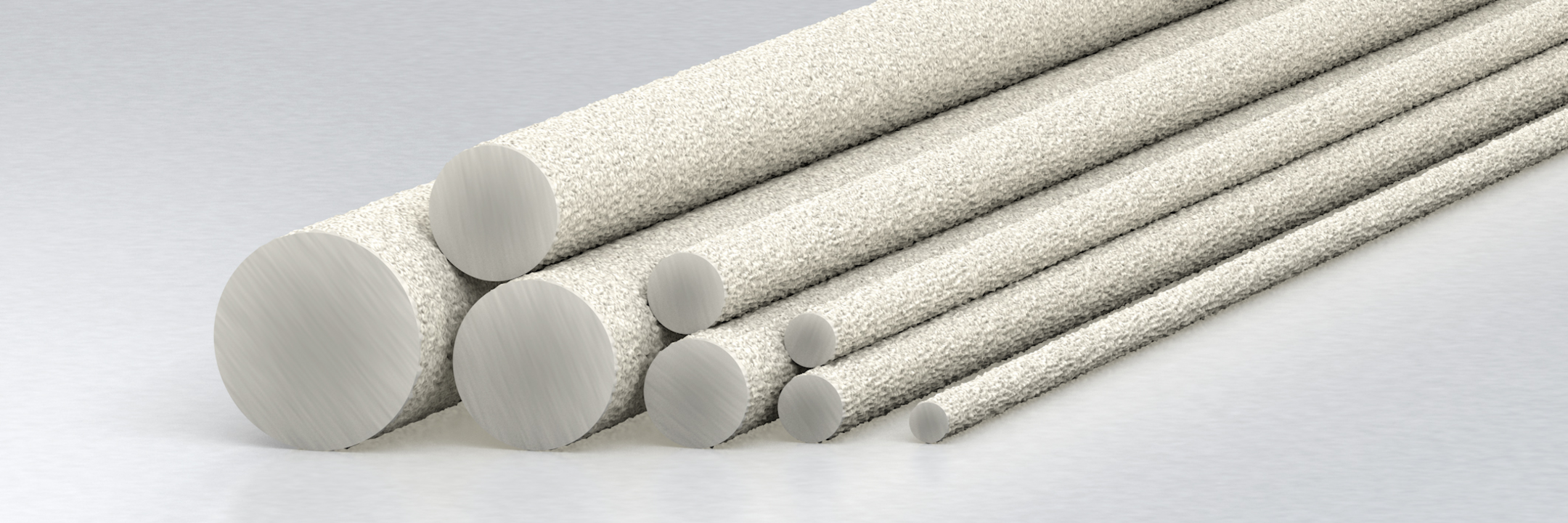

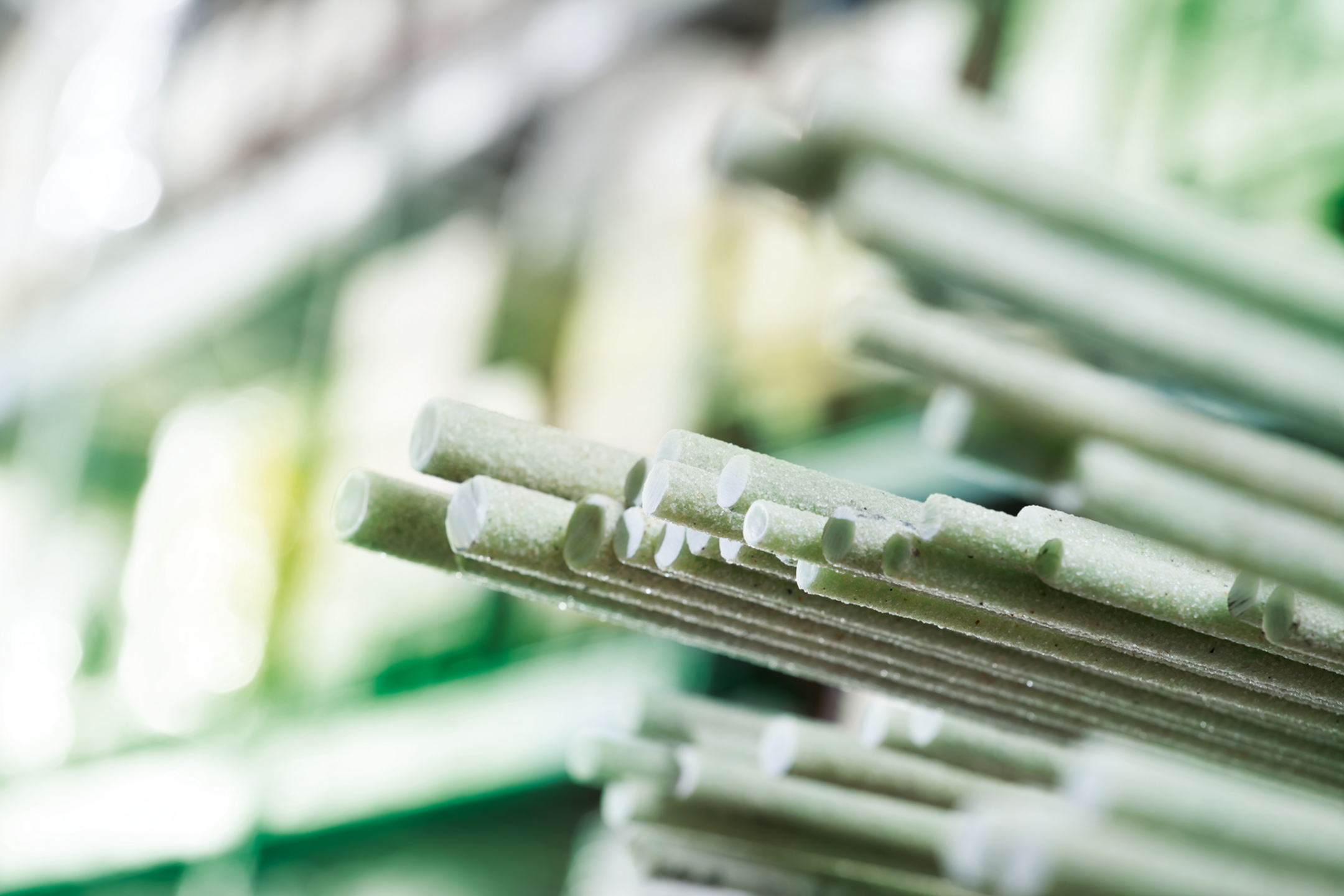

FIBERNOX® V-ROD straight are reinforcing bars manufactured using pultrusion. They are made from corrosion-resistant glass fibres with vinyl ester resin and designed for max. strength and durability. They have impressive resistance to alkalis, high tensile strength, are low in weight, non-magnetic and electrically and thermally insulating. Their sanded surface creates an excellent bond with the concrete. The reinforcement bars are very versatile, e.g. for tunnel or bridge construction applications. They have a modulus of elasticity of 60,000 N/mm², a guaranteed tensile strength of 1000 N/mm², a diameter of 6 to 32 mm and come in various lengths.

CSA approval according to: CAN CSA S807-10

Variants

Article

G

Gewicht je Lagermengeneinheit

  • 530100019551
    Fibernox V ROD 60 06 LL
    Gewicht je Lagermengeneinheit
    0.070 kg
  • 530100019553
    Fibernox V ROD 60 08 LL
    Gewicht je Lagermengeneinheit
    0.120 kg
  • 530100019554
    Fibernox V ROD 60 10 LL
    Gewicht je Lagermengeneinheit
    0.180 kg
  • 530100019555
    Fibernox V ROD 60 12 LL
    Gewicht je Lagermengeneinheit
    0.260 kg
  • 530100019556
    Fibernox V ROD 60 16 LL
    Gewicht je Lagermengeneinheit
    0.450 kg
  • 530100019557
    Fibernox V ROD 60 20 LL
    Gewicht je Lagermengeneinheit
    0.700 kg
  • 530100019558
    Fibernox V ROD 60 22 LL
    Gewicht je Lagermengeneinheit
    0.840 kg
  • 530100019559
    Fibernox V ROD 60 25 LL
    Gewicht je Lagermengeneinheit
    1.090 kg
  • 530100019560
    Fibernox V ROD 60 32 LL
    Gewicht je Lagermengeneinheit
    1.780 kg

Details

  • CSA approval according to: CAN CSA S807-10
  • CSA approval according to CAN CSA S807-10

Tender texts

Ausschreiben.de

Tender text for this product

Open Link
Heinze.de

Tender text for this product

Open Link

Downloads

    Price list 2025 Shell construction / facade

    Valid from February 1, 2025

    • de

    • en

    Technical Information FIBERNOX®

    • de

    • en

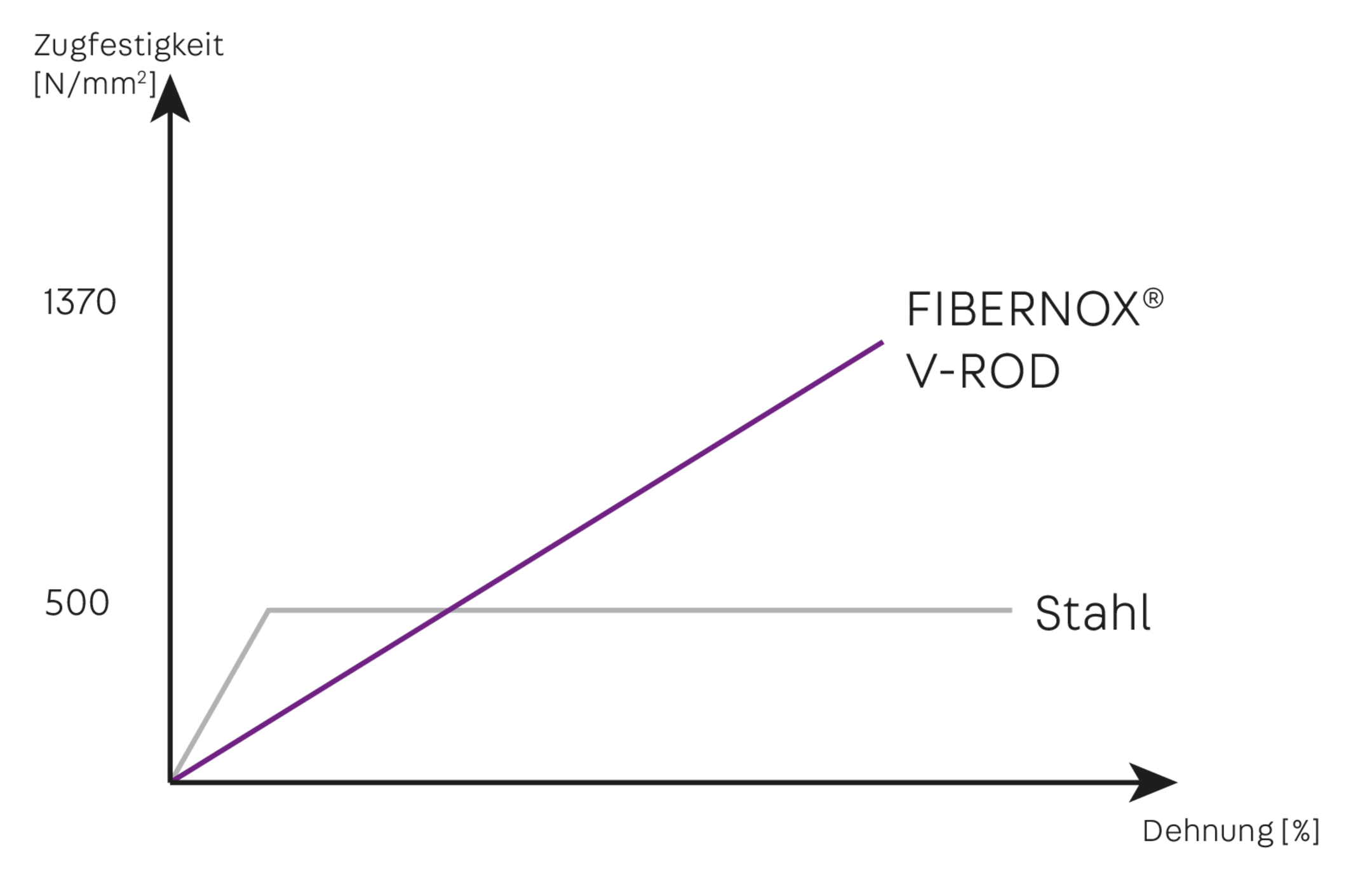

Load diagram


Included accessories

    Services: From planning to utilisation

    We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.

    Consulting, planning, design

    Customised solutions
