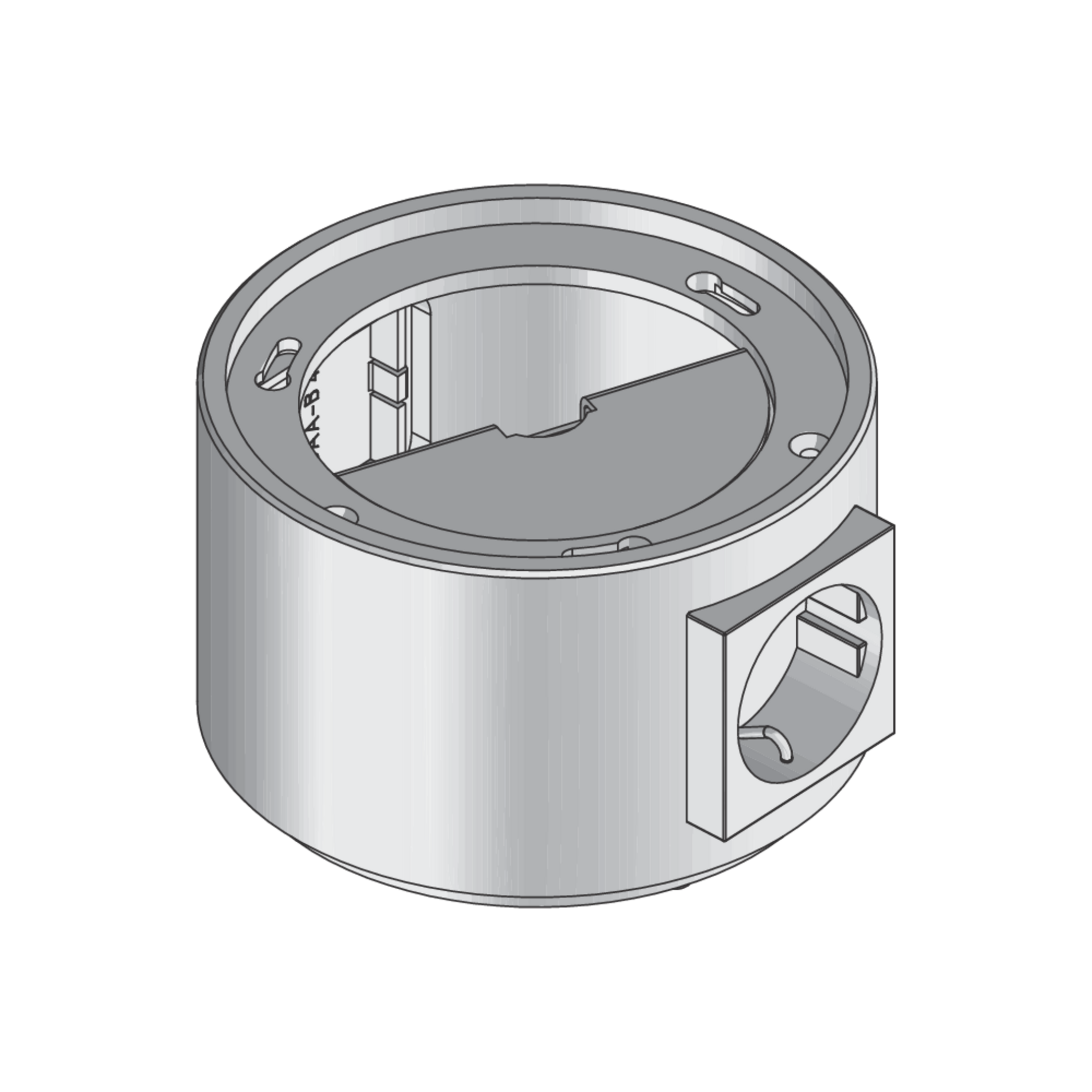

Art.-Nr. BODO NAT-WA

single outlet,

On-floor tube outlet with one socket

BODO NAT-W components are round on-floor tube outlets that can be closed using a bayonet catch and are equipped with a black Schuko socket and a black snap-in connector. The outlets can only be used in conjunction with a dummy cable outlet and can be supplemented with an additional 45x45 mm installation device or a tube outlet pre-assembled by Wieland or WAGO. They can be installed in screed and raised or false floor openings in wet-cleaned or dry-cleaned rooms with high traffic loads. The tube outlets are made of aluminium with a black finish and have an IP protection rating of IP 66 in an unused condition and IP 20 when used.

Art.-Nr.
BODO NAT-WA
height
70 mm
Diameter (mm)
120 mm
color
aluminium
Colour of Snap-in
black
IP protection level in used condition
IP 20
Weight per storage unit
0.867 kg
Load requirements according to: DIN EN 50085
Get in touchDownload datasheet

Variants

aluminium

Article

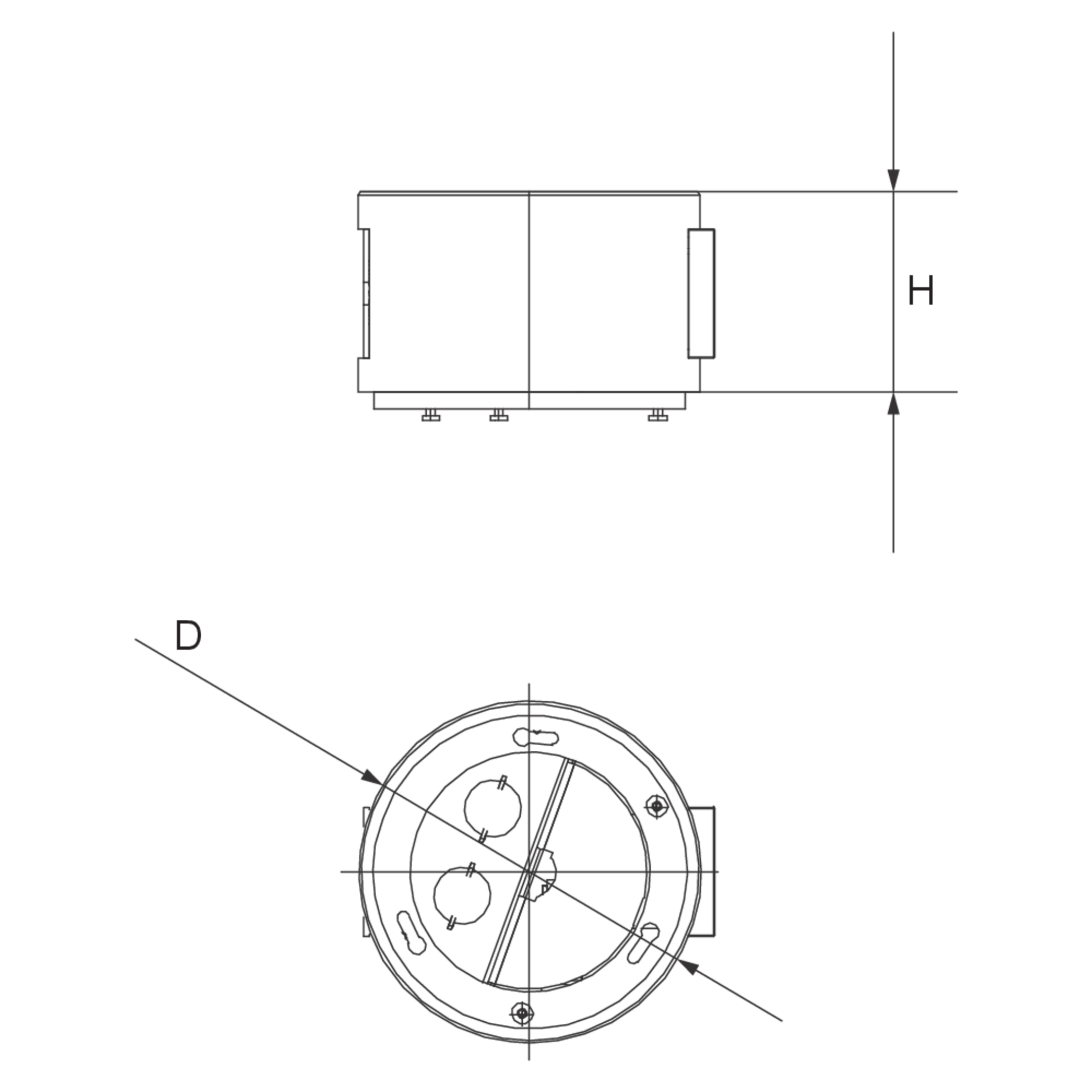

H

height

D

Diameter (mm)

colour

color

Colour Snap-in

Colour of Snap-in

IPg

IP protection level in used condition

G

Weight per storage unit

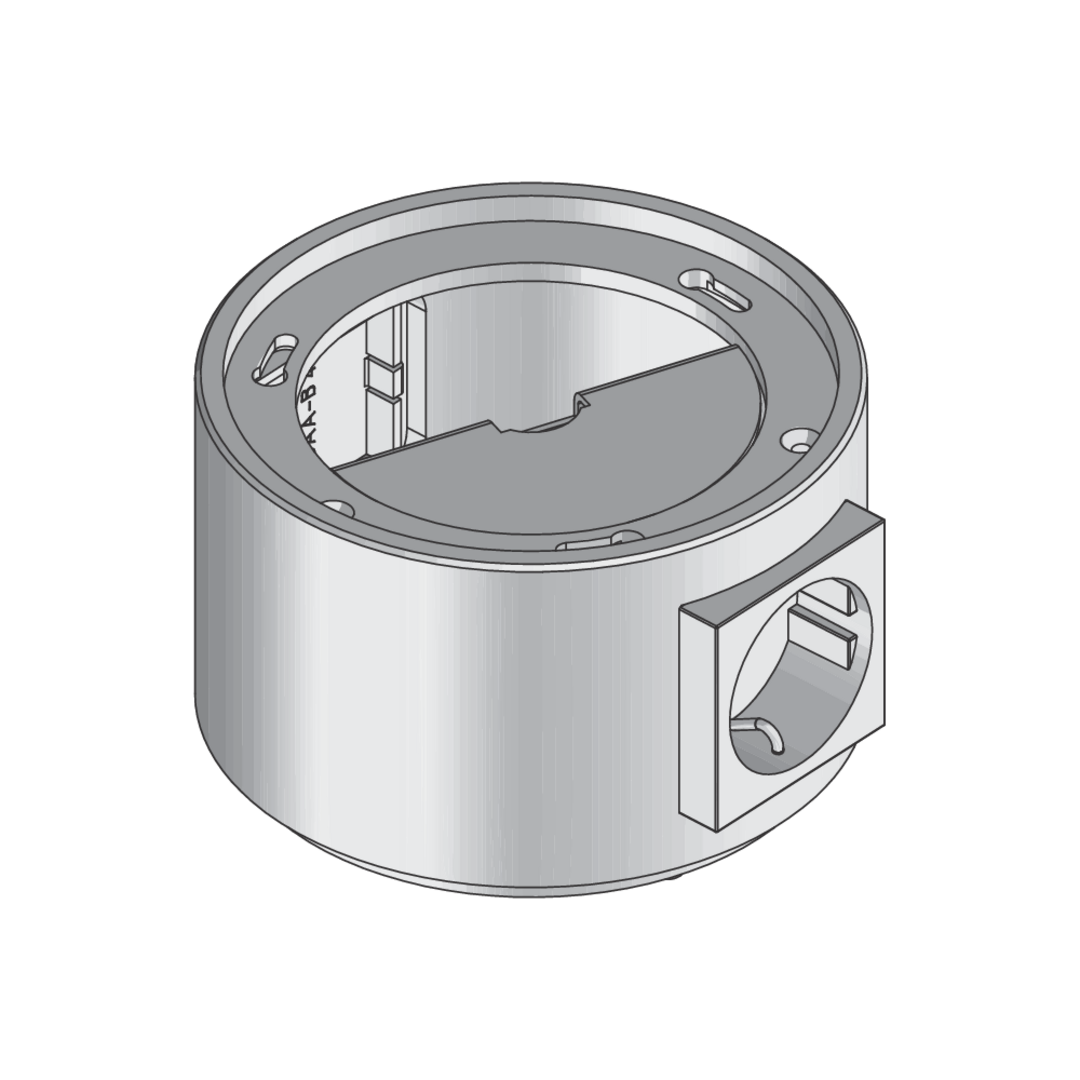

  • BODO NAT-WA
    single outlet,
    height
    70 mm
    Diameter (mm)
    120 mm
    color
    aluminium
    Colour of Snap-in
    black
    IP protection level in used condition
    IP 20
    Weight per storage unit
    0.867 kg
    More information

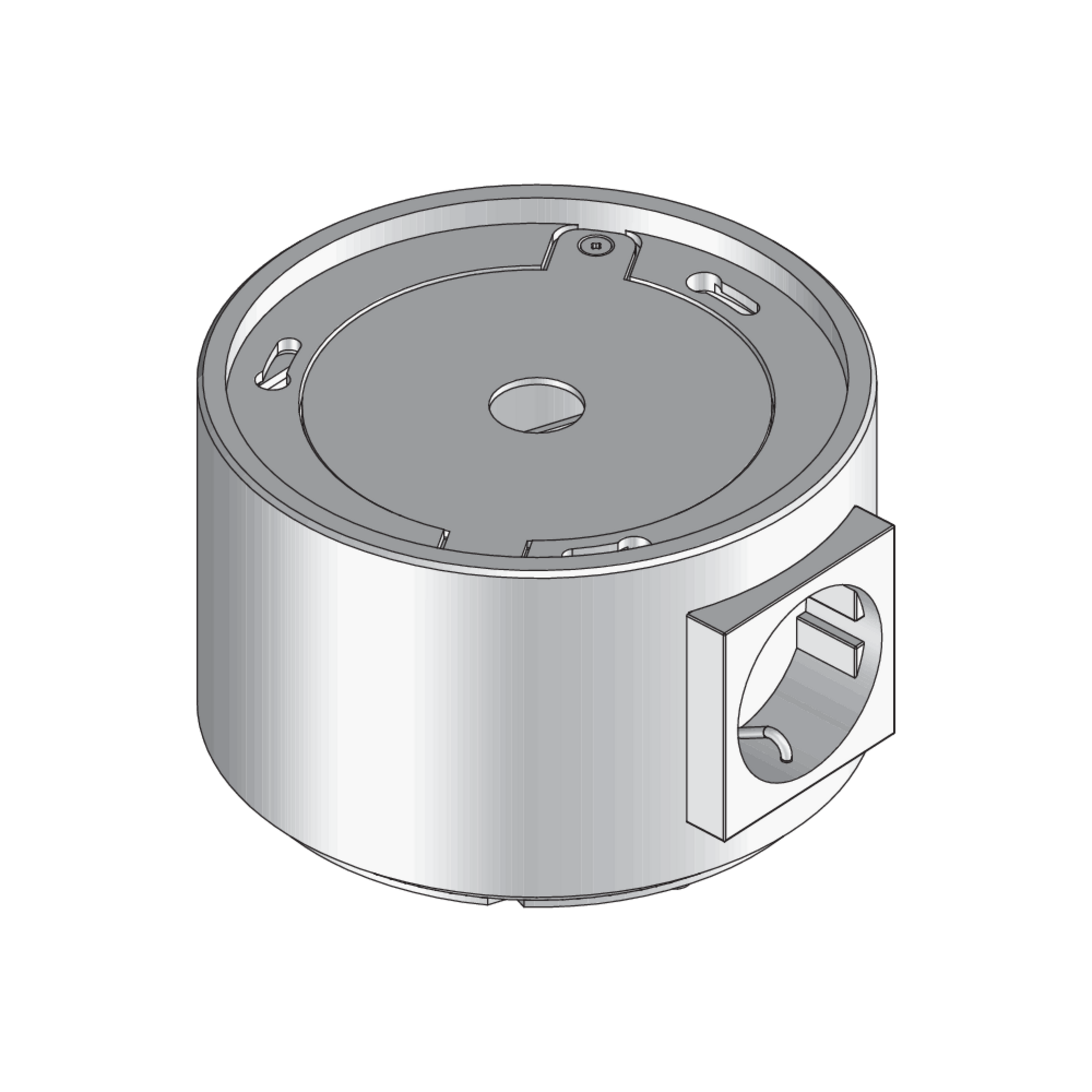

  • BODO NAT-WI
    single outlet,
    height
    70 mm
    Diameter (mm)
    120 mm
    color
    aluminium
    Colour of Snap-in
    black
    IP protection level in used condition
    IP 20
    Weight per storage unit
    0.878 kg
    More information

Details

  • Load requirements according to: DIN EN 50085
  • VDE/TÜV approval according to DIN EN 50085
  • With test stamp dia. 130 mm: 15 kN
