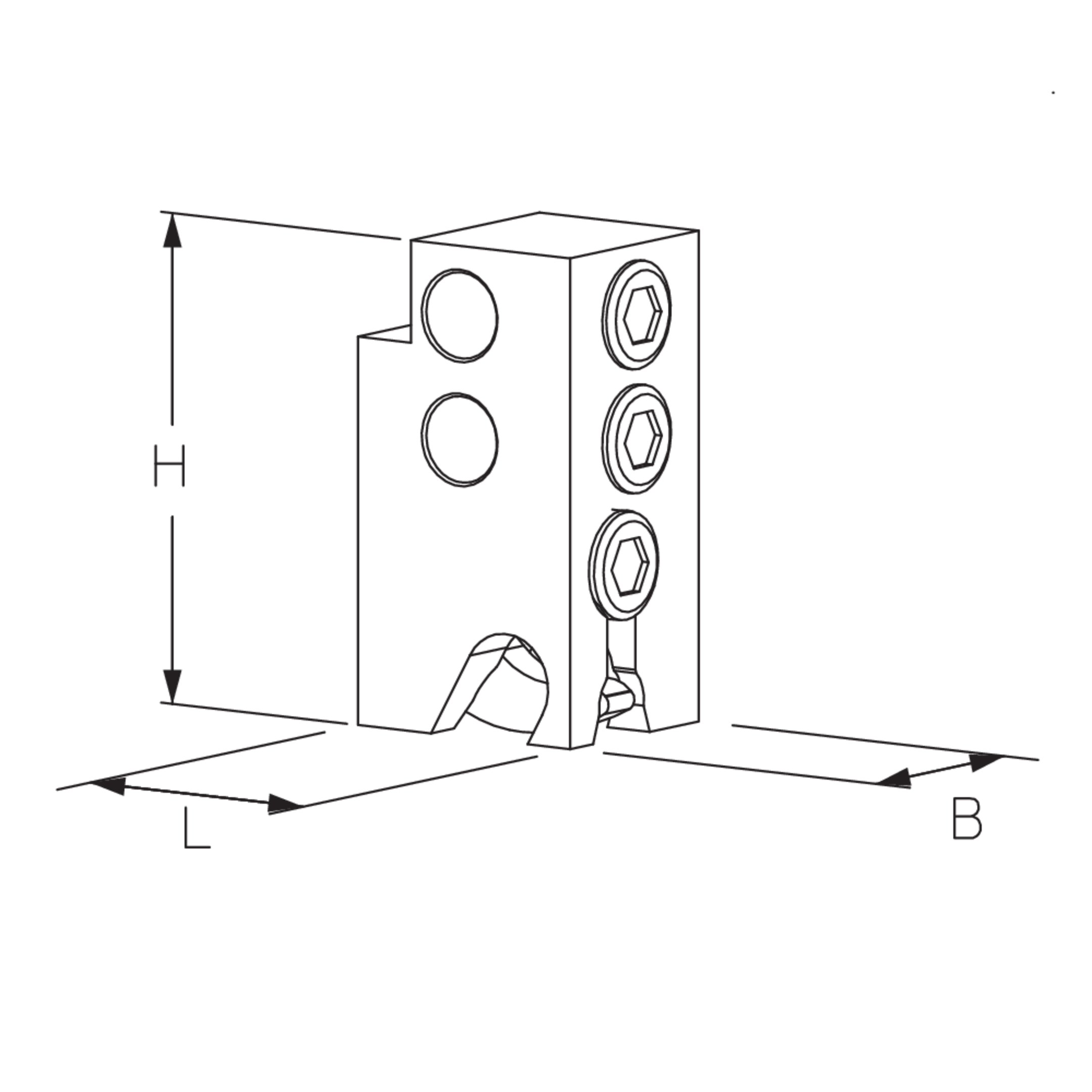

Variants
brass
Article
H
height
B
width
L
length
G
Weight per storage unit
- BKPA

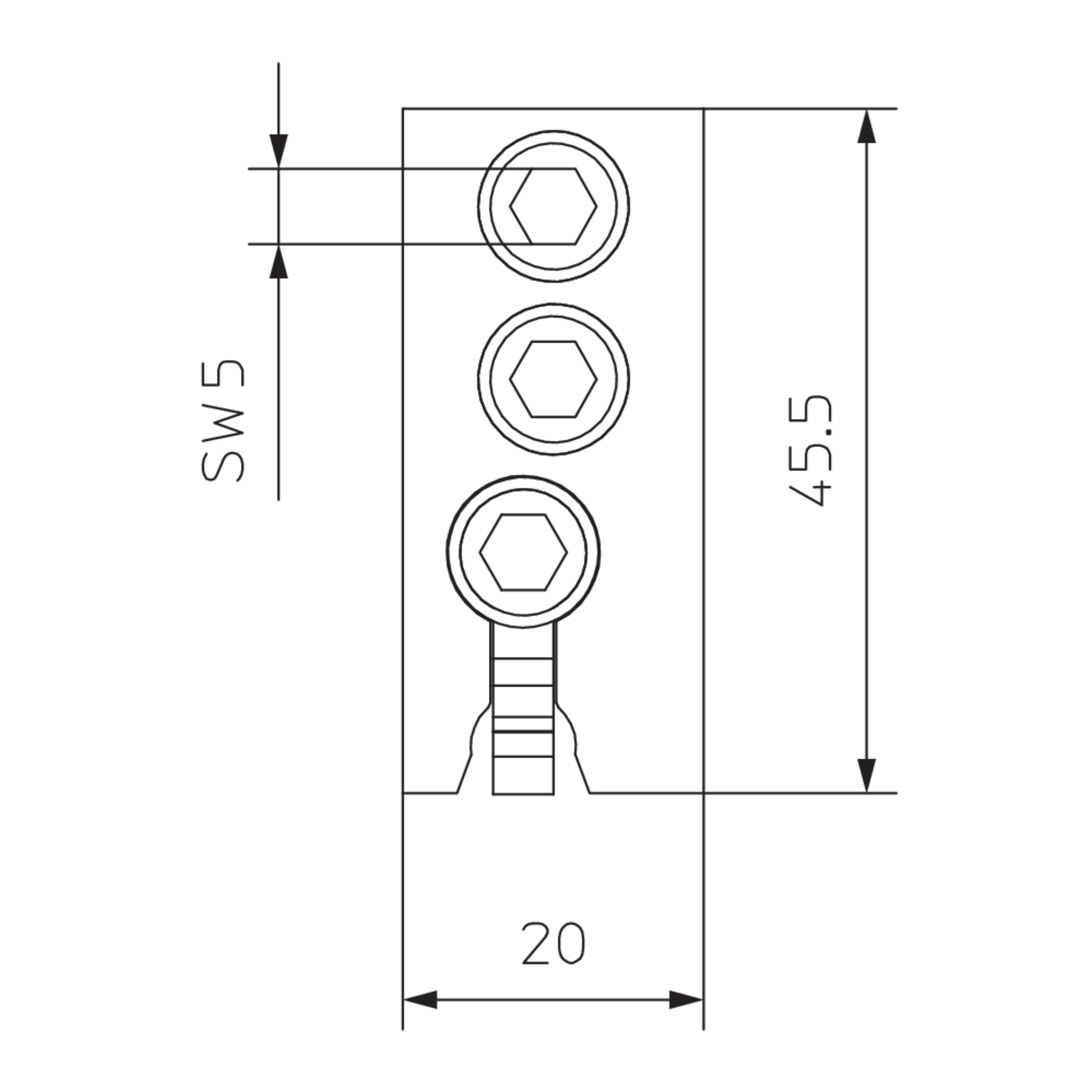

Floor ductheight45 mmwidth20 mmlength24 mmWeight per storage unit0.122 kg
Art.-Nr. BKPA
Floor duct

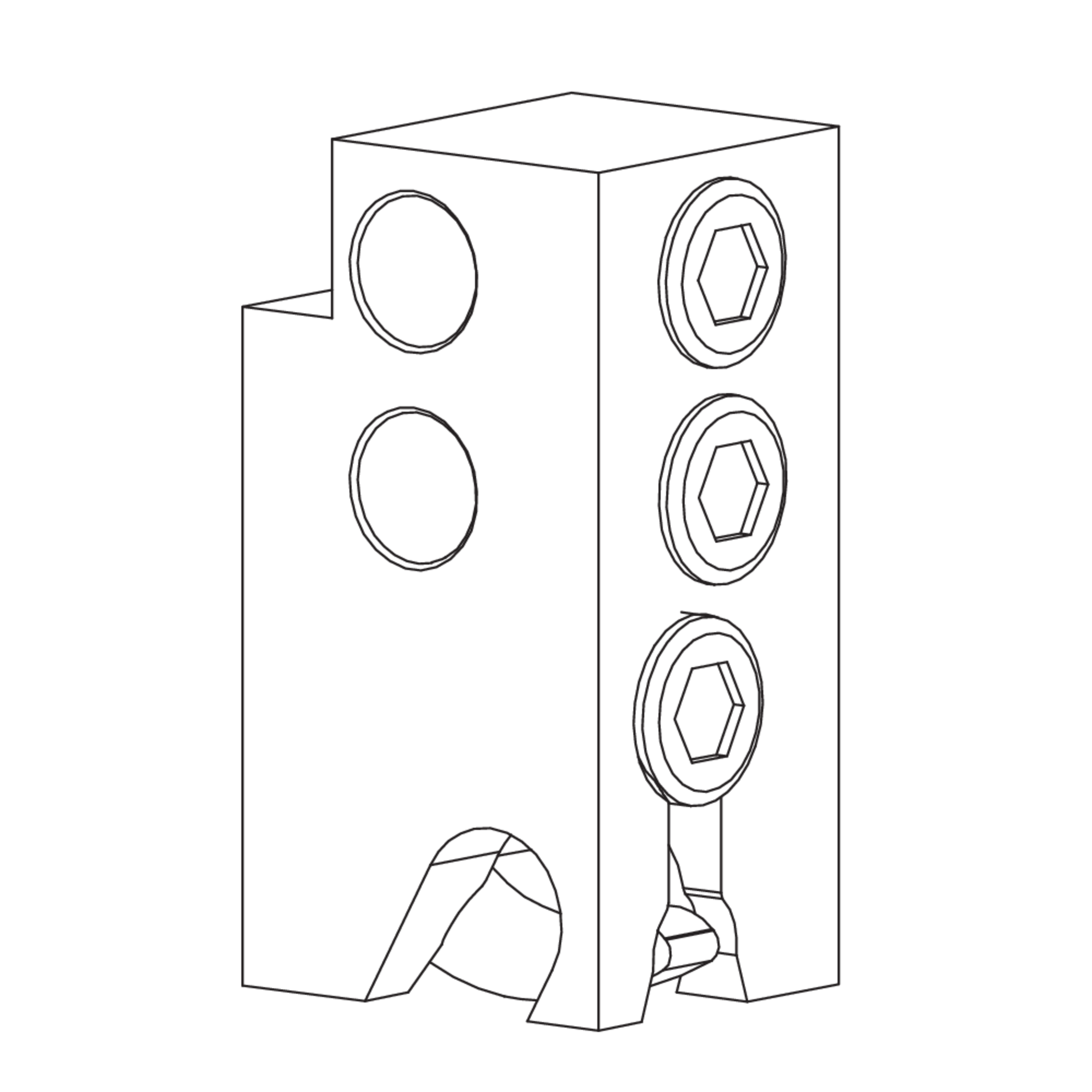

Floor duct equipotential bonding terminal block

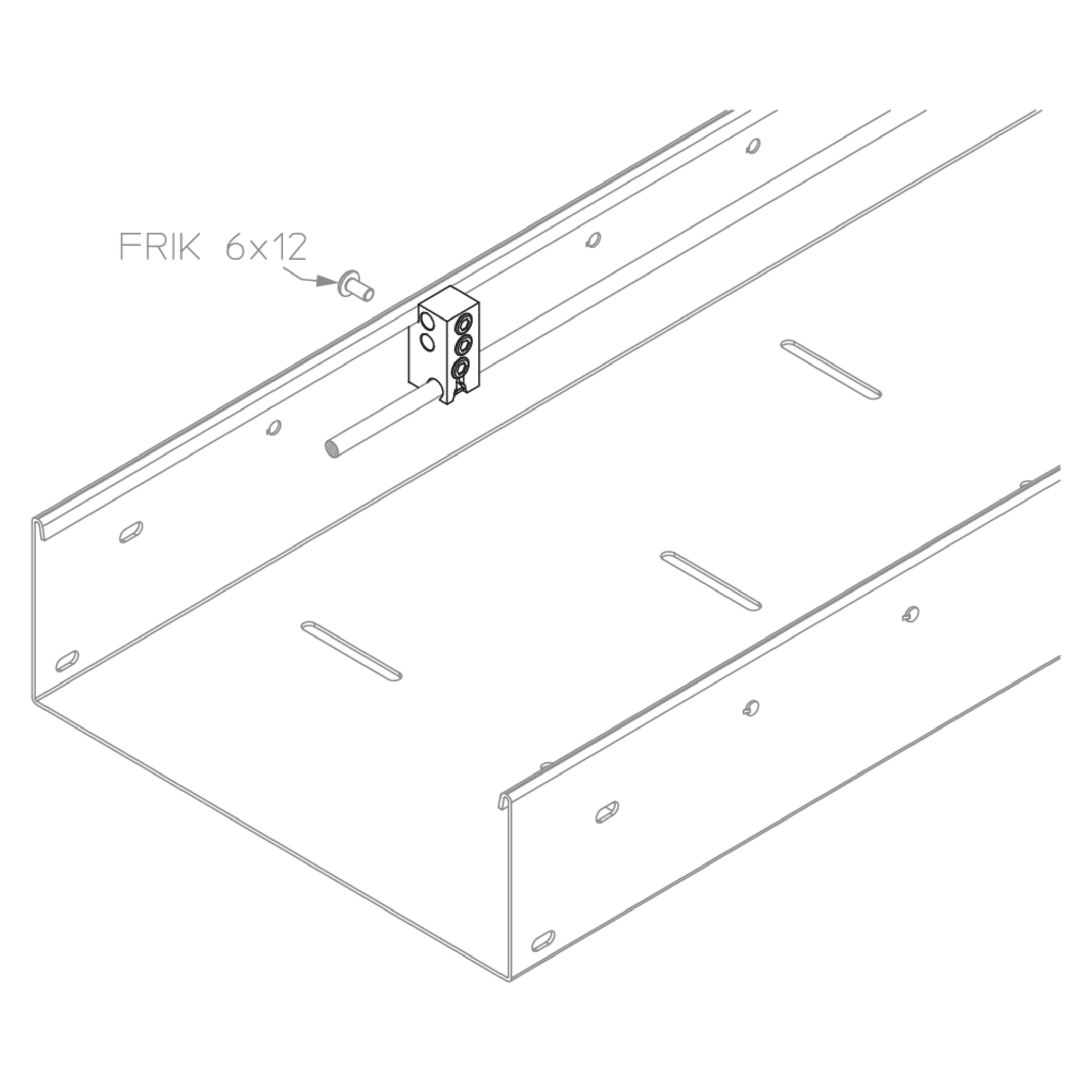

The BKPA brass floor duct equipotential bonding terminal block can be attached to the previously knocked out slugs on the side walls of floor ducts. In this way, the floor duct system can be incorporated into the equipotential bonding of the entire installation to protect electrical equipment and prevent electric shocks.
- Art.-Nr.
- BKPA
- height
- 45 mm
- width
- 20 mm
- length
- 24 mm
- Weight per storage unit
- 0.122 kg
Details
Tender texts
Downloads
de
en
de
en
de
en
de
en
BK Floor Duct - Technical Information
Technical Information
Floor ducts - Assembly instructions
Assembly instructions for BK, BKHR, BKHRSV, BKHC, BKHZ, KHZ, BKV, BKB, BKB45, BKBR, BKBG, BKVB, BKA, BKK, BKAA, BKGR, BKGL, BKMT, BKVAA, BKTE, BKS, BKRT, BKRTV, BKDS, BKDU, ARB, BKD, BKDR, BKD-S, BKDHK, BKDSL, BKPA
