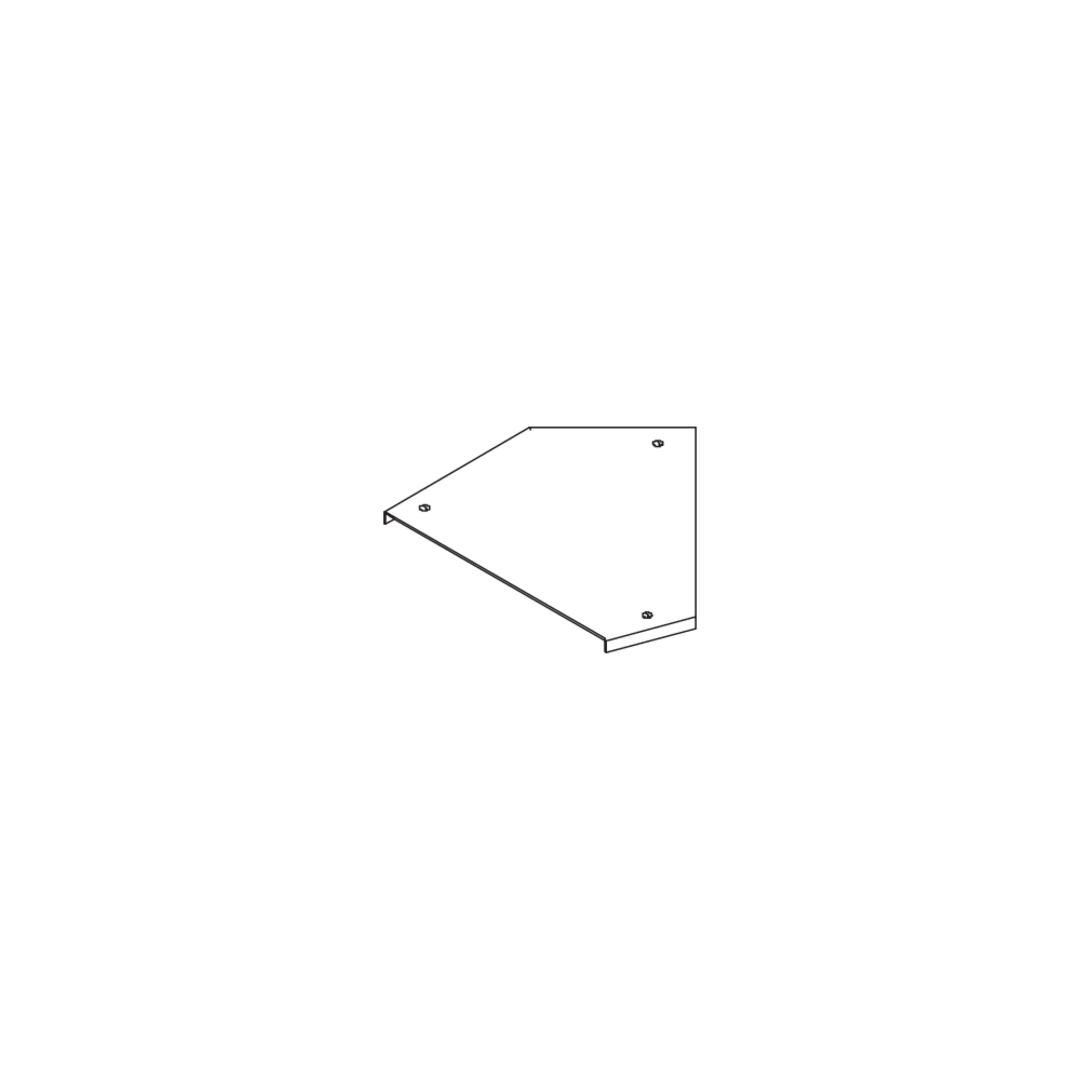

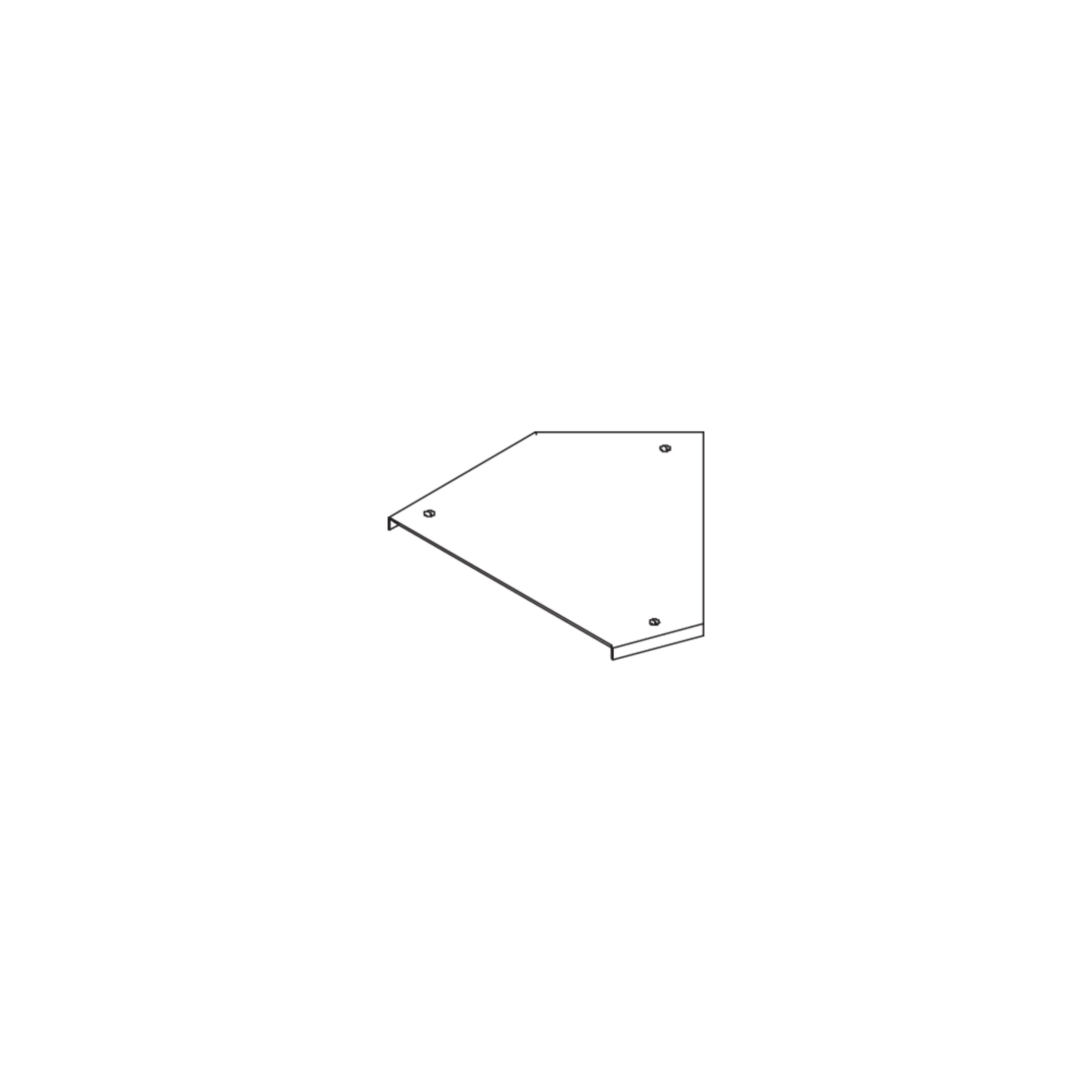

BKBDR45

Floor duct cover with turnbuckles

The BKBDR45 floor duct bend cover is placed on top of the floor duct bend BKB45 and protects cables and supply lines from flying sparks and other mechanical influences. It is 100 to 600 mm wide corresponding to the bend. The floor duct bend cover is made of sendzimir hot-dip galvanised steel and is not embossed. With a maximum compartment size of 200 mm, we guarantee a tested load capacity of 5.00 kN according to EN 50085-2-2. They come with pre-assembled turning bolts.

Load requirements according to: EN 50085-2-2
Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

Article

B

width

t

material thickness

Pmax

maximum load

direction

Direction change

W

Angle

G

Weight per storage unit

Geeignet für Funktionserhalt

  • BKBDR45 10S
    Floor duct bend cover
    width
    100 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    0.330 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKBDR45 15S
    Floor duct bend cover
    width
    150 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    0.490 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKBDR45 20S
    Floor duct bend cover
    width
    200 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    0.690 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKBDR45 30S
    Floor duct bend cover
    width
    300 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    1.180 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKBDR45 40S
    Floor duct bend cover
    width
    400 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    1.790 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKBDR45 50S
    Floor duct bend cover
    width
    500 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    2.540 kg
    Geeignet für Funktionserhalt
    Nein
    More information
  • BKBDR45 60S
    Floor duct bend cover
    width
    600 mm
    material thickness
    2.00 mm
    maximum load
    5.00 kN
    Direction change
    horizontal
    Angle
    45°
    Weight per storage unit
    3.420 kg
    Geeignet für Funktionserhalt
    Nein
    More information

Details

  • Load requirements according to: EN 50085-2-2
  • Loadable up to 5 kN
  • Easy assembly

Tender texts

Ausschreiben.de

Tender texts for this product

Open Link
Heinze.de

Tender texts for this product

Open Link

Downloads

BIM- und CAD-Data

    BIM for BK floor ducts

    BIM data

    ZIP, 5.50 MB

    DownloadDownload
