Art.-Nr. AVLW 1-3F

Rail coupler bracket, angular AVLW 1-3F

Channel connector, 90°

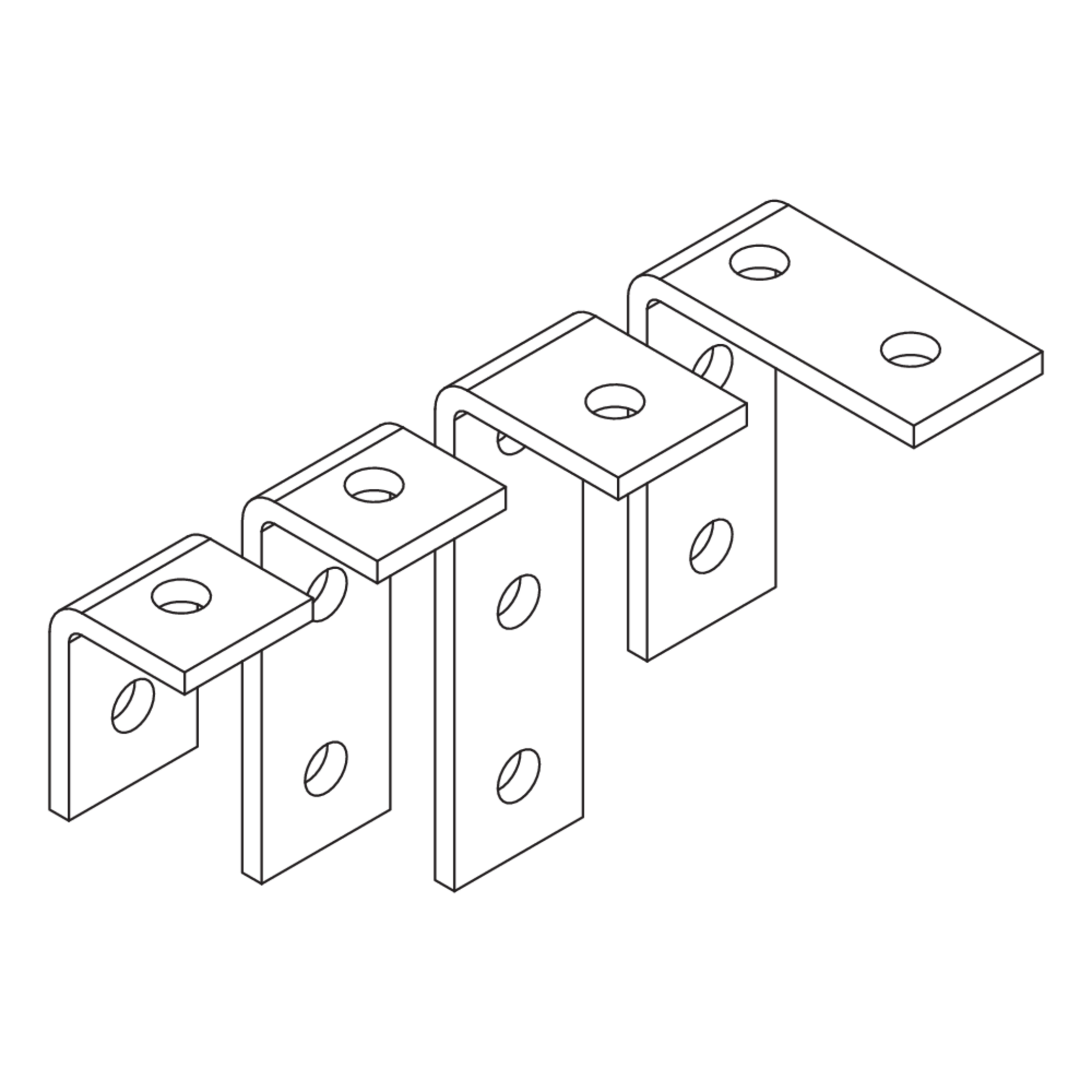

The channel connectors AVLW are corner connectors with an angle of 90° with 1-1, 1-2, 1-3 or 2-2 perforations. They connect mounting channels as crossings or branches and are made of hot-dip galvanised steel.

Art.-Nr.
AVLW 1-3F
height
137 mm
width
40 mm
length
57 mm
material thickness
6.00 mm
Angle
90°
Weight per storage unit
0.350 kg
Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

Article

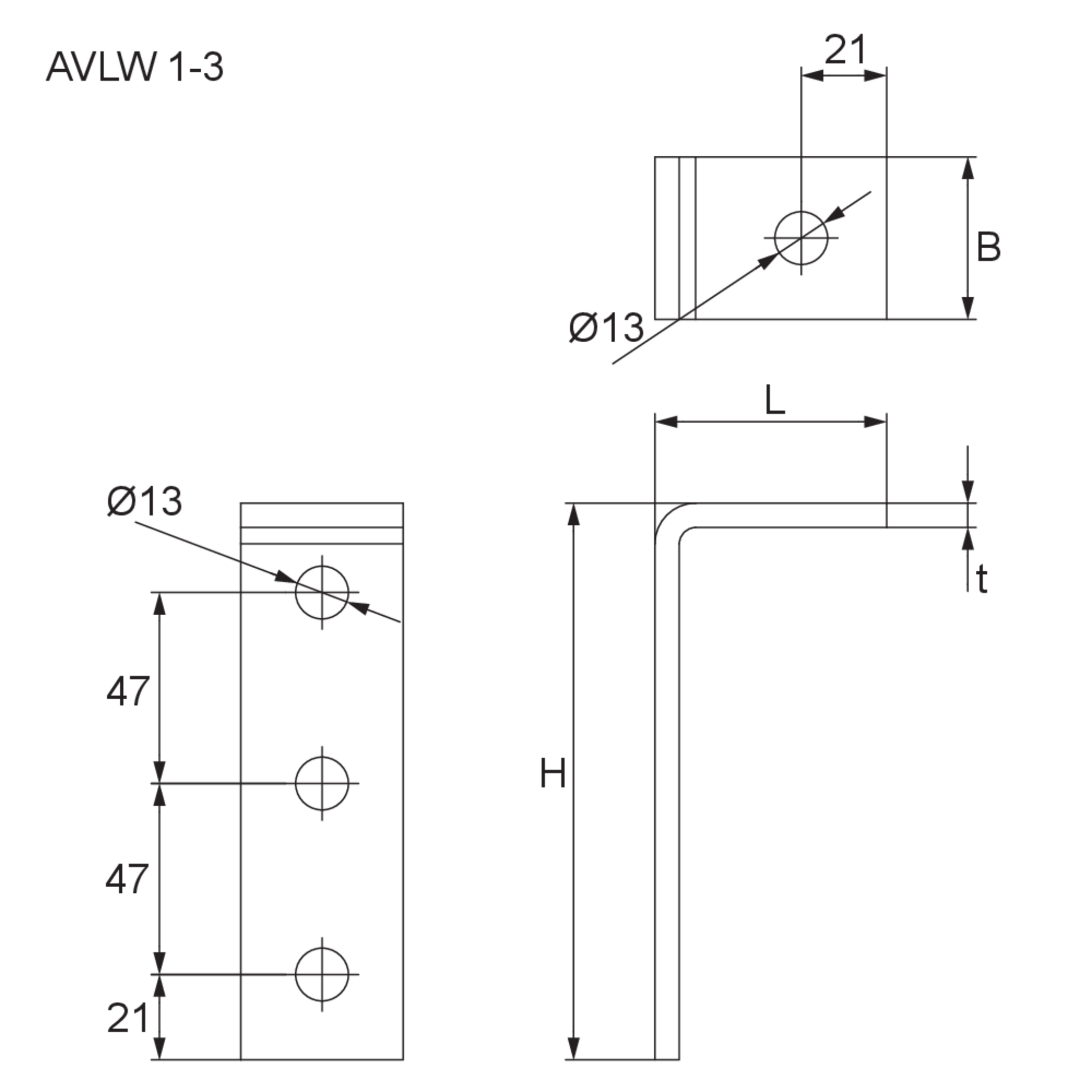

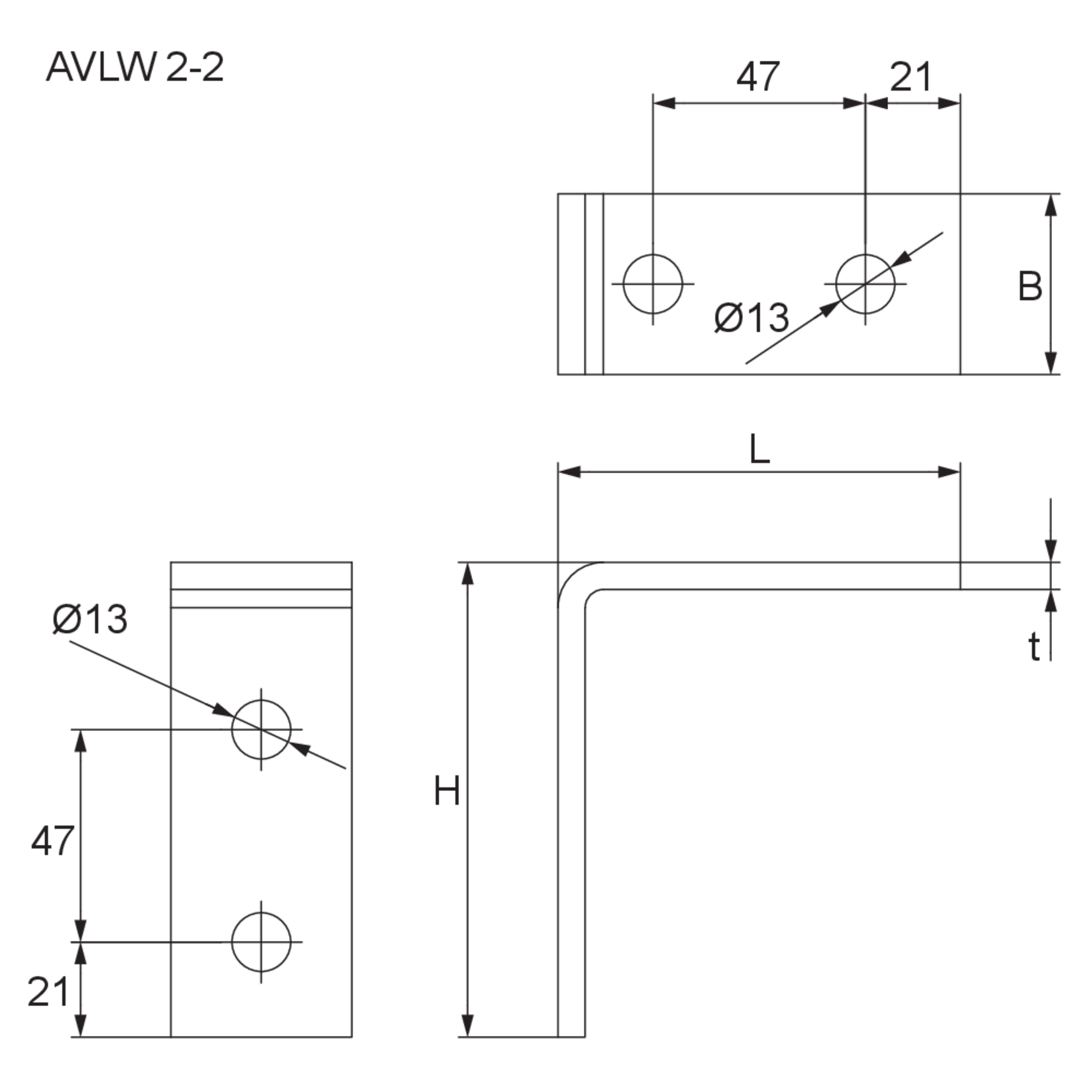

H

height

B

width

L

length

t

material thickness

W

Angle

G

Weight per storage unit

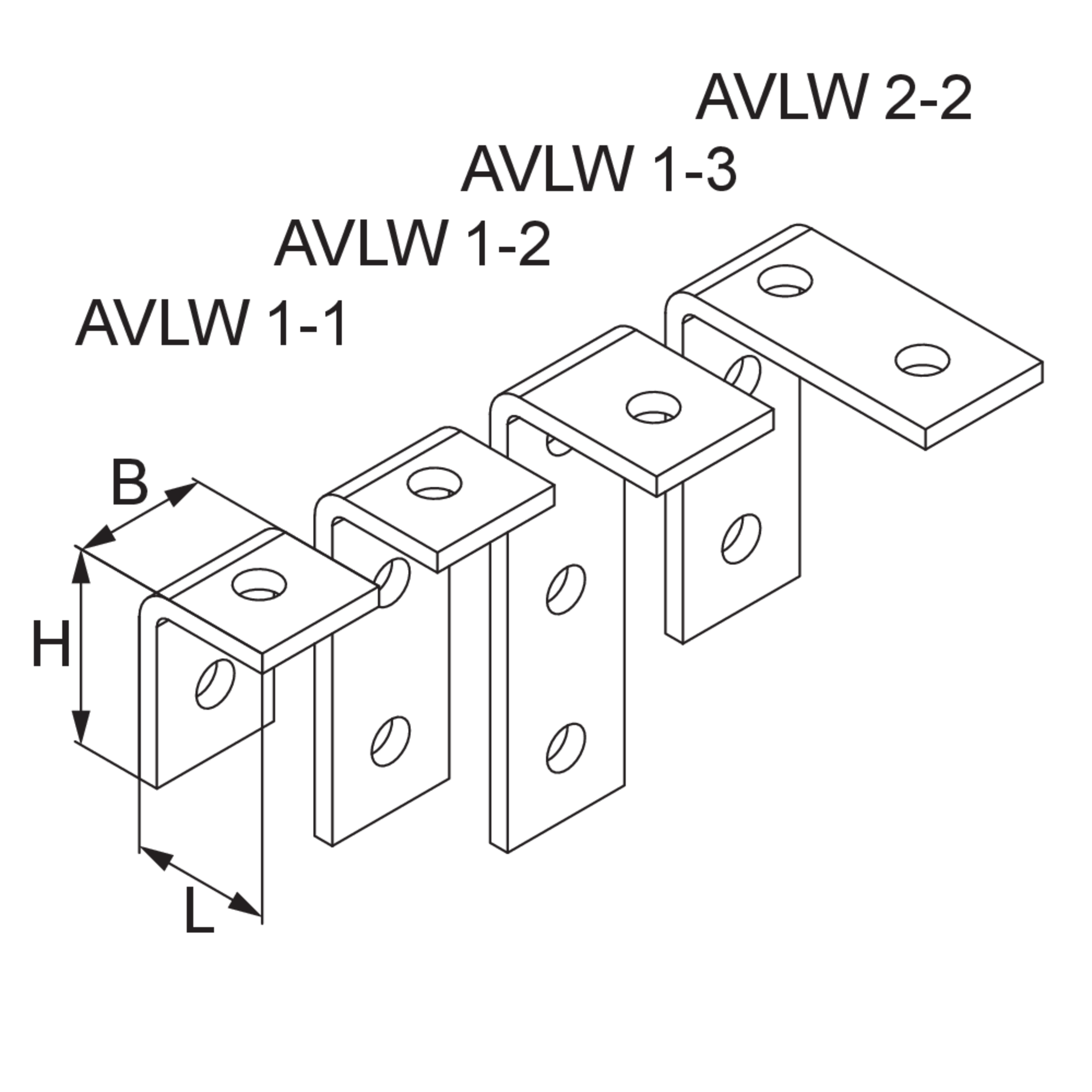

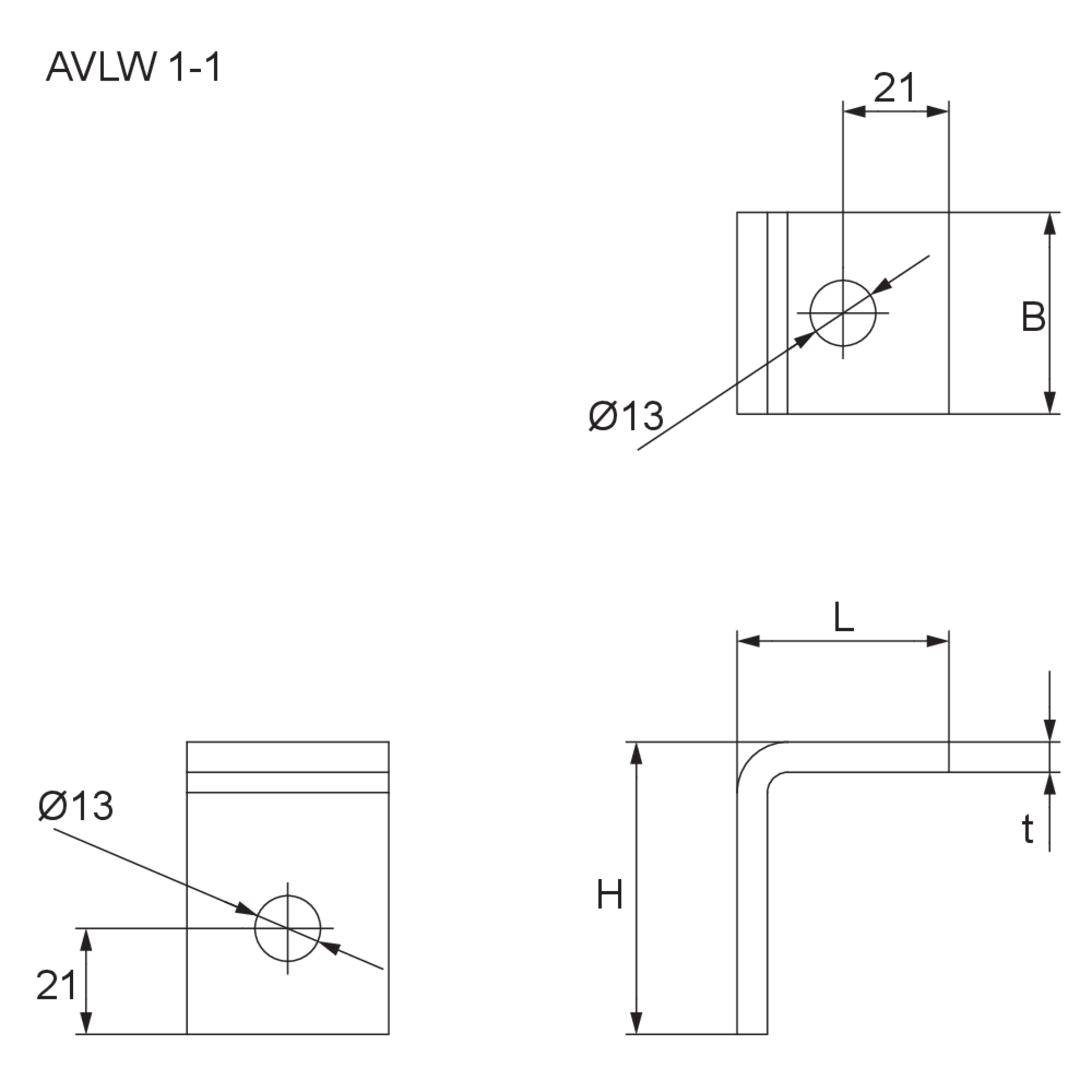

  • AVLW 1-1F
    Rail coupler bracket, angular AVLW 1-1F
    height
    58 mm
    width
    40 mm
    length
    42 mm
    material thickness
    6.00 mm
    Angle
    90°
    Weight per storage unit
    0.170 kg
    More information

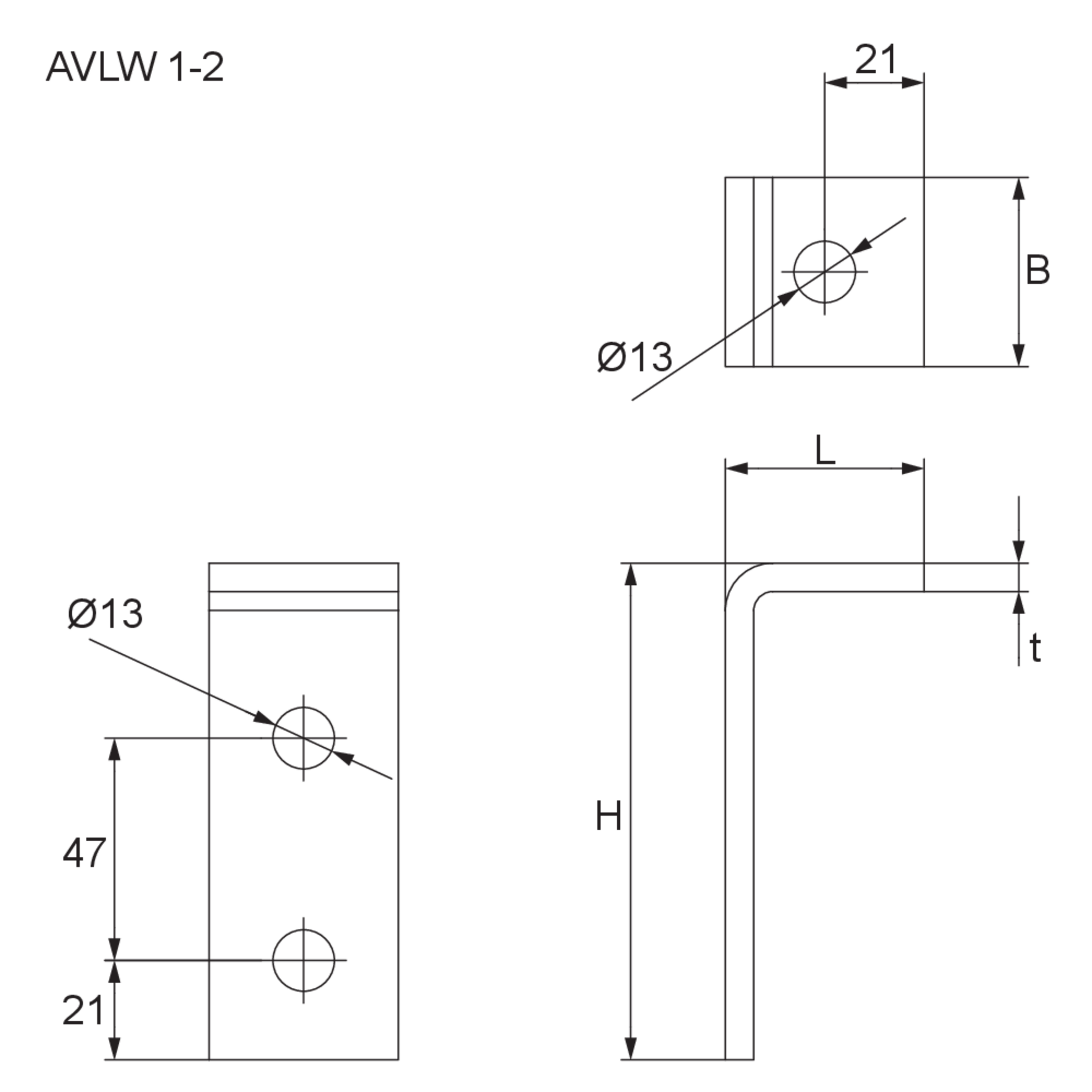

  • AVLW 1-2F
    Rail coupler bracket, angular AVLW 1-2F
    height
    105 mm
    width
    40 mm
    length
    42 mm
    material thickness
    6.00 mm
    Angle
    90°
    Weight per storage unit
    0.260 kg
    More information
  • AVLW 1-3F
    Rail coupler bracket, angular AVLW 1-3F
    height
    137 mm
    width
    40 mm
    length
    57 mm
    material thickness
    6.00 mm
    Angle
    90°
    Weight per storage unit
    0.350 kg
    More information

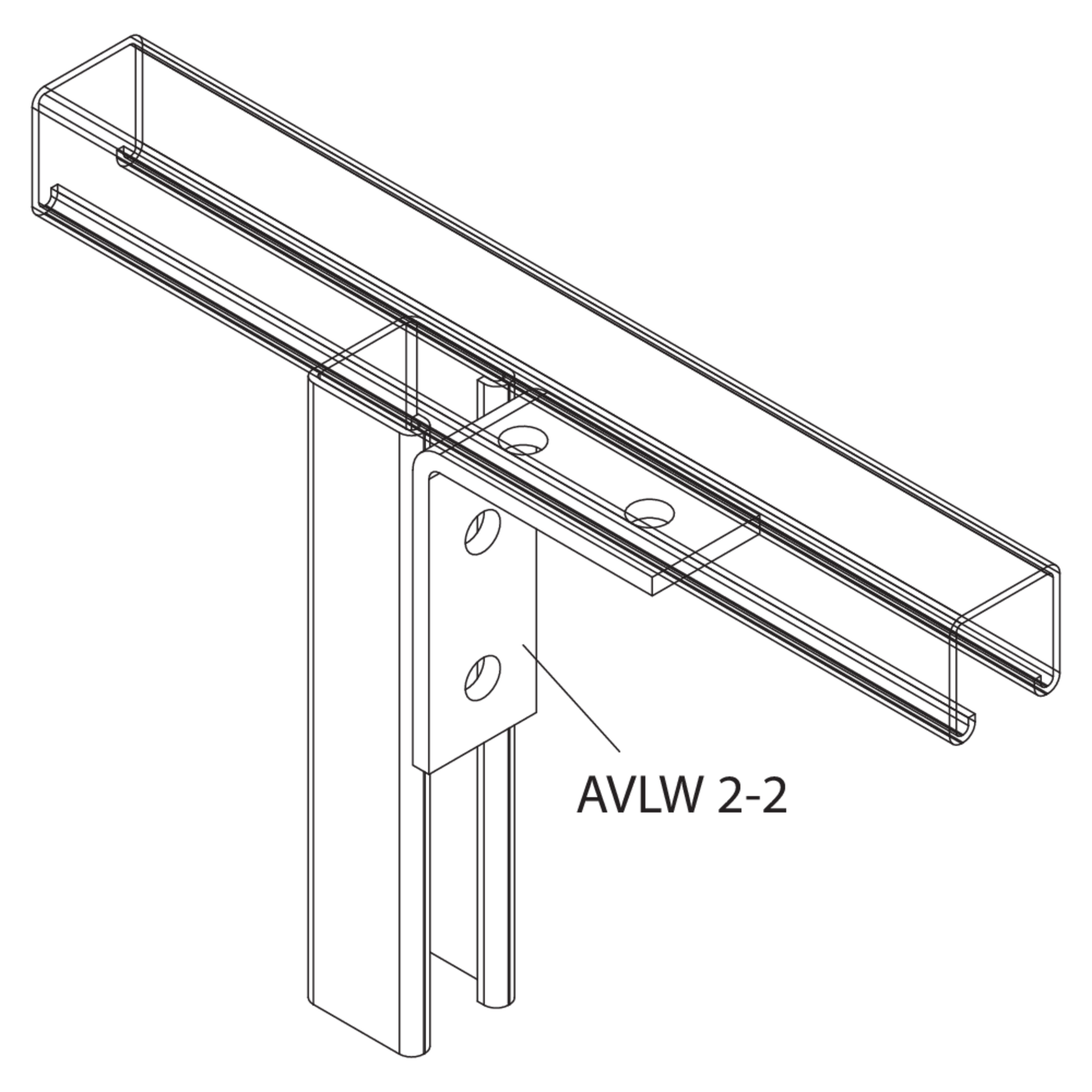

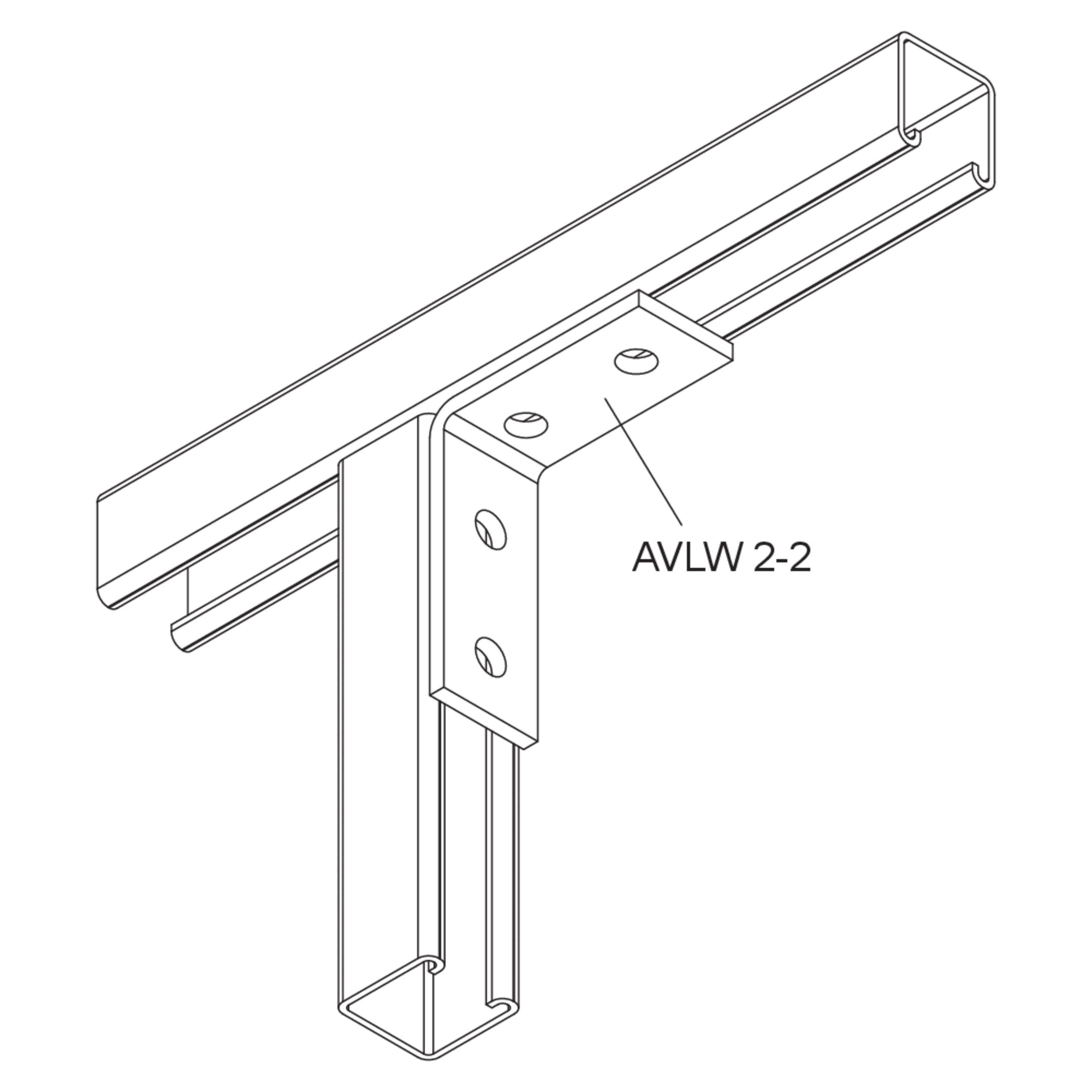

  • AVLW 2-2F
    Rail coupler bracket, angular AVLW 2-2F
    height
    105 mm
    width
    40 mm
    length
    89 mm
    material thickness
    6.00 mm
    Angle
    90°
    Weight per storage unit
    0.350 kg
    More information
