Art.-Nr. AVBL 82F

Profile rail connector

Channel support bracket

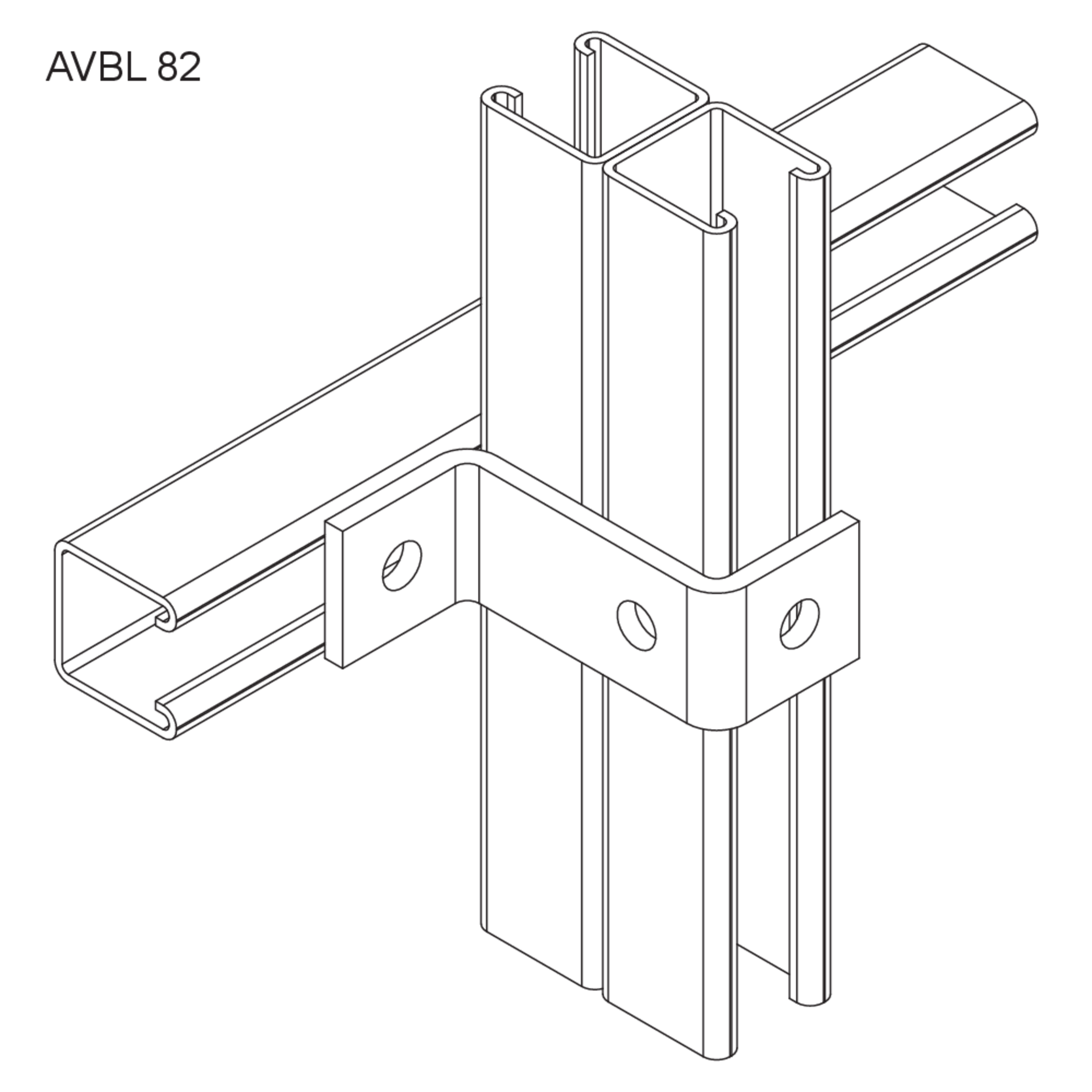

The channel support bracket AVBL is used to connect two intersecting mounting channels on one side. It has fixing holes with Ø 13 mm and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

Art.-Nr.
AVBL 82F
height
90 mm
width
40 mm
length
90 mm
material thickness
6 mm
Weight per storage unit
0.310 kg
Get in touchDownload datasheet

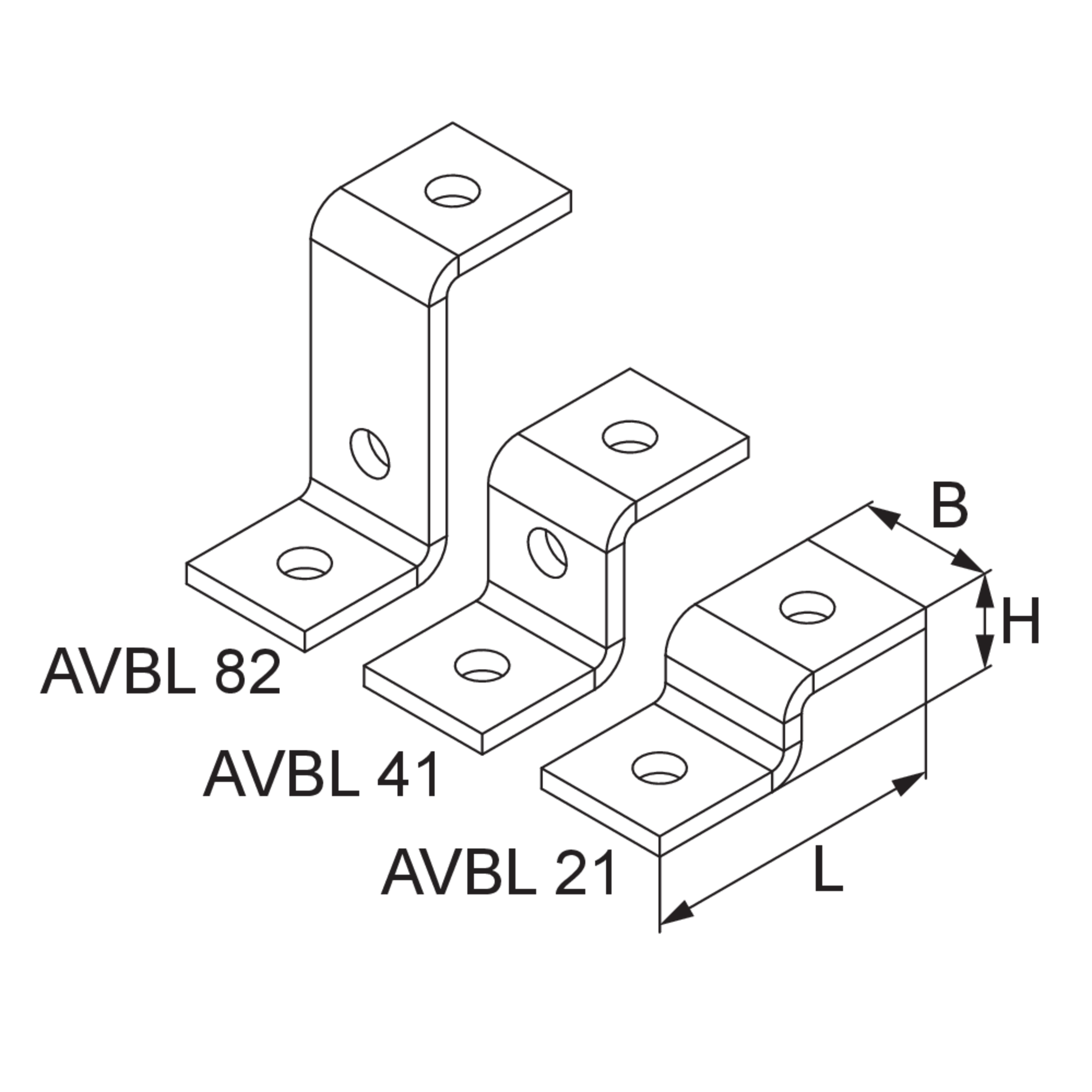

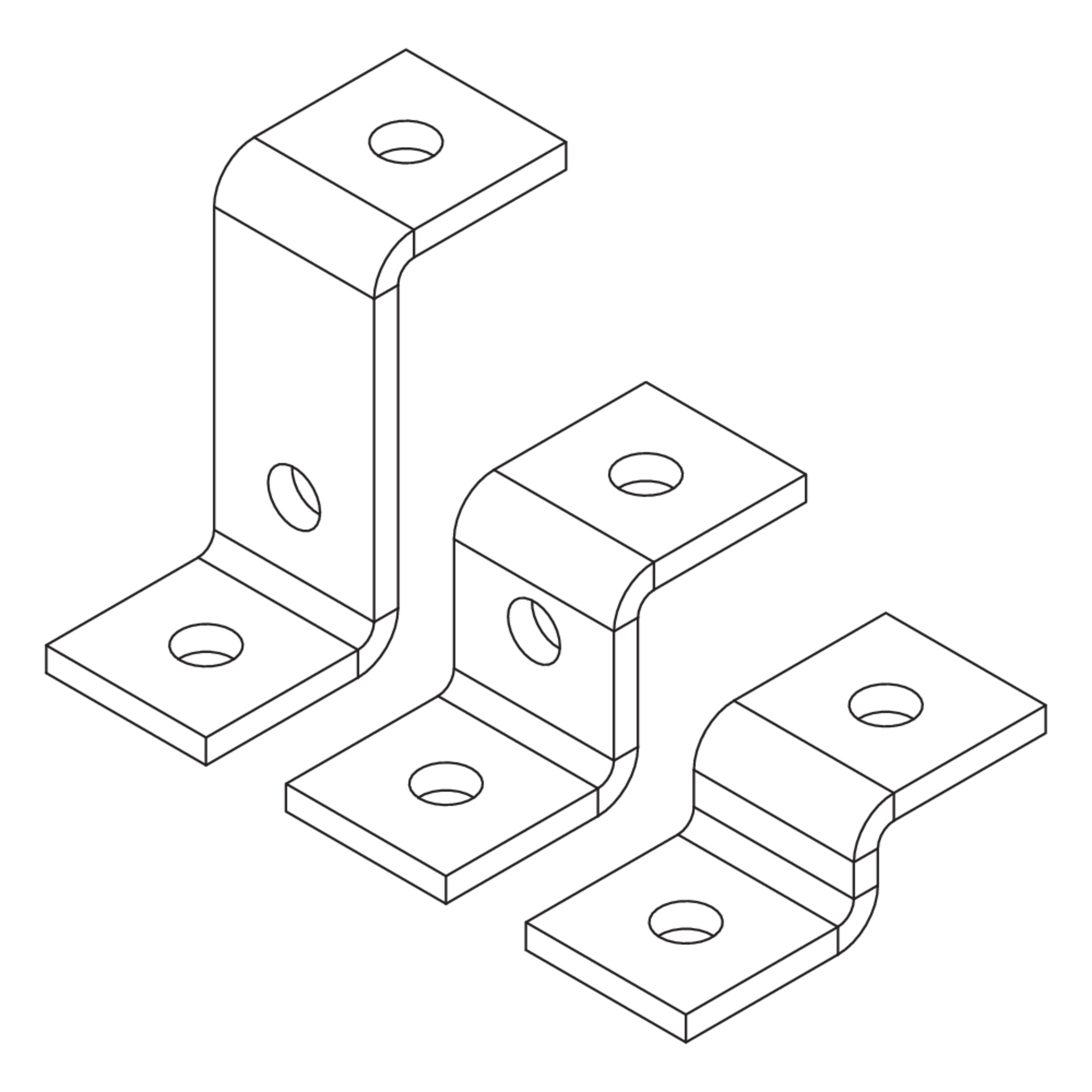

Variants

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

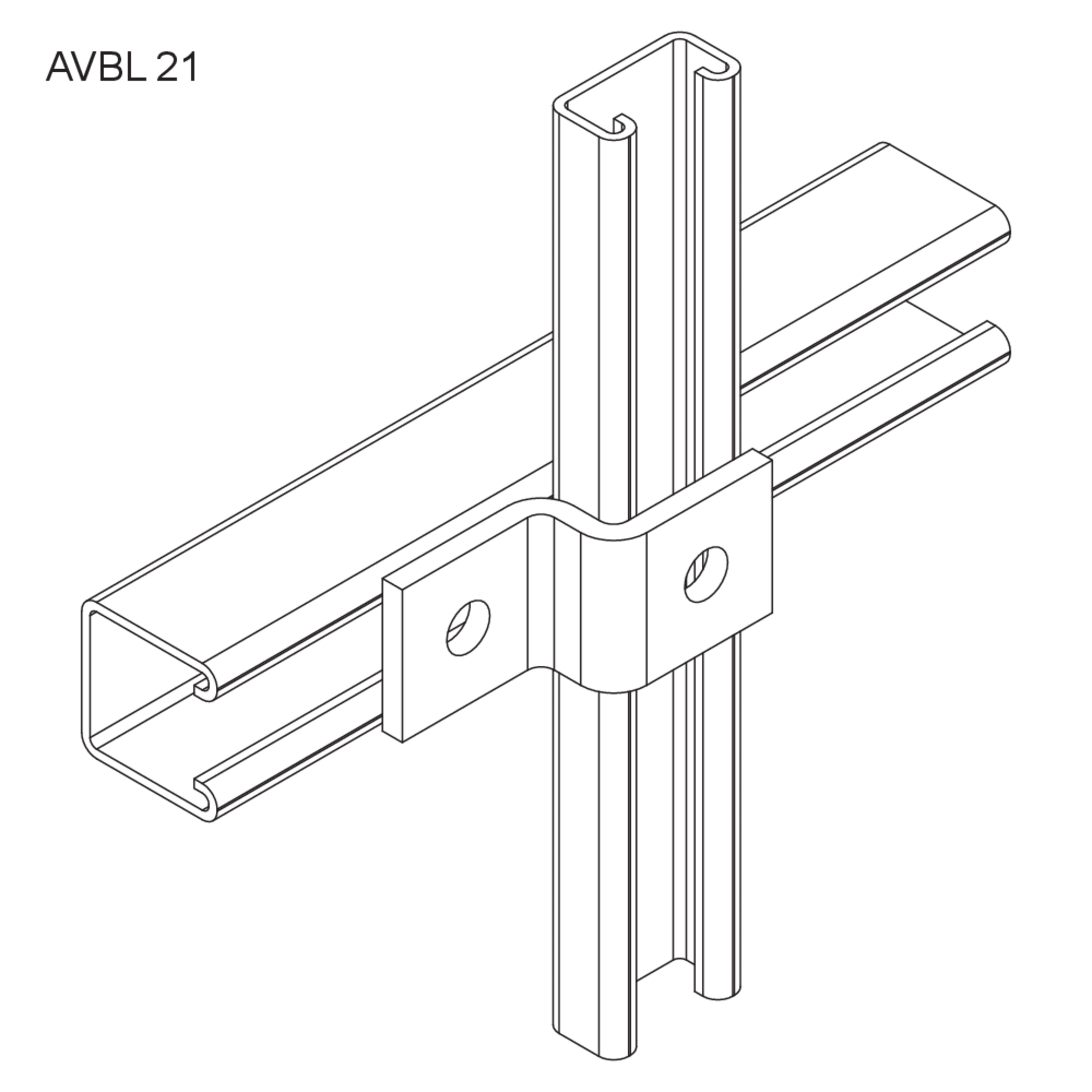

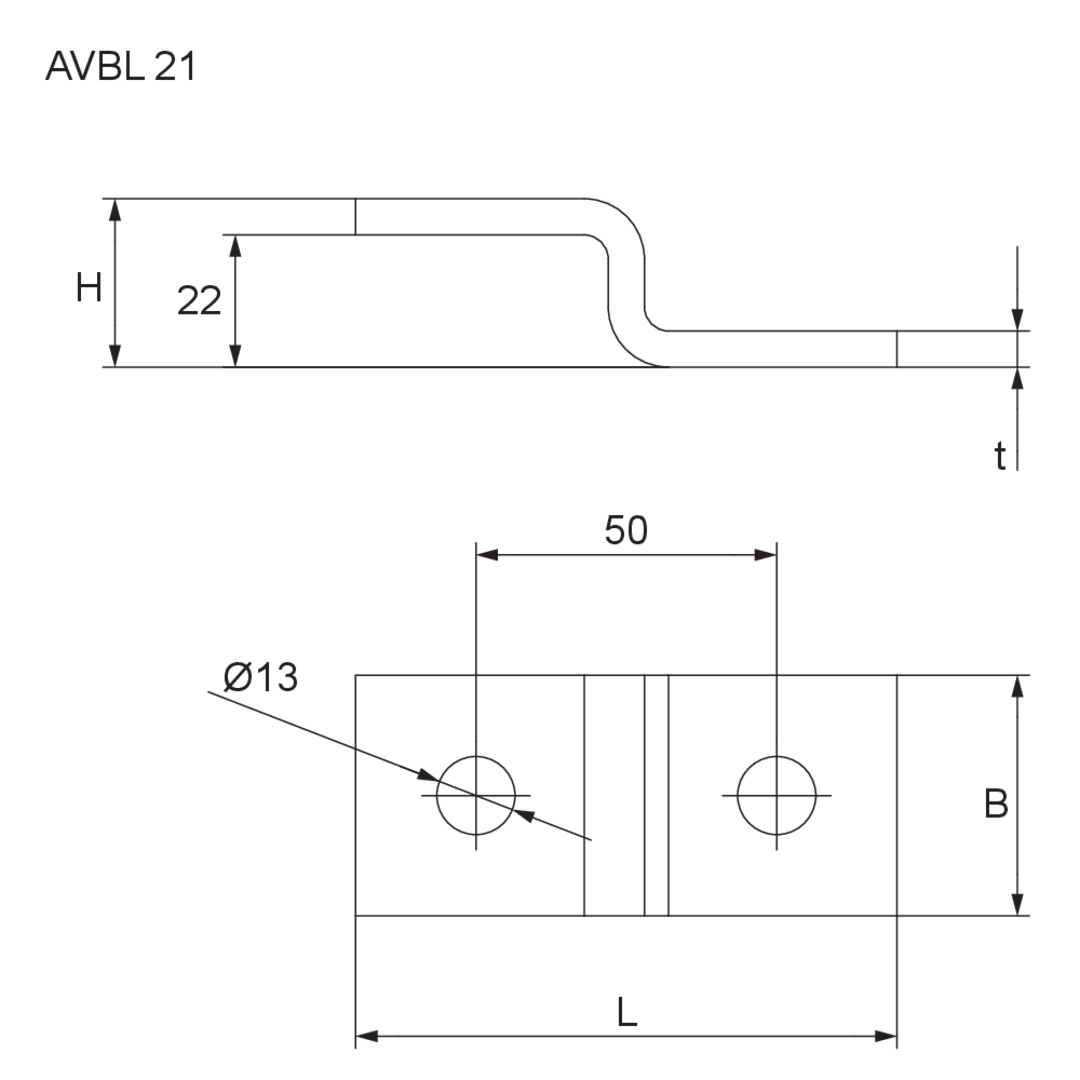

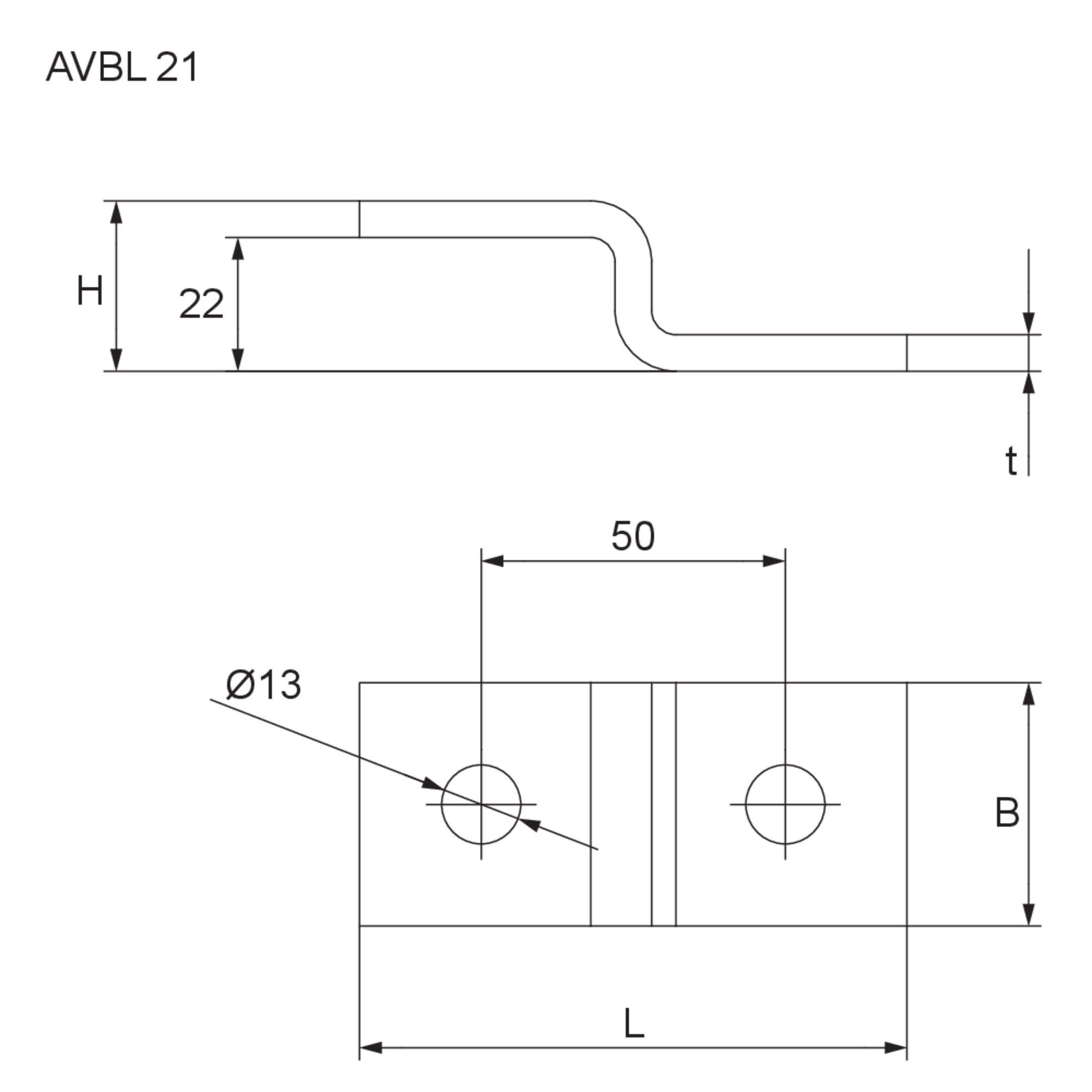

  • AVBL 21F
    Profile rail connector
    height
    28 mm
    width
    40 mm
    length
    90 mm
    material thickness
    6 mm
    Weight per storage unit
    0.190 kg
    More information

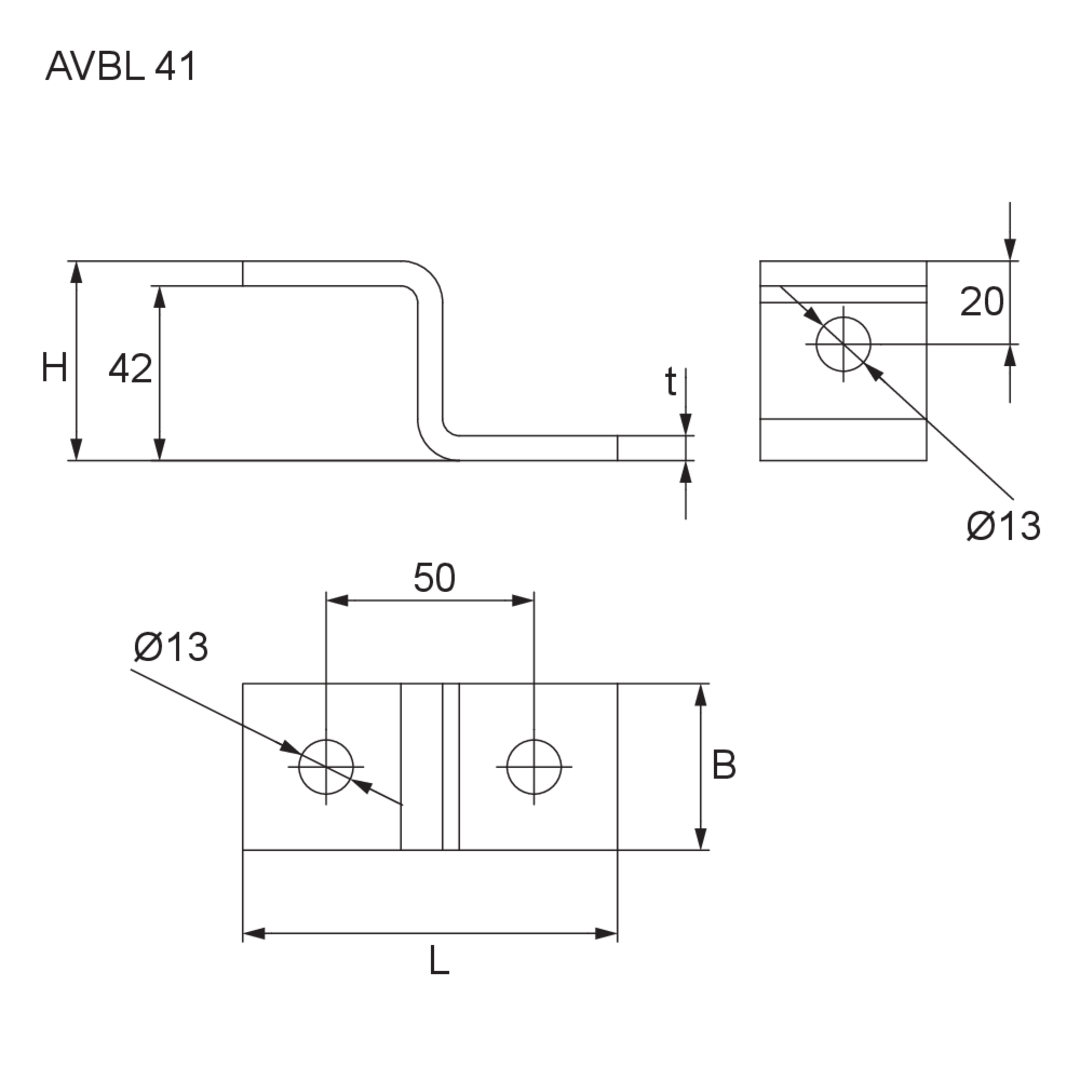

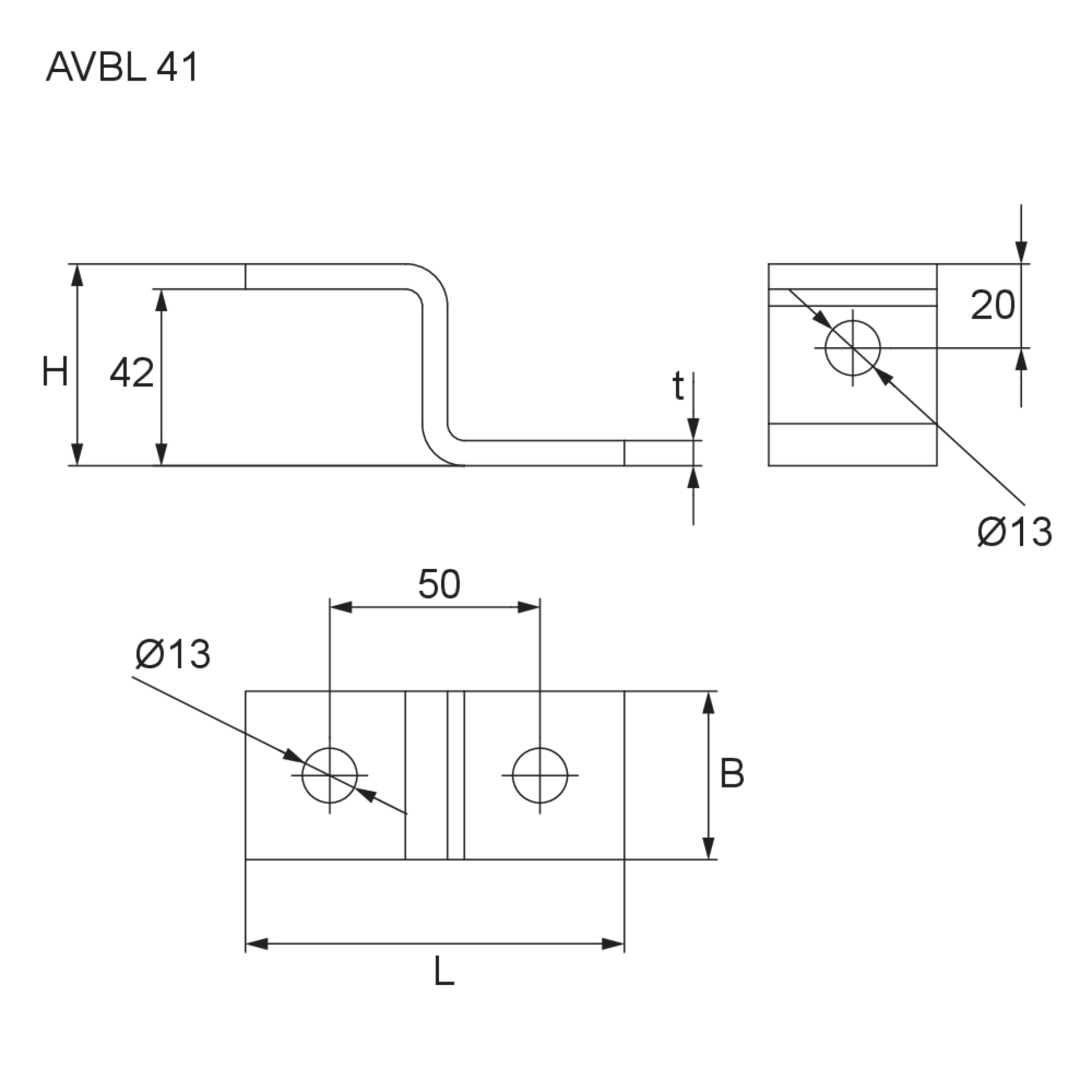

  • AVBL 41F
    Profile rail connector
    height
    48 mm
    width
    40 mm
    length
    90 mm
    material thickness
    6 mm
    Weight per storage unit
    0.220 kg
    More information

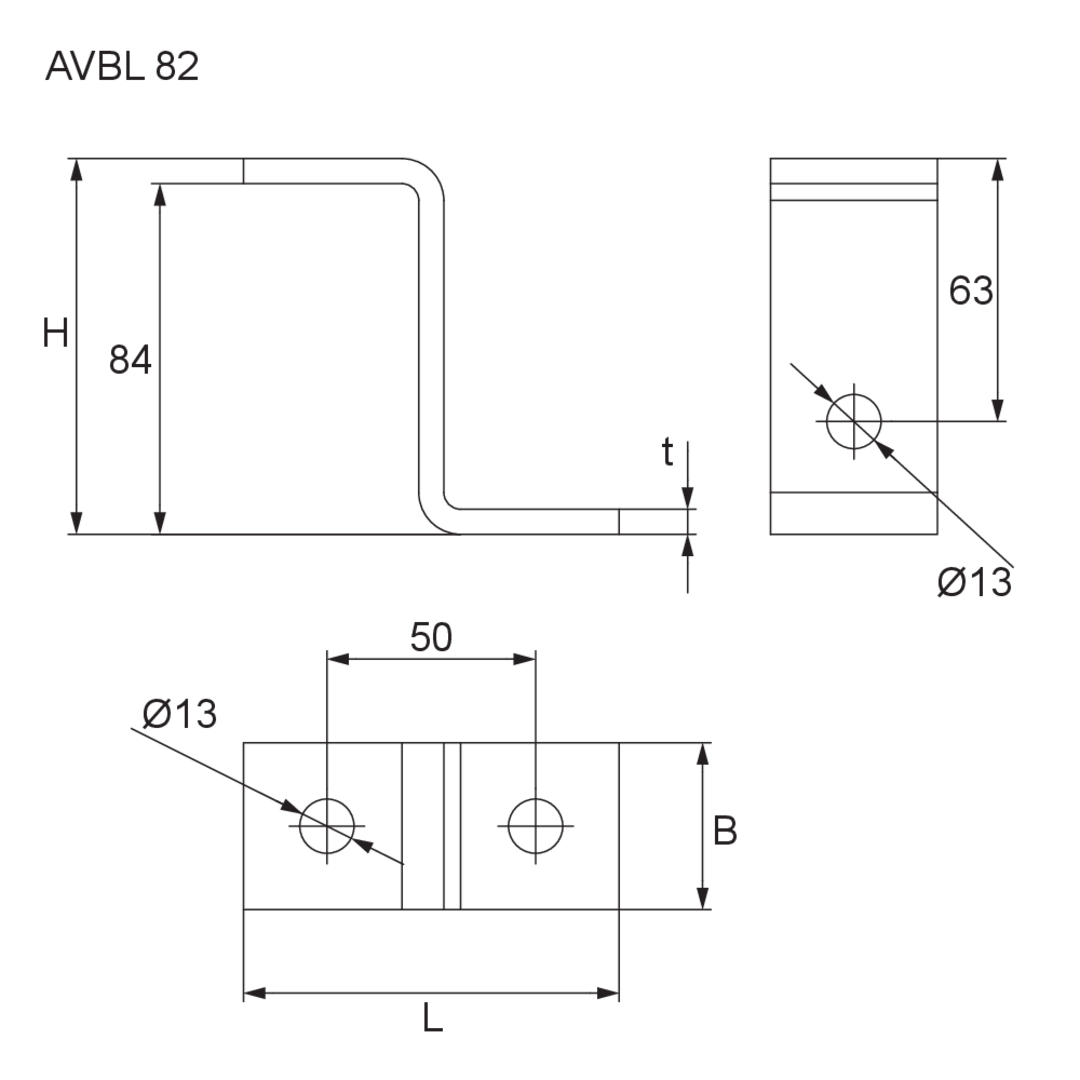

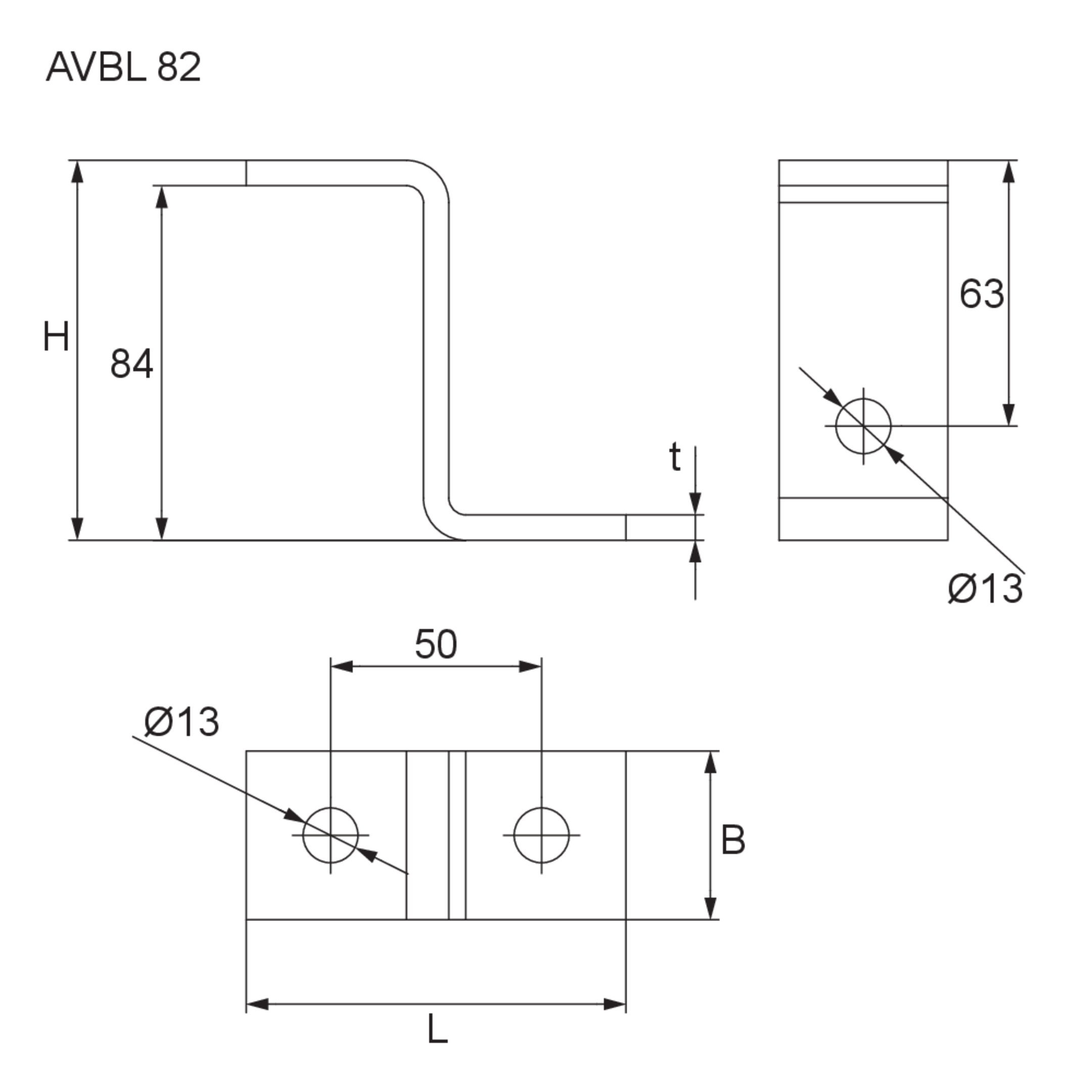

  • AVBL 82F
    Profile rail connector
    height
    90 mm
    width
    40 mm
    length
    90 mm
    material thickness
    6 mm
    Weight per storage unit
    0.310 kg
    More information
