STRUT mounting system

STRUT mounting system for flexible support systems in building services and industry

The STRUT mounting system is a globally proven mounting channel system for safe, stable and flexibly adaptable support structures. Thanks to continuously height-adjustable brackets, variable adjustment options and robust construction, the system is ideal for cable management systems, technical building equipment and industrial applications.

To the STRUT mounting system

Flexible mounting channel system with infinitely variable height adjustment

Variably adaptable, individually configurable and internationally established

The STRUT mounting system consists of C-profile mounting channels, bracket holders, brackets and head plates and is one of the most commonly used systems internationally. The perforated C+ profiles with a slot width of 22 mm allow the brackets to be mounted continuously on the channel, enabling flexible height adjustment.

All channels can be individually adapted: cut-to-size pieces and additional round and slotted holes are possible. This allows the mounting channel system to be tailored precisely to project-specific requirements. The STRUT system impresses with its versatile application possibilities and is suitable for almost all areas of technical building equipment.

To the STRUT mounting system

Technical features of the STRUT mounting system

  • C-profile mounting channels C+ and C60°
  • Slot width 22 mm
  • Infinitely height-adjustable brackets
  • Individually customisable channels (cuts, round and slotted holes)
  • Three surface coatings, two materials
  • Internationally proven mounting channel system
Galvanised steel mounting components for cable management systems with mounting rail, bracket, screw and yellow protective cap.

KDAG 41 bracket holder with integrated head plate, KA 41 and KA 30 stem bracket.

Stable support structure system for secure load bearing

Robust construction for cable trays, cable ladders and ceiling suspensions

The STRUT mounting system is designed for loads of up to 4.3 kN and offers a safe, stable and durable support structure. Bracket holders such as the KDAG 41 with integrated head plate or the KHA 41 profile with screwed-on BGA 41 head plate enable standard-compliant fastening in a wide variety of mounting situations.

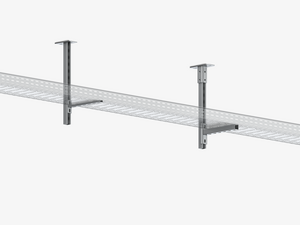

C-profile posts with KA 30 brackets are particularly suitable for ceiling suspension of Mesh cable trays and cable trays up to 400 mm wide. For larger tray widths up to 600 mm, posts with KA 41 brackets are used. The system ensures reliable load bearing combined with a high degree of flexibility.



Typical system components

  • KDAG 41 bracket holder with integrated head plate

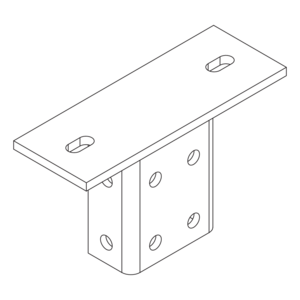

  • KHA 41 mounting channel with BGA 41 head plate

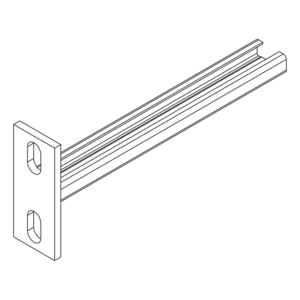

  • KA 30 bracket for panel widths up to 400 mm

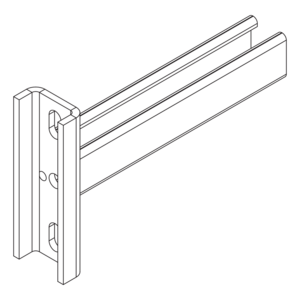

  • KA 41 bracket for panel widths up to 600 mm

STRUT mounting system for building services, industry and demanding environments

Flexible planning, durable materials and versatile applications

The STRUT mounting system is suitable for numerous areas of application – from technical building equipment on ceilings in indoor and outdoor areas to industrial and production halls to hygienically sensitive areas such as the chemical and food industries.

With three surface coatings and two materials, the system offers high corrosion resistance and durability. Complemented by planning, assembly, service and project-specific special solutions, the result is a safe, stable and flexibly adaptable mounting system for future-proof installations.

Selection from the STRUT mounting system

Expertise and quality – our performance promise

PohlCon supports you in the planning and implementation of efficient support structures with the STRUT assembly system. Benefit from well-designed components, flexible configuration options and our comprehensive service throughout your project.
